67H-85730-02-00 Yamaha Z200 Oil Level Gauge Assy | Genuine Used Part

🔧 Product Description

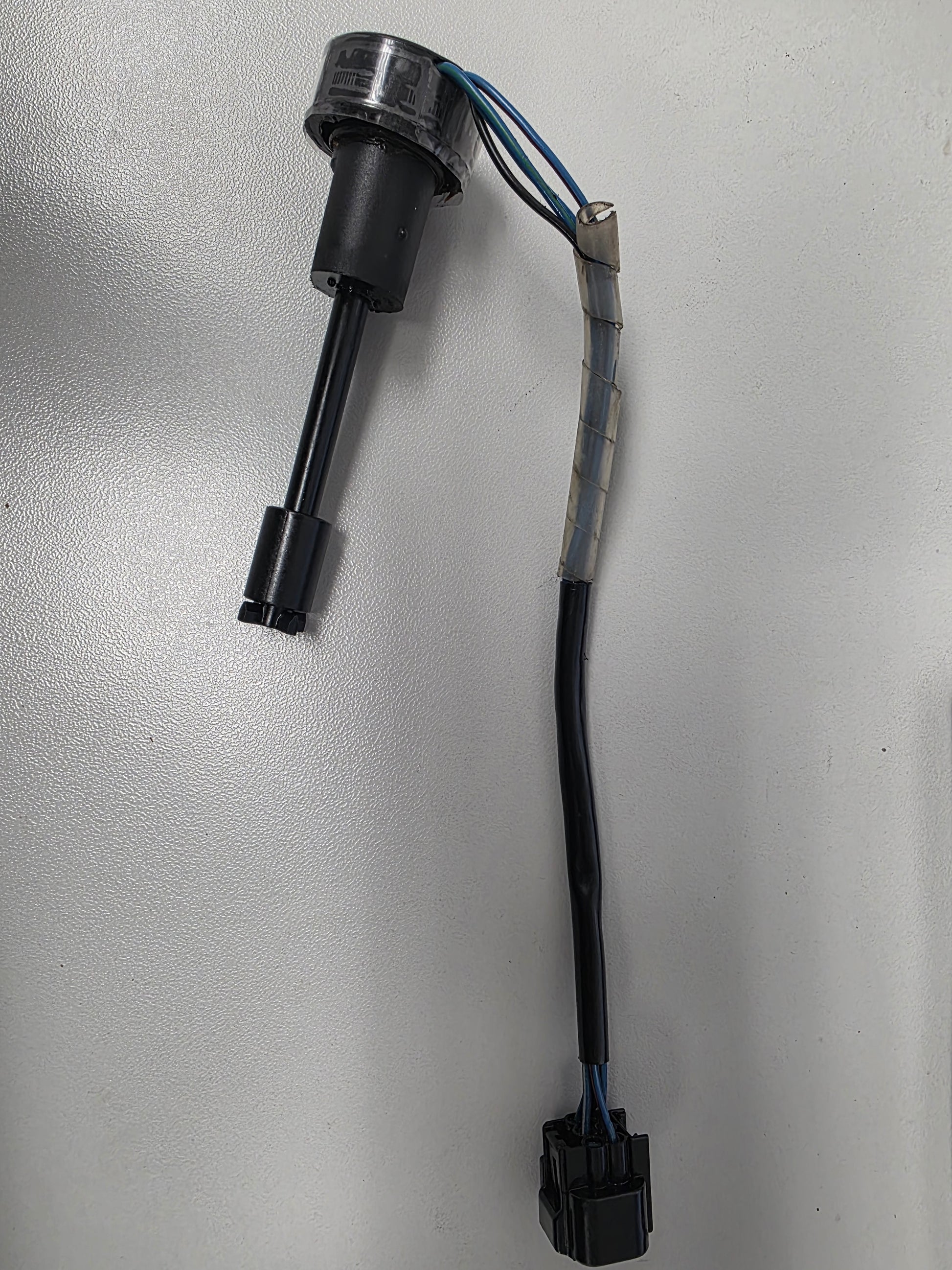

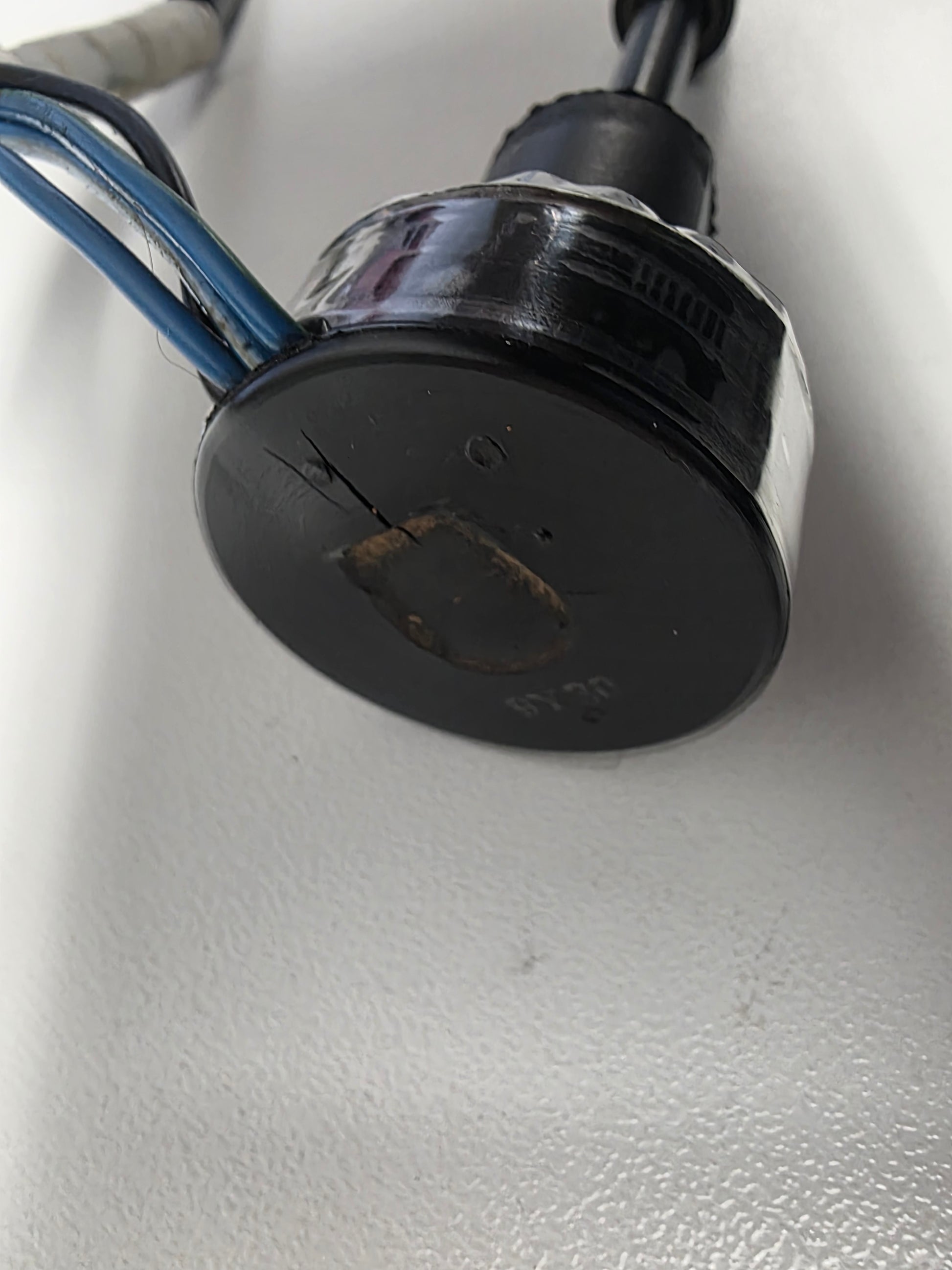

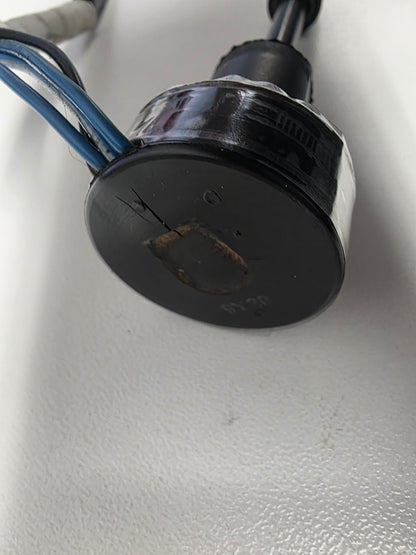

Genuine Yamaha HPDI Engine Oil Level Gauge and Sensor Assembly - Part Number: 67H-85730-02-00

A genuine used Yamaha oil-level gauge assembly for selected Z-series and VZ-series HPDI two-stroke outboard motors.

The assembly mounts in the engine-mounted oil reservoir and reports the oil level to the engine control and warning system. It also assists the automatic oil-transfer system in maintaining the required oil supply.

⚙️ Key Features

• Genuine used Yamaha HPDI oil-level sensor
• Current OEM part number 67H-85730-02-00
• Supersedes earlier 67H-series gauge assemblies
• Fits selected 150HP to 200HP HPDI engines
• Monitors the engine-mounted oil reservoir

🚤 Compatibility

Commonly used on

• Yamaha HPDI engine-mounted oil tanks
• Precision Blend automatic oil-transfer systems

Typically suits

• Engine models:
• Yamaha Z150 HPDI
• Yamaha VZ150 HPDI
• Yamaha Z175 HPDI
• Yamaha VZ175 HPDI
• Yamaha Z200 HPDI
• Yamaha VZ200 HPDI
• Yamaha LZ200 counter-rotation HPDI
• Model and serial groups specifying 67H-85730-02-00
• HP Range: Approximately 150HP - 200HP
• Engine Type: Yamaha V6 HPDI oil-injected two-stroke outboard
• Year Range: Approximately early-to-late 2000s

🔌 Function

The sensor detects the oil level within the engine-mounted tank and signals the control system to operate the remote oil-transfer pump or activate the low-oil warning and engine-protection strategy.

⚠️ Common Signs of Failure

• Engine oil tank does not refill automatically
• Remote oil pump runs continuously
• Low-oil warning remains active with a full tank
• Warning does not activate when oil is low
• Engine enters reduced-power mode incorrectly

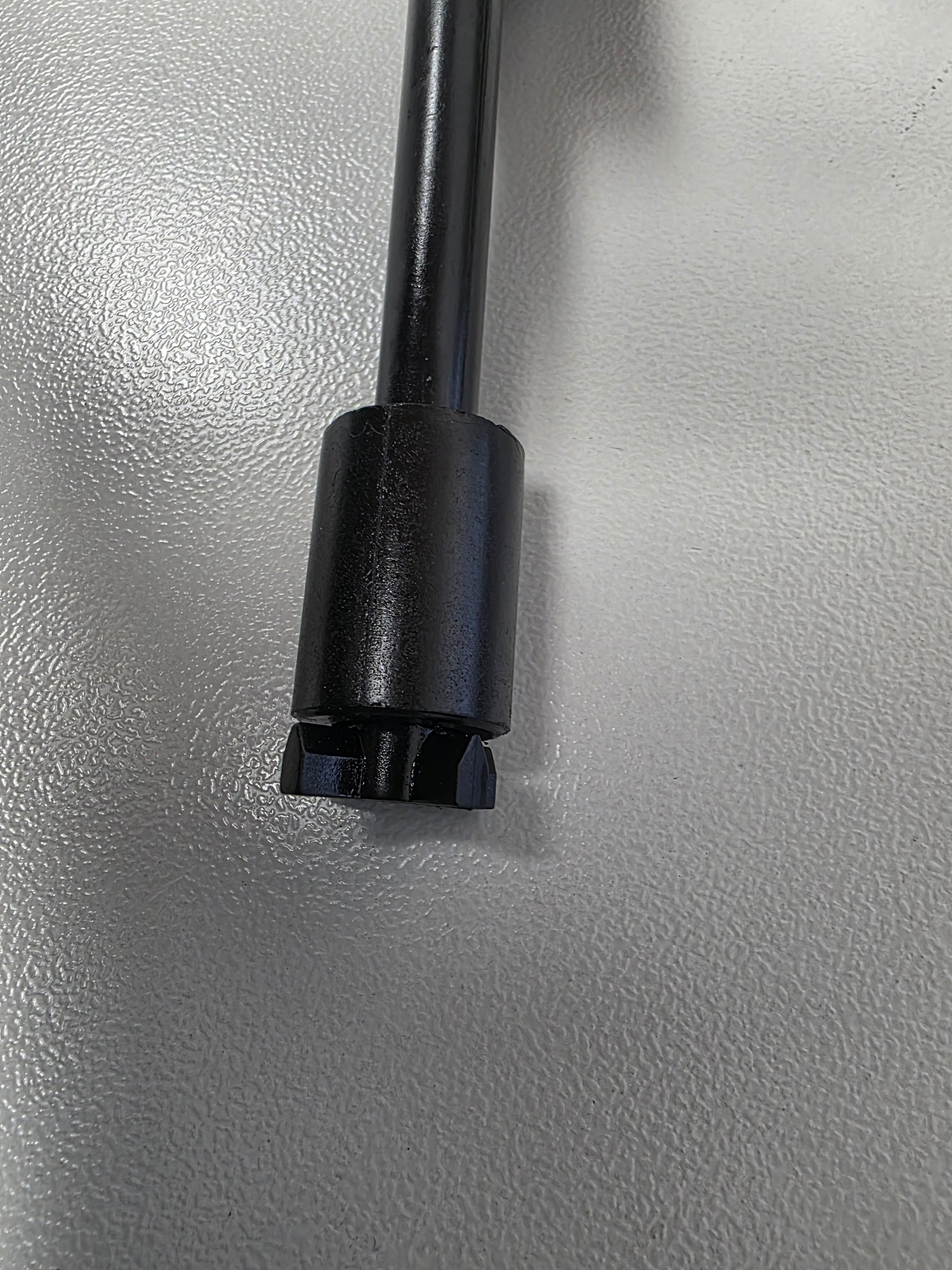

• Float mechanism sticks

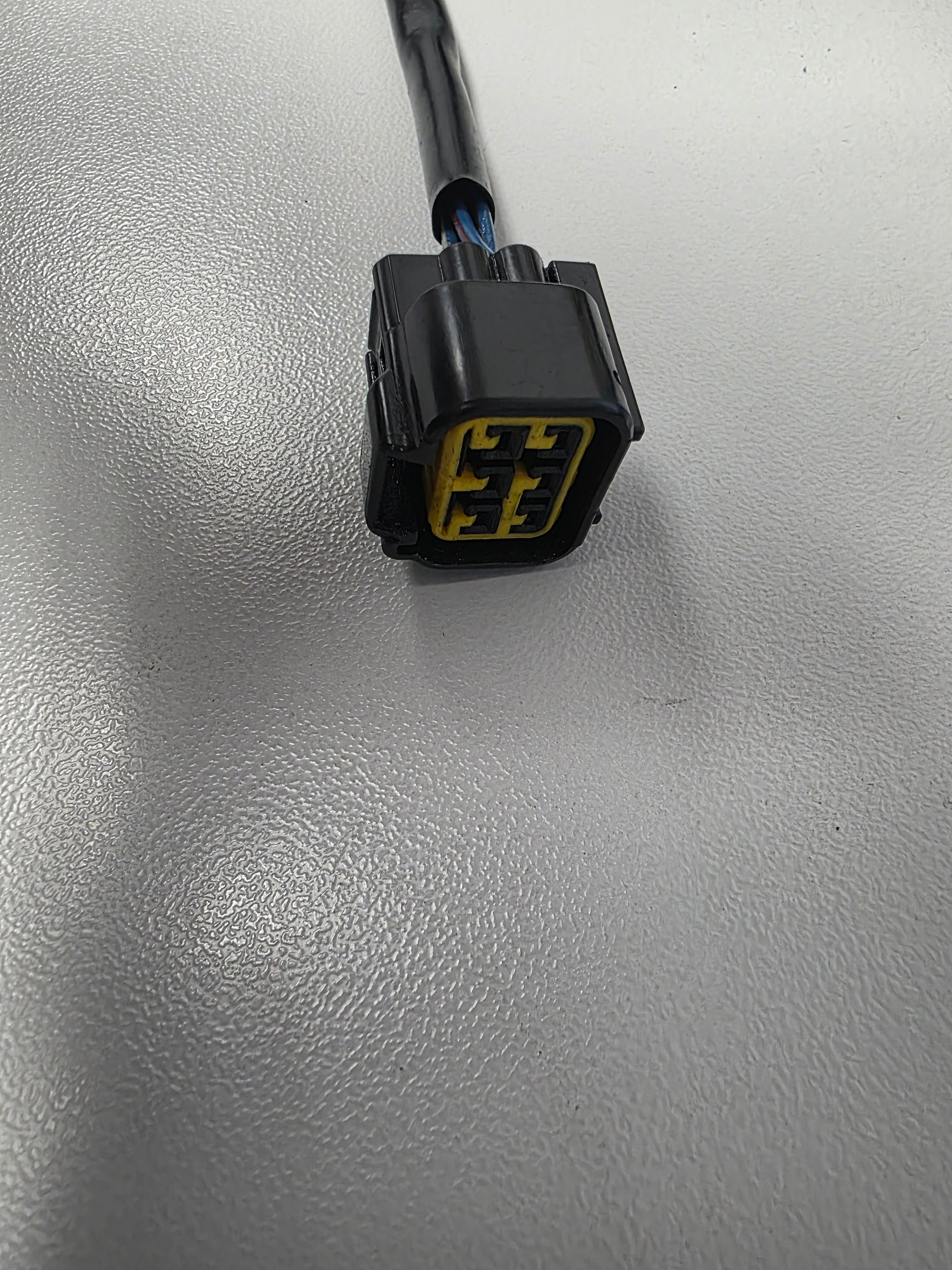

• Sensor wiring or connector is damaged
• Gauge resistance does not change with oil level

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 67H-85730-02-00 → Supersedes 67H-85730-01-00
• 67H-85730-01-00 → Supersedes 67H-85730-00-00
• 67H-85730-00-00 earlier oil-level-gauge reference

OEM / Related Numbers

• 67H-85730-02-00
• 67H857300200
• 67H-85730-01-00
• 67H-85730-00-00
• Related engine oil tank, oil-transfer pump and warning-control wiring

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
