688-43160-01-00 Yamaha Tilt Rod Assembly | Genuine Used Part

688-43160-01-00 Yamaha Tilt Rod Assembly | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$15.00 AUD
$30.00 AUD $15.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

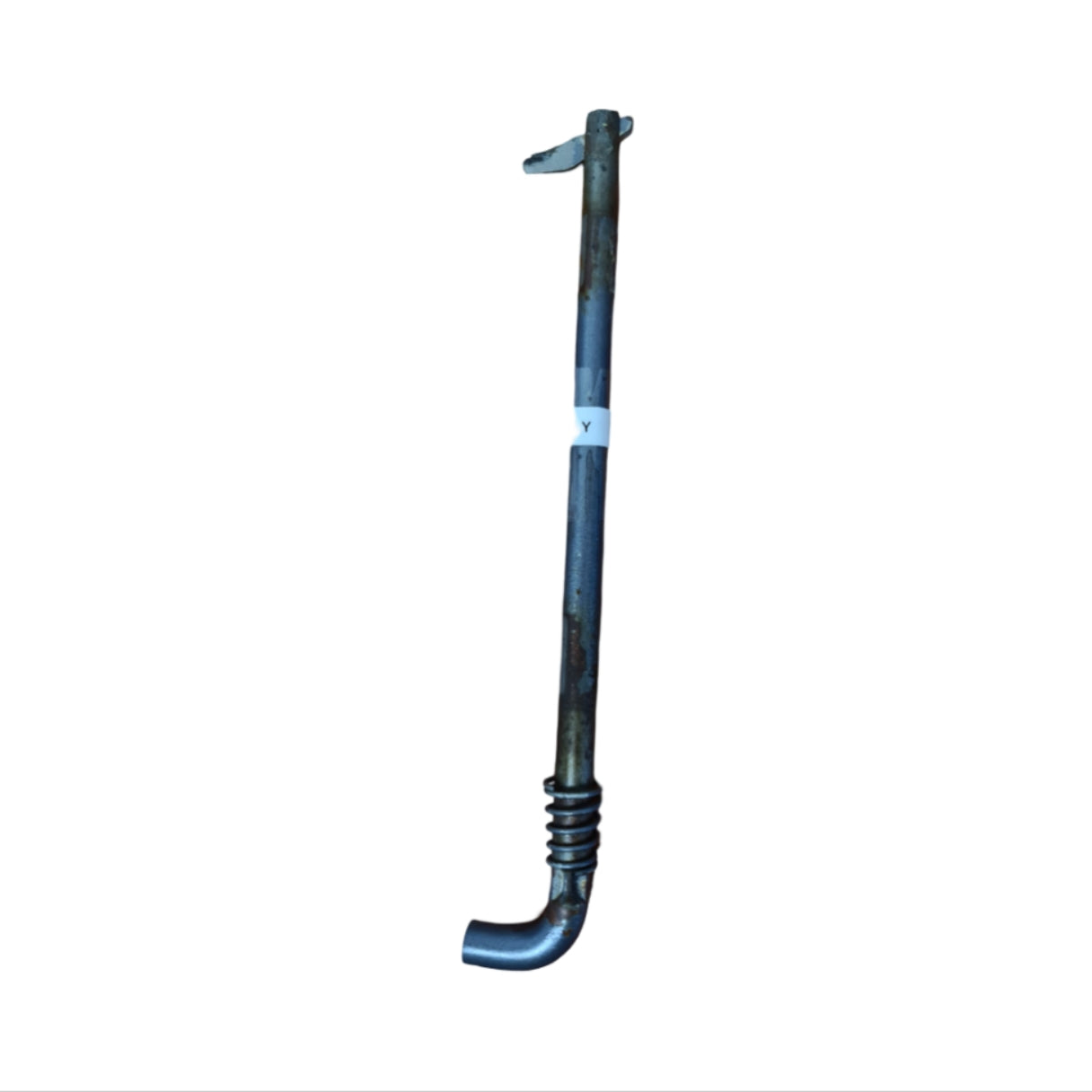

Genuine Yamaha Manual Tilt Rod Assembly - Part Number: 688-43160-01-00

A genuine Yamaha mechanical tilt rod assembly used on selected 40HP to 60HP two-stroke and four-stroke outboards. The rod fits through the clamp-bracket tilt holes and establishes the engine's minimum running angle on manual or mechanically limited trim systems.

⚙️ Key Features

  • Genuine Yamaha OEM tilt rod assembly
  • Current part number 688-43160-01-00
  • Supersedes / replaces 688-43160-00-00
  • Mechanical trim-in and tilt-stop component
  • Used on selected 40HP, 50HP, 55HP and 60HP platforms

🚤 Compatibility

Commonly used on

  • Yamaha manual-tilt and mechanically limited clamp brackets
  • Two-stroke and four-stroke midsections using the 688 tilt rod

Typically suits

  • Engine models:
  • Yamaha C40 and 40HP two-stroke model families
  • Yamaha P50 / C50 / 50TLR
  • Yamaha C55 and 55HP applications
  • Yamaha P60 / C60 / 60HP model families
  • Yamaha F50 and T50 four-stroke applications
  • Representative 1997 P60TLHV
  • Representative 1998 F50TLRW
  • Representative 2000 C60TLRY
  • Representative 2008 50TLR
  • HP Range: Commonly 40HP - 60HP
  • Engine Type: Yamaha two-stroke and four-stroke outboard
  • Year Range: Approximately 1984-2009

🔌 Function

The rod provides a mechanical stop between the clamp brackets. Its selected hole position controls how far the engine can trim toward the transom and supports manual tilt positioning.

⚠️ Common Signs of Failure

  • Rod bent or missing
  • Corroded into the bracket
  • Worn or damaged adjustment holes
  • Engine trims too far inward
  • Rod will not slide through both brackets
  • Retaining hardware missing

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 688-43160-01-00 → Supersedes 688-43160-00-00
  • 688-43160-00-00 earlier OEM tilt-rod reference

OEM / Related Numbers

  • 688-43160-01-00
  • 688-43160-00-00
  • Yamaha clamp-bracket tilt-hole hardware
  • Related tilt-stop levers and bracket bushes

Aftermarket / Verified Equivalents

  • Aftermarket: 688-43160-00 / 688-43160-01 replacement tilt rod assembly

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
