688-45930-02-98 688-45930-02-00 Yamaha K Series 13 x 17 RH Stainless Steel Propeller – 15 Spline | Genuine Used Part

🔧 Product Description

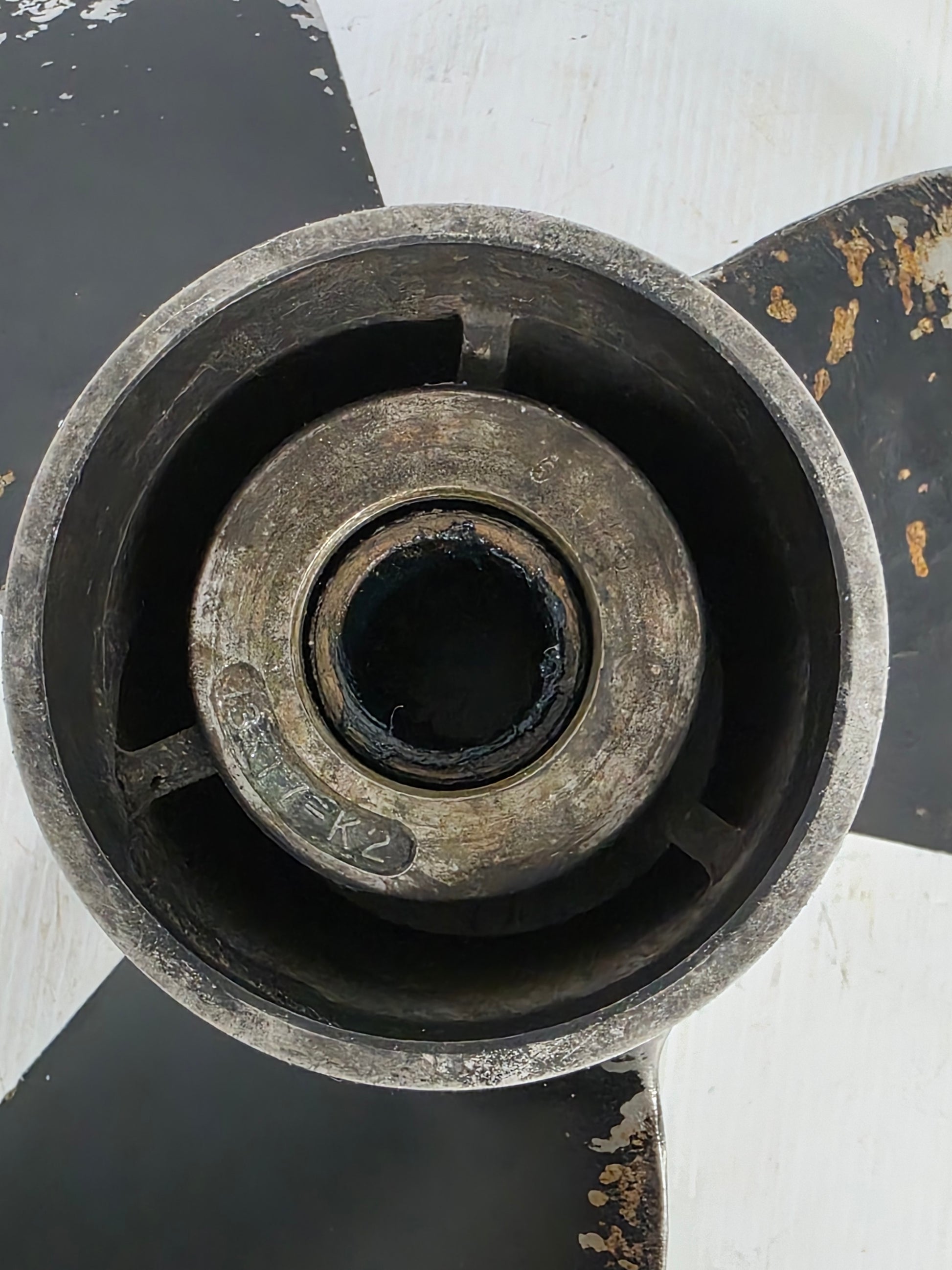

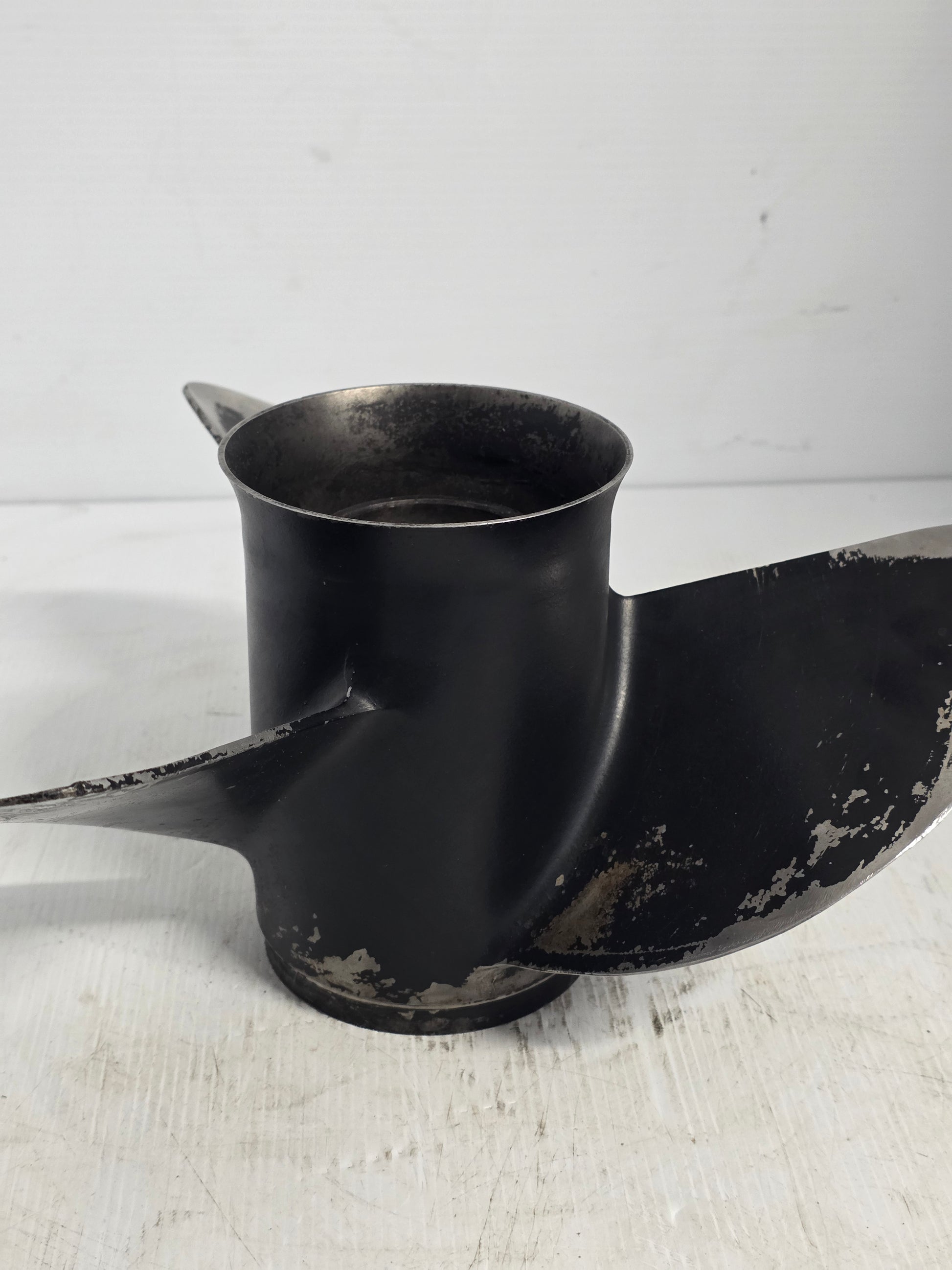

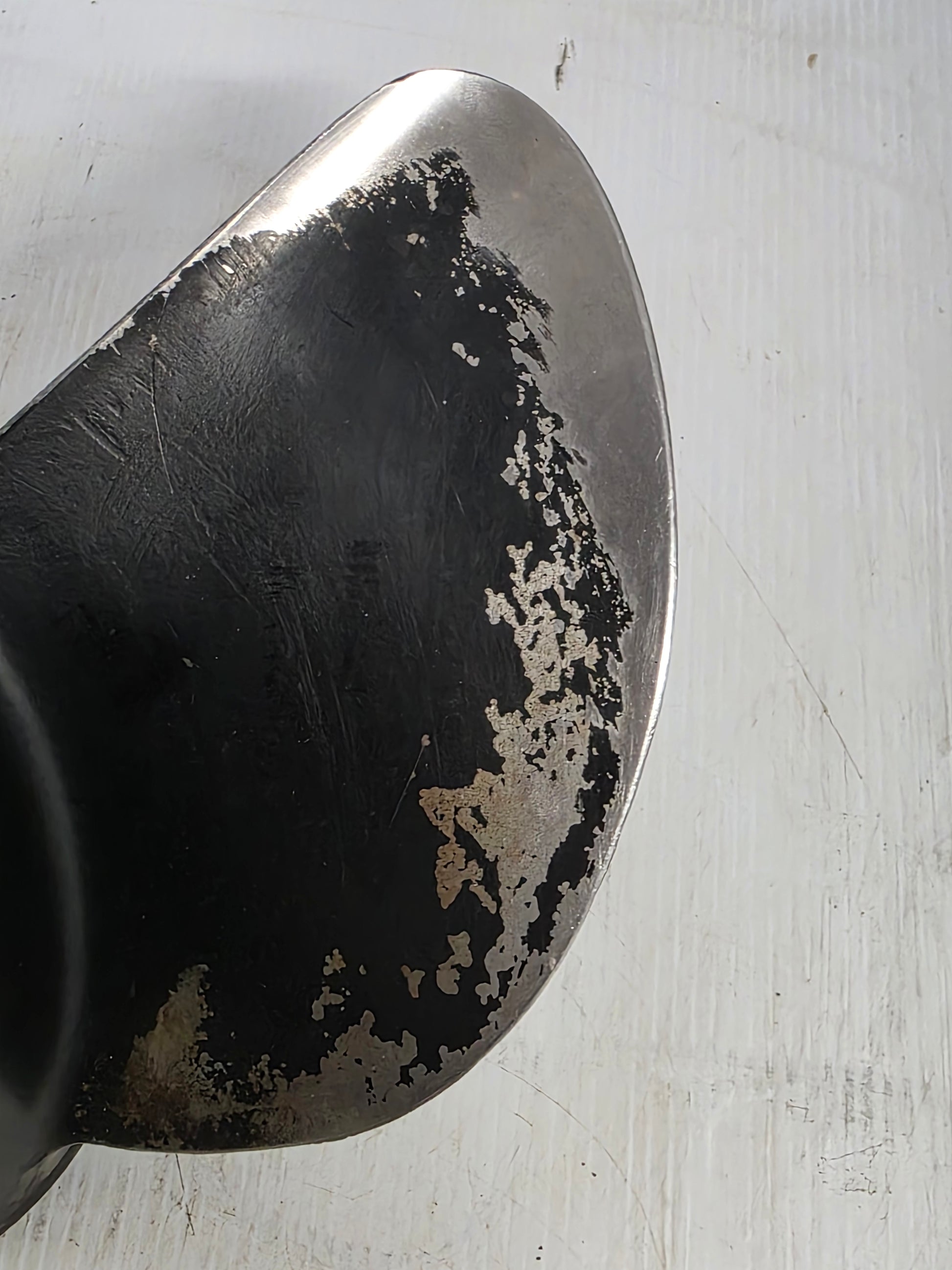

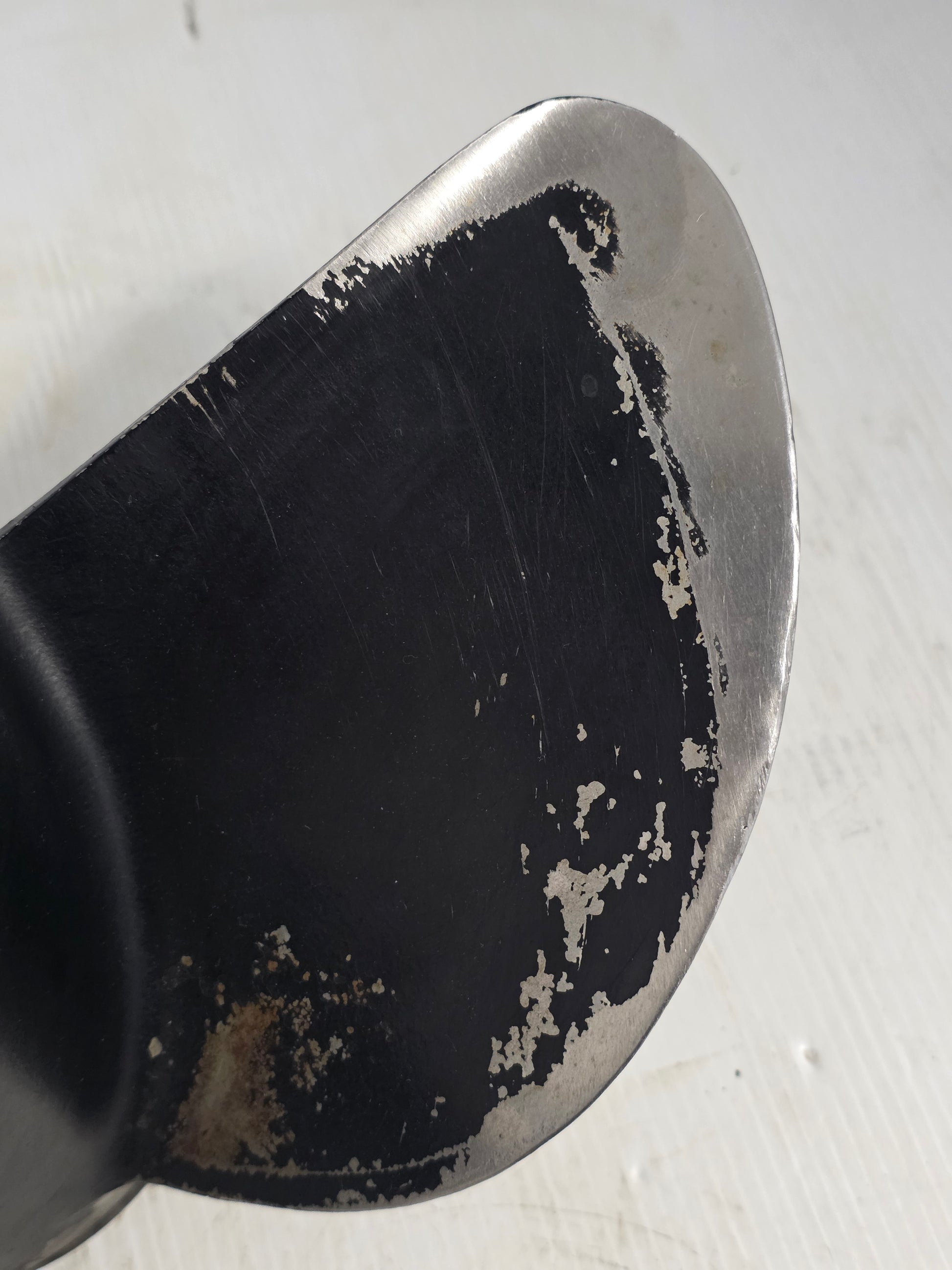

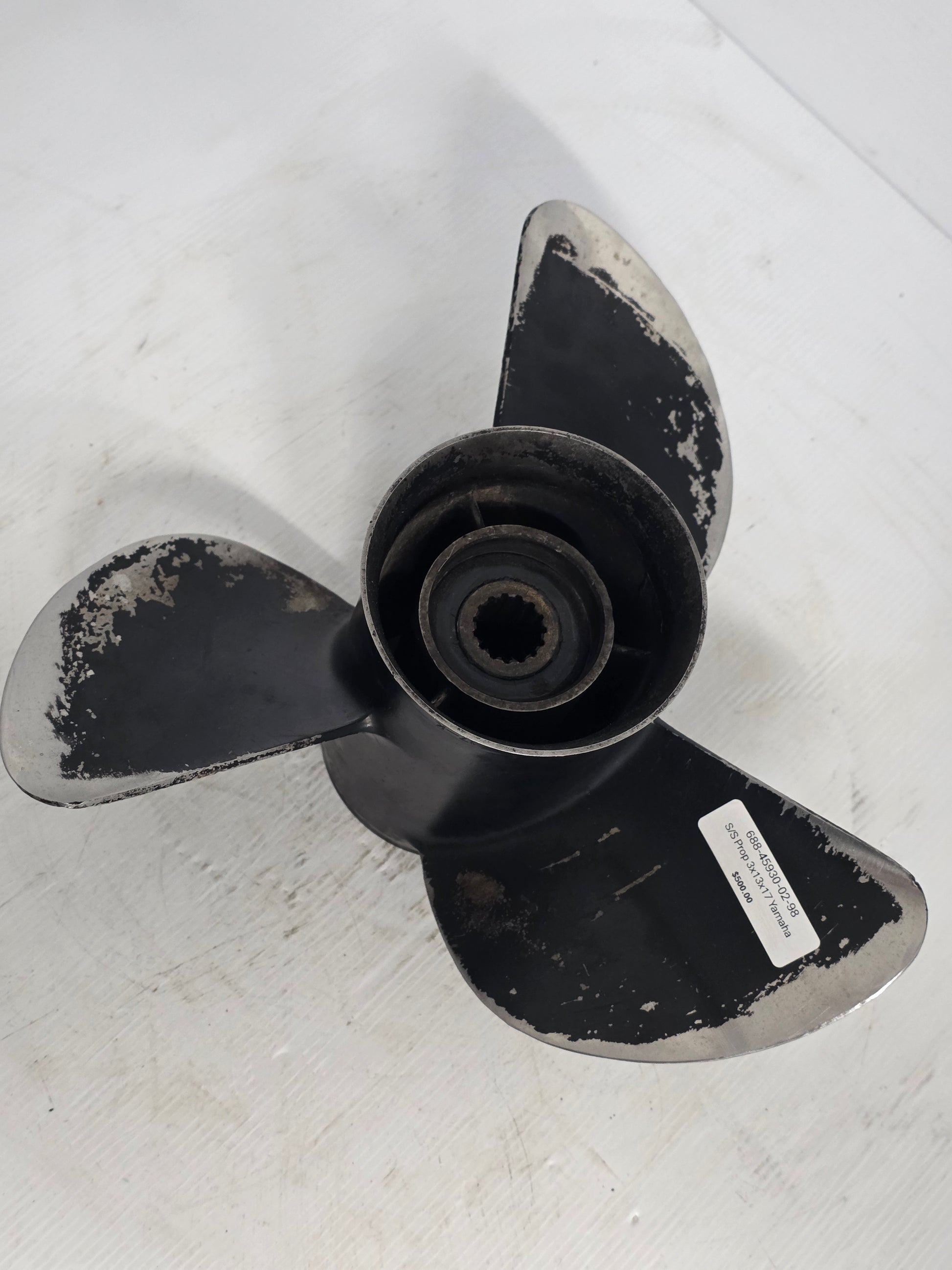

Genuine Yamaha K Series 13 x 17 Right-Hand Stainless Steel Propeller - Part Number: 688-45930-02-98 / 688-45930-02-00

A genuine used Yamaha K Series three-blade right-hand black-painted stainless-steel propeller for mid-range Yamaha outboards using the 4 1/4-inch 15-spline gearcase.

The K Series blade and hub package is designed for T50/T60 high-thrust, F70-F115 and selected 60HP-130HP gearcases. Its 17-inch pitch is suited to lighter planing boats capable of carrying the pitch while maintaining the specified wide-open-throttle RPM.

⚙️ Key Features

• Genuine Yamaha Marine K Series propeller
• 13-inch diameter x 17-inch pitch
• Three-blade painted stainless-steel construction
• Right-hand rotation with pressed 15-spline hub
• Designed for Yamaha 4 1/4-inch mid-range gearcases

🚤 Compatibility

Commonly used on

• Yamaha K-series 4 1/4-inch mid-range outboard gearcases
• Standard right-hand installations requiring 17 inches of pitch

Typically suits

• Engine models:
• Yamaha T50 and T60 high-thrust four-stroke models using the K-series 4 1/4-inch gearcase
• Yamaha F70 four-stroke
• Yamaha F75 and F80 four-stroke
• Yamaha F90 and F100 four-stroke
• Yamaha F115 four-stroke
• Yamaha VF90 and VF115 V MAX SHO
• Selected Yamaha 60HP-130HP two-stroke models using the K-series 15-spline gearcase
• Final propeller selection is controlled by gearcase, rotation, boat load and achieved wide-open-throttle RPM
• HP Range: 50HP high-thrust and approximately 60HP - 130HP
• Engine Type: Yamaha two-stroke or four-stroke outboard with K-series 15-spline gearcase
• Year Range: Approximately 1980s onward, model and gearcase controlled

🔌 Function

The propeller converts engine torque into thrust. Stainless blades resist flex under load, while 17 inches of pitch favours efficient cruising and potential speed on a correctly matched hull.

⚠️ Common Signs of Failure

• Blades are bent, chipped, cracked or out of track
• The hub slips and engine RPM rises without matching boat speed
• Propeller vibration increases with engine speed
• Cavitation, ventilation or poor acceleration develops after impact damage
• Hub splines, thrust faces or retaining surfaces are worn or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 688-45930-02-00 current Yamaha production reference
• 688-45930-02-98 earlier finish / packaging suffix reference

OEM / Related Numbers

• 688-45930-02-98
• 688-45930-02-00
• 688459300298
• 688459300200
• Yamaha K Series 13 x 17 stainless-steel propeller

Aftermarket / Verified Equivalents

• Solas New Saturn: 3431-130-17 - 13 x 17 stainless-steel Yamaha K-series alternative
• Solas Rubex NS3: 9431 / 9531 17-pitch body with RBX-208 Yamaha mid-range hub
• Michigan Wheel Apollo: 13 x 17 stainless-steel modular-hub alternative
• Yamaha K Series 13 x 17 aluminium propeller - lower-cost material alternative

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
