688-82560-10-00 Yamaha Thermo Switch 115HP | Genuine Used Part

688-82560-10-00 Yamaha Thermo Switch 115HP | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$12.50 AUD
$25.00 AUD $12.50 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

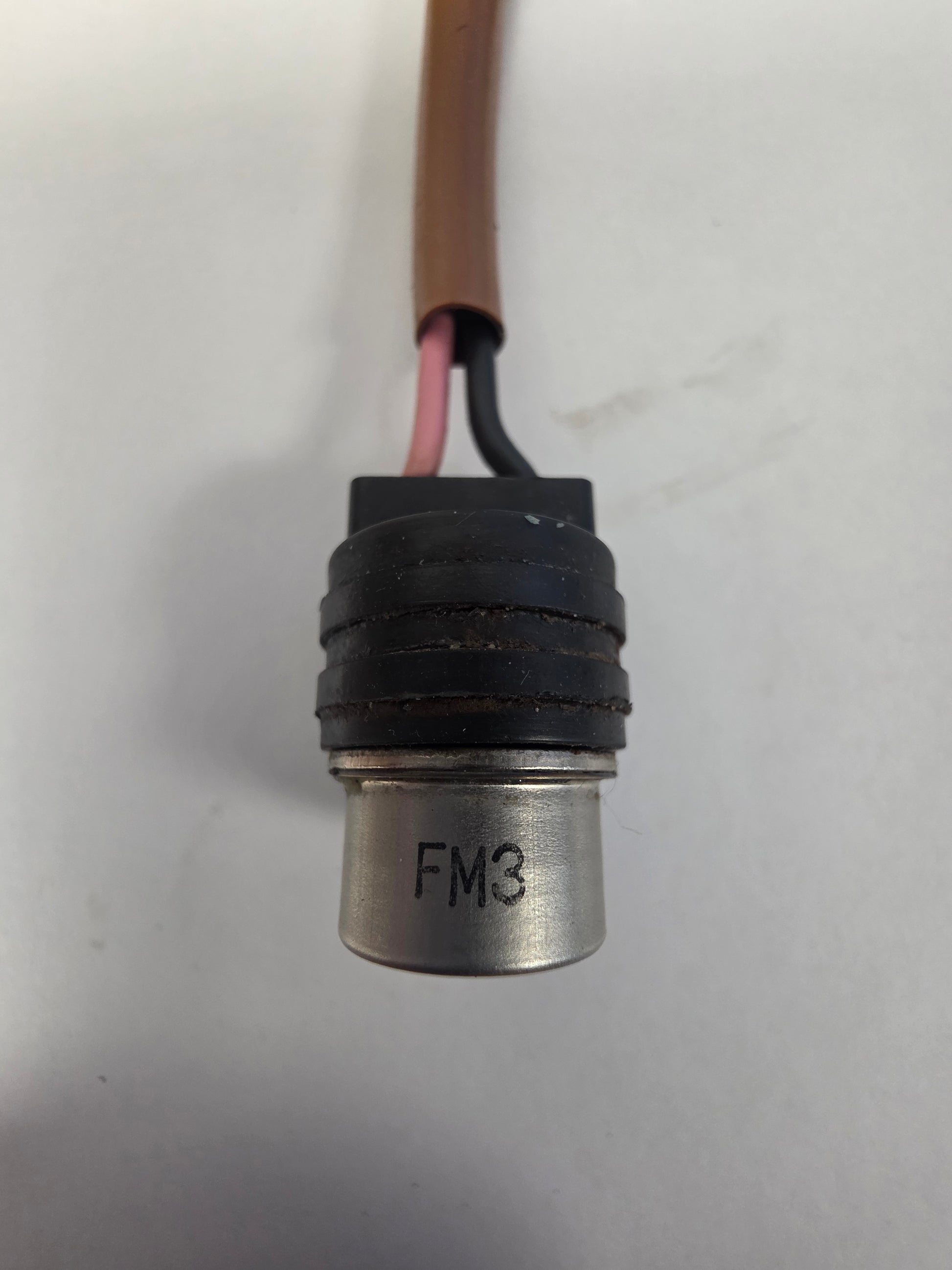

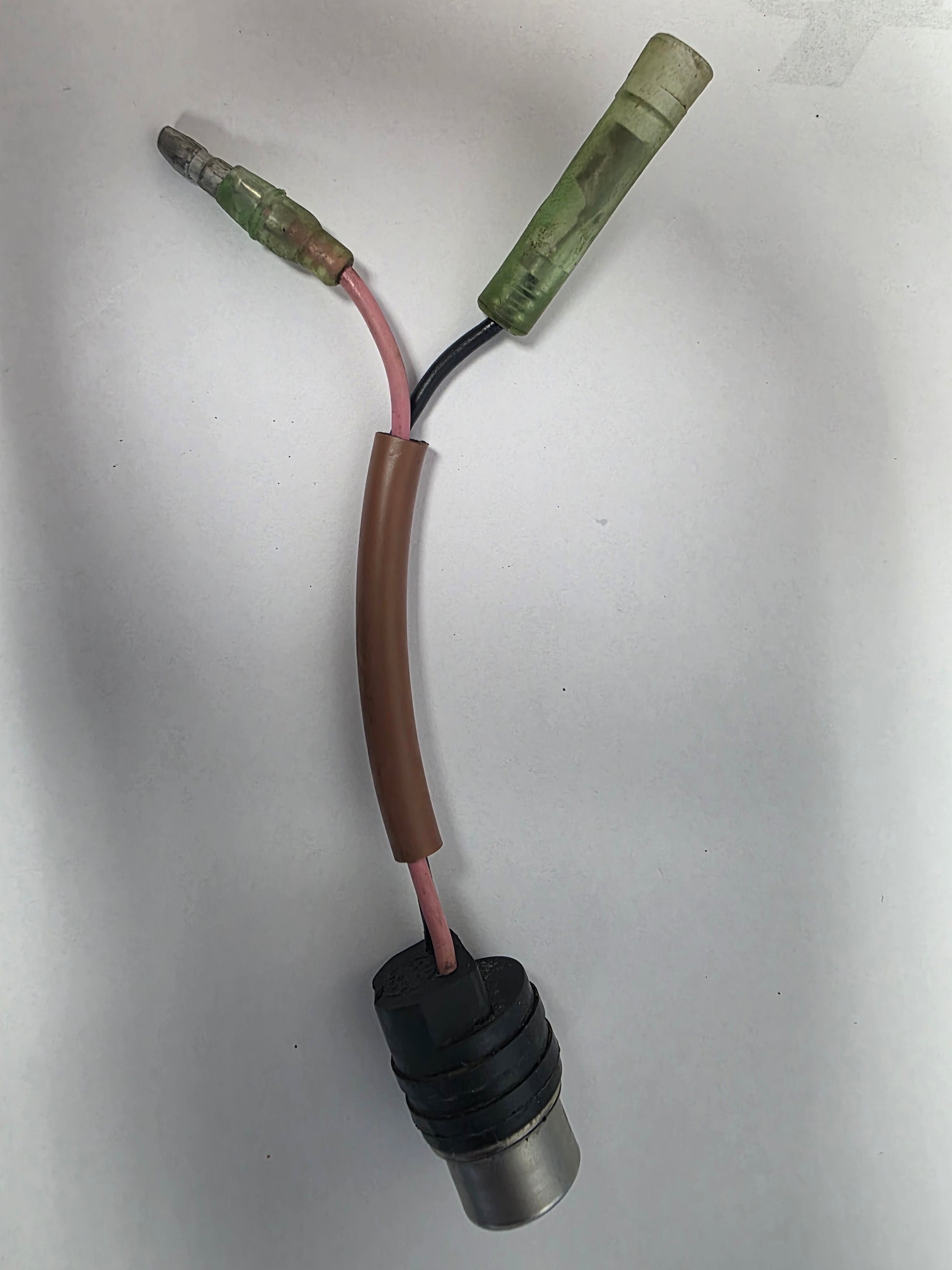

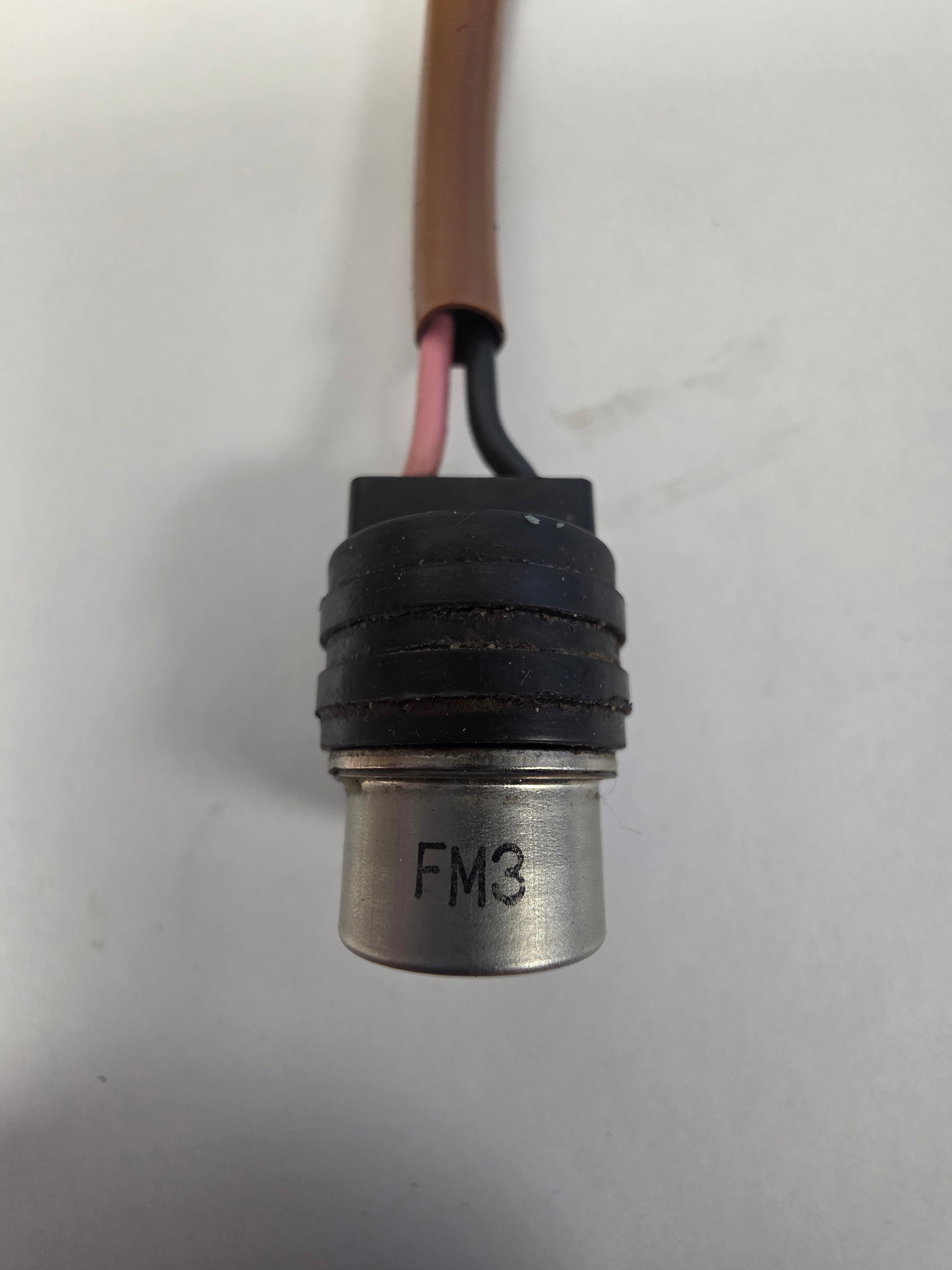

Genuine Yamaha Engine Overheat Thermo Switch Assembly - Part Number: 688-82560-10-00

A genuine used Yamaha temperature-operated warning switch for selected two-stroke outboard motors.

The switch is fitted to the cylinder head or cooling passage and closes or opens the overheat-warning circuit when engine temperature reaches its calibrated limit.

⚙️ Key Features

  • Genuine used Yamaha thermo switch
  • Correct OEM part number 688-82560-10-00
  • Used on selected inline, V4 and V6 two-stroke engines
  • Activates the overheat warning and protection system
  • Simple temperature-operated on-or-off switch

🚤 Compatibility

Commonly used on

  • Yamaha two-stroke cylinder-head overheat-warning systems
  • Carburetted, EFI and selected HPDI engines

Typically suits

  • Engine models:
  • Yamaha 70HP and 75HP two-stroke
  • Yamaha 85HP and 90HP two-stroke
  • Yamaha 115HP and C115 two-stroke
  • Yamaha 130HP two-stroke
  • Yamaha 150HP, 175HP and 200HP V6 two-stroke
  • Yamaha 225HP V6 two-stroke
  • Selected HPDI models where switch 688-82560-10-00 is specified
  • 1986 Yamaha 115ETJ
  • 1987-1988 Yamaha 115HP and 130HP models
  • Later 115TLR applications
  • HP Range: Approximately 70HP - 225HP
  • Engine Type: Yamaha two-stroke outboard
  • Year Range: Approximately 1980s through the 2000s

🔌 Function

The switch monitors metal or coolant temperature at the cylinder head. When the calibrated temperature is reached, it activates the audible alarm and applicable engine-speed-reduction circuit.

⚠️ Common Signs of Failure

  • Overheat alarm remains active when the engine is cold
  • Alarm does not operate during an overheating condition
  • Engine enters speed reduction intermittently
  • Switch fails hot-water continuity testing
  • Wiring insulation is damaged
  • Connector terminals are corroded
  • Switch is not seated correctly against the cylinder head

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 688-82560-10-00 current long-running Yamaha thermo-switch reference
  • 688-82560-10 shortened service reference

OEM / Related Numbers

  • 688-82560-10-00
  • 688825601000
  • 688-82560-10
  • Related thermo-switch grommet, retaining plate and warning harness
  • Related overheat buzzer and engine-speed-reduction circuit

Aftermarket / Verified Equivalents

  • FridayParts: replacement thermo switch for 688-82560-10-00
  • SAIL MARINE: replacement 688-82560-10 thermo switch
  • WATERLONG: replacement 688-82560-10-00 thermo switch
  • Aftermarket direct-replacement switches sold under 688-82560-10-00

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
