688-85540-12 Yamaha CDI Unit | Genuine Used Part
688-85540-12 Yamaha CDI Unit | Genuine Used Part
Low stock: 1 left
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide
🔧 Product Description

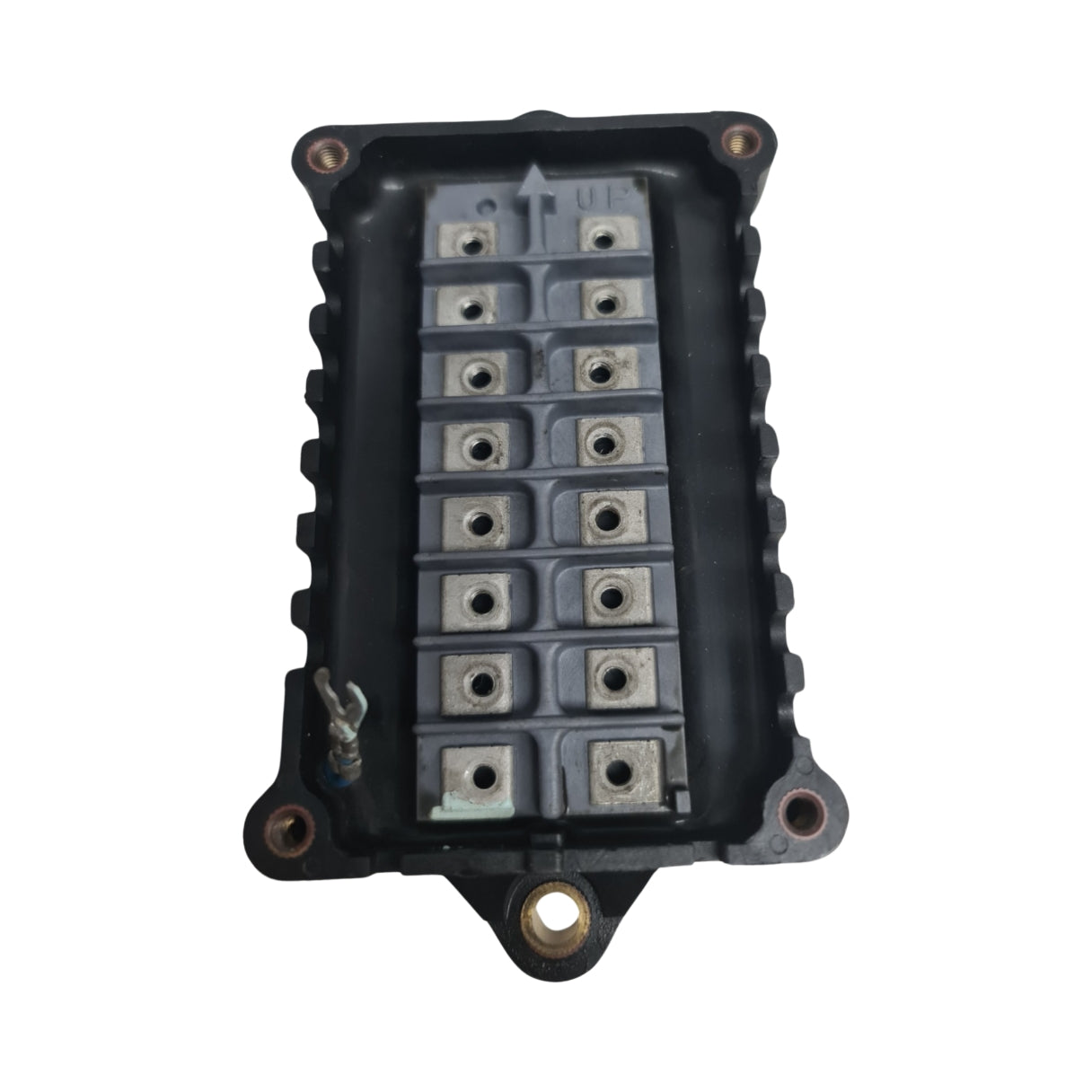

Genuine Yamaha CDI Unit - Part Number: 688-85540-12
A genuine Yamaha CDI ignition unit from the 688 two-stroke ignition family. This CDI is used on compatible Yamaha 75HP, 80HP, 85HP and related 3-cylinder two-stroke outboards requiring the 688-85540-12 control unit configuration.
⚙️ Key Features
- Genuine Yamaha CDI ignition unit
- Correct Yamaha part number 688-85540-12
- Part of the 688-85540 CDI family used on Yamaha 75HP to 90HP two-stroke applications
- Related replacement-family references include 688-85540-13, 688-85540-14, 688-85540-15 and 688-85540-16
- Must be matched by exact model code, ignition configuration and connector layout
🚤 Compatibility
Commonly used on
- Yamaha 75HP, 80HP and 85HP two-stroke CDI ignition systems using the 688 electrical family
Typically suits
- Engine models:
- Yamaha 75A 1990-1996 two-stroke applications using the 688 CDI family
- Yamaha C75TLR 1994-1996 applications using the 688 CDI family
- Yamaha E75MLH 1995-1996 applications using the 688 CDI family
- Yamaha 80A 1988-1991 applications using the 688 CDI family
- Yamaha 85A 1990-1996 applications using the 688 CDI family
- Yamaha C85TLR 1991-1996 applications using the 688 CDI family
- Yamaha CV85ETL 1989-1990 applications using the 688 CDI family
- Yamaha 90 ETL / 90 XL 1984-1987 applications using related 688 CDI-family replacement listings
- HP Range: commonly 75HP - 90HP depending on exact model and CDI family reference
- Engine Type: Yamaha three-cylinder two-stroke outboard CDI ignition
- Year Range: approximately 1984 - 1996 for the listed 688 CDI-family applications
- Fitment Note: connector count, charge-coil system and model code must match the removed CDI
🔌 Function
The CDI stores and releases ignition energy based on pulser-coil and charge-coil inputs, controlling spark timing and coil firing for the two-stroke ignition system.
⚠️ Common Signs of Failure
- No spark on one or more cylinders
- Intermittent ignition failure when warm
- Hard start or no-start condition
- Misfire, hesitation or poor acceleration
- Loss of ignition timing control after stator and pulser checks
- No tachometer signal where the CDI provides the pulse
- Damaged CDI case, connector pins or wiring
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 688-85540-16 related later CDI family reference
- 688-85540-15 related CDI family reference
- 688-85540-14 related CDI family reference
- 688-85540-13 related CDI family reference
- 688-85540-12 earlier listing CDI reference
OEM / Related Numbers
- 688-85540-12
- 6888554012
- 688-85540-12-00
- 688-85540-13-00
- 688-85540-14-00
- 688-85540-15-00
- 688-85540-16-00
- Related aftermarket ignition pack reference: CDI Electronics 117-6301
Aftermarket / Verified Equivalents
- CDI Electronics: 117-6301
- Aftermarket replacement family: 688-85540-12-00 / 688-85540-13-00 style CDI
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
