🔧 Product Description

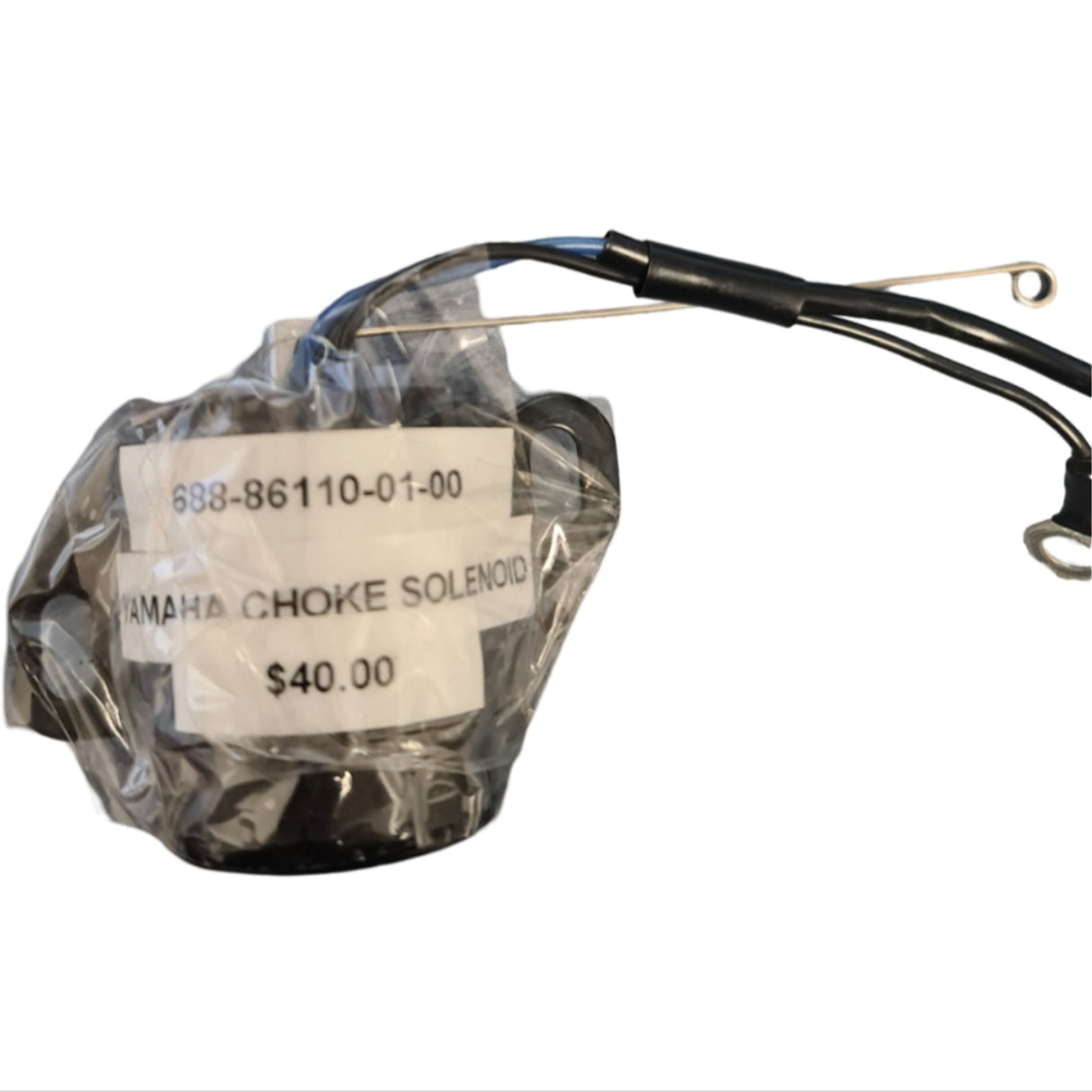

Genuine Yamaha 75HP-90HP Choke Solenoid Coil Assembly - Part Number: 688-86110-01-00

A genuine Yamaha magnetic choke solenoid for selected 75HP, 80HP, 85HP and 90HP carburetted two-stroke outboards.

When the ignition key or choke control is activated, the solenoid pulls the choke linkage and closes the carburettor choke plates. This enriches the fuel mixture to assist cold starting.

Current Yamaha part number 688-86110-01-00 supersedes earlier solenoid 688-86110-00-00.

⚙️ Key Features

  • Genuine Yamaha OEM choke solenoid
  • Correct current part number 688-86110-01-00
  • Supersedes 688-86110-00-00
  • Electromagnetic pull-type choke actuator
  • Used on selected 75HP to 90HP carburetted two-stroke engines

🚤 Compatibility

Commonly used on

  • Yamaha three-cylinder carburetted two-stroke outboards
  • Electrically operated choke-linkage systems

Typically suits

  • Engine models:
  • Yamaha 75A
  • Yamaha C75
  • Yamaha 75ETL and 75TLR model families
  • Yamaha 80A
  • Yamaha 80ETL model families
  • Yamaha 85A
  • Yamaha C85
  • Yamaha C85TLR model families
  • Yamaha 90A
  • Yamaha 90ETL and 90TLR model families
  • Yamaha 90ETLG
  • Yamaha 90ETLK
  • Yamaha 90ETLF
  • Yamaha C85TLRQ
  • HP Range: 75HP - 90HP
  • Engine Type: Yamaha inline three-cylinder carburetted two-stroke outboard
  • Primary North American Year Range: Approximately 1984 - 1999
  • International Applications: Selected 75A, 80A, 85A and 90A engines continued using the same solenoid into later production

🔌 Function

The choke solenoid converts an electrical signal from the helm control into mechanical movement of the carburettor choke linkage.

⚠️ Common Signs of Failure

  • Engine is difficult to start when cold
  • Choke plates do not close when the key is pushed
  • Solenoid clicks but cannot pull the linkage
  • Solenoid coil becomes hot or emits a burnt smell
  • Internal plunger sticks because of rust or contamination
  • Damaged wiring causes intermittent choke operation
  • Engine floods because the linkage remains in the choke position

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 688-86110-01-00 → Supersedes 688-86110-00-00
  • 688-86110-00-00 earlier Yamaha choke-solenoid reference

OEM / Related Numbers

  • 688-86110-01-00
  • 688861100100
  • 688-86110-01
  • 6888611001
  • 688-86110-00-00
  • 688861100000
  • Related solenoid plunger and choke-linkage components
  • Related carburettor choke shafts and choke plates

Aftermarket / Verified Equivalents

  • No branded direct aftermarket solenoid equivalent confirmed
  • Genuine Yamaha 688-86110-01-00 remains the verified replacement
  • Generic universal choke solenoids are not verified as direct marine replacements

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
