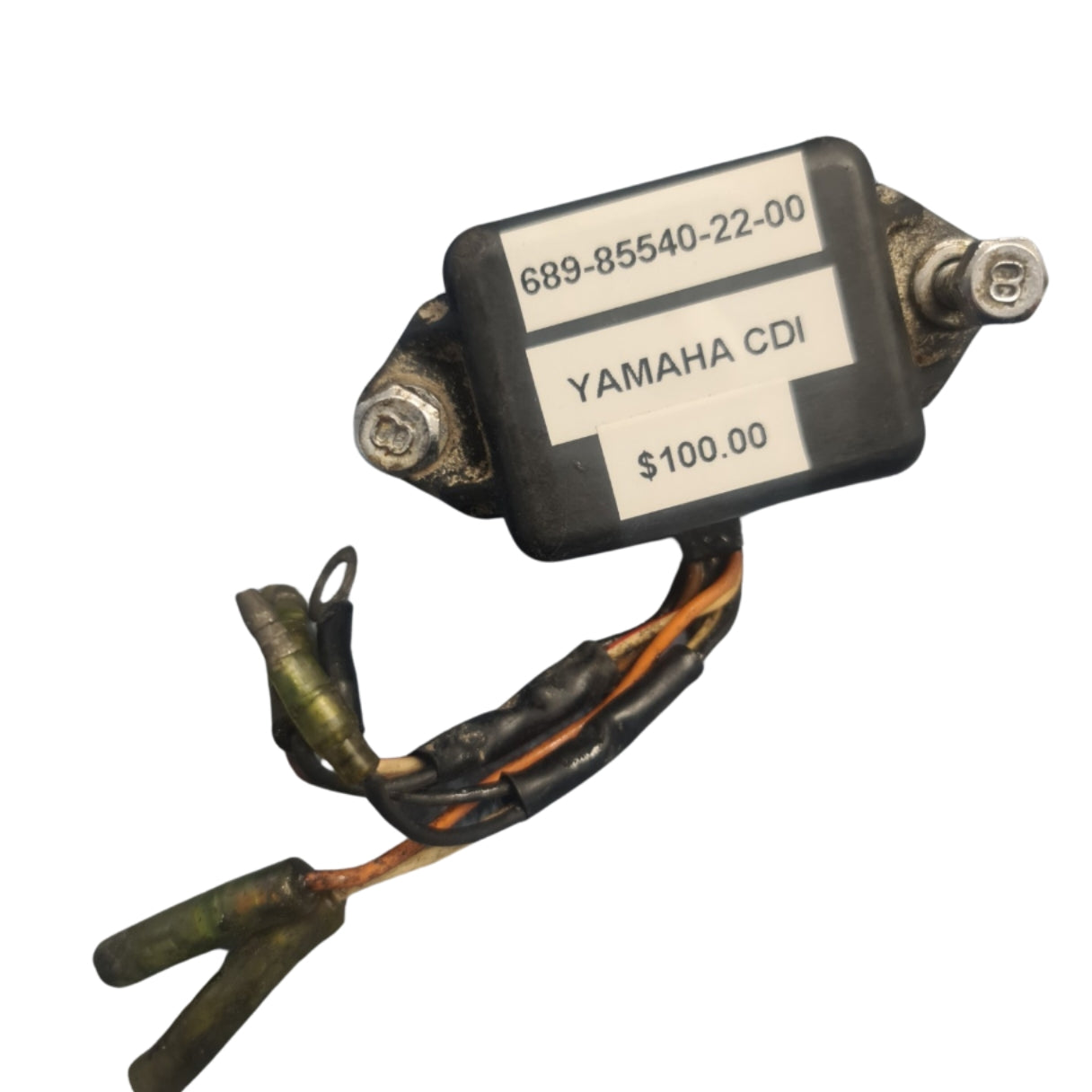

689-85540-22-00 Yamaha CDI | Genuine Used Part

689-85540-22-00 Yamaha CDI | Genuine Used Part

$100.00 AUD
$100.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

Genuine Yamaha CDI Unit Assembly - Part Number: 689-85540-22-00

A genuine Yamaha CDI ignition unit used on selected Yamaha 25HP, 30HP and 40HP two-stroke outboards. This CDI module controls ignition timing and spark output for compatible 2-cylinder engines.

⚙️ Key Features

  • Genuine Yamaha CDI unit assembly
  • Correct Yamaha part number 689-85540-22-00
  • Related to 689-85540-20-00, 689-85540-21-00 and 689-85540-29-00
  • Used on selected Yamaha 25HP, 30HP and 40HP two-stroke engines
  • Cross-references with CDI Electronics 117-689-21

🚤 Compatibility

Commonly used on

  • Yamaha 2-cylinder two-stroke ignition systems

Typically suits

  • Engine models:
  • Yamaha 25HP two-stroke - 1984-1990
  • Yamaha 30HP two-stroke - 1984-1990
  • Yamaha 40HP two-stroke - 1984-1990
  • Yamaha 25HK international model
  • Yamaha 30A international model
  • Yamaha 689-series 2-cylinder ignition systems using 689-85540-22-00
  • HP Range: 25HP - 40HP
  • Engine Type: Yamaha 2-cylinder two-stroke outboard ignition system
  • Year Range: approximately 1984 - 1990
  • Serial Note: Match by Yamaha model code, original CDI number, plug layout and ignition-system diagram.

🔌 Function

The CDI unit stores and releases ignition energy, controlling spark timing and coil triggering for the engine.

⚠️ Common Signs of Failure

  • No spark
  • Weak or intermittent spark
  • Hard starting
  • Engine cuts out when warm
  • Misfire under load
  • Spark returns when a known-good CDI is fitted
  • Heat or water damage to CDI wiring

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 689-85540-29-00 related Yamaha CDI reference
  • 689-85540-22-00 listed Yamaha CDI reference
  • 689-85540-21-00 earlier Yamaha CDI reference
  • 689-85540-20-00 earlier Yamaha CDI reference

OEM / Related Numbers

  • 689-85540-22-00
  • 689855402200
  • 689-85540-22
  • 6898554022
  • 689-85540-20-00
  • 689-85540-21-00
  • 689-85540-29-00
  • CDI unit assembly
  • Ignition CDI
  • Ignition control unit

Aftermarket / Verified Equivalents

  • CDI Electronics: 117-689-21

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
