689-W0093-02 Aftermarket Yamaha Carburetor Kit 20C/CM (1992-02), 25D/DE (1992-01), 30A (1992) | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Yamaha 20HP-30HP carburettor repair kit - Replacement Part Number: 689-W0093-02

A complete carburettor kit with float for selected Yamaha 20HP, 25HP and 30HP two-stroke outboards. It is the later revision in the 689-W0093-00/-01/-02 service family and includes the exact components listed below.

⚙️ Key Features

• Exact OEM service-component numbers listed below

• Includes float, needle-valve assembly and adjustment screw

• Suitable for selected 20HP-30HP two-stroke outboards

• Cross-references to Sierra, Mercury and Recmar kits

• Services one carburettor

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 689-W0093-02 → Later revision following 689-W0093-00 and 689-W0093-01

OEM / Related Numbers:

• 689-W0093-02

• 689-W0093-01

• 689-W0093-00

Aftermarket / Verified Equivalents:

• Sierra: 18-7770

• Mercury/Mariner: 84456M

• Recmar: REC689-W0093-02

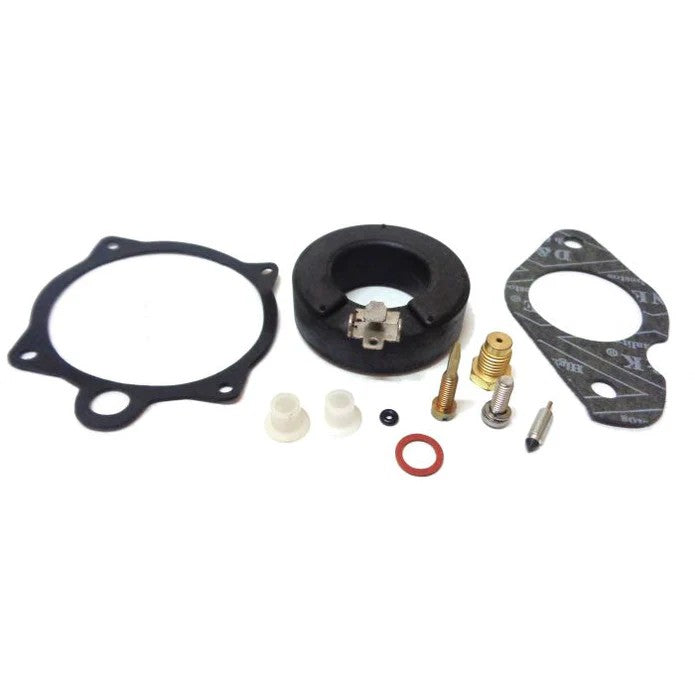

Included Components:

• 1 × Gasket - Part Number: 648-14198-A0-00

• 1 × Float-chamber gasket - Part Number: 648-14384-01-00

• 1 × Float - Part Number: 648-14385-00-00

• 4 × Screws with washers - Part Number: 98517-04012-00

• 1 × Spring washer - Part Number: 92990-04100-00

• 1 × Needle-valve assembly - Part Number: 61K-14390-00-00

• 1 × Air-adjusting screw - Part Number: 647-14323-00-00

• 2 × Bushes - Part Number: 90386-05002-00

• 1 × O-ring - Part Number: 646-14397-00-00

🚤 Compatibility

Commonly used on:

• Yamaha carburetted outboards using the listed OEM carburettor service kit

Typically suits:

• Engine models:

• Yamaha 20C and 20CM

• Yamaha 25D and 25DE

• Yamaha 30A

• Related C25, CV25, C30 and CV30 applications using 689-W0093-02

• HP Range: 20HP - 30HP

• Engine Type: Carburetted two-stroke outboard

• Year Range: Core service family approximately 1984 - 2002; use the original carburettor number to confirm

• Quantity Required: One kit per carburettor

🔌 Function

The kit renews the carburettor's float-control, inlet-valve and sealing components. Correct rebuilding restores fuel-bowl level, prevents air and fuel leaks and stabilises the mixture from starting through full-load operation.

Common signs of failure:

• Hard starting or excessive choke/enrichment required

• Rough idle, hunting or repeated low-speed stalling

• Hesitation, flat spots or intake backfire during acceleration

• Fuel leakage, flooding or an incorrect float-bowl level

• Lean surging, reduced power or fuel starvation under load

• Rich running, smoke, spark-plug fouling or excessive fuel consumption

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
