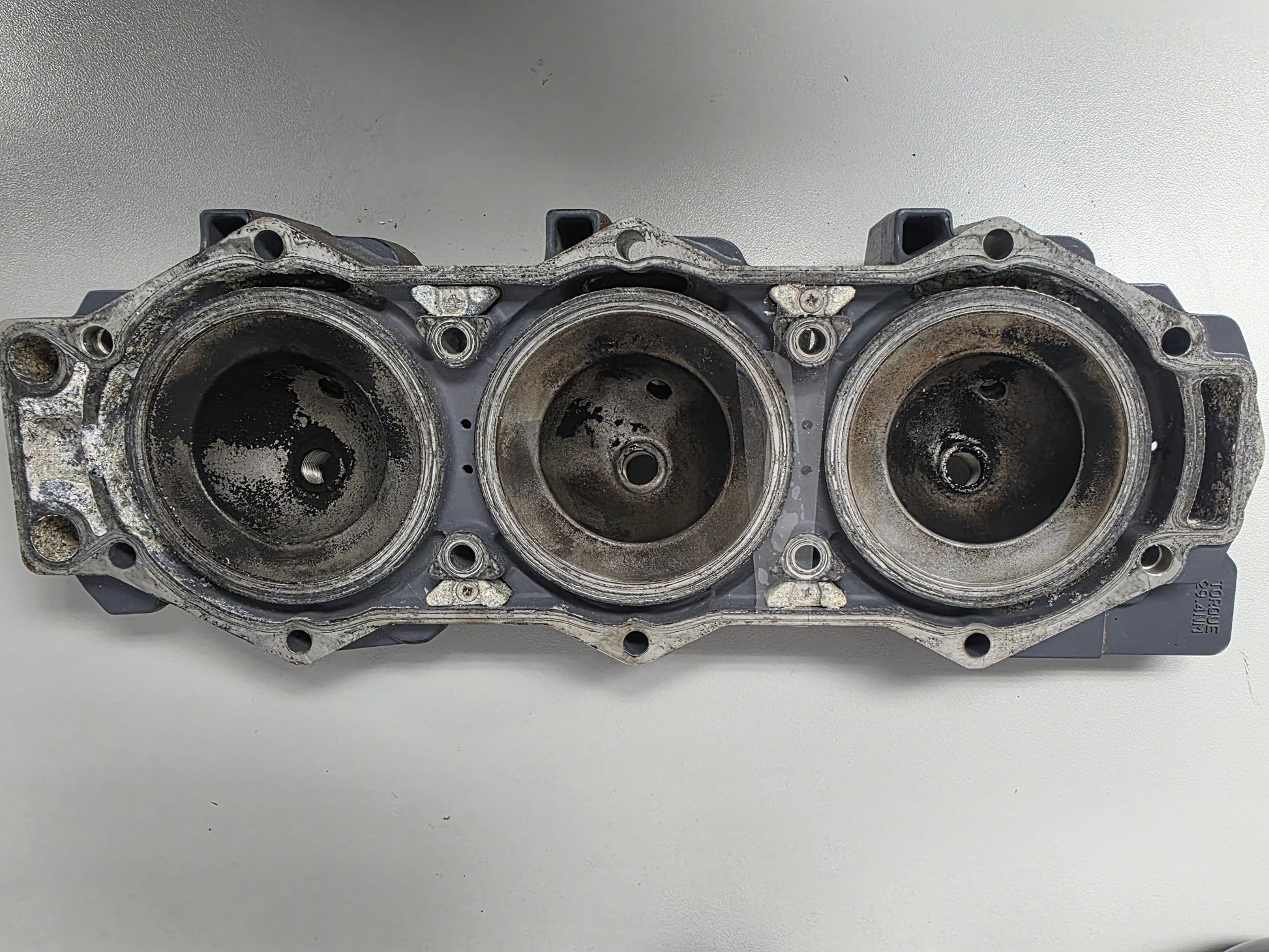

• 68F-11121-00-1S Yamaha Port Cylinder Head HPDI | Genuine Used Part

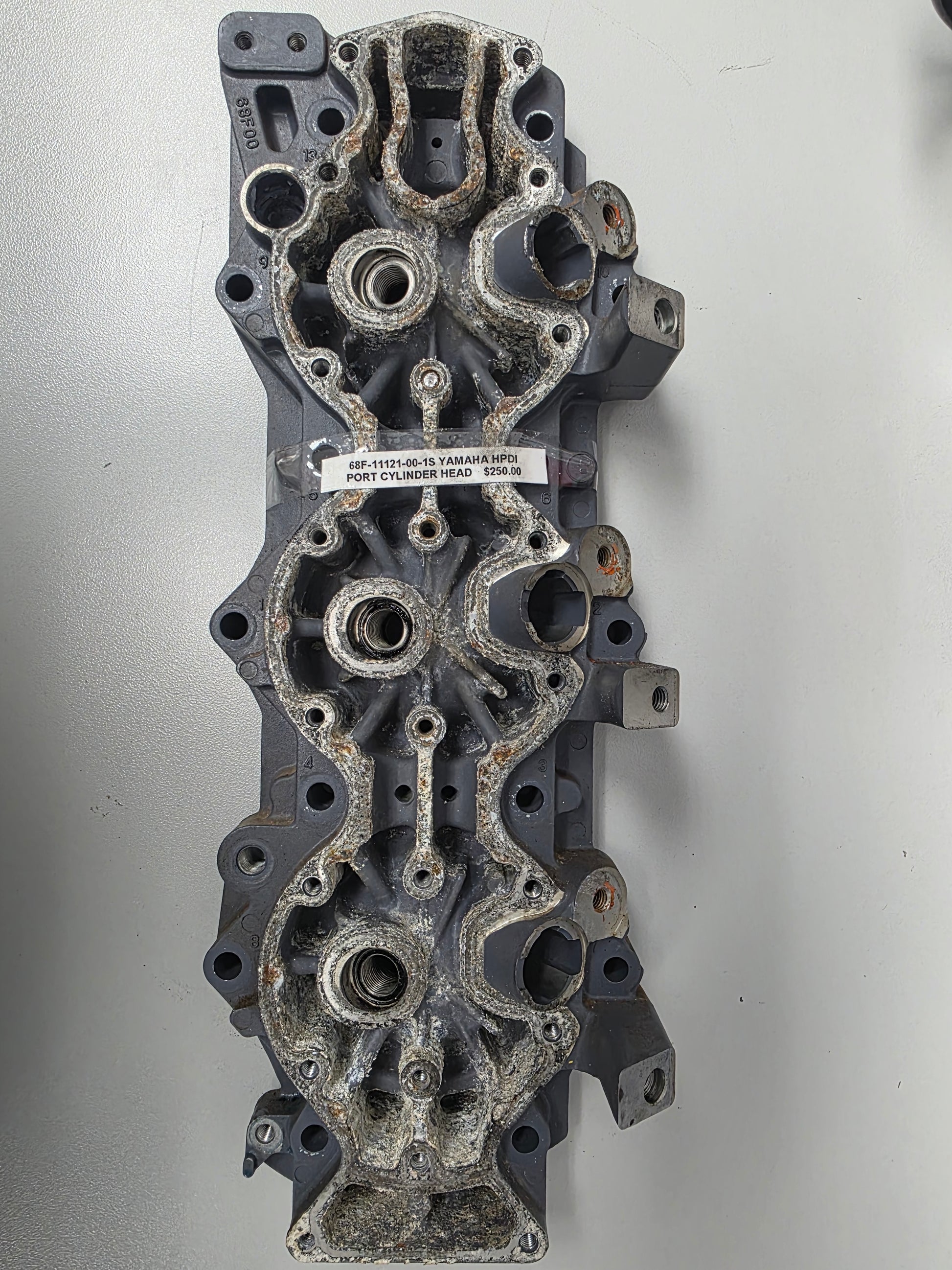

  • 68F-11121-00-1S Yamaha Port Cylinder Head HPDI | Genuine Used Part - photo 2 of 3

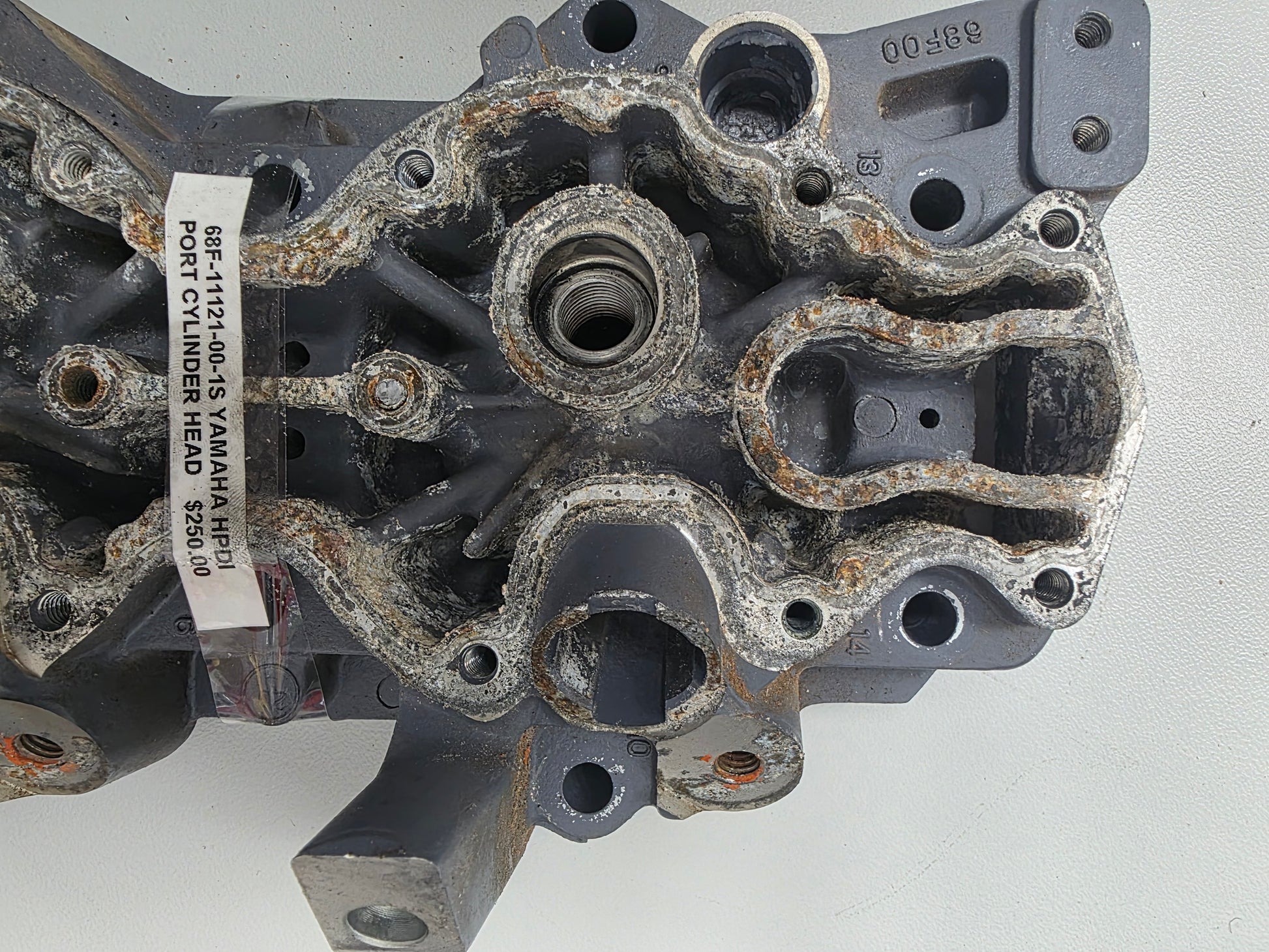

  • 68F-11121-00-1S Yamaha Port Cylinder Head HPDI | Genuine Used Part - photo 3 of 3
1 3

68F-11121-00-1S Yamaha Port Cylinder Head HPDI | Genuine Used Part

68F-11121-00-1S Yamaha Port Cylinder Head HPDI | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$125.00 AUD
$250.00 AUD $125.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

Genuine Yamaha Port HPDI Cylinder Head - Part Number: 68F-11121-00-1S

A genuine used Yamaha port-bank cylinder head for selected Z150, Z175 and Z200 V6 HPDI direct-injection two-stroke outboards.

Yamaha identifies this component as Cylinder Head 2. It fits the port cylinder bank and contains the combustion chambers, spark-plug threads and cooling passages for the three port-side cylinders.

⚙️ Key Features

  • Genuine Yamaha port HPDI cylinder head
  • Correct Yamaha part number 68F-11121-00-1S
  • Supersedes earlier head 68F-11121-00-94
  • Used on 150HP, 175HP and 200HP V6 HPDI engines
  • Fits standard and counter-rotating 68F-series platforms

🚤 Compatibility

Commonly used on

  • Yamaha Z-series HPDI V6 port cylinder banks
  • Yamaha LZ-series counter-rotating HPDI engines
  • Yamaha VZ-series 2.6L V6 HPDI engines

Typically suits

  • Engine models:
  • Yamaha Z150TLR
  • Yamaha Z150TXR
  • Yamaha LZ150TXR
  • Yamaha VZ150TLR
  • Yamaha Z175TXR
  • Yamaha VZ175TLR
  • Yamaha Z200TLR
  • Yamaha Z200TXR
  • Yamaha LZ200TXR
  • Yamaha VZ200TLR
  • HP Range: 150HP - 200HP
  • Engine Type: Yamaha 2.6L V6 HPDI direct-injected two-stroke outboard
  • Year Range: Approximately 2000 - 2013

🔌 Function

The port cylinder head closes the port cylinder bank, forms the combustion chambers and circulates cooling water around the combustion and spark-plug areas.

⚠️ Common Signs of Failure

  • Low compression on one or more port cylinders
  • Water or steam-cleaning evidence inside a cylinder
  • Damaged or stripped spark-plug threads
  • Corroded or obstructed cooling passages
  • Warped or damaged gasket-sealing surface

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 68F-11121-00-1S → Supersedes 68F-11121-00-94
  • 68F-11121-00-94 earlier port cylinder-head reference

OEM / Related Numbers

  • 68F-11121-00-1S
  • 68F11121001S
  • 68F-11121-00-94
  • 68F-11111-00-1S matching starboard cylinder head
  • 68F-11181-00-00 related cylinder-head gasket
  • 68F-11192-00-1S matching port cylinder-head cover
  • 6E5-11325-00-00 related cylinder-head anode
  • 99590-10114-00 related locating dowel

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
