68F-11371-00-1S Yamaha Z200 Cover | Genuine Used Part

🔧 Product Description

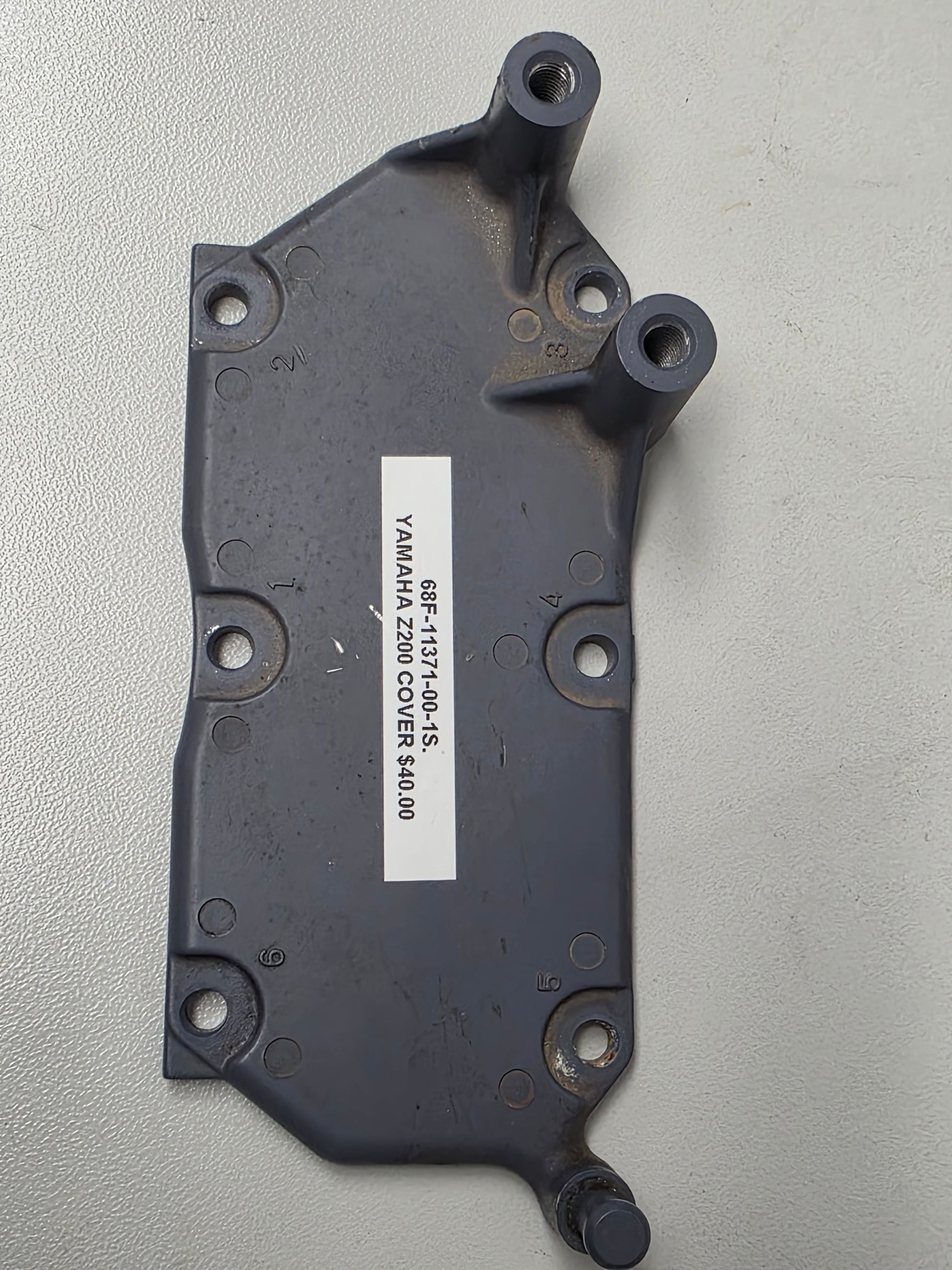

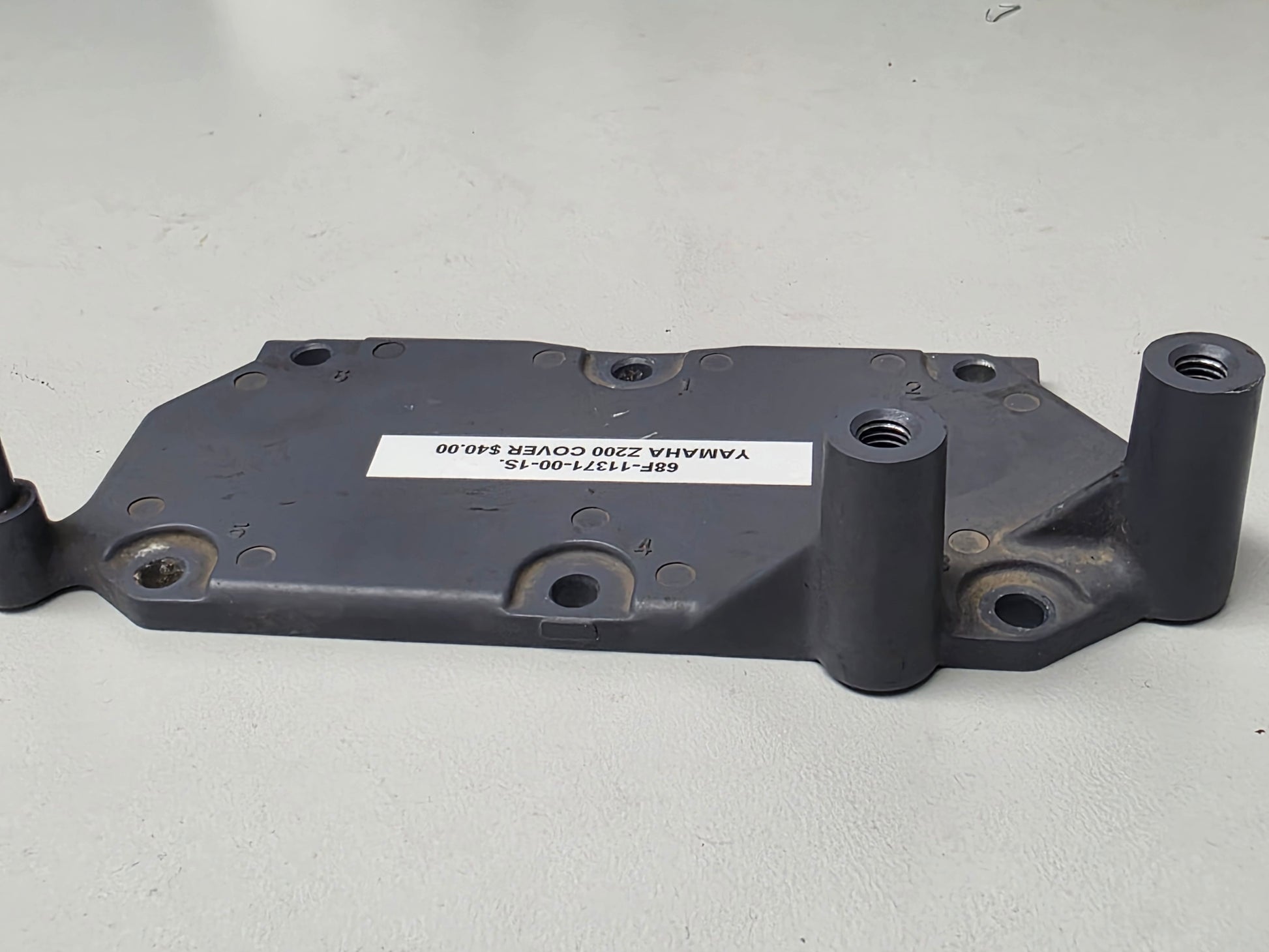

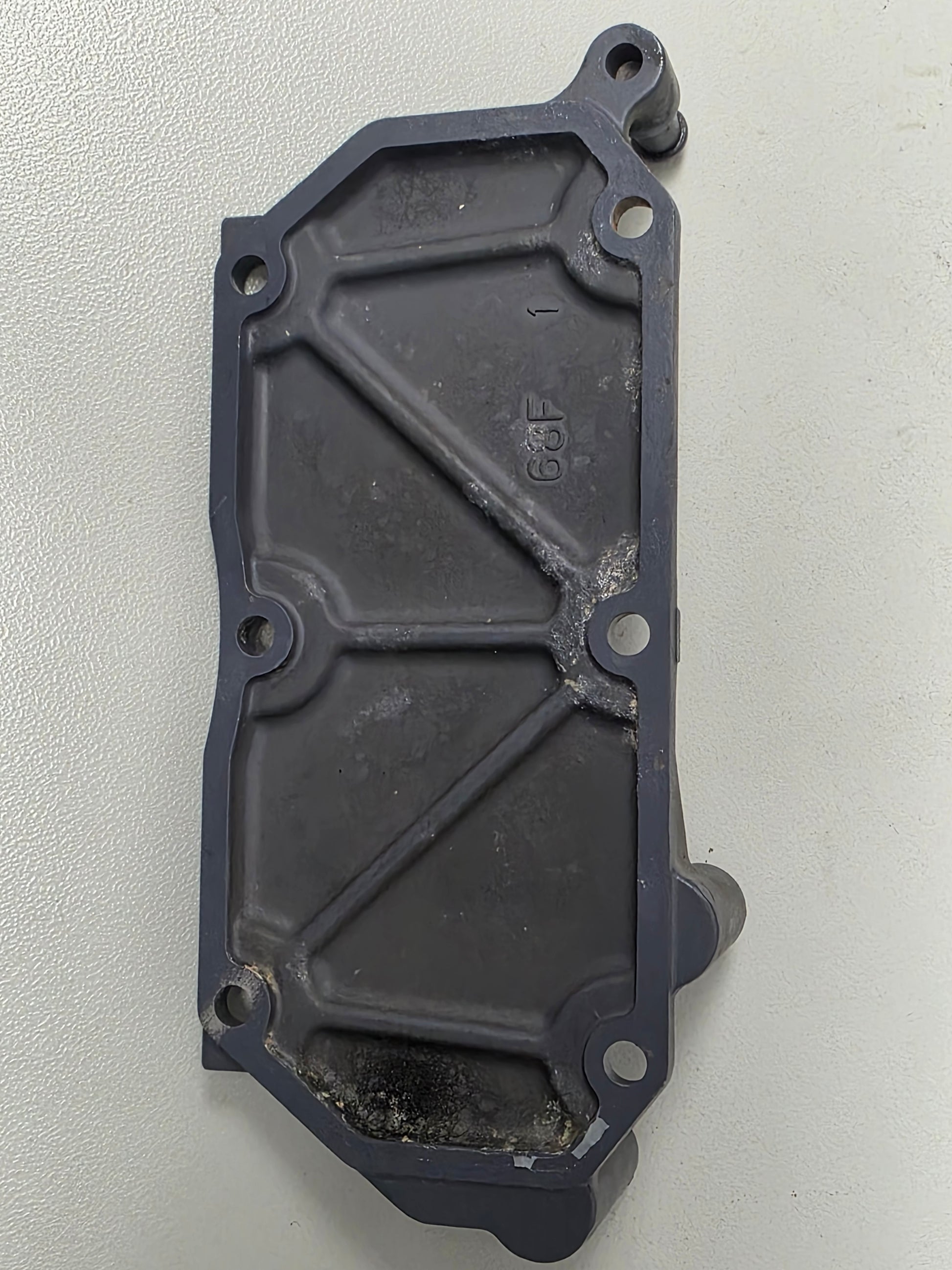

Genuine Yamaha HPDI Cylinder Block Side Cover - Part Number: 68F-11371-00-1S

A genuine Yamaha cylinder-block side cover for selected 2.6-litre Z150, Z175 and Z200 HPDI two-stroke outboards.

The cover closes a service and water-jacket opening in the cylinder-block assembly and uses a separate gasket to maintain the cooling-system seal.

⚙️ Key Features

• Genuine Yamaha HPDI cylinder-block cover
• Correct part number 68F-11371-00-1S
• Designed for the 2.6L HPDI V6 engine family
• Covers a cylinder-block water-jacket opening
• Uses matching gasket 68F-11381-00-00

🚤 Compatibility

Commonly used on

• Yamaha 2.6L HPDI cylinder and crankcase assemblies

Typically suits

• Engine models:
• Yamaha Z150 / VZ150
• Yamaha LZ150
• Yamaha Z175 / VZ175
• Yamaha Z200 / VZ200
• Yamaha LZ200
• Standard- and counter-rotation HPDI engines using the 68F cylinder-block cover
• HP Range: 150HP - 200HP
• Engine Type: Yamaha 2.6L V6 HPDI direct-injection two-stroke outboard
• Year Range: Approximately 2000-2013, dependent on model and serial number

🔌 Function

The cover seals an opening in the cylinder-block water jacket and provides removable access during powerhead inspection or servicing. Its gasket prevents cooling water from leaking externally.

⚠️ Common Signs of Failure

• Cooling-water leakage around the gasket
• Cover is cracked, corroded or pitted
• Gasket face is warped or damaged
• Mounting bolts are seized or broken
• Internal corrosion prevents the cover from sealing correctly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 68F-11371-00-1S current OEM service reference

OEM / Related Numbers

• 68F-11371-00-1S
• 68F11371001S
• 68F-11381-00-00 related gasket
• 68F-11372-01-00 related hose nipple
• 90430-14115 related sealing gasket
• 68F-W0090-series related Z200 crank-cylinder assemblies

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
