68F-12577-10-00 Yamaha Z200 Hose | Genuine Used Part

🔧 Product Description

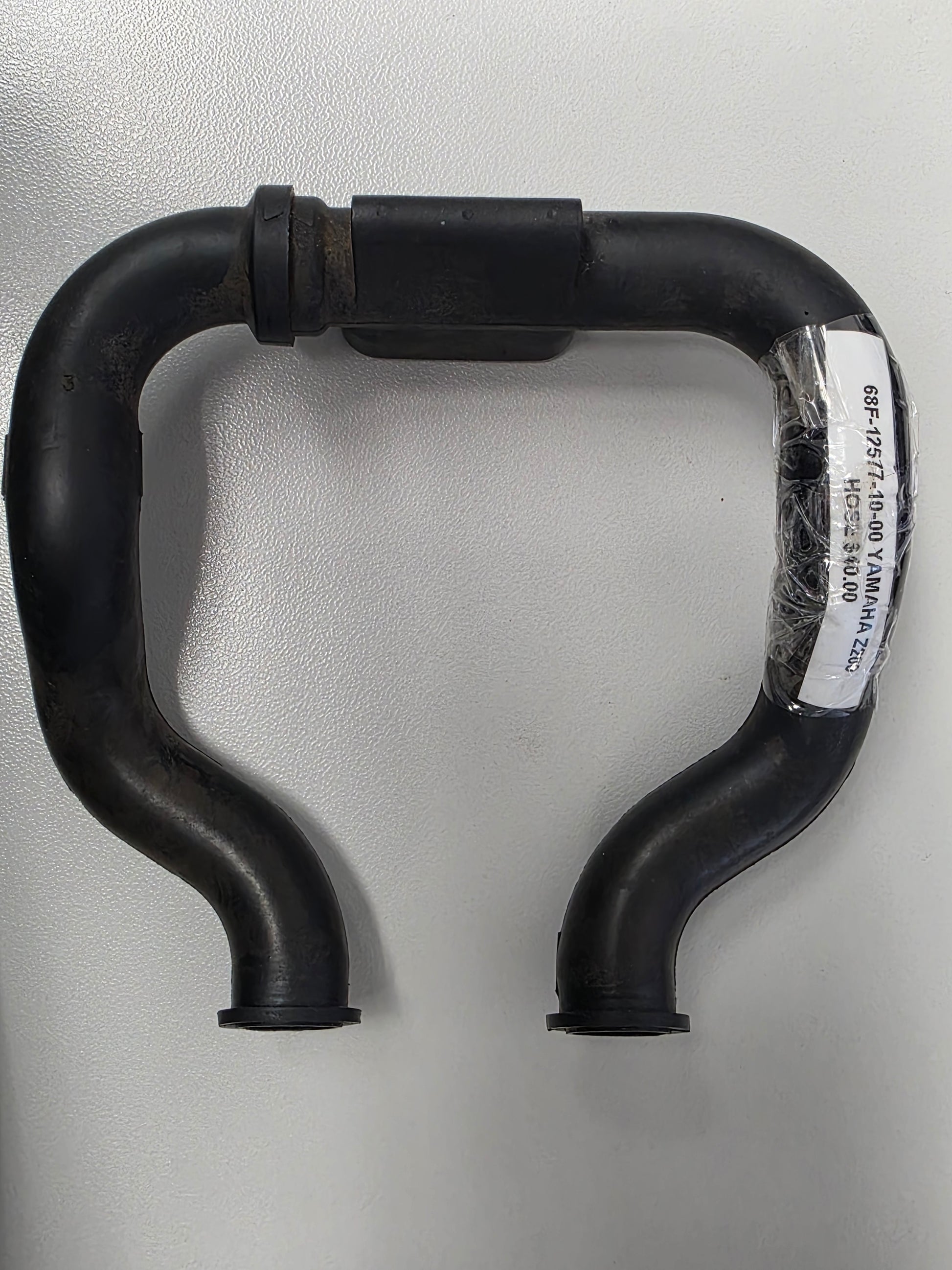

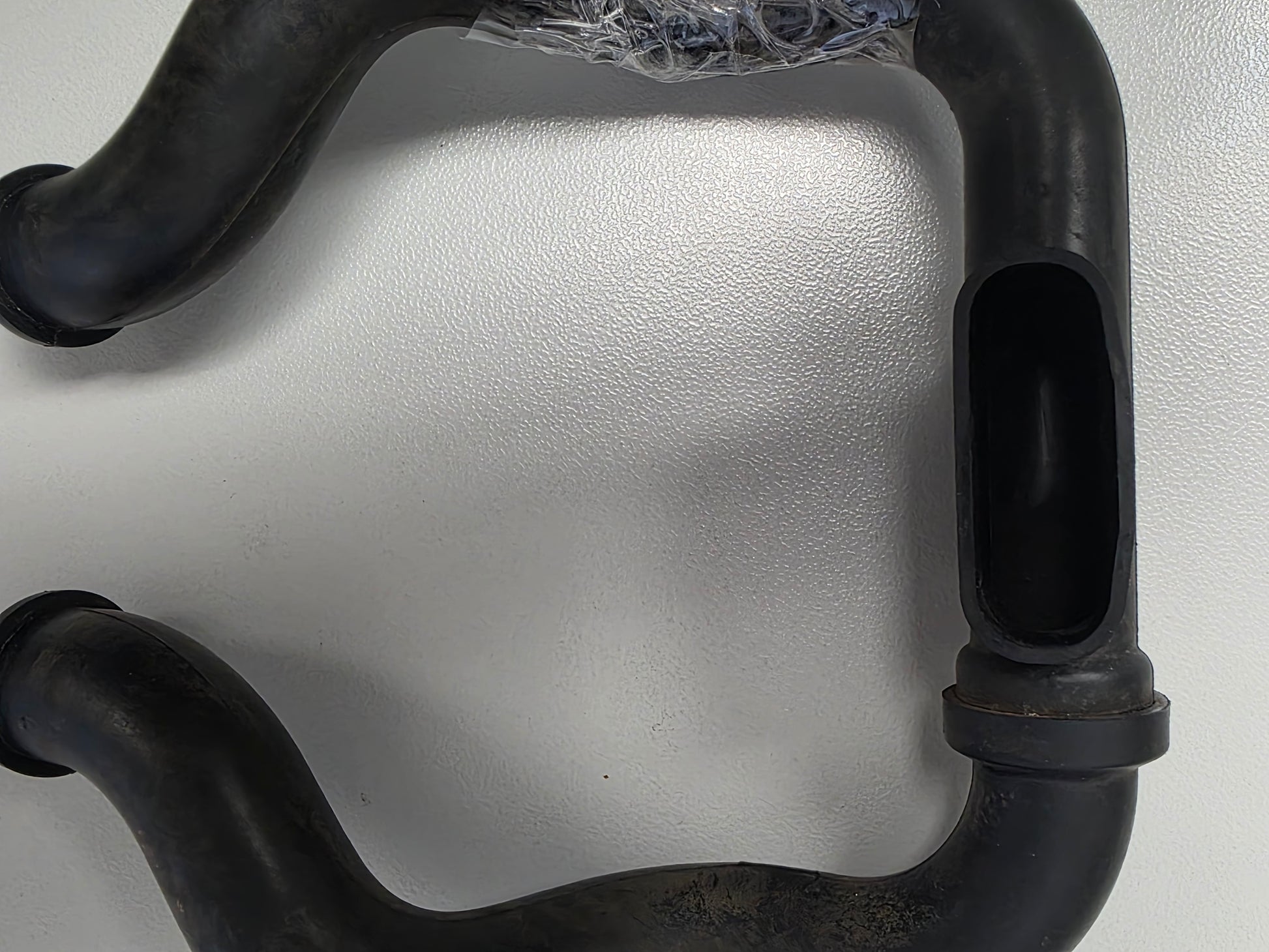

Genuine Yamaha Z150 Z175 Z200 HPDI Extra-Long-Shaft Hose No. 2 - Part Number: 68F-12577-10-00

A genuine Yamaha moulded Hose No. 2 for selected 2.6-litre HPDI V6 outboards fitted with an extra-long 25.3-inch shaft.

The -10 hose is identified in Yamaha bottom-cowling diagrams as the "UR X" version. It is used in the lower-cowling cooling-water return or drain arrangement and differs from the shorter 68F-12577-01-00 long-shaft version.

⚙️ Key Features

• Genuine Yamaha moulded Hose No. 2
• Correct part number 68F-12577-10-00
• Extra-long-shaft "UR X" configuration
• Designed for 2.6L Z-series HPDI outboards
• Factory-formed routing through the bottom-cowling assembly
• Used with the matching joint, clamp and lower-cowling seal

🚤 Compatibility

Commonly used on

• Yamaha 2.6L HPDI bottom-cowling assemblies
• Extra-long-shaft Z-series outboards

Documented applications include

• Yamaha LZ150PETOX
• Yamaha LZ200NETOX
• Yamaha Z150PETOX
• Yamaha Z175GETOX
• Yamaha Z175 / VZ175 extra-long-shaft variants
• Yamaha Z200NETOX
• Yamaha Z200TXR / Z200TXRY
• Yamaha VZ200 extra-long-shaft variants
• Other 68F HPDI models whose bottom-cowling diagram specifies the -10 "X" hose
• HP Range: 150HP - 200HP
• Engine Type: Yamaha 2.6L V6 HPDI two-stroke outboard
• Shaft Length: 25.3-inch extra-long shaft
• Fitment Requirement: Do not substitute the -01 long-shaft hose without confirming routing and length

🔌 Function

The hose routes cooling-water return or drain flow through the lower-cowling and upper-casing area. Its moulded bends prevent kinking and keep the hose clear of the steering, shift and rigging components.

⚠️ Common Signs of Failure

• Cooling water leaks into the lower cowling
• Hose is split, hardened or swollen
• Restricted or kinked hose reduces drainage or return flow
• Hose rubs against bracket or rigging components
• Clamp or joint no longer retains the hose securely

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 68F-12577-10-00 current documented extra-long-shaft hose reference
• 68F-12577-01-00 related long-shaft "UR L" version, not a direct shaft-length substitute

OEM / Related Numbers

• 68F-12577-10-00
• 68F-12577-01-00 related long-shaft hose
• 68F-12582-10-00 related extra-long-shaft hose joint
• 90464-20258-00 related clamp
• 6E5-42716-11-00 related bottom-cowling seal
• Related bottom-cowling water and rigging components

Aftermarket / Verified Equivalents

• Specialist used Yamaha 68F-12577-10-00 hose
• Professionally formed marine hose may be fabricated only when the internal diameter, bends, heat rating and routing are accurately matched
• No verified direct moulded aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
• Inspect the hose, joint and clamps before installation
