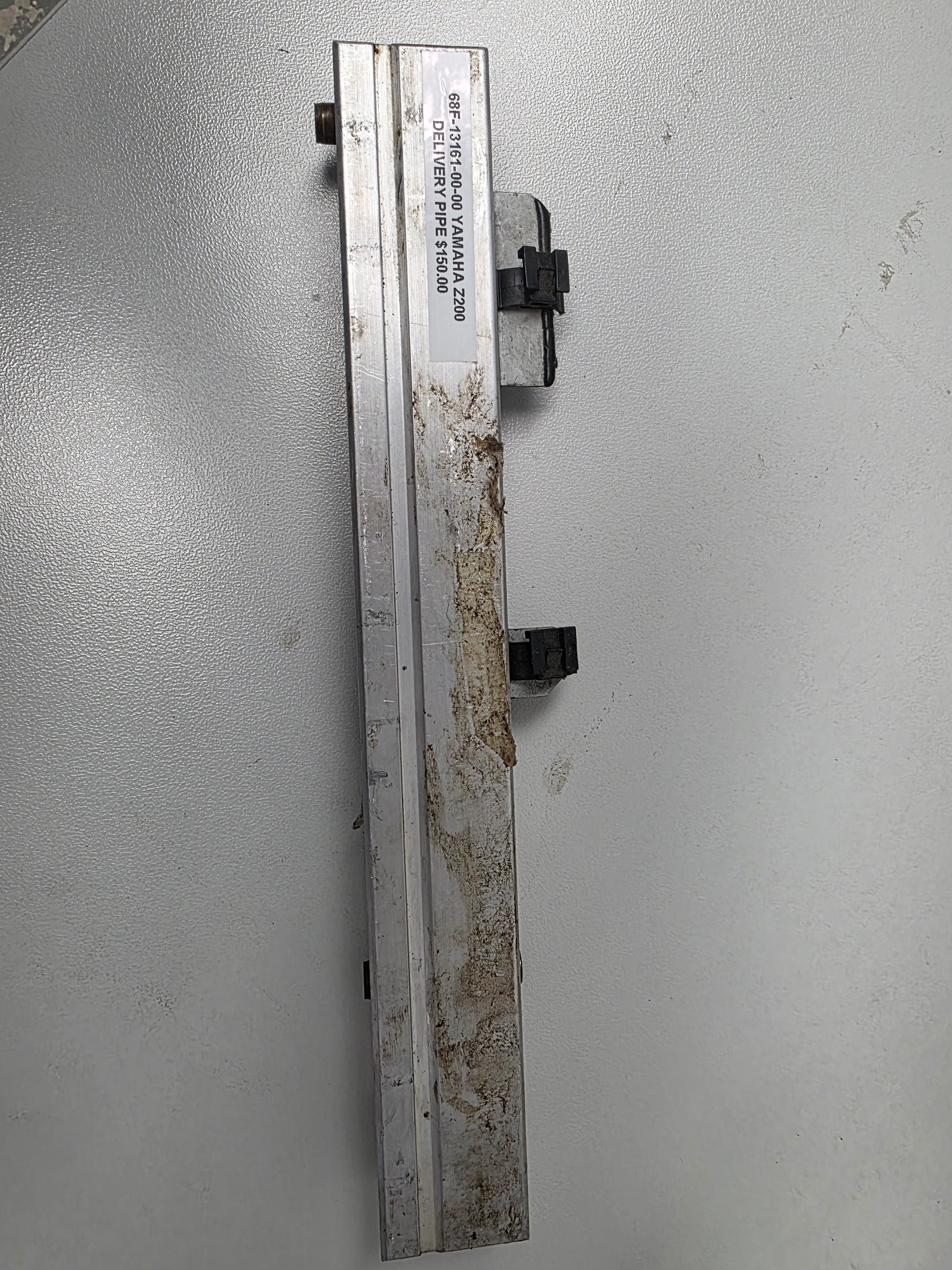

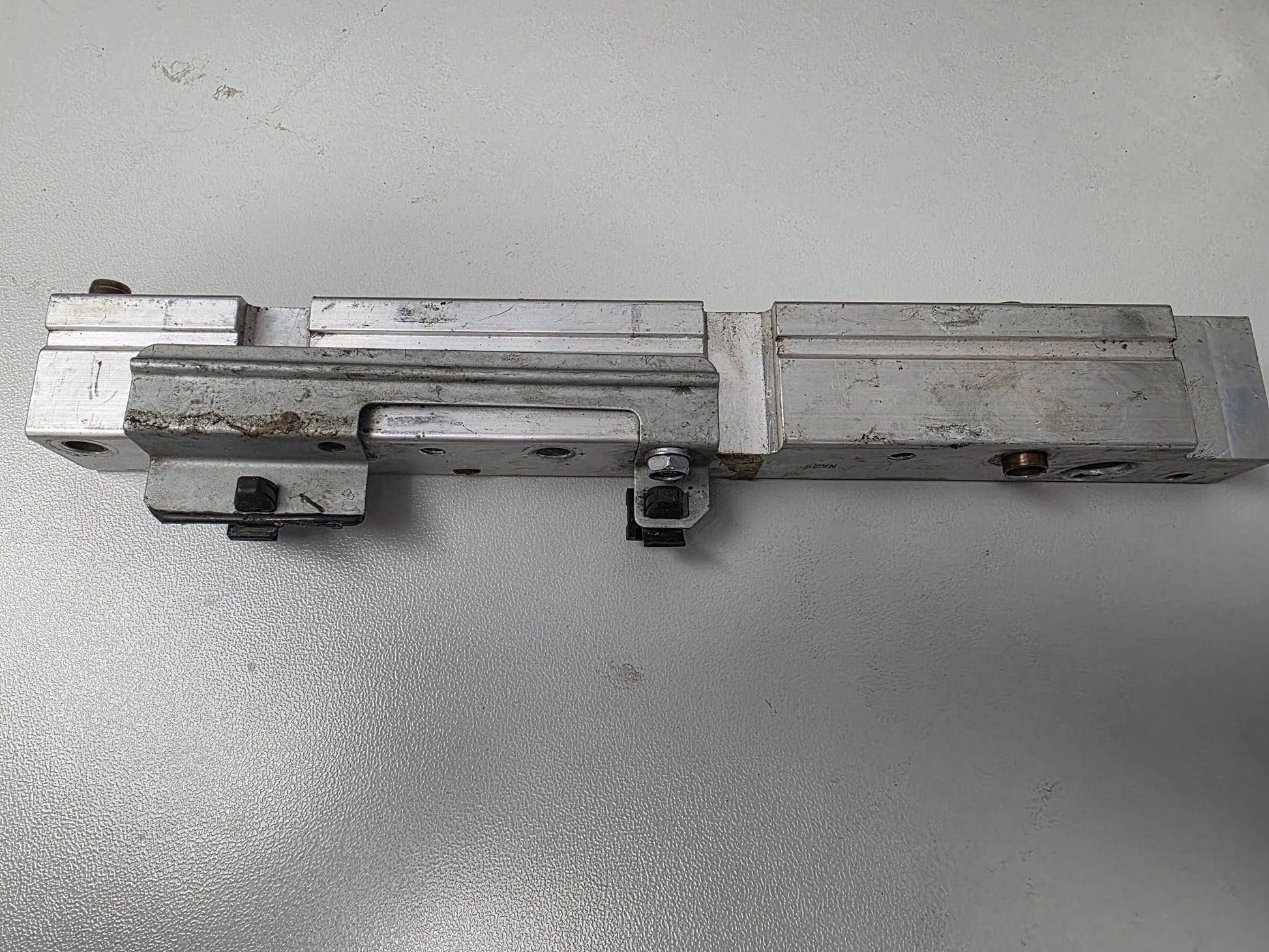

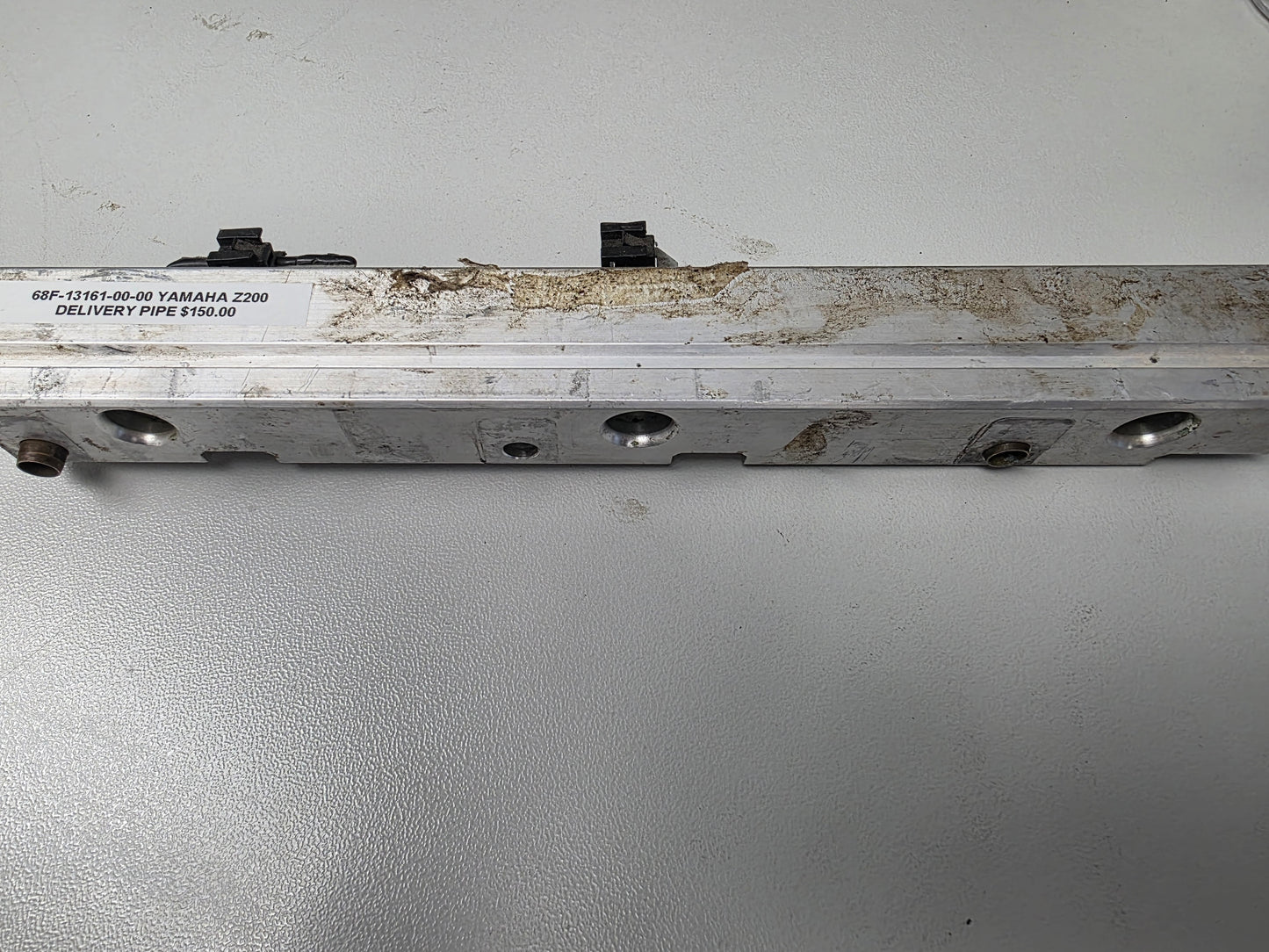

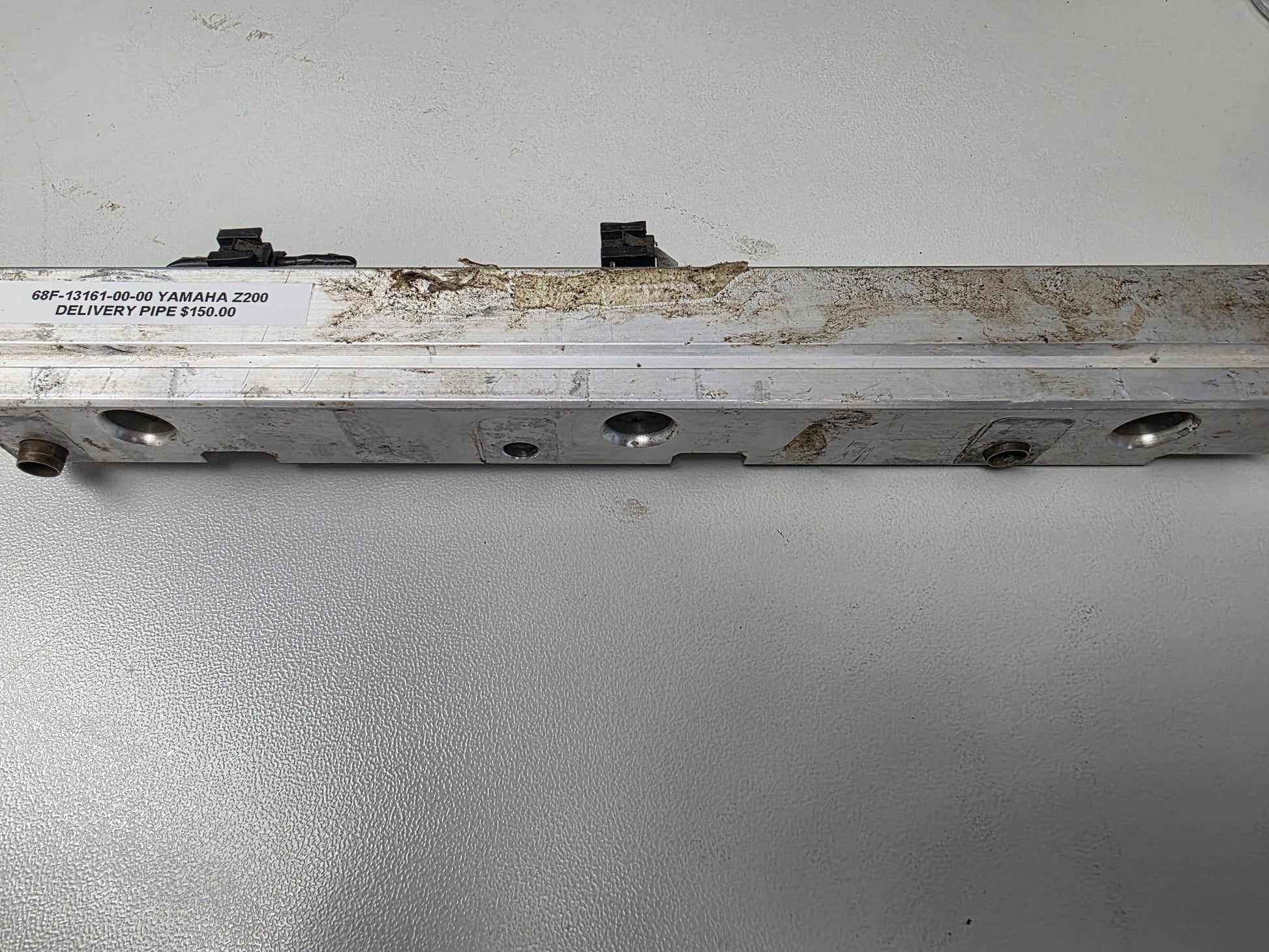

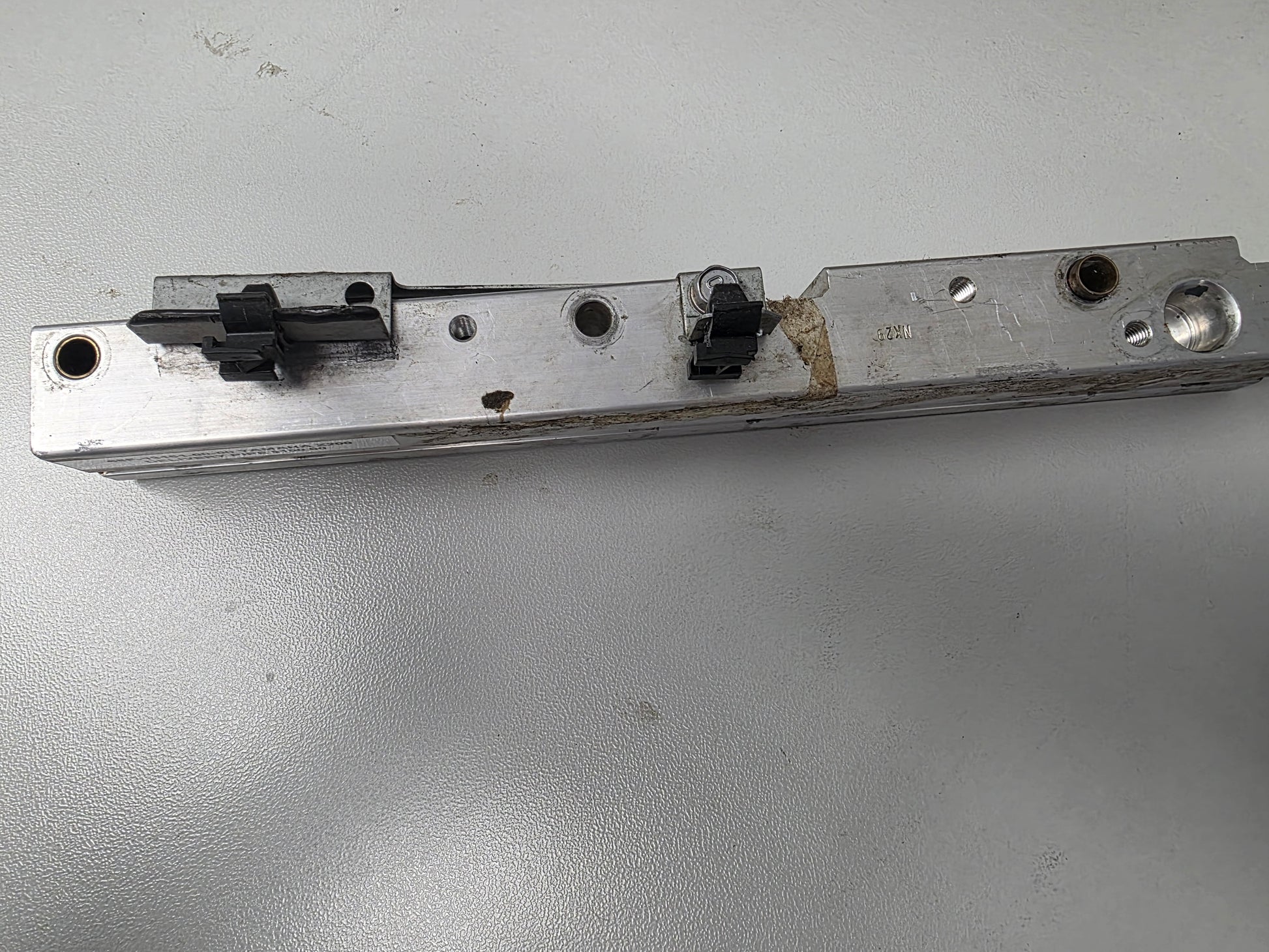

Genuine Used Yamaha HPDI Starboard Fuel Delivery Pipe - Part Number: 68F-13161-00-00
A genuine pre-owned Yamaha high-pressure direct-injection delivery pipe for selected Z150, Z175 and Z200 HPDI outboards.
Yamaha identifies this component as Pipe, Delivery 1. On the V6 HPDI fuel-injection assembly, it is commonly used as the starboard-side injector rail.
The pipe supplies high-pressure fuel to three direct injectors on one cylinder bank.
⚙️ Key Features
- Genuine Yamaha Marine used delivery pipe
- Correct OEM part number 68F-13161-00-00
- Yamaha description: Pipe, Delivery 1
- Commonly used as the starboard HPDI rail
- Supports three compatible direct injectors
- Used with port delivery pipe 68F-13171-00-00
- Precision high-pressure fuel component
🚤 Compatibility
Commonly used on selected
- Yamaha Z150 HPDI
- Yamaha LZ150 HPDI
- Yamaha VZ150 HPDI
- Yamaha Z175 HPDI
- Yamaha VZ175 HPDI
- Yamaha Z200 HPDI
- Yamaha LZ200 HPDI
- Yamaha VZ200 HPDI
Representative production period
- Approximately 2000-2003 for the original 68F injection-nozzle assembly
- Additional models may retain the same rail in later production
Important fitment note
- Confirm whether the required rail is Delivery Pipe 1 or Delivery Pipe 2.
- Port and starboard pipes are not interchangeable.
- Injectors should remain identified by position when removed.
- Injectors, caps, holders and high-pressure supply pipes are included only when shown.
🔌 Function
The rail receives high-pressure fuel and distributes it to three HPDI injectors on one cylinder bank.
⚠️ Common Signs of Failure
- Fuel leakage around injector seals
- Corrosion in injector mounting bores
- High-pressure fuel leak
- Internal contamination
- Engine misfires on one bank
- Fuel-pressure fault
- Cracked mounting points
- Damaged sealing surfaces
🛠️ Service Notes
Recommended checks before installation
- Keep every opening sealed
- Inspect the rail internally for corrosion and debris
- Replace injector packing and seals
- Check all injector caps and holders
- Confirm the rail is not bent
- Use the specified high-pressure tightening procedure
- Bleed and test the fuel system
- Check for leaks without approaching a pressurised fuel spray
🔄 Supersession & Cross Reference
OEM / Related Numbers
- 68F-13161-00-00
- 68F131610000
- Port delivery pipe: 68F-13171-00-00
- Injector assembly: 68F-13761-00-00
- Short connecting pipe: 68F-13938-00-00
- Injector cap: 68F-13767-00-00
- Injector holder: 68F-13898-00-00
- Packing kit: 68F-1410B-00-00
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine Yamaha Marine used part
- Pre-owned high-pressure fuel component
- Cosmetic marks and fuel residue may be present
- Internal cleanliness and pressure integrity require verification
- Supplied in protective or equivalent packaging
