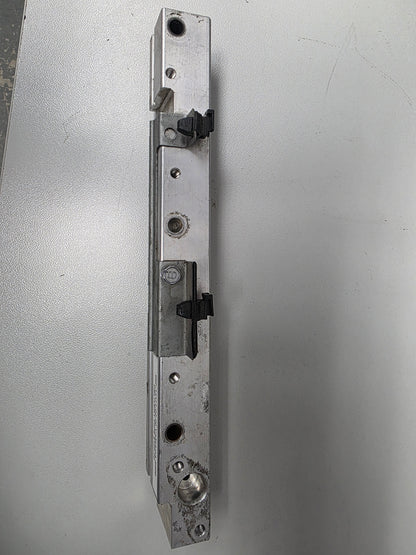

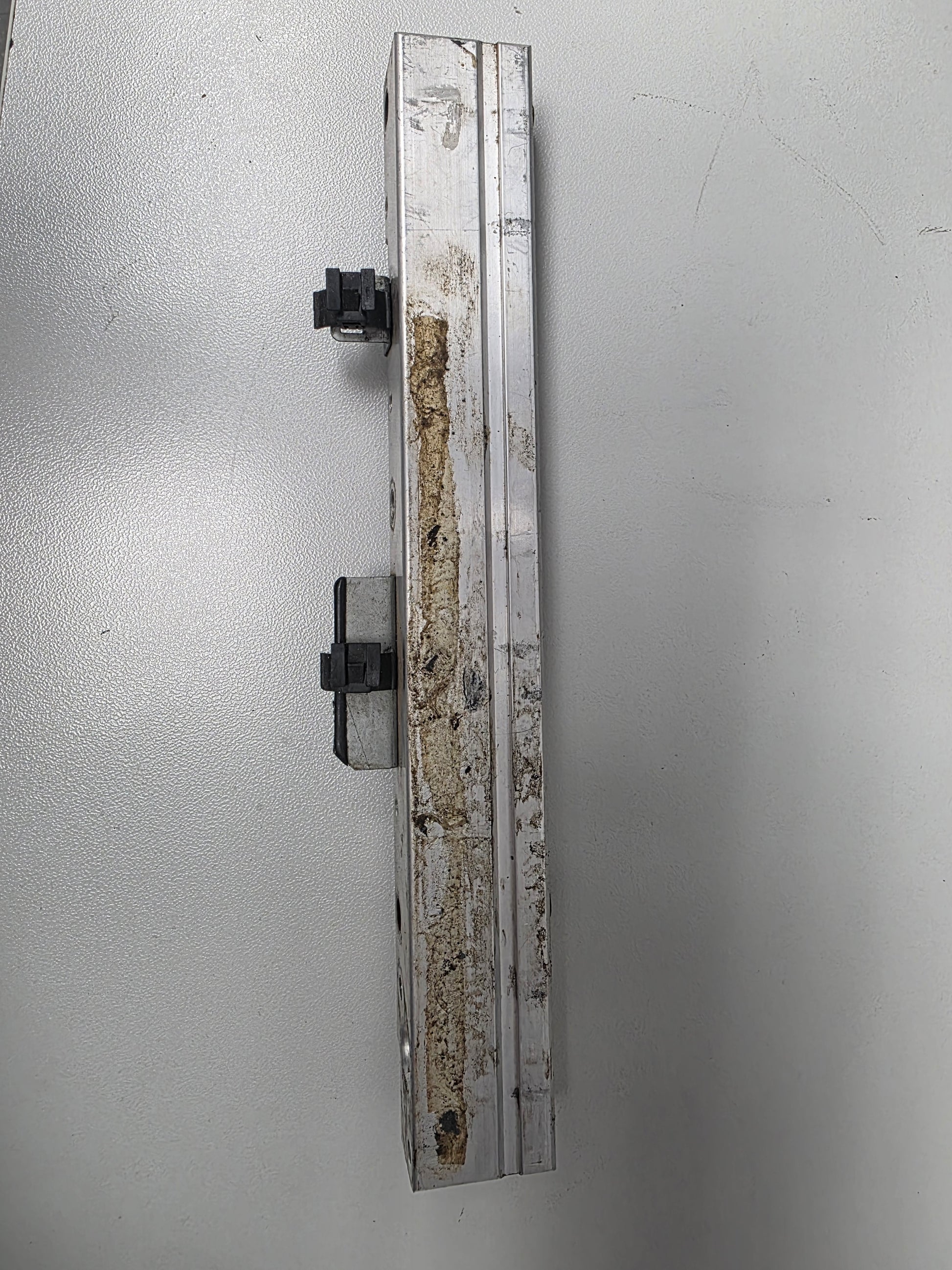

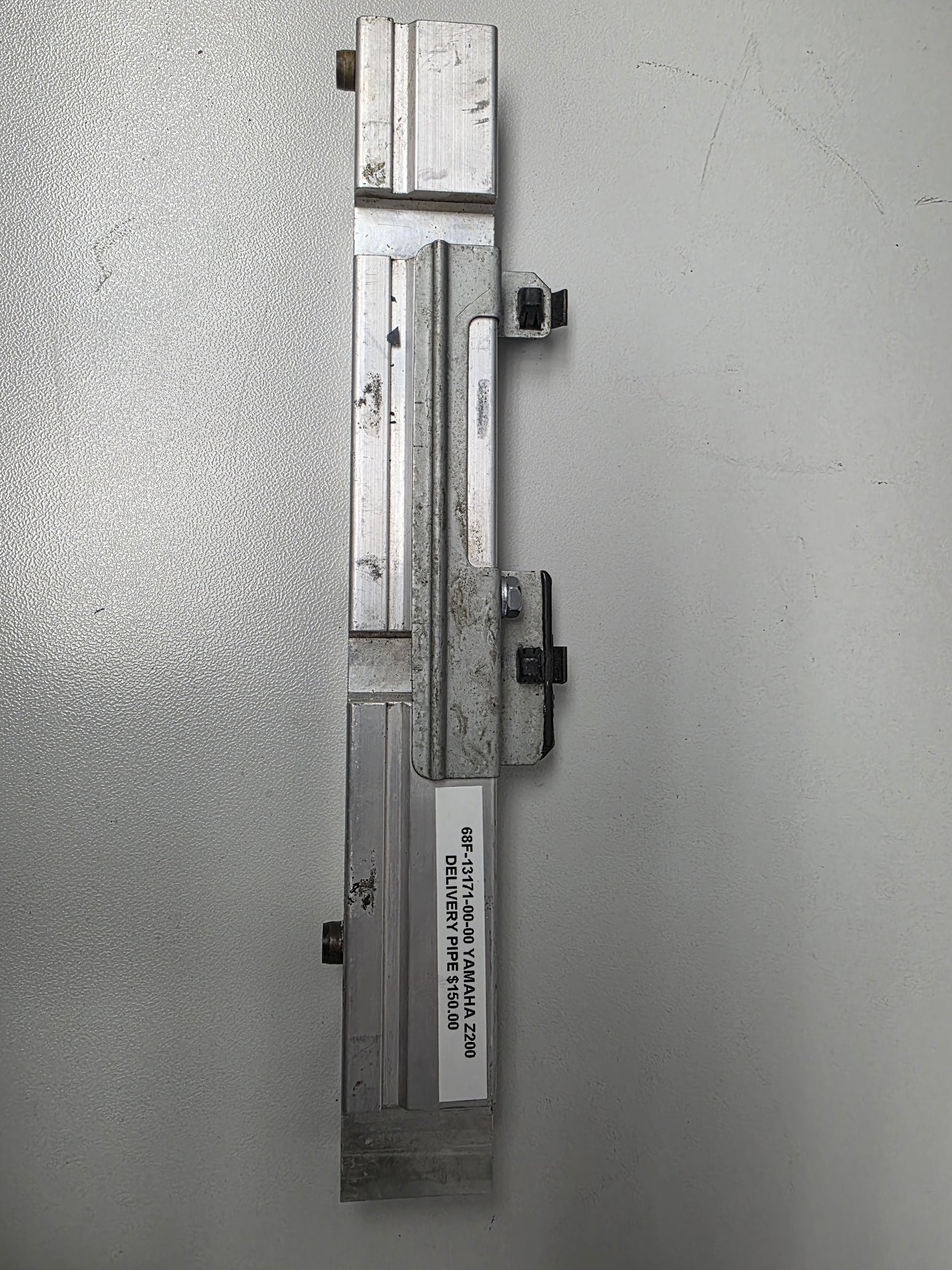

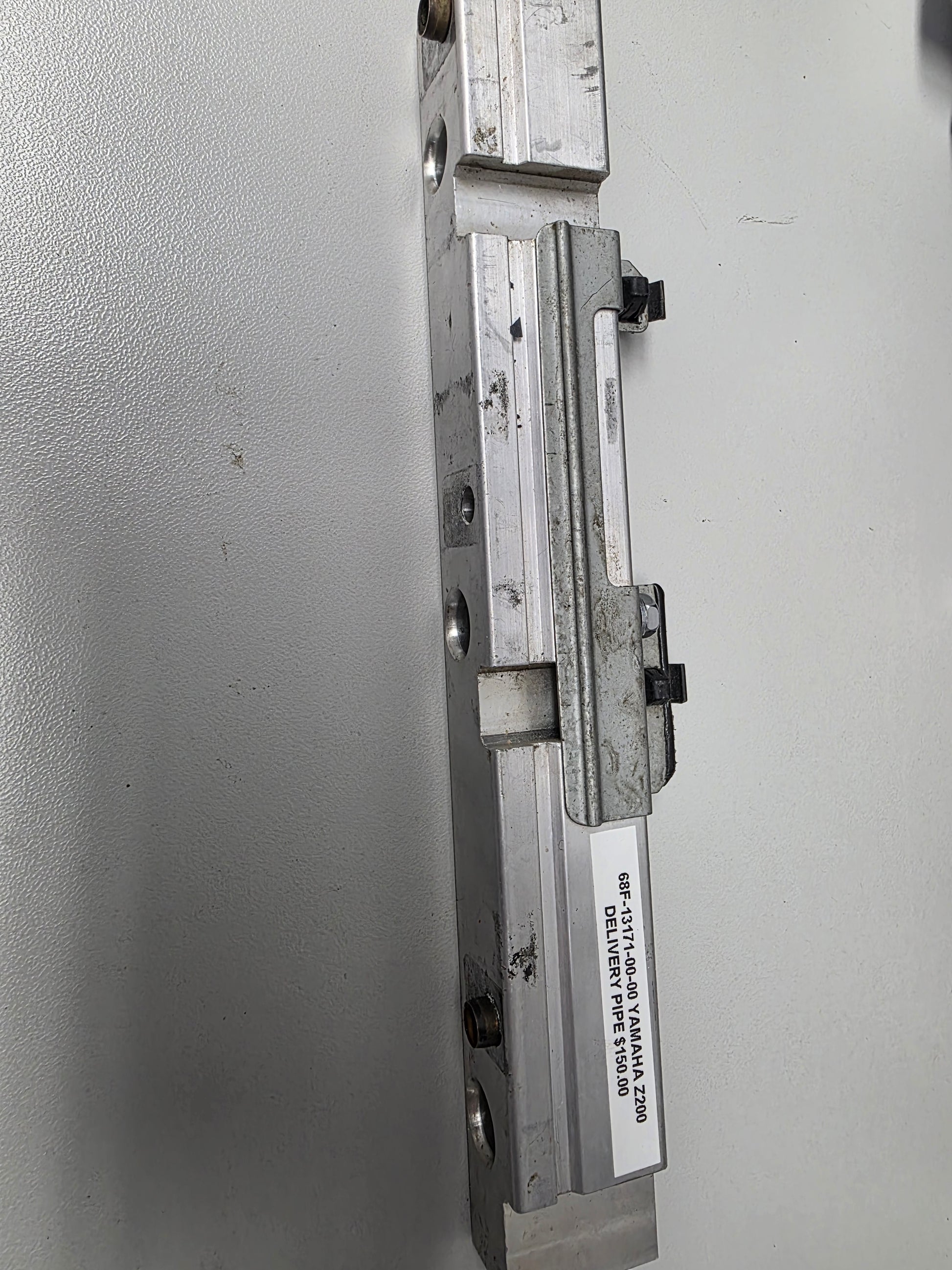

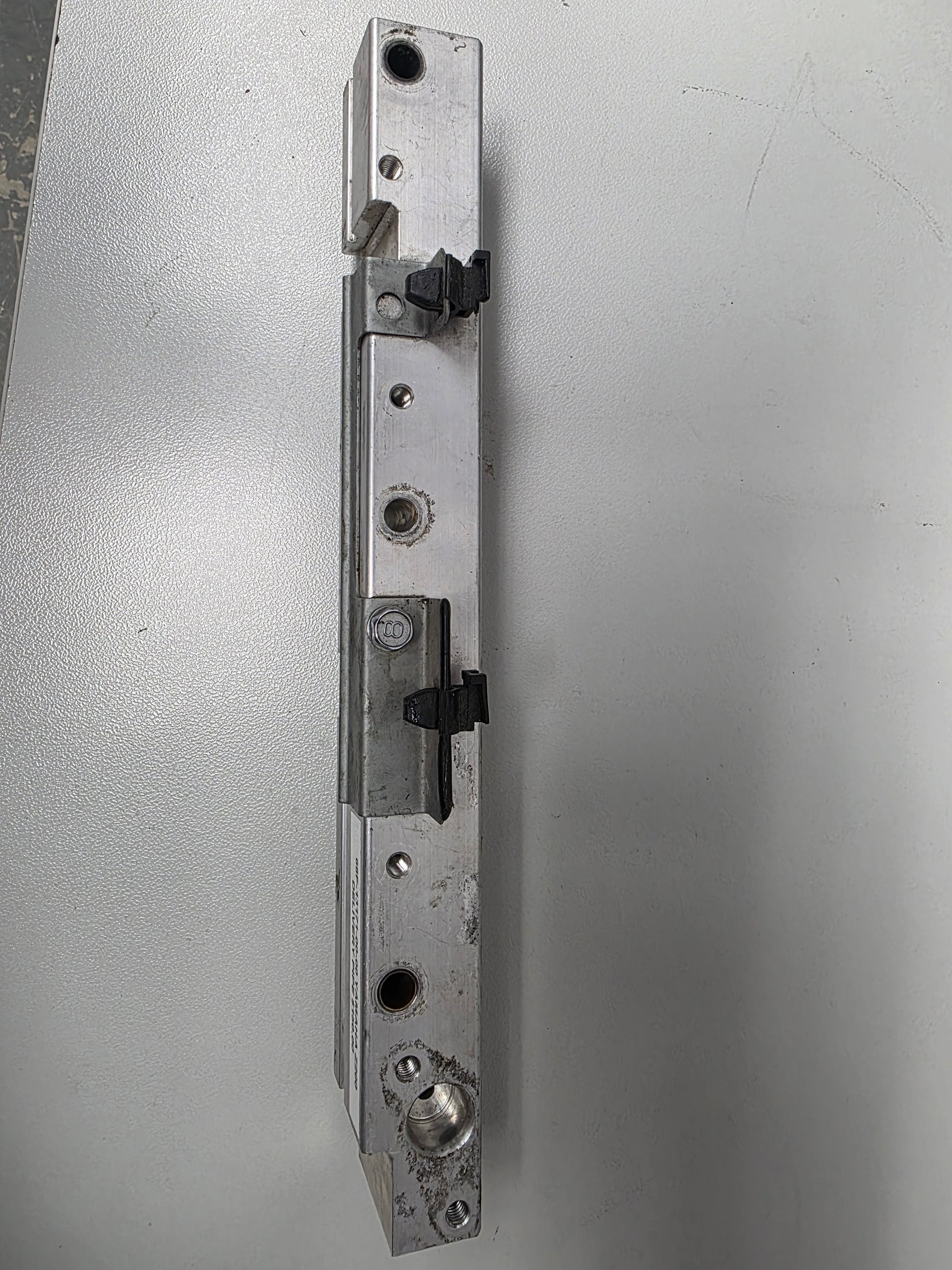

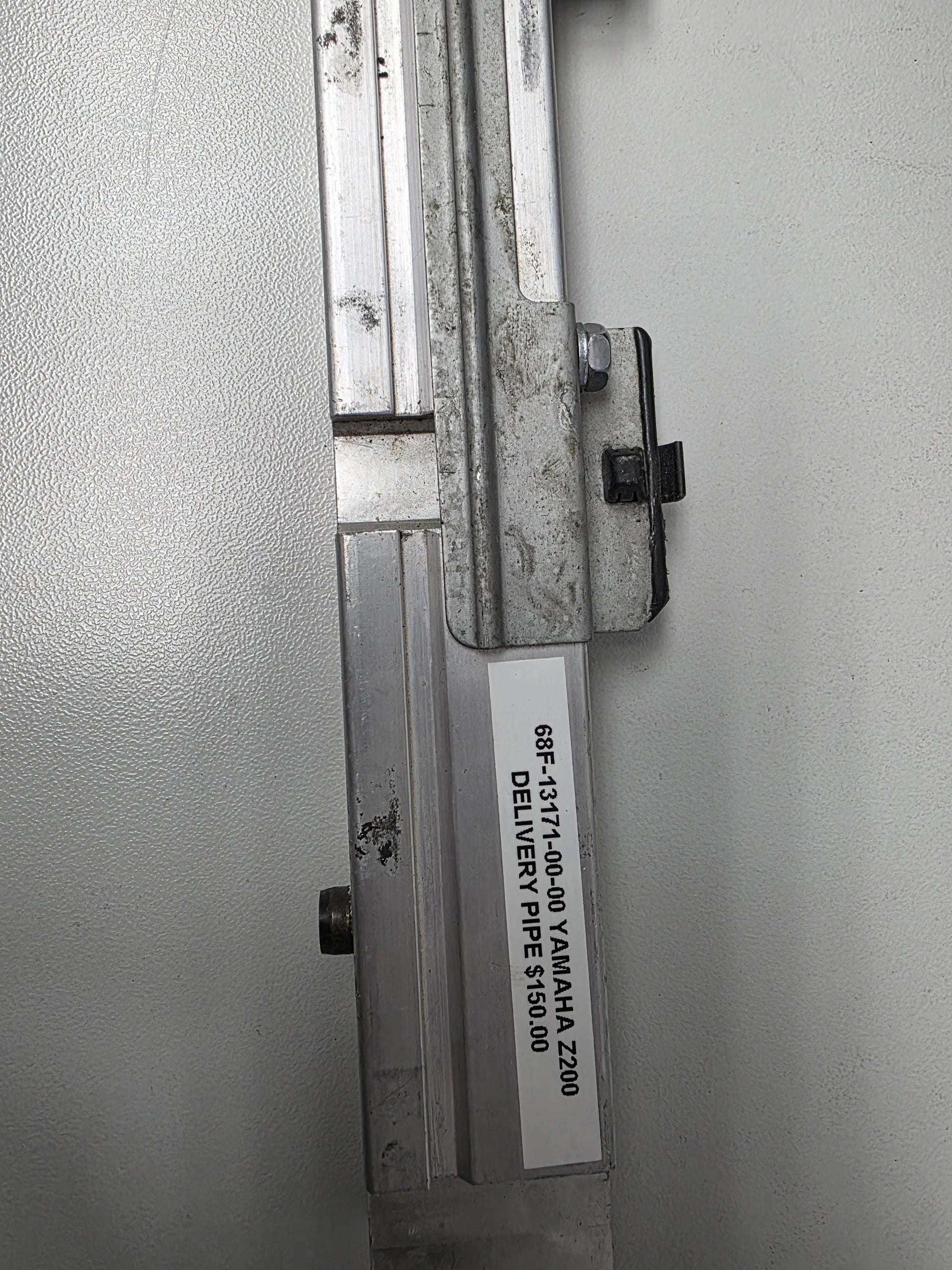

Genuine Used Yamaha HPDI Port Fuel Delivery Pipe - Part Number: 68F-13171-00-00
A genuine pre-owned Yamaha high-pressure direct-injection delivery pipe for selected Z150, Z175 and Z200 HPDI outboards.
Yamaha identifies this component as Pipe, Delivery 2. It is commonly the port-side injector rail in the V6 HPDI fuel-injection assembly.
The rail supplies pressurised fuel to three injectors on the corresponding cylinder bank.
⚙️ Key Features
- Genuine Yamaha Marine used delivery pipe
- Correct OEM part number 68F-13171-00-00
- Yamaha description: Pipe, Delivery 2
- Commonly used as the port HPDI rail
- Supports three compatible injectors
- Matching opposite rail is 68F-13161-00-00
- Precision-machined high-pressure component
🚤 Compatibility
Commonly used on selected
- Z150 / LZ150 / VZ150 HPDI
- Z175 / VZ175 HPDI
- Z200 / LZ200 / VZ200 HPDI
- 2.6-litre V6 high-pressure direct-injection engines
Representative production period
- Approximately 2000-2003 for the original fuel-injection-nozzle assembly
Important fitment note
- Confirm that Delivery Pipe 2 is required.
- Do not substitute Delivery Pipe 1.
- Injector position, pipe routing and sealing surfaces must match the original cylinder bank.
🔌 Function
The delivery pipe stores and distributes high-pressure fuel to three direct injectors.
⚠️ Common Signs of Failure
- Fuel leaks at injector connections
- Mounting ears crack
- Corrosion develops in the bores
- Internal contamination restricts fuel supply
- Engine loses power on one cylinder bank
- Fuel pressure becomes unstable
- Pipe is bent during removal
🛠️ Service Notes
Recommended checks before installation
- Inspect every sealing surface
- Keep the pipe capped and clean
- Replace injector packing kits
- Check the associated short pipe and high-pressure supply pipe
- Follow Yamaha high-pressure fuel-system procedures
- Perform leak and pressure testing after installation
🔄 Supersession & Cross Reference
OEM / Related Numbers
- 68F-13171-00-00
- 68F131710000
- Starboard delivery pipe: 68F-13161-00-00
- Injector: 68F-13761-00-00
- Short pipe: 68F-13938-00-00
- Injector cap: 68F-13767-00-00
- Injector holder: 68F-13898-00-00
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine Yamaha Marine used part
- Pre-owned high-pressure fuel component
- Cosmetic marks and fuel residue may be present
- Professional cleaning and pressure inspection are recommended
- Supplied in protective or equivalent packaging
