68F-13624-00-1S 65L-13610-01-00 Yamaha Z200 Reed Valve Assemblies & Plate | Genuine Used Part

🔧 Product Description

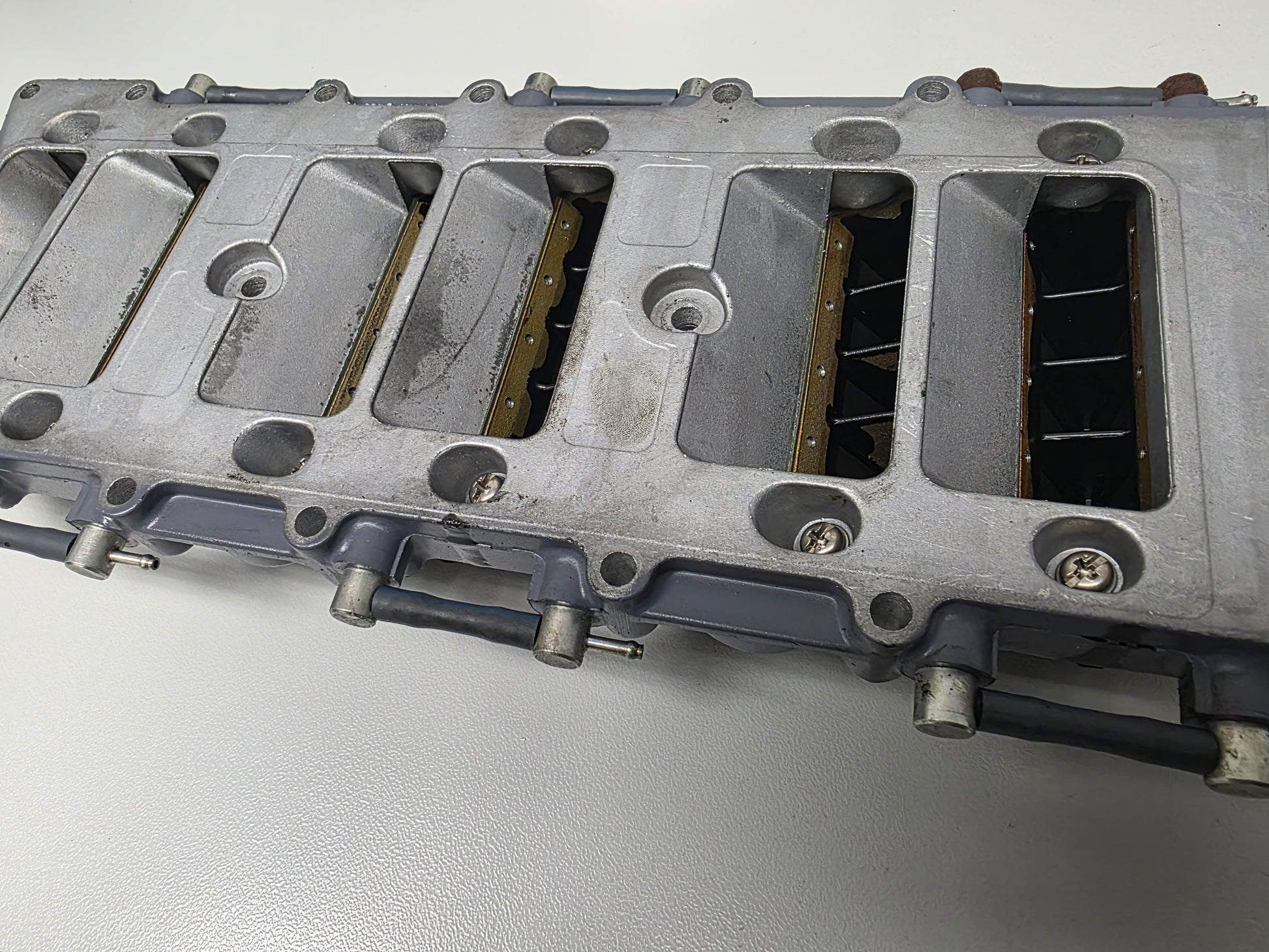

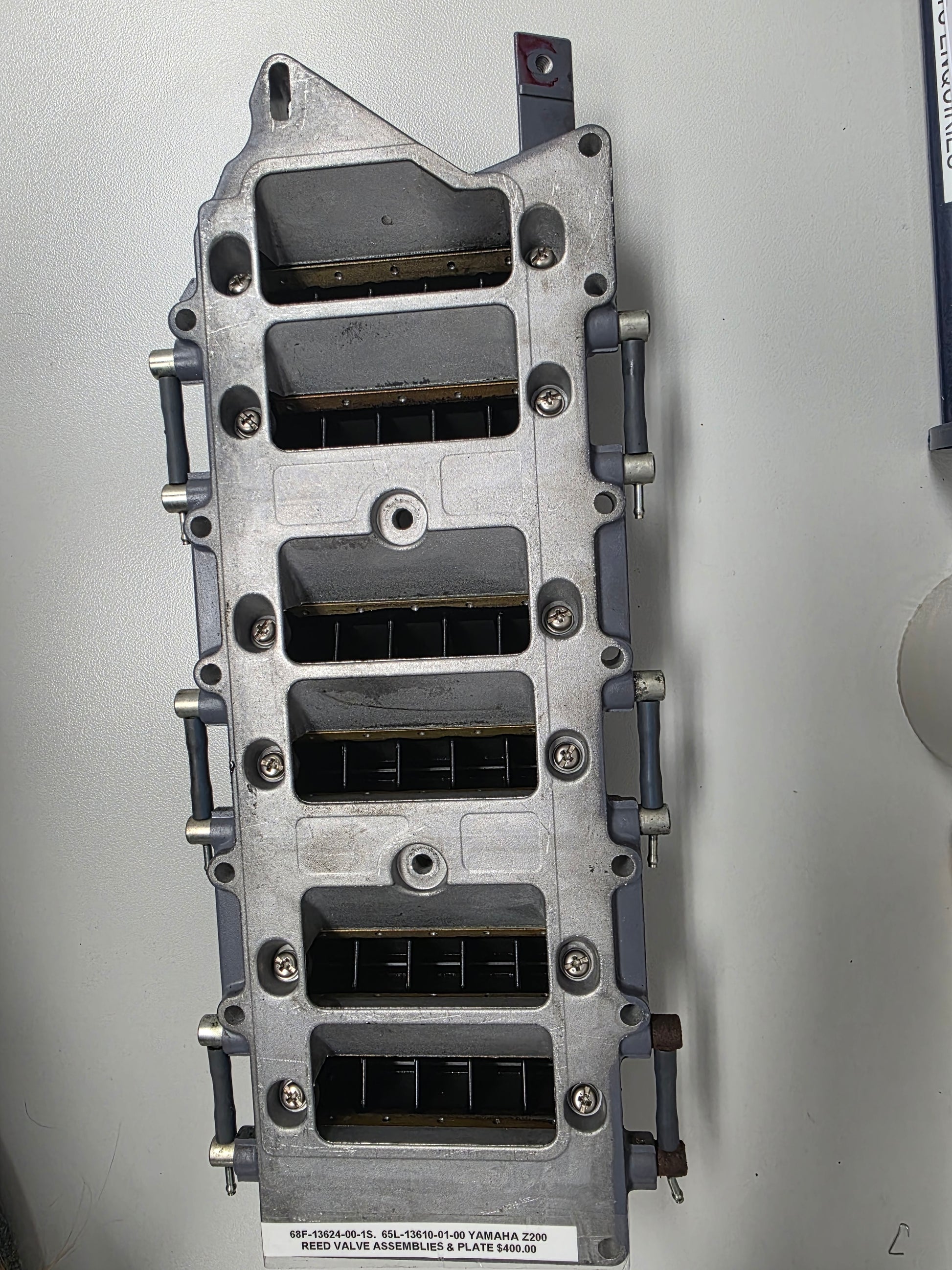

Genuine Yamaha 150HP-200HP HPDI Reed Valve Assemblies and Reed Plate - Part Numbers: 68F-13624-00-1S / 65L-13610-01-00

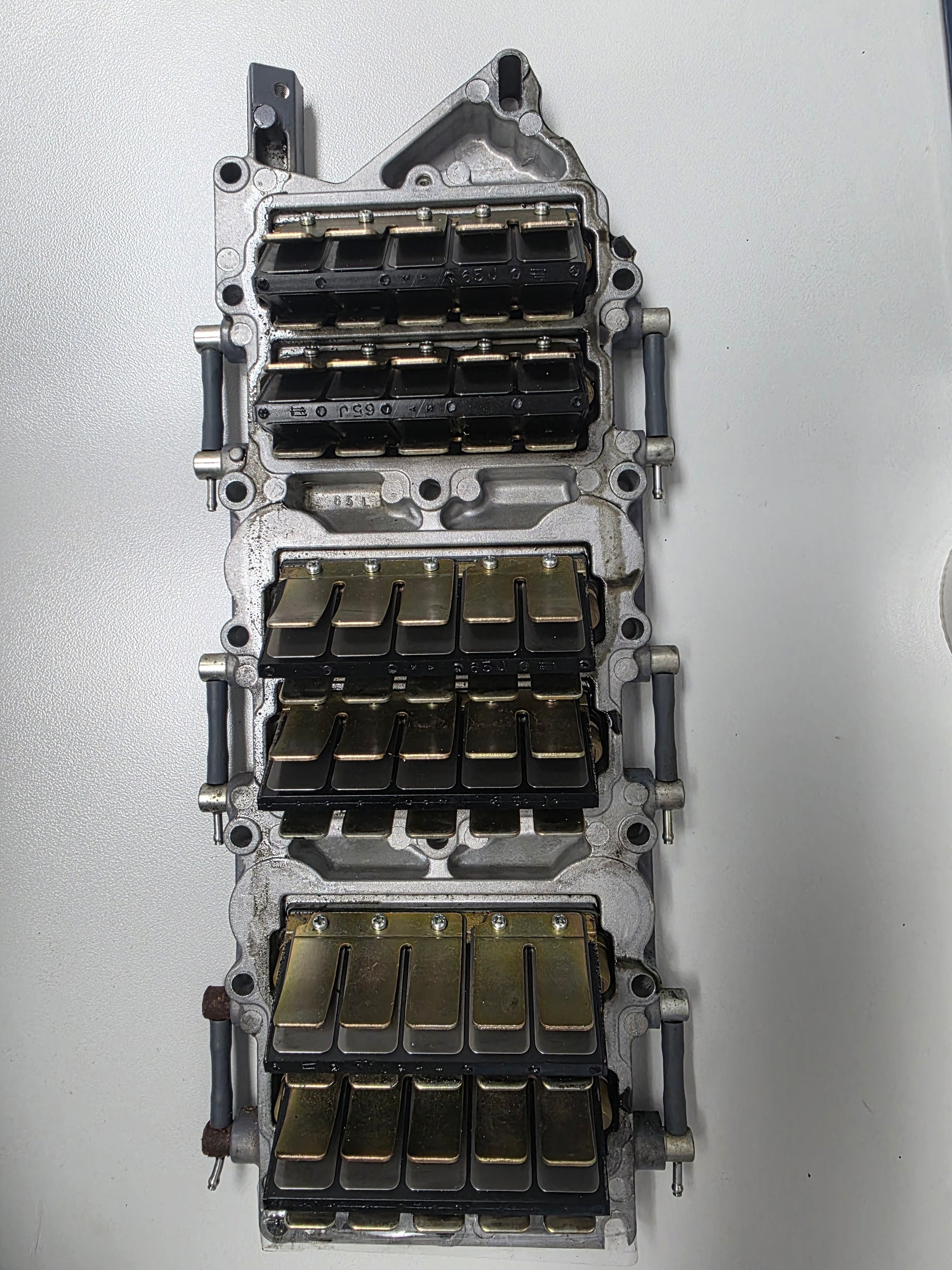

A genuine Yamaha intake reed assembly consisting of the reed-valve mounting plate and six individual reed-valve assemblies for selected 2.6-litre V6 HPDI outboards.

Reed plate 68F-13624-00-1S positions the six reed cages between the intake manifold and crankcase. Each reed-valve assembly opens as crankcase pressure falls, allowing the air and fuel charge to enter, then closes as crankcase pressure rises to prevent the charge flowing back through the intake.

Yamaha intake diagrams specify one reed plate and six reed-valve assemblies per engine.

⚙️ Key Features

• Genuine Yamaha OEM HPDI reed-valve assembly
• Includes reed plate 68F-13624-00-1S
• Uses six reed-valve assemblies 65L-13610-01-00

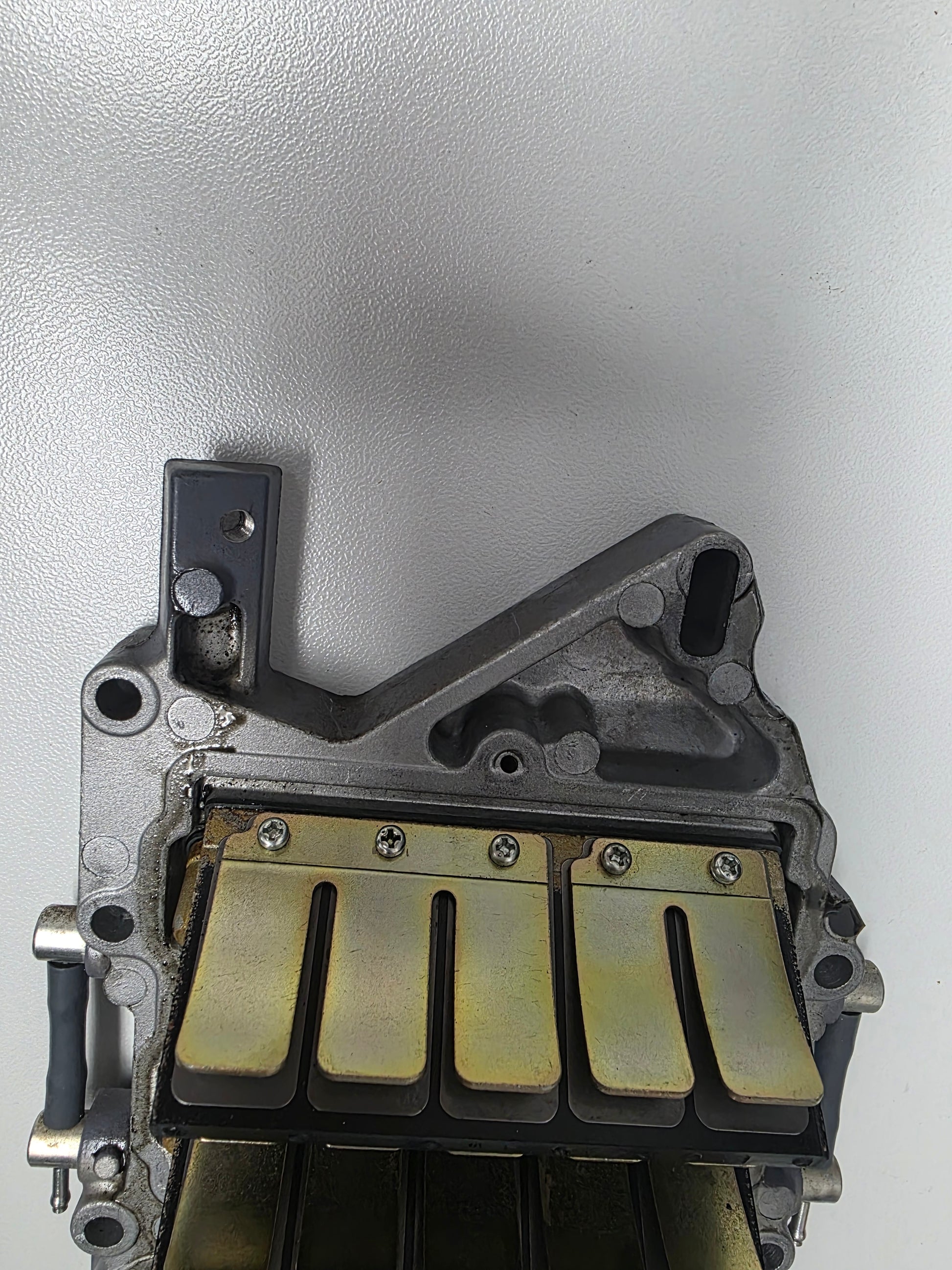

• Five-petal V6 reed design
• Genuine and performance aftermarket reed options available

🚤 Compatibility

Commonly used on

• Yamaha 2.6-litre V6 HPDI intake assemblies
• Standard-rotation and counter-rotation HPDI outboards
• VMAX HPDI and Saltwater Series HPDI configurations using plate 68F-13624-00-1S

Typically suits

• Engine models:
• Yamaha Z150 HPDI
• Yamaha LZ150 counter-rotation HPDI
• Yamaha VZ150 VMAX HPDI where the 68F plate is specified
• Yamaha Z175 HPDI
• Yamaha VZ175 VMAX HPDI where the 68F plate is specified
• Yamaha Z200 HPDI
• Yamaha LZ200 counter-rotation HPDI
• Yamaha VZ200 VMAX HPDI
• Yamaha Z150PETO
• Yamaha Z175GETO
• Yamaha Z200NETO
• Yamaha Z150TXR
• Yamaha Z175TXR
• Yamaha Z200TXR
• Yamaha LZ150TXR
• Yamaha LZ200TXR
• HP Range for Complete 68F Plate Assembly: 150HP - 200HP
• Engine Type: Yamaha 2.6-litre V6 HPDI direct-injected two-stroke outboard
• Year Range: Approximately 2000 - 2013, dependent on market and model code

The individual 65L-13610-01-00 reed cage also appears on some 225HP and 250HP Yamaha engines, but those engines may use a different reed plate. That broader reed-cage fitment should not be used to claim that the complete 68F plate assembly fits every 225HP or 250HP engine.

🔌 Function

The reed valves act as one-way intake valves. They allow the incoming air and fuel charge to enter each crankcase chamber while preventing reverse flow as the piston travels downward.

⚠️ Common Signs of Failure

• Rough or unstable idle
• Hesitation or bogging during acceleration
• Reduced low-speed torque
• Fuel mist or pulsing from the throttle-body intake
• Difficult starting
• One cylinder running rich or lean
• Reed petals chipped, cracked or no longer sealing flat
• Reed-cage screws loose or mounting plate damaged

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 65L-13610-01-00 → Supersedes 65L-13610-00-00
• 65L-13610-01-00 → Also replaces 61A-13610-01-00
• 68F-13624-00-1S current documented reed-plate reference
• No confirmed supersession for the 68F reed plate

The individual reed-valve assembly has a broader application range than the 68F plate. Compatibility for the complete listed assembly must therefore be based on reed plate 68F-13624-00-1S, not merely on the reed-cage number.

OEM / Related Numbers

• 68F-13624-00-1S reed-valve plate
• 68F13624001S
• 65L-13610-01-00 reed-valve assembly
• 65L136100100
• 65L-13610-00-00 earlier reed-valve assembly
• 61A-13610-01-00 earlier reed-valve assembly
• 65J-W0004-01-00 genuine replacement reed set
• 61A-13621-A0-00 reed-cage seat gasket - six required
• 65L-13645-00-00 intake manifold gasket 1
• 65L-13646-00-00 intake manifold gasket 2
• 6F6-11372-01-00 related oil-hose nipple - six used in applicable assemblies
• 650-11370-01-00 related check-valve assembly

Aftermarket / Verified Equivalents

• Boyesen: 365DI Power Reeds
• Boyesen: 365DIPRO Pro Series Reeds
• Rareelectrical: five-petal HPDI reed-valve assembly replacing 65L-13610-01-00
• Genuine Yamaha: 65J-W0004-01-00 replacement reed set
• No verified aftermarket equivalent for reed plate 68F-13624-00-1S

Boyesen 365DI and 365DIPRO are complete six-cylinder reed sets for compatible five-petal Yamaha HPDI engines. They replace the reed petals fitted to the OEM cages rather than the aluminium 68F mounting plate.

Rareelectrical markets a complete replacement reed-cage assembly cross-referenced to Yamaha 65L-13610-01-00 and 60V-13610-00-00. Because the 60V cage is also used on 3.3-litre engines, exact engine and cage dimensions should be checked before mixing individual assemblies.

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
