68f-13751-01-00 Yamaha Throttle Body HPDI | Genuine Used Part

🔧 Product Description

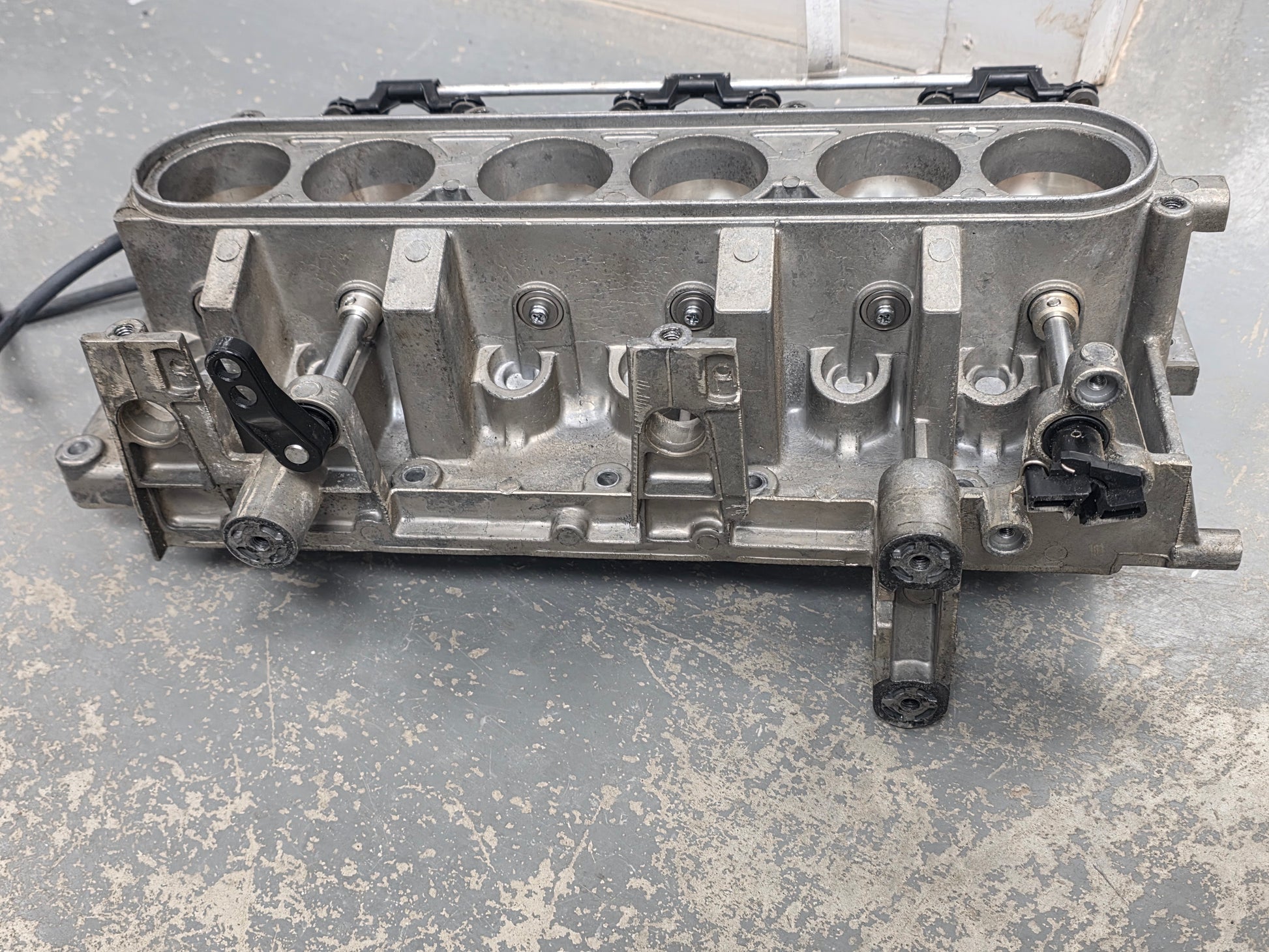

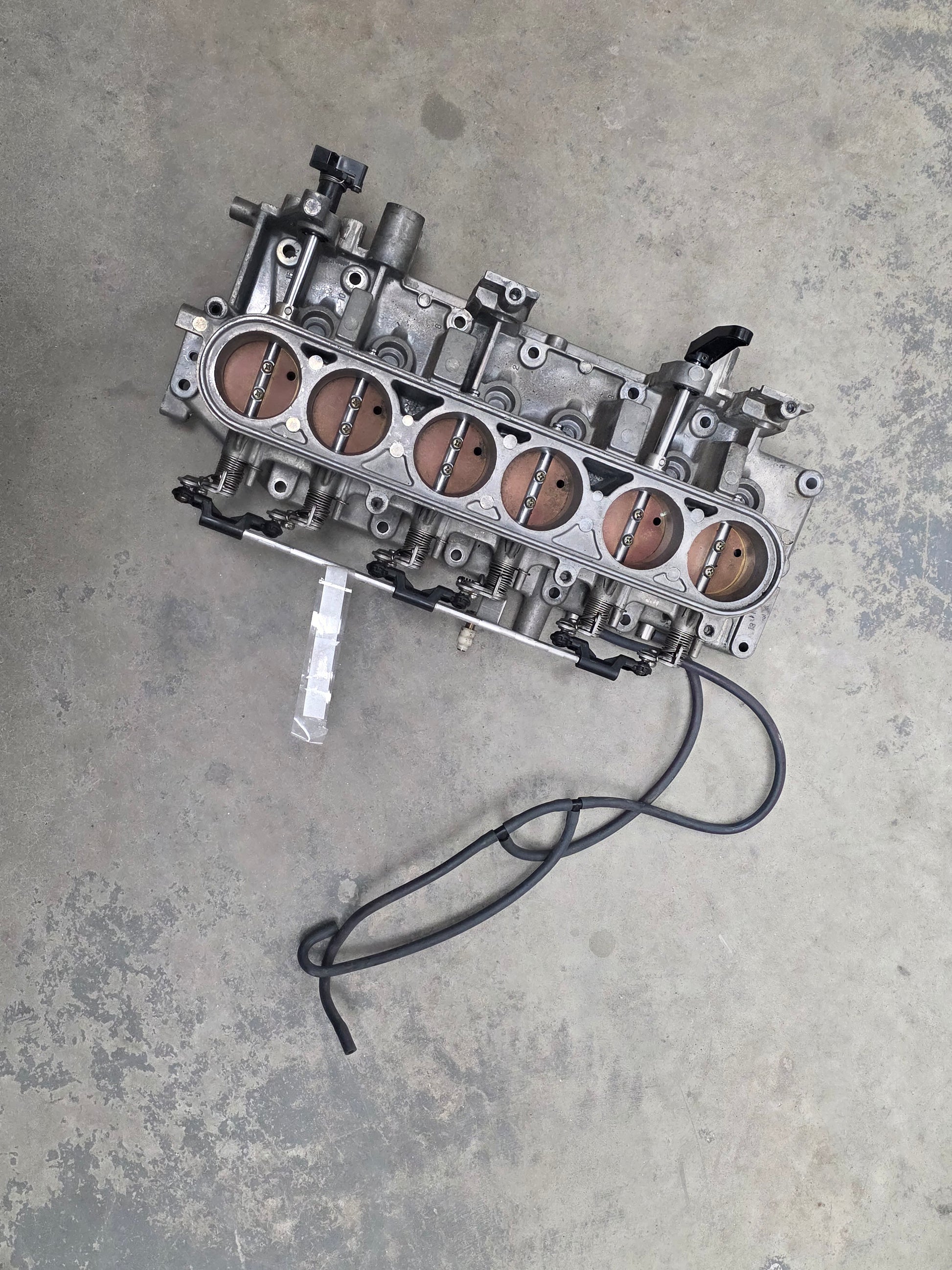

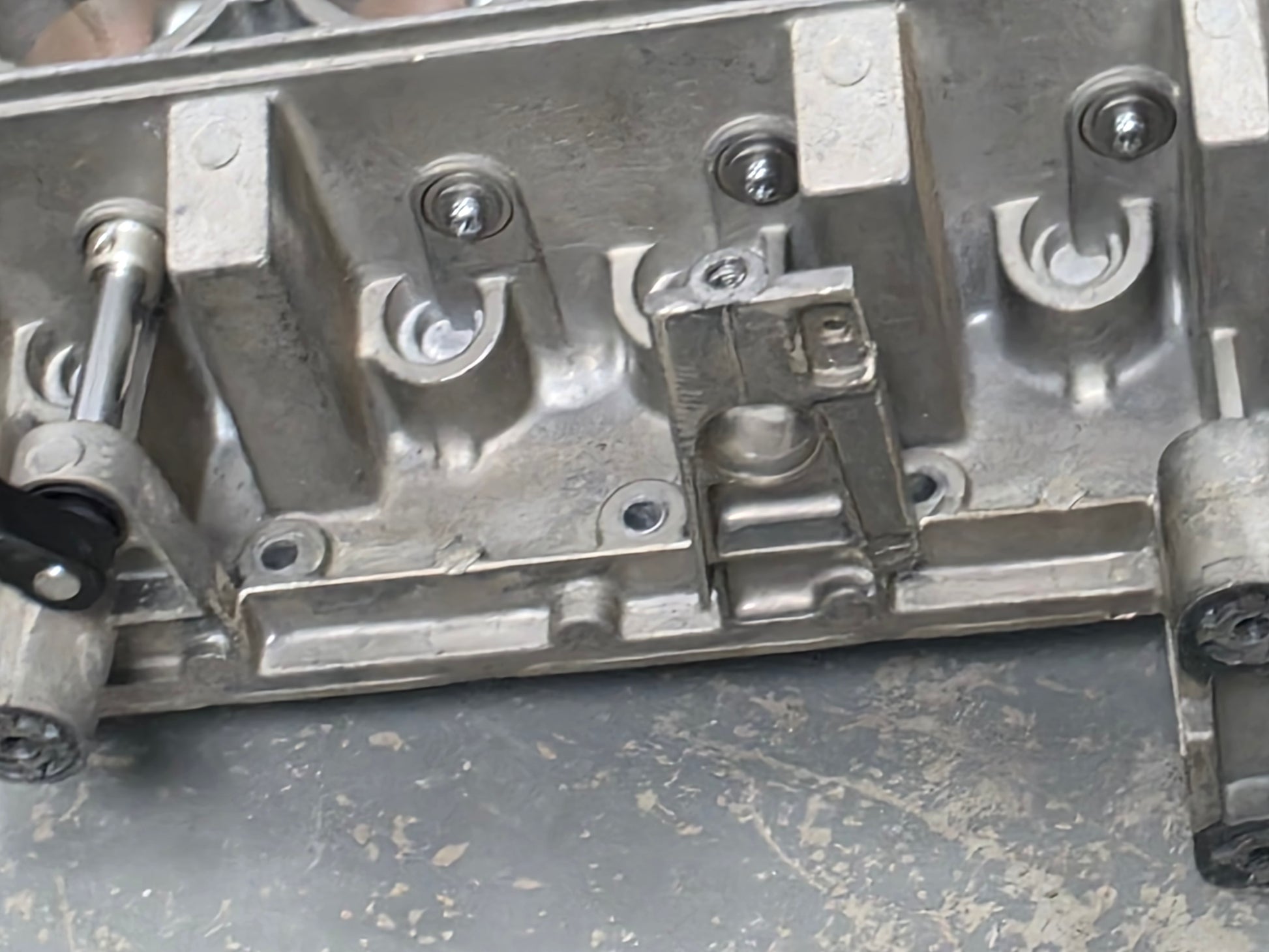

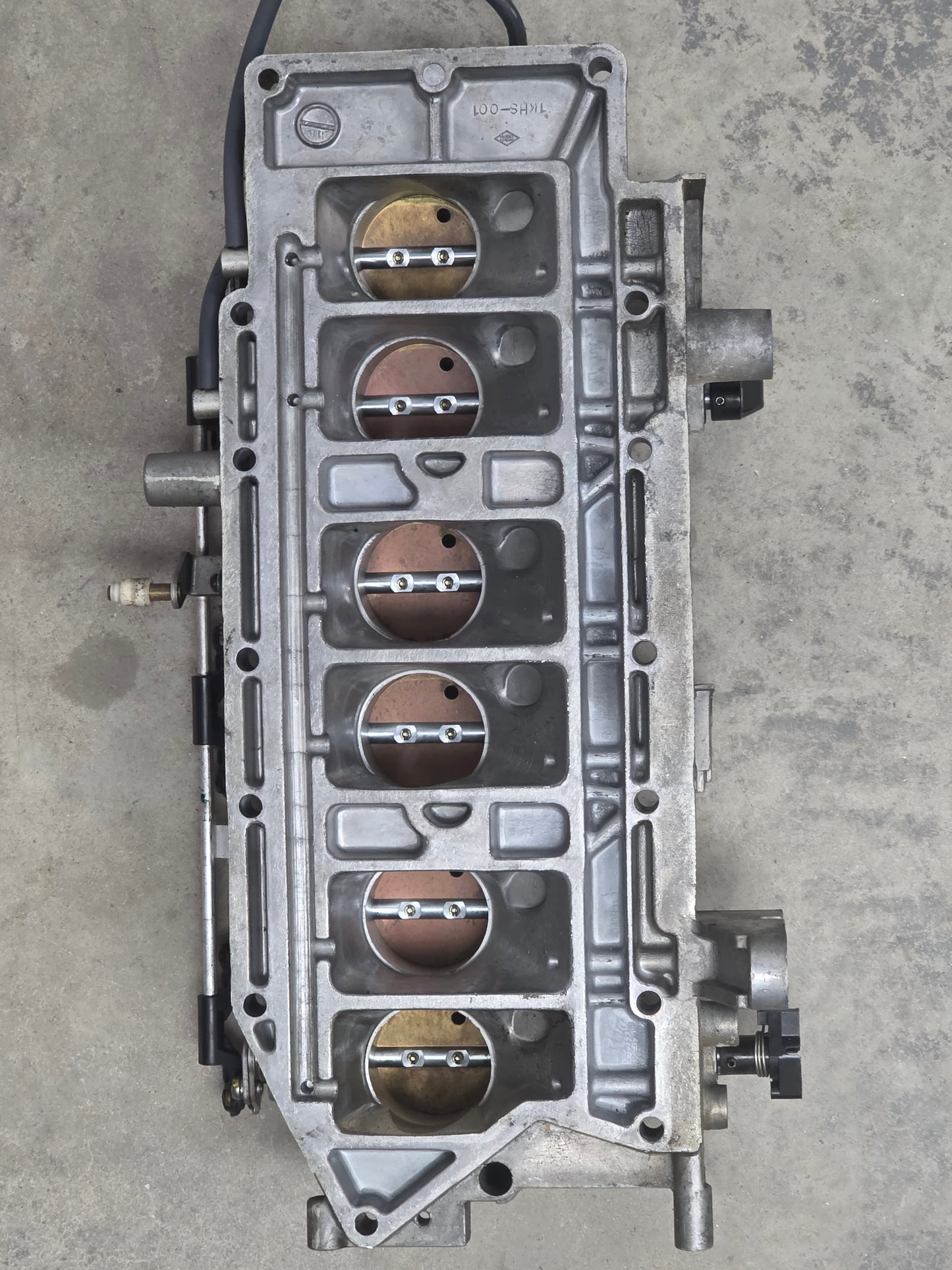

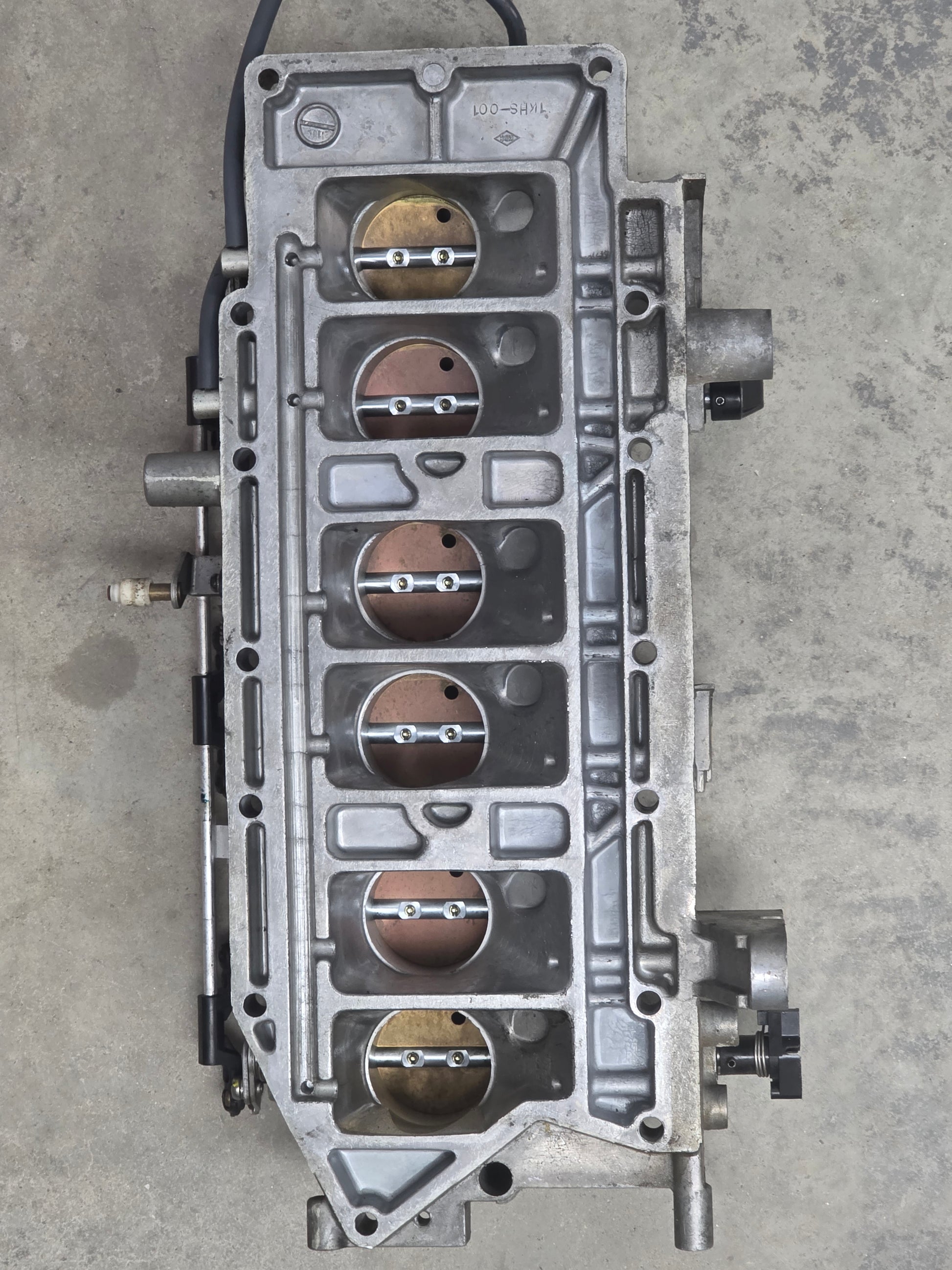

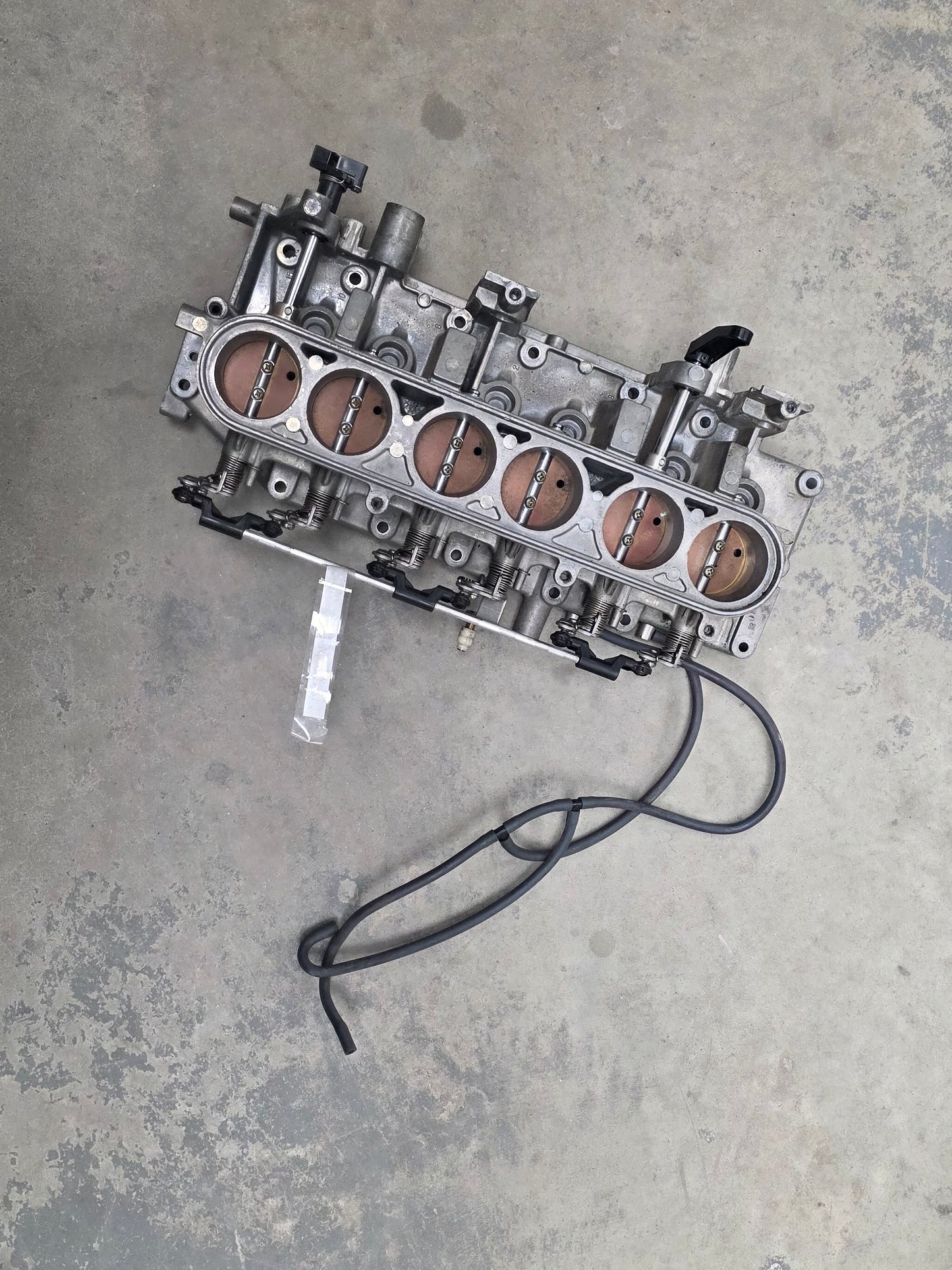

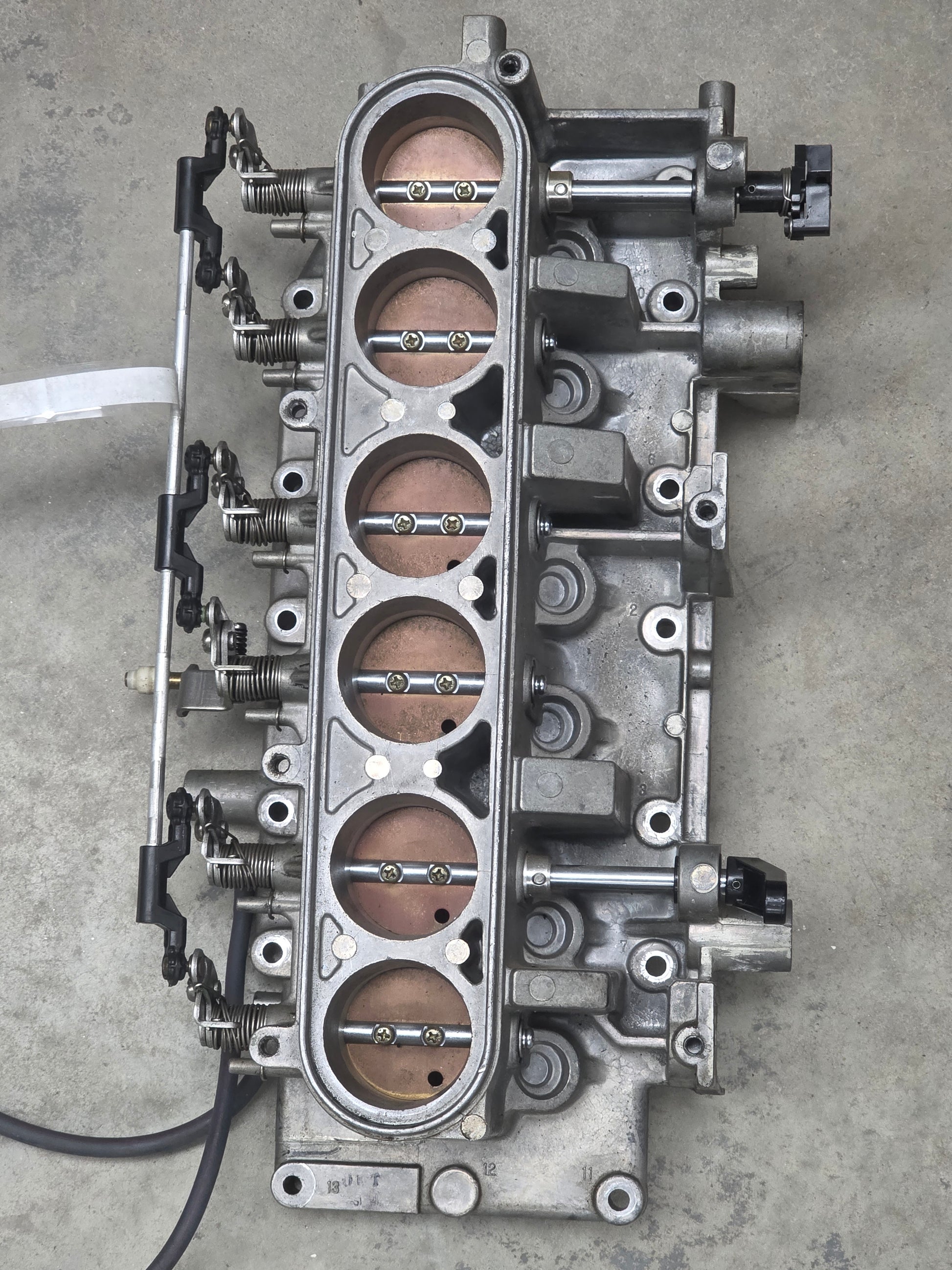

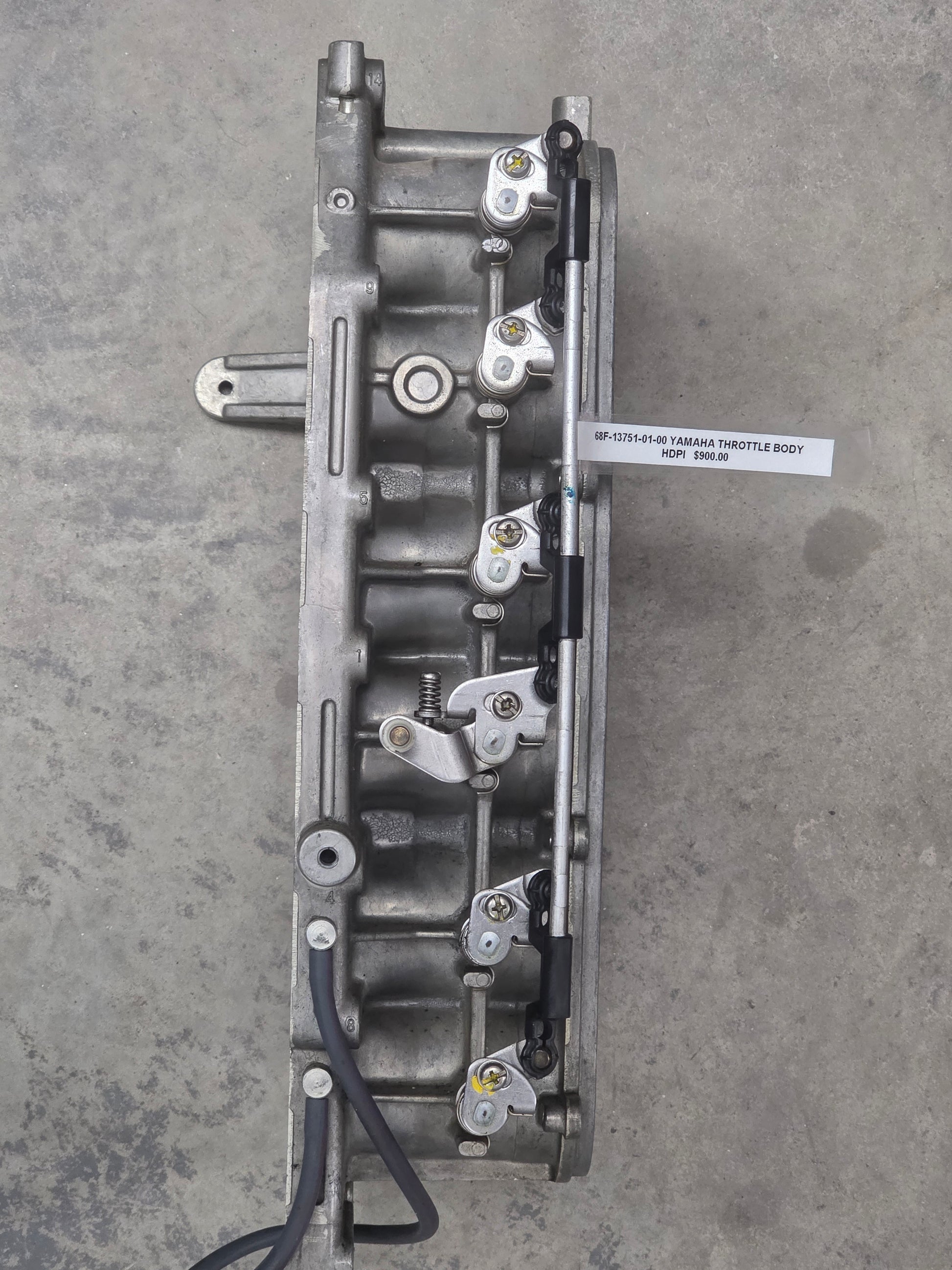

Genuine Yamaha HPDI V6 Throttle Body Assembly - Part Number: 68F-13751-01-00

A genuine used Yamaha throttle-body assembly for selected 150HP, 175HP and 200HP V6 HPDI direct-injection outboards.

The multi-bore throttle body meters intake air to the V6 powerhead and carries the throttle shafts and plates used by the HPDI control system. It must remain synchronised and free from air leaks.

⚙️ Key Features

• Genuine Yamaha OEM HPDI throttle-body assembly
• Correct current Yamaha part number 68F-13751-01-00
• Supersedes original 68F-13751-00-00 assembly
• Used on Z, LZ and VZ 150HP to 200HP V6 HPDI engines
• Complete multi-bore air-metering assembly for direct-injection applications

🚤 Compatibility

Commonly used on

• Yamaha 2.6L V6 HPDI intake and fuel-injection systems
• Standard- and counter-rotation Z150, Z175 and Z200 engine families

Typically suits

• Engine models:
• 2000 Yamaha Z200TR
• 2002 Yamaha LZ150PETO, LZ200NETO, Z150PETO, Z175GETO and Z200NETO
• 2003 Yamaha LZ150PETO, LZ200NETO, Z150PETO, Z175GETO and Z200NETO
• 2004-2007 Yamaha LZ150PETO, LZ200NETO, Z150PETO, Z150QETO, Z175GETO, Z200NETO and Z200PETO where listed
• 2008-2010 Yamaha LZ200NETO, Z150PETO, Z150QETO, Z175GETO, Z200NETO and Z200PETO
• 2012 Yamaha Z150PETO, Z150QETO, Z175GETO, Z200NETO and Z200PETO
• 2013 Yamaha Z150PETO, Z175GETO and Z200NETO
• Yamaha VZ175TLR HPDI applications including 2006 production
• HP Range: 150HP - 200HP
• Engine Type: Yamaha 2.6L V6 two-stroke HPDI outboard
• Year Range: Approximately 2000 - 2013

🔌 Function

The throttle body controls the quantity of air entering each cylinder bank. The engine-control system combines throttle position and airflow demand with HPDI fuel delivery and ignition control.

⚠️ Common Signs of Failure

• Throttle plates stick or do not return fully
• Throttle shafts or bushes develop excess air leakage
• Carbon and oil deposits restrict airflow
• Throttle position is inconsistent across the linked bores
• Engine idles poorly, hesitates or cannot reach full RPM

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 68F-13751-01-00 → Supersedes 68F-13751-00-00
• 68F-13751-00-00 earlier OEM throttle-body reference

OEM / Related Numbers

• 68F-13751-01-00
• 68F137510100
• 68F-13751-00-00
• 68F137510000
• Yamaha HPDI V6 throttle-body assembly

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
