68F-13761-00-00 Yamaha Z200 Injector | Genuine Used Part

🔧 Product Description

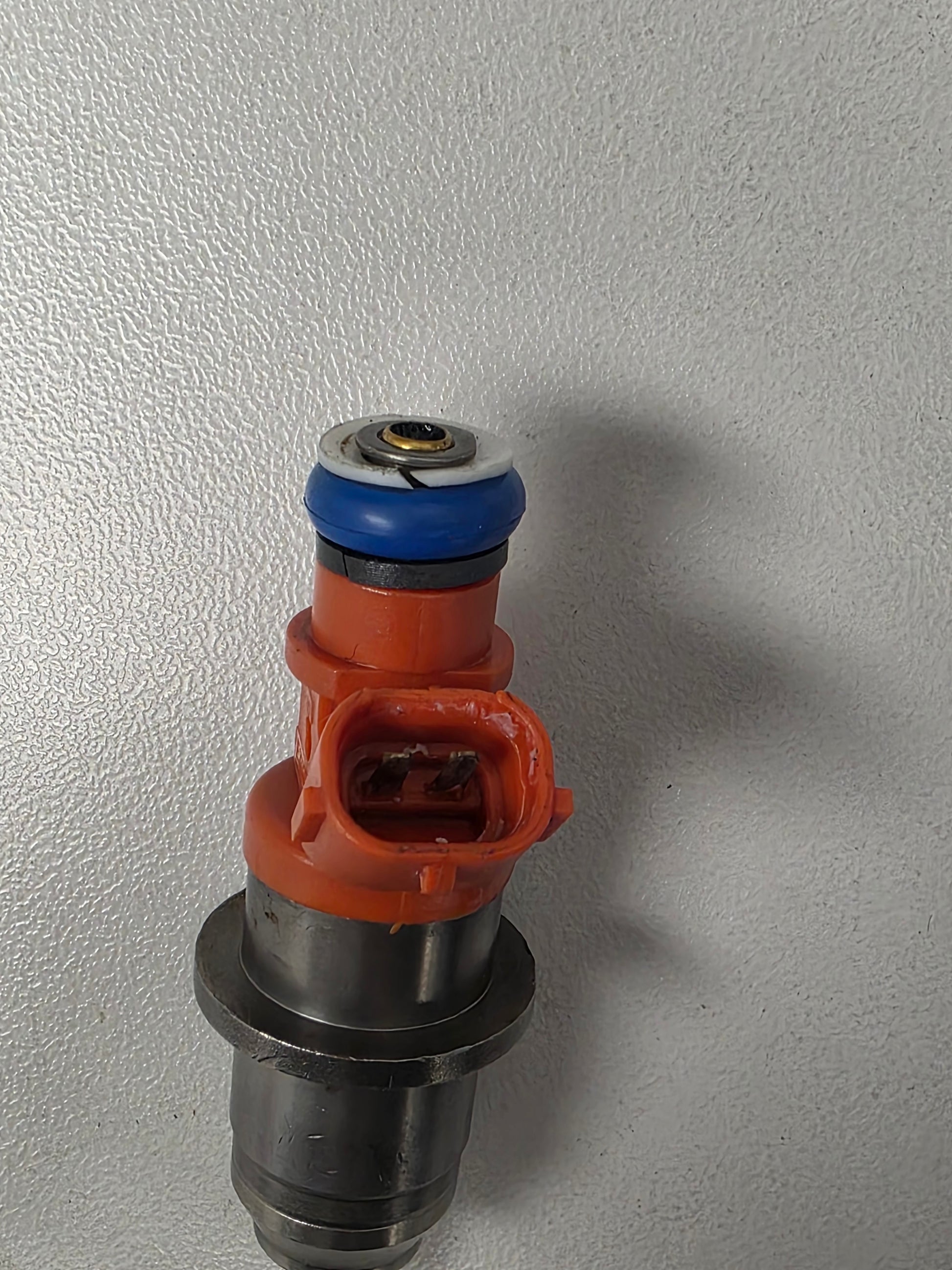

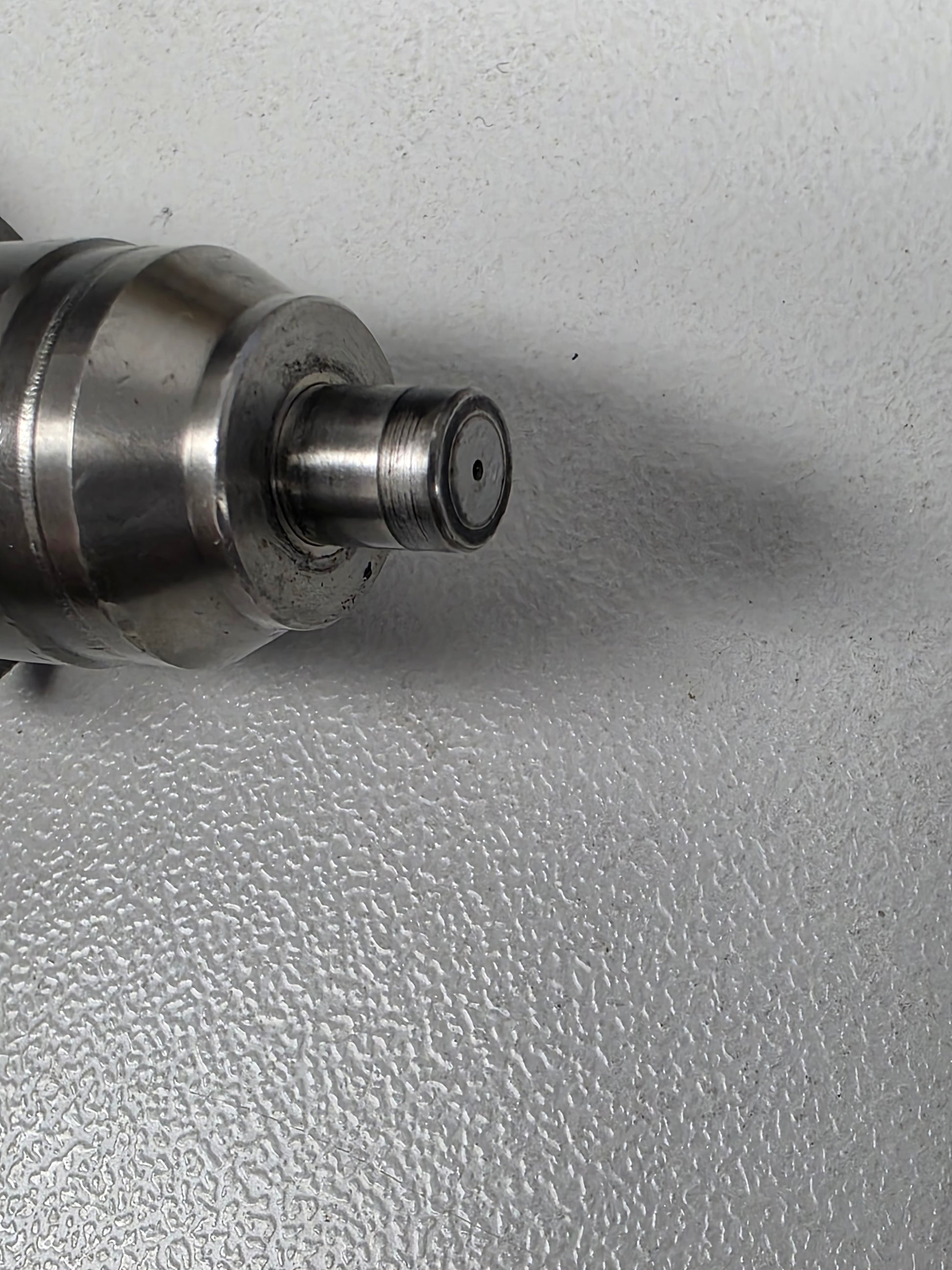

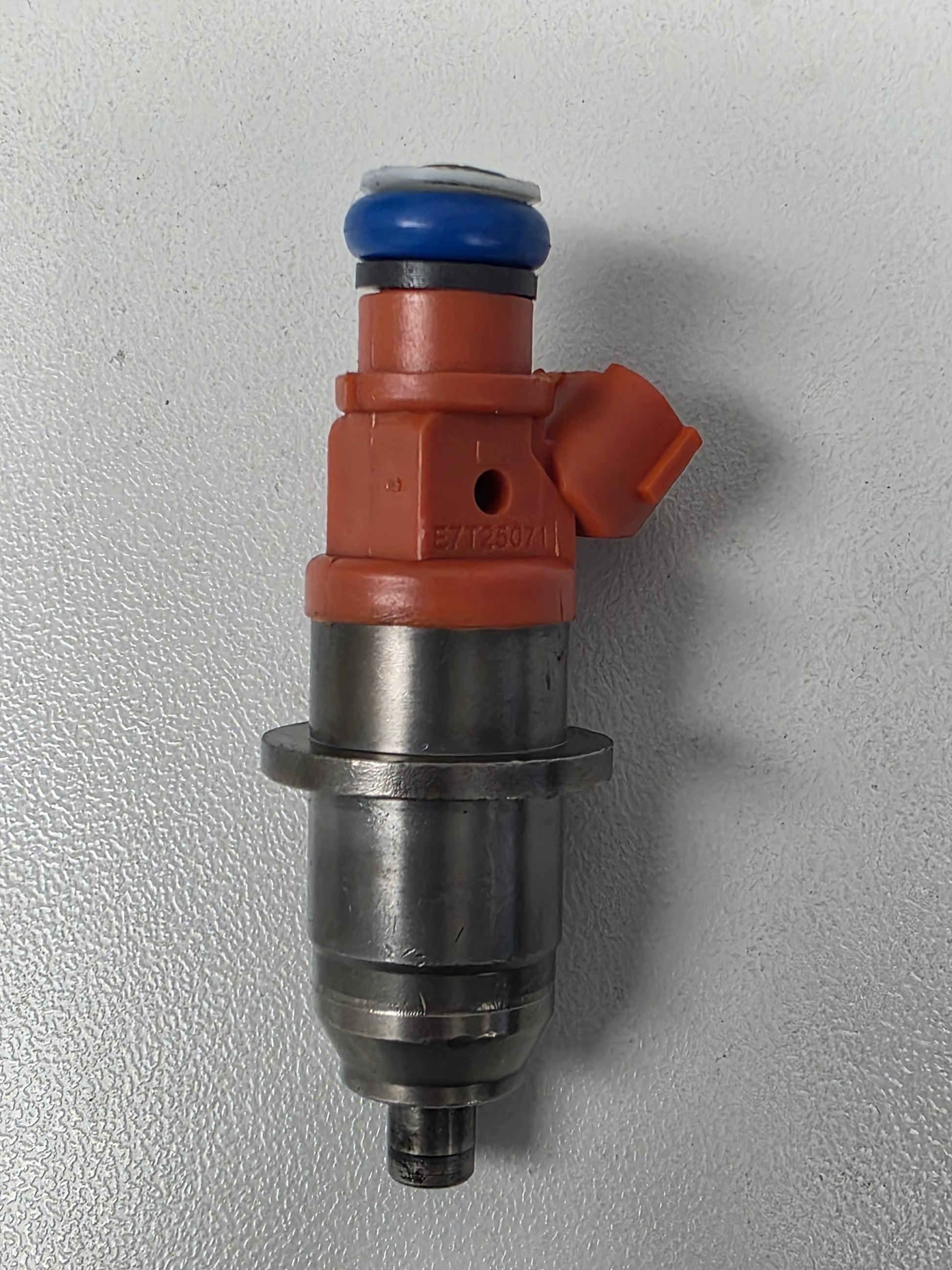

Genuine Used Yamaha HPDI Direct Fuel Injector - Part Number: 68F-13761-00-00

A genuine pre-owned Yamaha high-pressure direct fuel injector for selected 150HP, 175HP and 200HP HPDI two-stroke outboards.

The injector mounts in the delivery-pipe assembly and meters fuel directly into the engine at high pressure.

The original injector is associated with Mitsubishi identification number E7T25071.

⚙️ Key Features

• Genuine Yamaha Marine used HPDI injector

• Correct OEM number 68F-13761-00-00

• Mitsubishi identification E7T25071

• Direct-injection configuration

• Used in banks of three on each V6 delivery pipe

• Six injectors required for a complete V6 engine

• Designed for Yamaha 2.6L HPDI fuel systems

🔄 Supersession & Cross Reference

OEM Supersession / Related Numbers:

• 68F-13761-00-00

• 68F137610000

• 68F-13761-01-00 - Later related injector reference

• Mitsubishi: E7T25071

• Injector cap: 68F-13767-00-00

• Delivery Pipe 1: 68F-13161-00-00

• Delivery Pipe 2: 68F-13171-00-00

• Packing kit: 68F-1410B-00-00

Aftermarket / Verified Equivalents:

• Aftermarket E7T25071 / 68F-13761-00 replacement injectors

• Professionally remanufactured original Mitsubishi E7T25071 injectors

• Specialist ultrasonic cleaning and flow-testing services

Aftermarket fitment note:

• Injector quality and calibration vary significantly.

• Flow-matched, leak-tested original injectors are preferable to unidentified low-cost replacements.

🚤 Compatibility

Commonly used on selected:

• Yamaha Z150 HPDI

• Yamaha LZ150 HPDI

• Yamaha VZ150 HPDI

• Yamaha Z175 HPDI

• Yamaha VZ175 HPDI

• Yamaha Z200 HPDI

• Yamaha LZ200 HPDI

• Yamaha VZ200 HPDI

• Engine Configuration: 2.6-litre V6 two-stroke HPDI

• Injector Quantity: Six per engine

Important fitment note:

• Confirm the injector number and electrical connector.

• Injectors should be flow-tested and preferably matched across the engine.

• Incorrect fuel delivery can cause severe piston and cylinder damage.

🔌 Function

The injector opens for a precisely controlled period to deliver pressurised fuel into the combustion process.

Common signs of injector failure:

• Cylinder misfire

• Lean piston damage

• Excessive smoke

• Spark plug is wet or unusually dry

• Difficult starting

• Engine surges

• Poor high-speed performance

• Injector leaks when closed

• Electrical coil is open or shorted

• Fuel spray pattern is uneven

Recommended checks before installation:

• Professionally clean and flow-test the injector

• Check electrical resistance

• Inspect the inlet filter and nozzle

• Replace all injector packing and seals

• Inspect both delivery pipes

• Confirm high-pressure pump output

• Check the medium-pressure fuel system and filters

• Keep every injector identified by cylinder

• Perform Yamaha diagnostic testing after installation

📦 Condition

• Genuine Yamaha Marine used part

• Pre-owned precision fuel injector

• Cosmetic marks and fuel residue may be present

• Flow, leakage and electrical operation are not represented as tested

• Professional testing before installation is strongly recommended

• Supplied in protective or equivalent packaging
