• 68F-13782-00-00 Yamaha Fuel Pump Stay | Genuine Used Part
  • 68F-13782-00-00 Yamaha Fuel Pump Stay | Genuine Used Part - photo 2 of 2
1 2

68F-13782-00-00 Yamaha Fuel Pump Stay | Genuine Used Part

68F-13782-00-00 Yamaha Fuel Pump Stay | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$20.00 AUD
$40.00 AUD $20.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

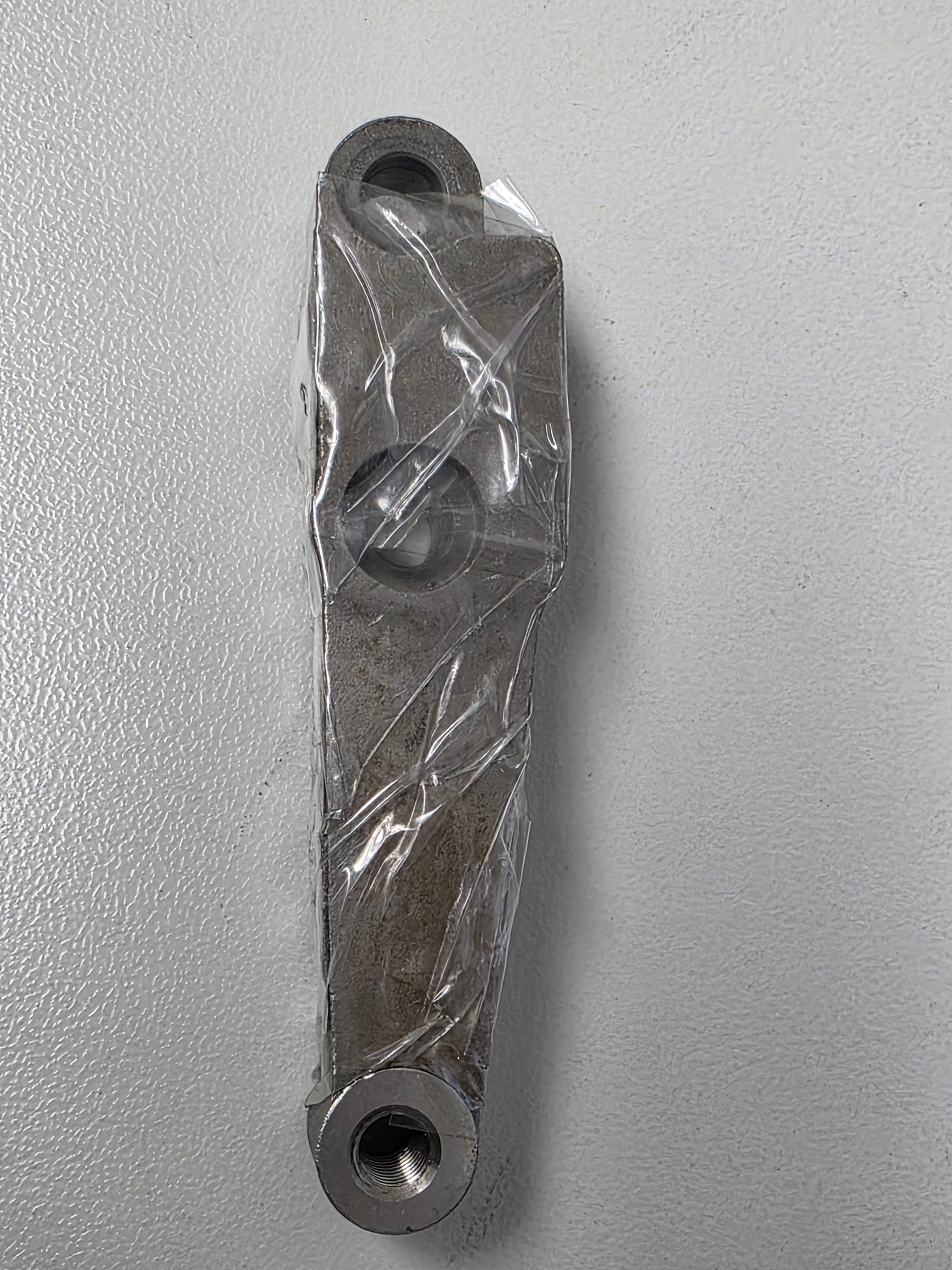

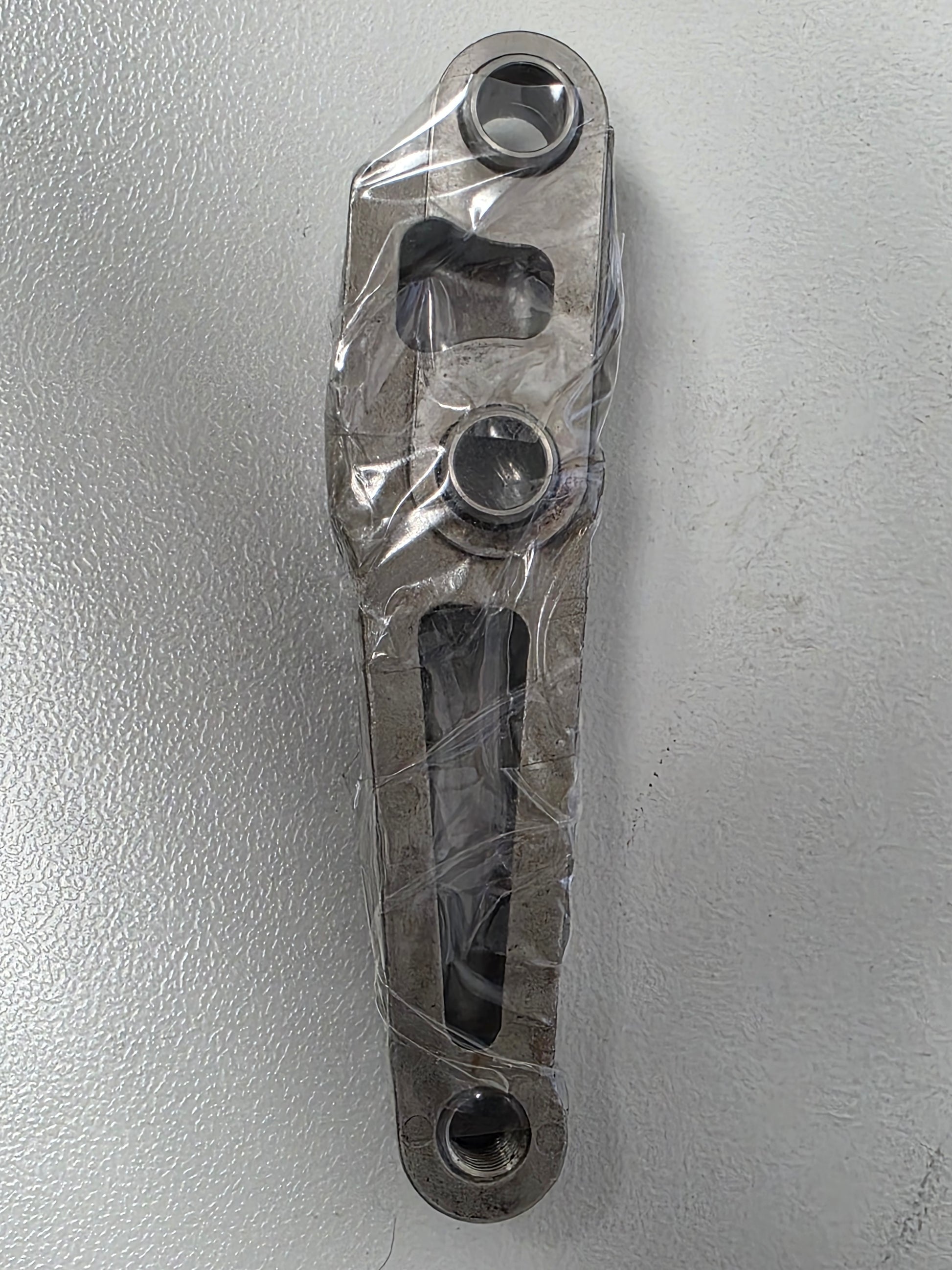

Genuine Yamaha Z150 / Z175 / Z200 HPDI Fuel-System Support Stay - Part Number: 68F-13782-00-00

A genuine used Yamaha support stay used on selected 2.6L HPDI V6 outboards.

The stay mounts to the cylinder-crankcase assembly and supports fuel-system hoses, pipes or nearby pump-related hardware. Yamaha lists 68F-13782-00-00 as a stay within the Cylinder and Crankcase 1 assembly, adjacent to several fuel or pressure hoses, clamps and a mounting collar.

⚙️ Key Features

  • Genuine Yamaha HPDI support stay
  • Correct Yamaha reference 68F-13782-00-00
  • Used on Z150, Z175 and Z200 V6 engines
  • Supports fuel-system or hose-routing components
  • Factory-shaped for the 68F cylinder-block assembly

🚤 Compatibility

Commonly used on

  • Yamaha 2.6L HPDI V6 engines
  • Z-series and LZ-series high-pressure direct-injection outboards
  • Cylinder-block hose and fuel-system support assemblies

Typically suits

  • Yamaha Z150
  • Yamaha LZ150
  • Yamaha VZ150 where specified
  • Yamaha Z175
  • Yamaha VZ175
  • Yamaha Z200
  • Yamaha LZ200
  • Yamaha VZ200
  • Engines whose Cylinder and Crankcase 1 diagram specifies 68F-13782-00-00
  • HP Range: 150HP - 200HP
  • Engine Type: 2.6L V6 HPDI two-stroke outboard
  • Year Range: Approximately 2000-2003 for documented models

🔌 Function

The stay secures hoses or fuel-system hardware against vibration and prevents flexible lines from contacting hot, sharp or moving engine components.

⚠️ Common Signs of Failure

  • Fuel or pressure hose vibrates excessively
  • Stay is bent or broken
  • Hose contacts the block or flywheel area
  • Mounting collar is missing
  • Fastener threads are damaged
  • Bracket has fatigue cracks
  • Hose routing no longer matches the factory layout
  • Corrosion weakens the support point

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 68F-13782-00-00 documented Yamaha stay reference
  • No verified supersession

OEM / Related Numbers

  • 68F-13782-00-00
  • 68F137820000
  • Mounting collar: 90387-08M31-00
  • Hexagon socket bolt: 90110-08M04-00
  • Nearby hose clamp: 90464-07M20-00
  • Associated fuel or pressure hoses vary by HPDI model

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
