68F-13907-01 Aftermarket Mercury/Yamaha Fuel Pump VZ, Z150, Z175, Z200 | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement High-Pressure HPDI Fuel Pump - Replaces Part Number: 68F-13907-01

New aftermarket high-pressure electric EFI fuel pump replacing 68F-13907-01. It is configured for VZ150 and Z150, VZ175 and Z175, VZ200 and Z200 HPDI model families. The exact engine model, serial range, fuel pressure and connection layout must match the original installation.

⚙️ Key Features

• Direct replacement for the 68F-13907-01 service family

• Designed for Yamaha 2.6L HPDI V6 two-stroke outboards

• EFI high-pressure electric-pump construction

• Designed for vapour-separator, VST or cooled fuel-module installation

• Confirm the engine serial, pump pressure and port orientation before installation

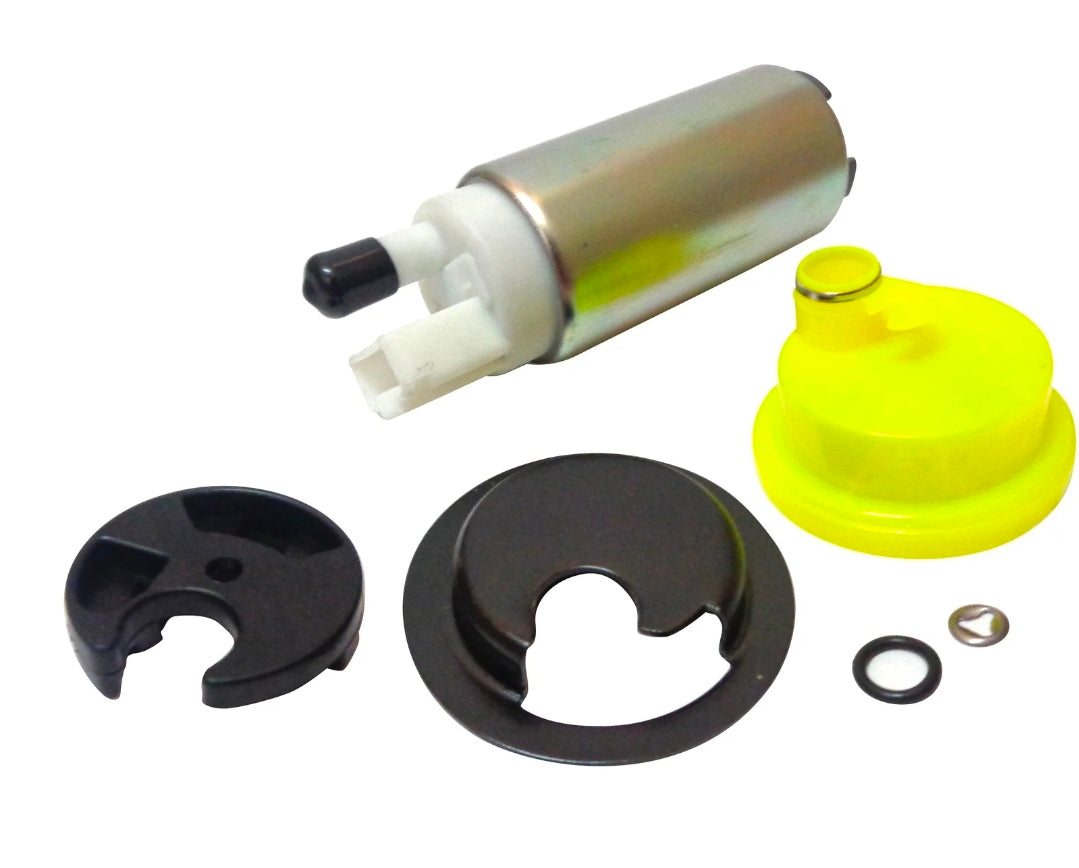

🧰 Kit / Assembly Contents

• 1 × Complete electric fuel-pump assembly/cartridge - Part Number: 68F-13907-01

• 1 × Integrated electrical connector or terminals

• 1 × Inlet screen/strainer - supplied where included by the selected manufacturer

• Seals, module O-rings and mounting hardware are renewed separately unless included

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 68F-13907-01 → Supersedes 68F-13907-00

OEM / Related Numbers:

• 68F-13907-00

Aftermarket / Verified Equivalents:

• Recmar: REC68F-13907-01

• Aftermarket HPDI high-pressure pump matched to 68F-13907-01

🚤 Compatibility

Commonly used on:

• Yamaha 2.6L HPDI V6 two-stroke outboards

Typically suits:

• Engine models:

• VZ150 and Z150

• VZ175 and Z175

• VZ200 and Z200 HPDI model families

• HP / Output Range: 150HP - 200HP

• Engine / System Type: Yamaha 2.6L HPDI V6 two-stroke outboards

• Year Range: HPDI production; model- and serial-dependent

• Serial / Pump Identification: Match P/N 68F-13907-01 to the model-specific parts diagram and verify pressure, electrical connector, inlet/outlet orientation and mounting before ordering.

🔌 Function

The high-pressure electric pump supplies the pressure and flow required by the EFI fuel rail and injectors. It normally operates inside a vapour separator or cooled fuel module.

Common signs of failure:

• Low or unstable fuel-rail pressure

• Crank/no-start or difficult hot starting

• Engine hesitation, lean surging or loss of power

• Pump noise, excessive current draw or blown fuse

• Intermittent stalling as the pump or fuel module heats up

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
