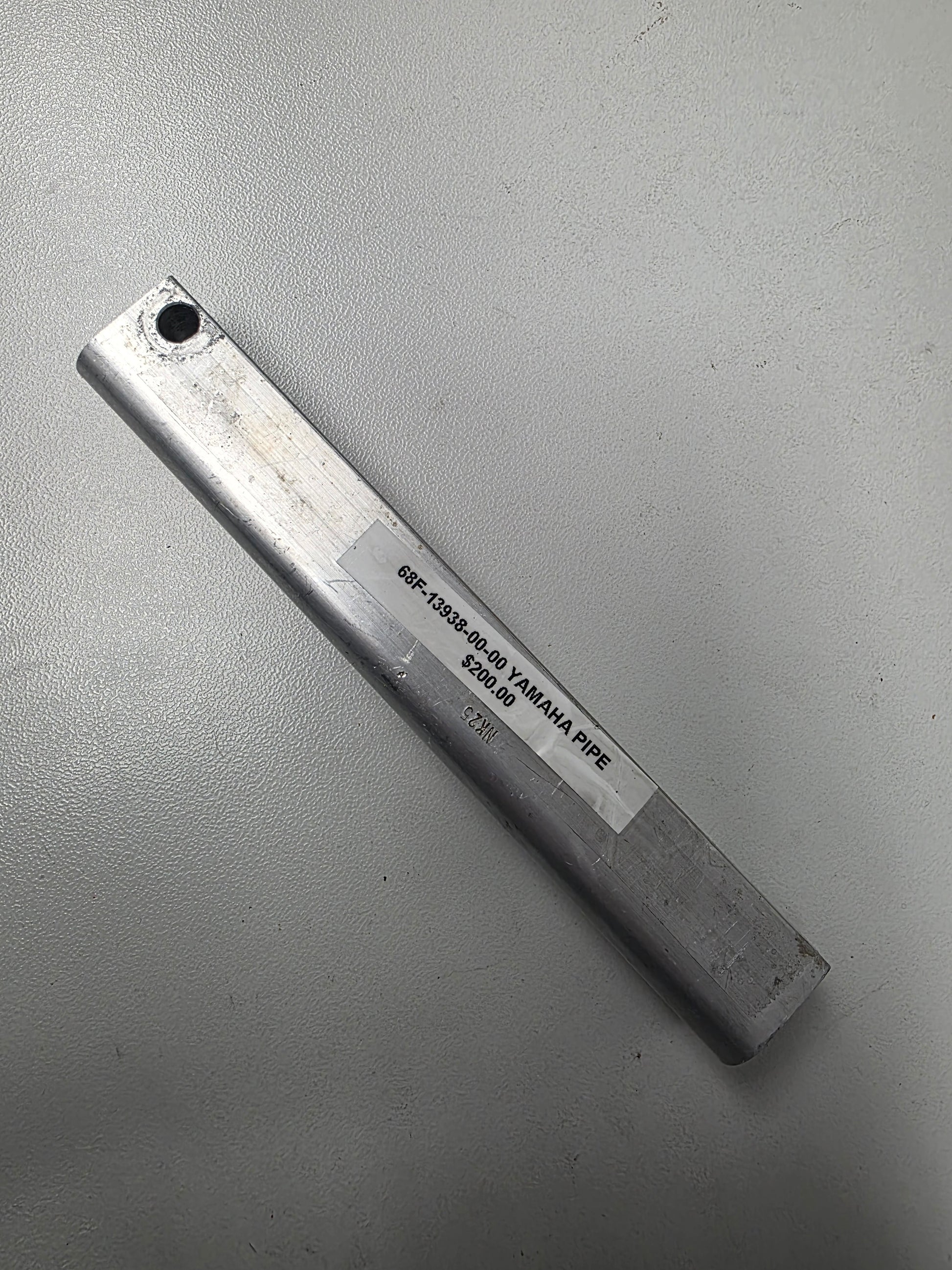

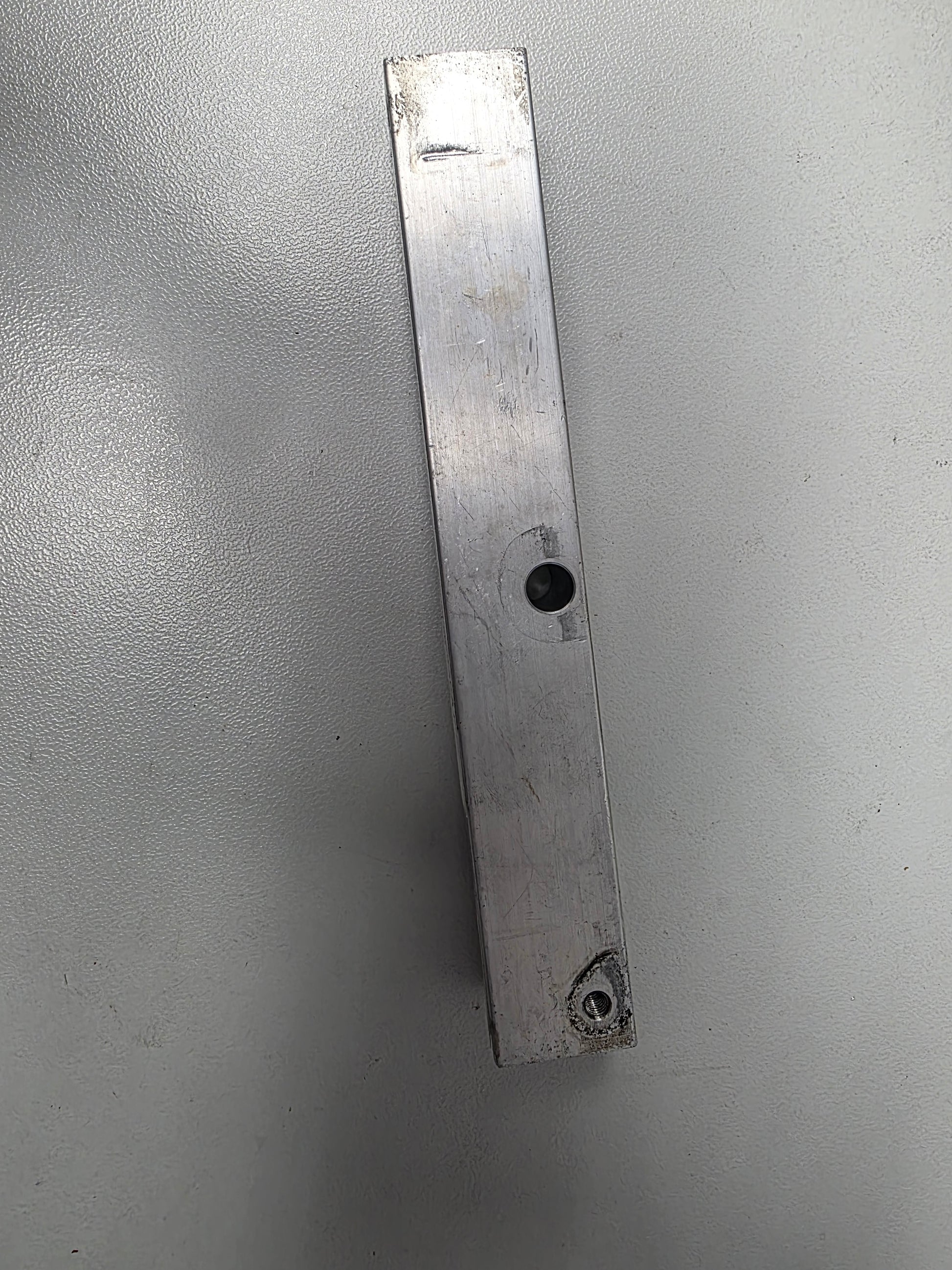

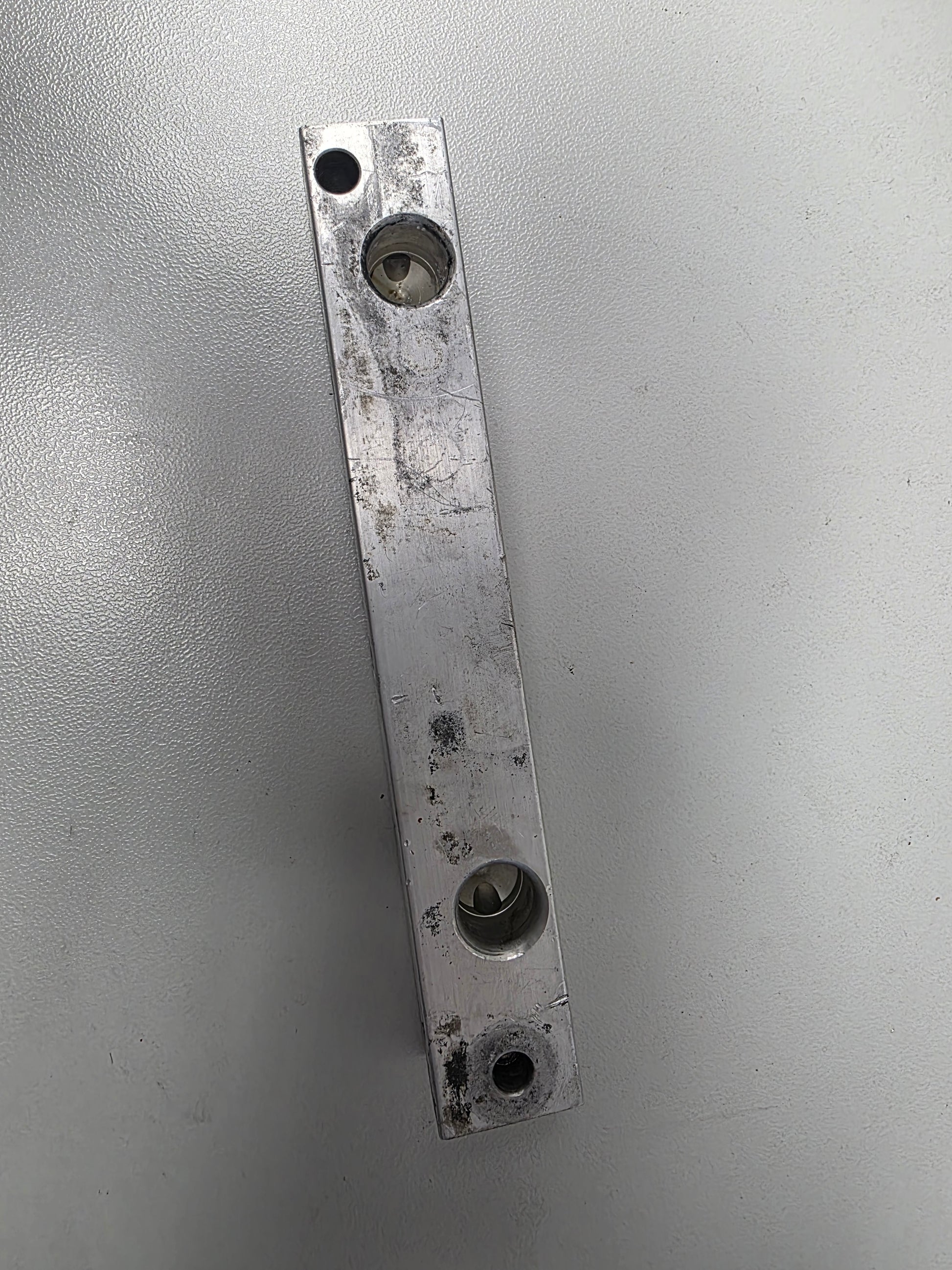

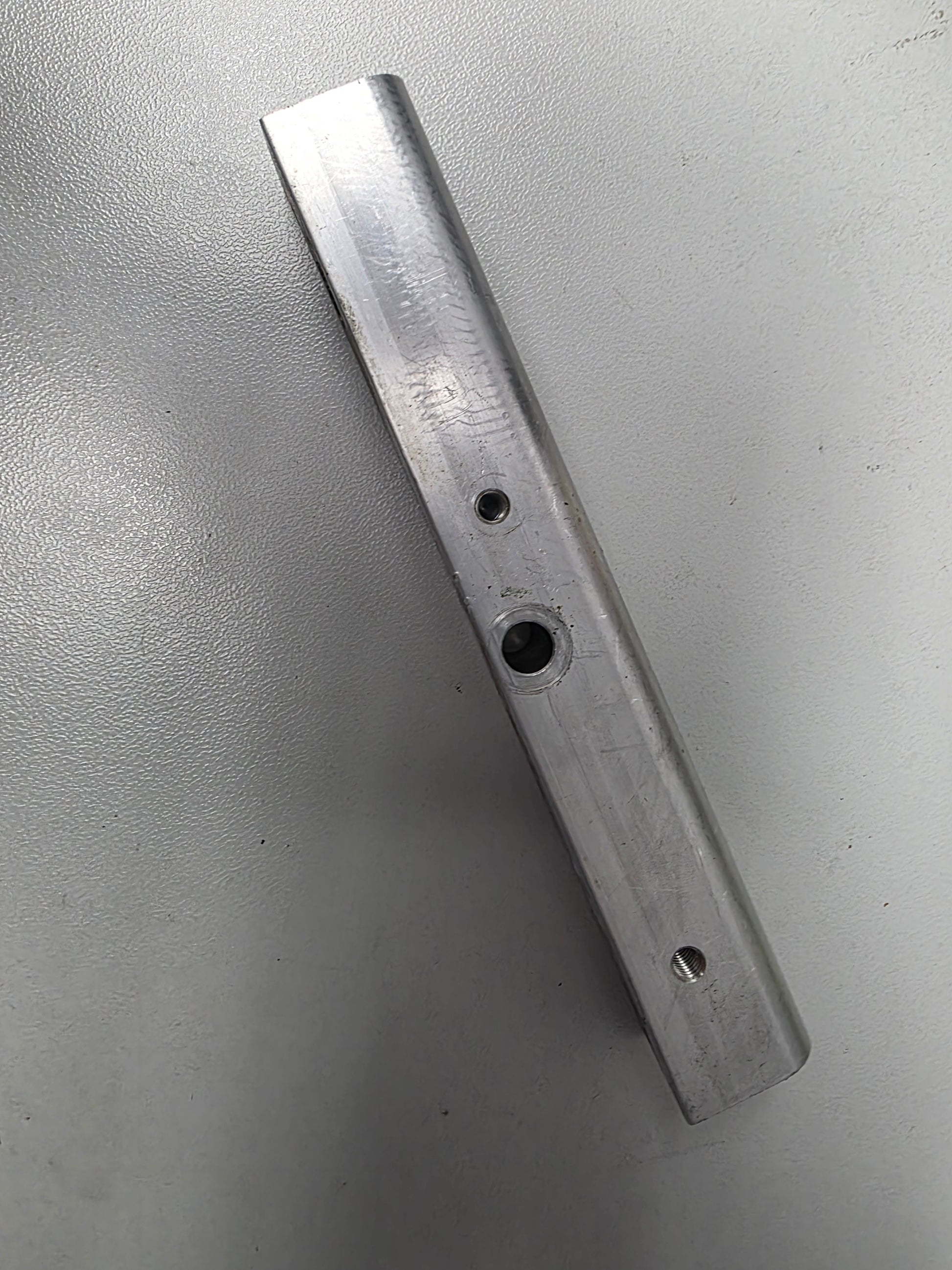

Genuine Used Yamaha HPDI Short Injector-Rail Pipe - Part Number: 68F-13938-00-00
A genuine pre-owned Yamaha short fuel pipe used within the injection-nozzle assembly of selected 150HP, 175HP and 200HP HPDI outboards.
Yamaha catalogues identify the component simply as "Pipe". It connects parts of the HPDI delivery-pipe system and must retain a secure, leak-free seal under fuel pressure.
⚙️ Key Features
- Genuine Yamaha Marine used fuel pipe
- Correct OEM part number 68F-13938-00-00
- Short rigid-pipe configuration
- Used with HPDI delivery pipes 1 and 2
- Suitable for selected 150HP-200HP engines
- Original Yamaha formed and machined pipe
🚤 Compatibility
Verified example applications include
- Yamaha Z150 HPDI
- Yamaha LZ150 HPDI
- Yamaha Z175 HPDI
- Yamaha Z200 HPDI
- Yamaha LZ200 HPDI
- Selected VZ150, VZ175 and VZ200 engines
- Representative production period: Approximately 2000-2003
Important fitment note
- Confirm the shape and fitting orientation against the original pipe.
- Do not straighten or reshape a bent high-pressure pipe.
- Sealing components must be renewed where Yamaha specifies single use.
🔌 Function
The pipe transfers fuel between components of the HPDI injector-delivery assembly.
⚠️ Common Signs of Failure
- Fuel leakage at a fitting
- Pipe is bent or kinked
- Flared sealing end is damaged
- Corrosion or pitting
- Threads are distorted
- Fuel pressure drops
- Engine misfires or loses power
🛠️ Service Notes
Recommended checks before installation
- Inspect both sealing ends
- Confirm the pipe has not been bent
- Keep the interior free from debris
- Check associated delivery pipes
- Replace specified seals
- Tighten fittings with the correct tools and torque
- Pressure-test the system
- Never search for a high-pressure leak with bare hands
🔄 Supersession & Cross Reference
OEM / Related Numbers
- 68F-13938-00-00
- 68F139380000
- Delivery Pipe 1: 68F-13161-00-00
- Delivery Pipe 2: 68F-13171-00-00
- Injector: 68F-13761-00-00
- Injector holder: 68F-13898-00-00
- Related sealing and packing parts vary by model
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine Yamaha Marine used part
- Pre-owned high-pressure fuel component
- Cosmetic marks and fuel residue may be present
- Sealing ends and internal cleanliness must be inspected
- Supplied in protective or equivalent packaging
