68F-13973-09-00 68F-13973-00-00 Yamaha Z200 Fuel Pipe | Genuine Used Part

🔧 Product Description

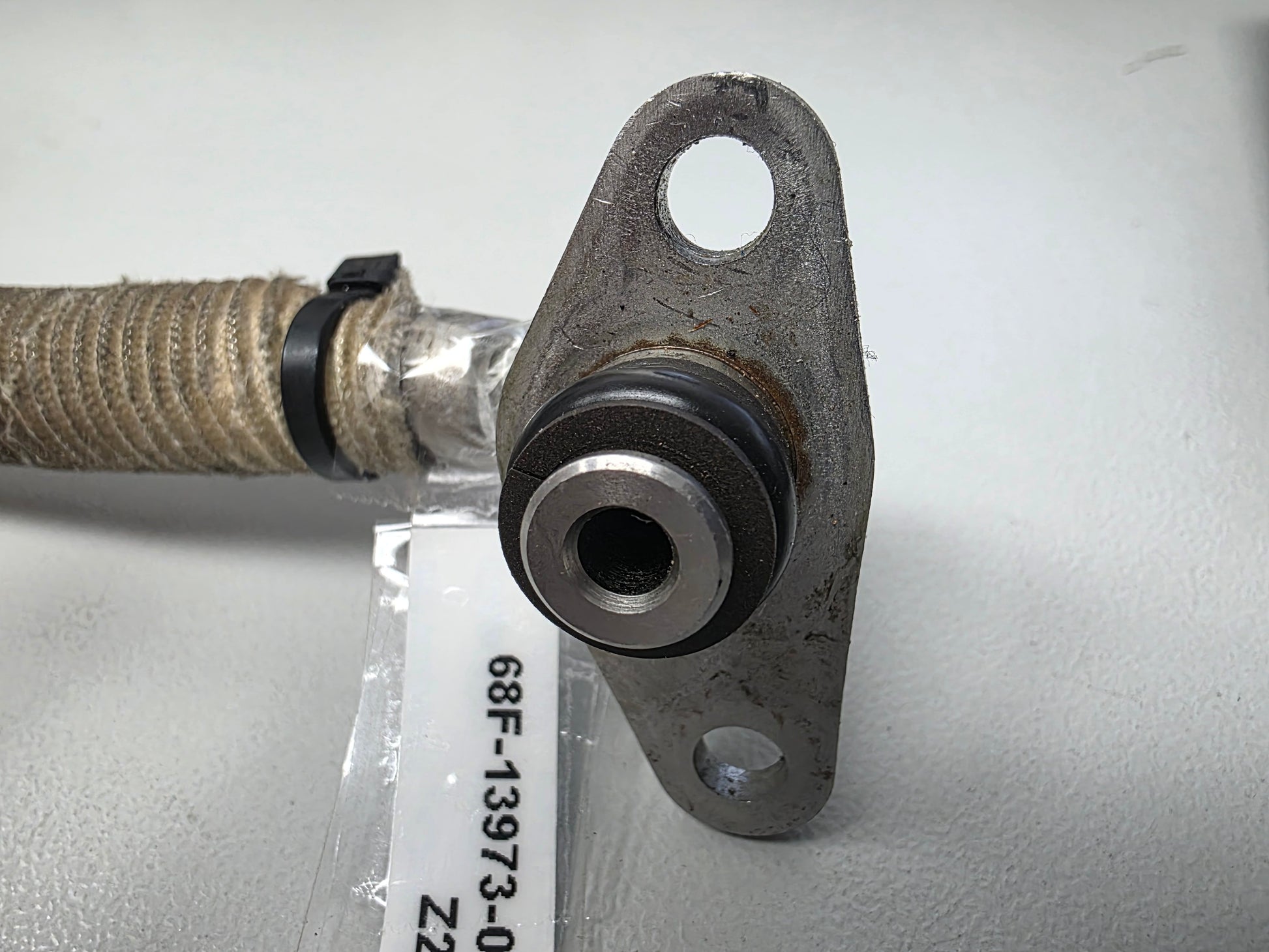

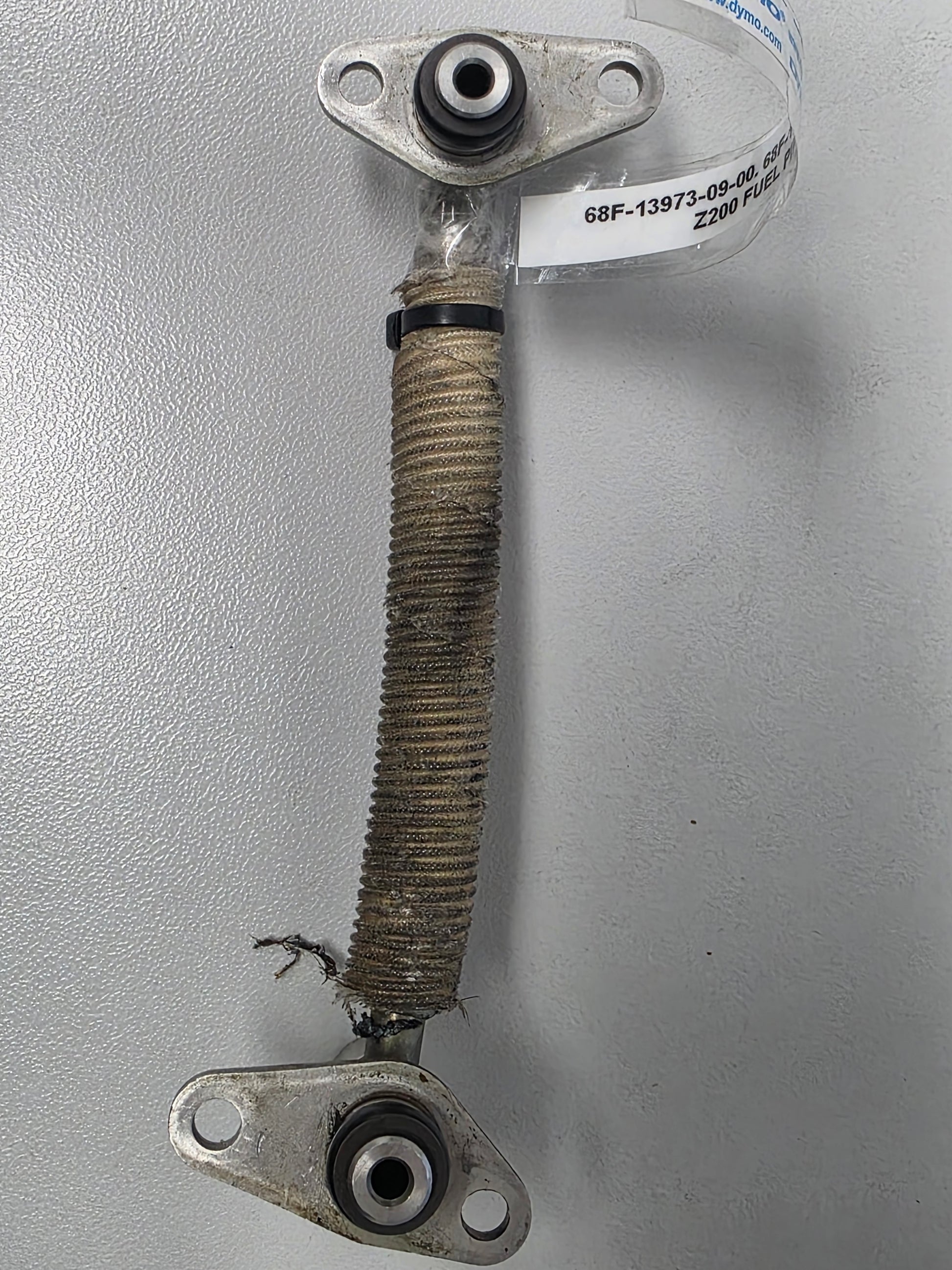

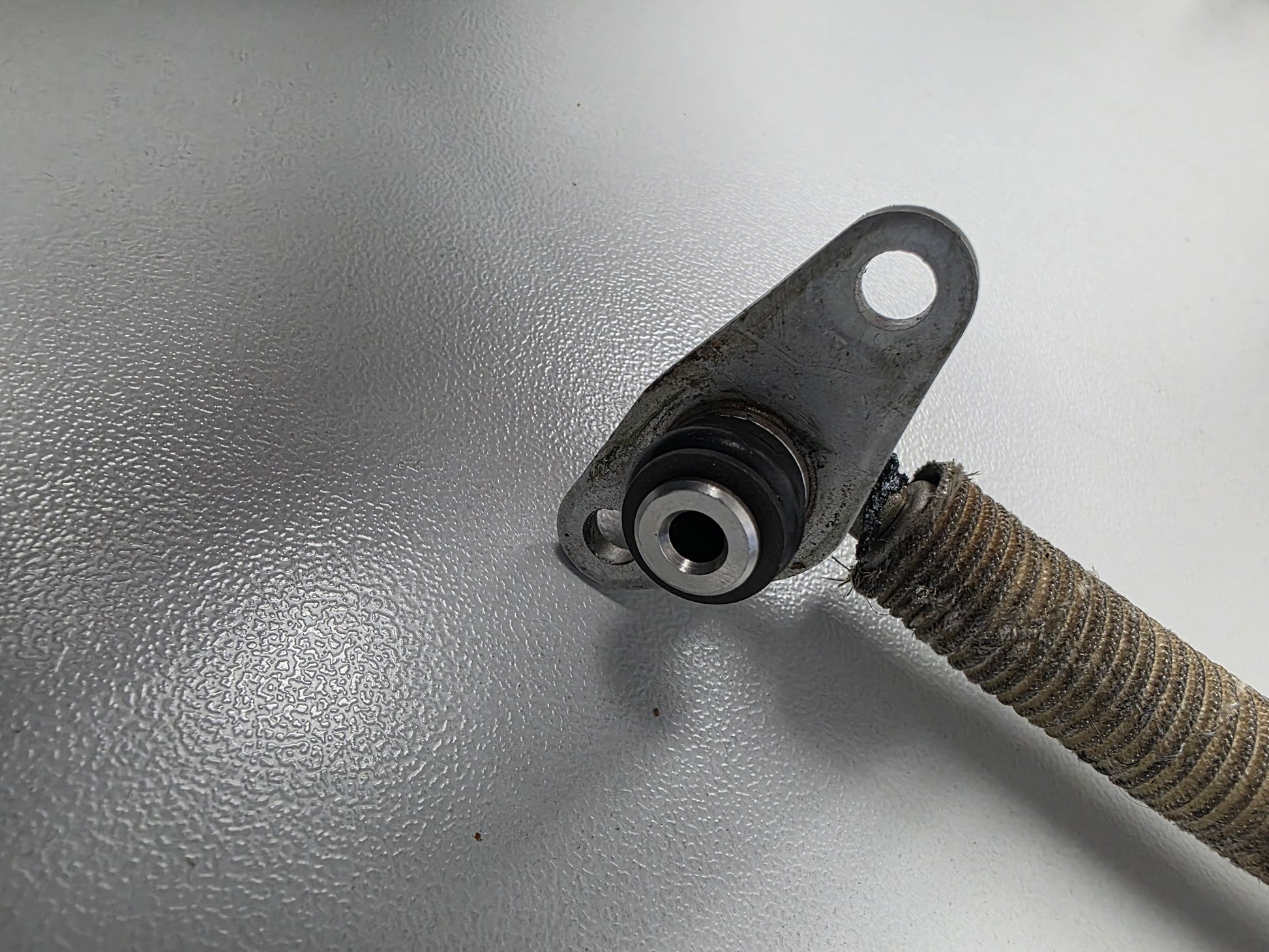

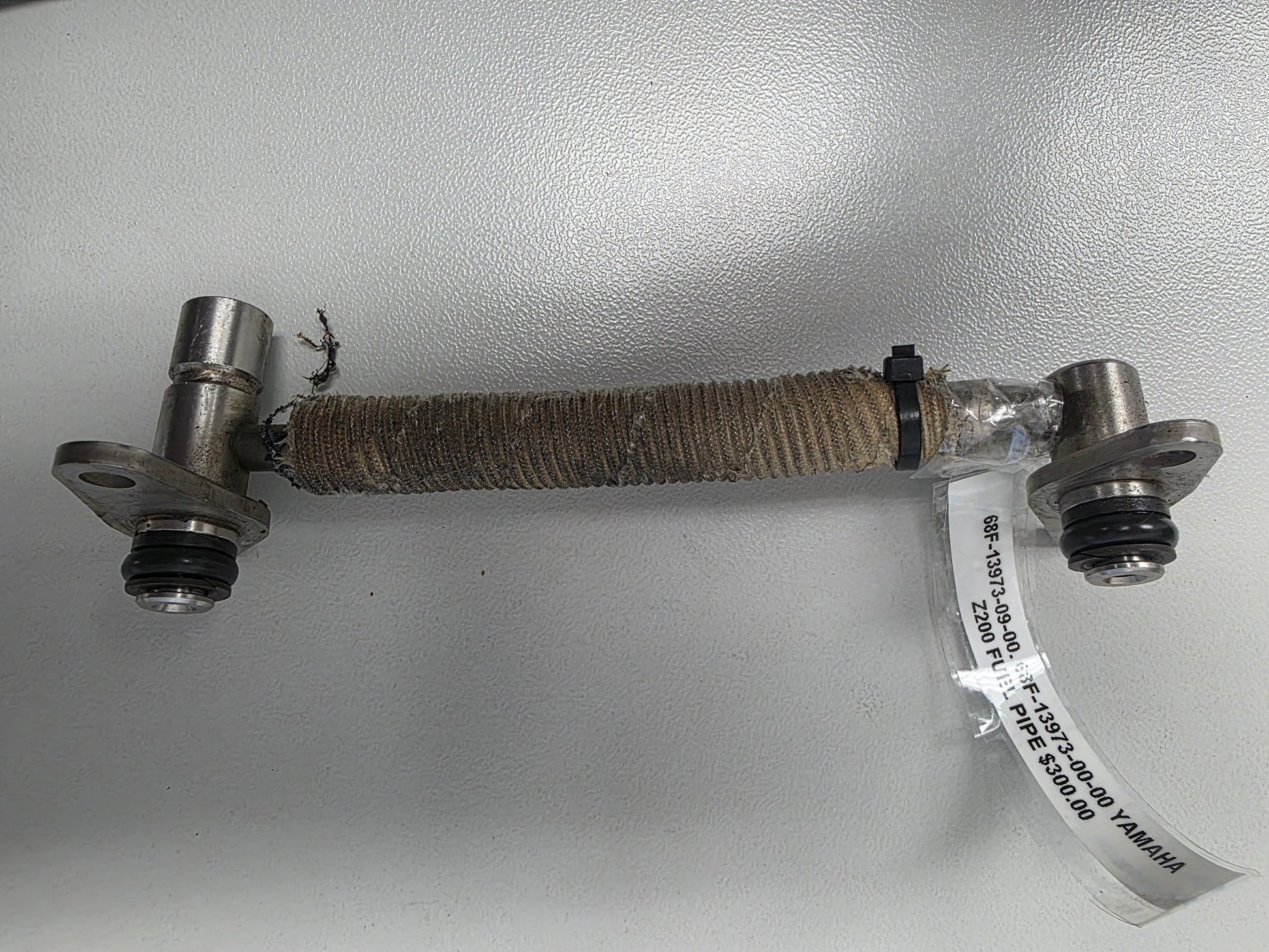

Genuine Used Yamaha HPDI High-Pressure Fuel Pipe No.3 - Part Numbers: 68F-13973-09-00 and 68F-13973-00-00

A genuine pre-owned Yamaha Fuel Pipe 3 for selected Z150, Z175 and Z200 HPDI outboards.

This formed rigid pipe is part of the high-pressure fuel-injection-pump system. It transfers pressurised fuel between the pump and the corresponding injector-delivery assembly.

⚙️ Key Features

• Genuine Yamaha Marine used high-pressure pipe

• Current or later reference 68F-13973-09-00

• Earlier reference 68F-13973-00-00

• Yamaha description: Pipe, Fuel 3

• Used in selected 2.6L HPDI systems

• Precision-formed rigid steel fuel line

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 68F-13973-00-00 - Earlier Fuel Pipe 3

• 68F-13973-09-00 - Later service reference

• 68F-13973-08-00 - Later catalogue reference shown in some Yamaha systems

OEM / Related Numbers:

• 68F-13973-00-00

• 68F-13973-09-00

• 68F-13973-08-00

• Matching Fuel Pipe 4: 68F-13974-00-00 / 68F-13974-09-00

• Related high-pressure pump and packing components vary by engine

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on selected:

• Yamaha Z150 HPDI

• Yamaha LZ150 HPDI

• Yamaha Z175 HPDI

• Yamaha Z200 HPDI

• Yamaha LZ200 HPDI

• Yamaha VZ-series 150HP-200HP HPDI engines

• Fuel-injection-pump assemblies whose diagram specifies Fuel Pipe 3

Important fitment note:

• Confirm the exact supersession currently listed for the engine serial number.

• Fuel Pipe 3 and Fuel Pipe 4 are differently formed and are not interchangeable.

• Never bend a replacement pipe to make it fit.

🔌 Function

The pipe carries fuel at high pressure from the pump to the injection delivery system.

Common signs of damage:

• Fuel leakage

• Cracked or damaged flare

• Corrosion

• Pipe is kinked

• Threads are damaged

• Engine loses rail pressure

• Difficult starting

• High-pressure pump cannot maintain delivery

Recommended checks before installation:

• Compare the complete pipe shape

• Inspect every sealing surface

• Check for pitting and corrosion

• Keep the pipe internally clean

• Replace specified sealing washers or packing

• Support the pipe while tightening

• Use Yamaha torque specifications

• Test for pressure loss and leakage after installation

📦 Condition

• Genuine Yamaha Marine used part

• Pre-owned high-pressure fuel pipe

• Cosmetic marks and fuel residue may be present

• The pipe must be inspected for bending, corrosion and sealing damage

• Supplied in protective or equivalent packaging
