68F-15163-00-1S Yamaha Housing | Genuine Used Part

🔧 Product Description

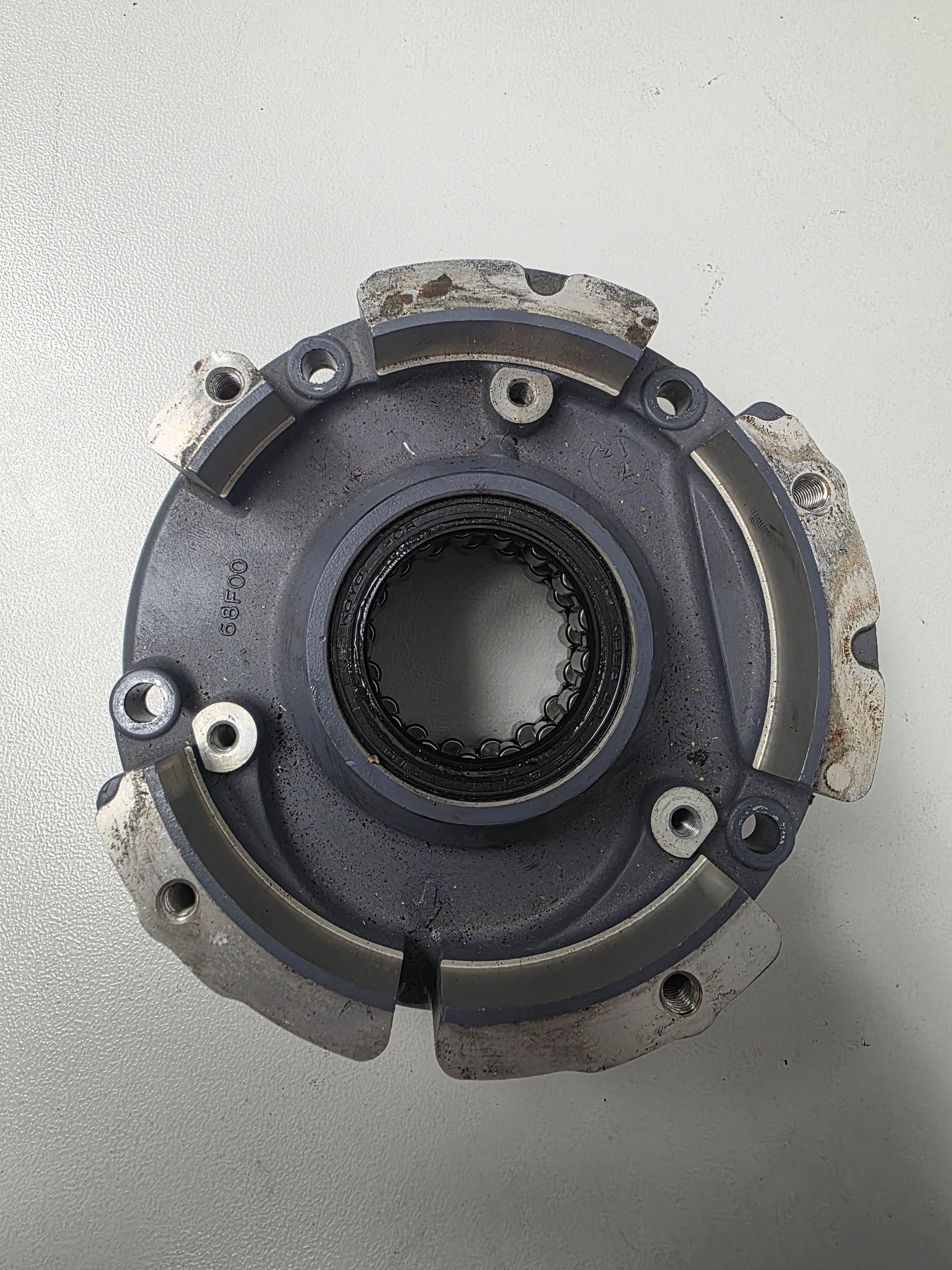

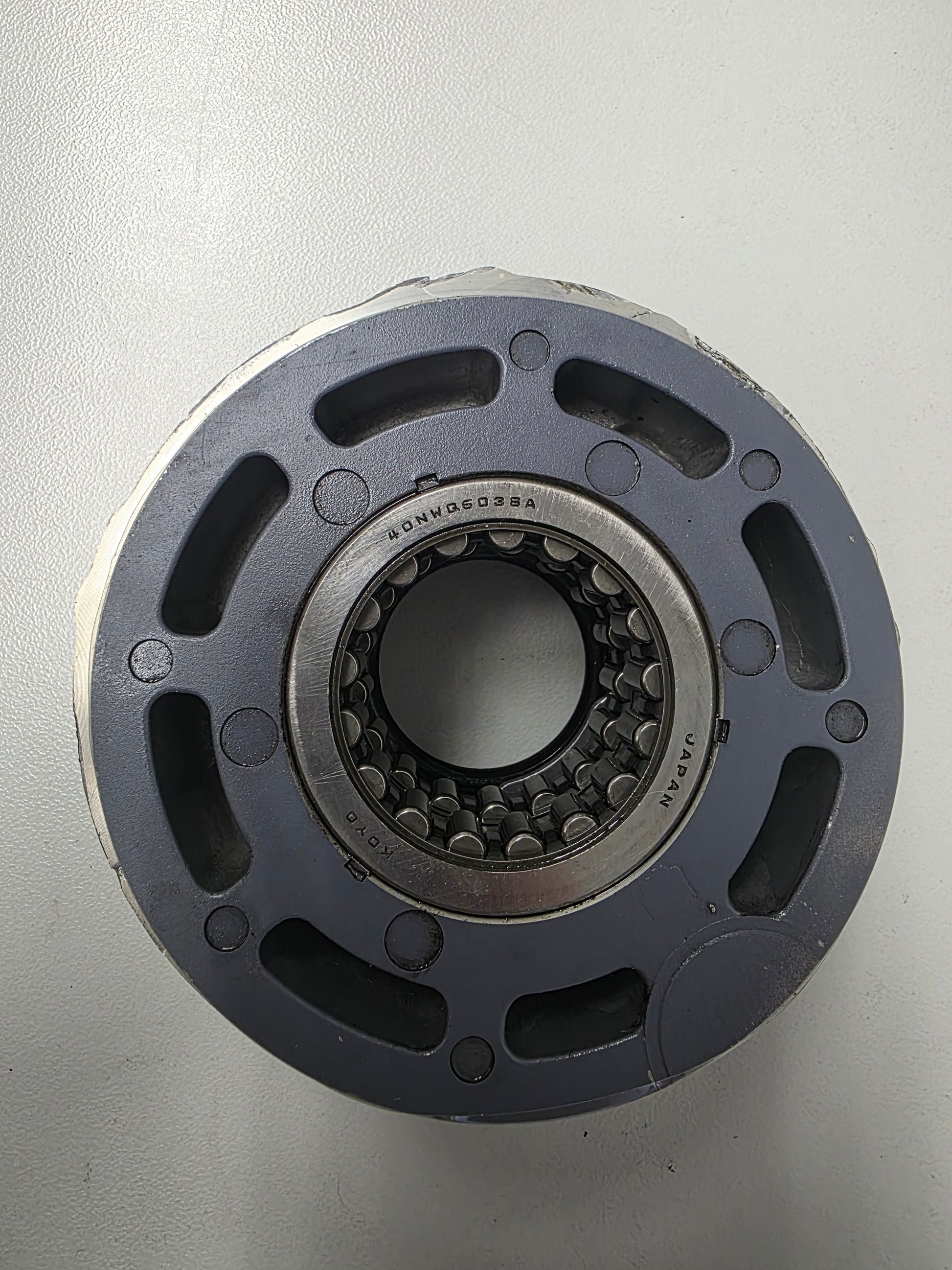

Genuine Used Yamaha Z150 / Z175 / Z200 Upper Crankshaft Bearing Housing - Part Number: 68F-15163-00-1S

A genuine pre-owned Yamaha Marine upper crankshaft bearing housing for selected Z150, LZ150, Z175, Z200 and LZ200 HPDI two-stroke outboards.

Yamaha identifies this component as "Housing, Bearing 1." It is installed in the crankshaft and piston assembly and supports the upper crankshaft bearing, seal and associated locating components.

Part number 68F-15163-00-1S replaces earlier production number 68F-15163-00-94.

⚙️ Key Features

• Genuine Yamaha Marine used bearing housing

• Current OEM number 68F-15163-00-1S

• Replaces 68F-15163-00-94

• Upper crankshaft bearing-carrier configuration

• Used on selected 150HP, 175HP and 200HP HPDI engines

• Original precision-machined Yamaha casting

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Yamaha 68F-15163-00-94 - Earlier bearing-housing reference

• Yamaha 68F-15163-00-1S - Later service reference

OEM / Related Numbers:

• 68F-15163-00-1S

• 68F15163001S

• 68F-15163-00-94

• 68F151630094

• OEM Description: Housing, Bearing 1

• Related upper bearing: 93311-940U3-00

• Related crankshaft seal: 6E5-11447-00-00

• Related oil seal: 93102-40M14-00 or production-specific replacement

• Related O-ring: 93211-04001-00

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Yamaha Z150 HPDI outboards

• Yamaha LZ150 counter-rotation HPDI outboards

• Yamaha Z175 HPDI outboards

• Yamaha Z200 HPDI outboards

• Yamaha LZ200 counter-rotation HPDI outboards

• Selected VMAX 200 HPDI variants

Verified example applications include:

• Z150TXRB and related Z150 models

• LZ150TXRB and related counter-rotation models

• Z175TXR and related Z175 models

• Z200TLRY, Z200TXR and related Z200 models

• LZ200 models using the 68F crankshaft assembly

• Representative catalogue period: Approximately 2000-2011

Important fitment note:

• Confirm the exact engine model and crankshaft-piston diagram.

• Bearing, oil seal, crankshaft seal and O-rings are separate service components unless shown.

• Bearing-housing wear or corrosion can alter crankshaft alignment and seal performance.

• Inspect whether the bearing remains installed in the supplied used housing.

🔌 Function

The housing supports and locates the upper crankshaft bearing.

It keeps the crankshaft correctly aligned within the cylinder block and provides the machined bores and sealing surfaces required by the upper bearing and oil seal.

Common signs of wear or damage:

• Corrosion in the bearing bore

• Bearing fit is loose

• Cracks around the mounting holes

• Damaged locating surfaces

• Oil-seal bore is scored

• Crankshaft has excessive movement

• Upper bearing noise

• Evidence of overheating or bearing rotation

• Damaged threads

• Crankcase pressure or oil leakage around the upper seal

Recommended checks before installation:

• Confirm both Yamaha part numbers

• Inspect the bearing bore for fretting and corrosion

• Measure bearing fit and housing dimensions

• Check the oil-seal and O-ring grooves

• Inspect all mounting holes and threads

• Replace the bearing, seals and O-rings where required

• Inspect the crankshaft journal

• Use the correct tightening sequence and sealant

• Confirm free crankshaft rotation after assembly

📦 Condition

• Genuine Yamaha Marine used part

• Pre-owned internal powerhead component

• Oil staining, marks and surface oxidation may be present

• Machined surfaces and bearing fit must be inspected before installation

• Bearings, seals and hardware are included only when shown or described

• Supplied in protective or equivalent packaging
