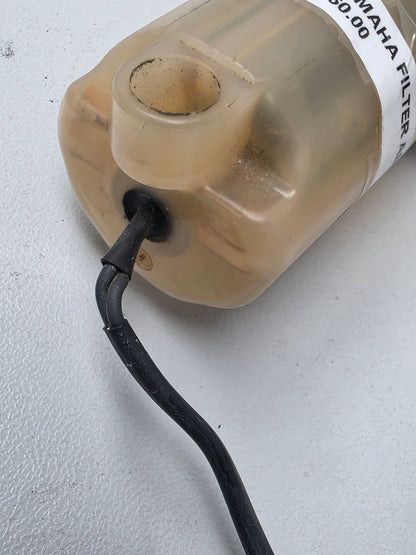

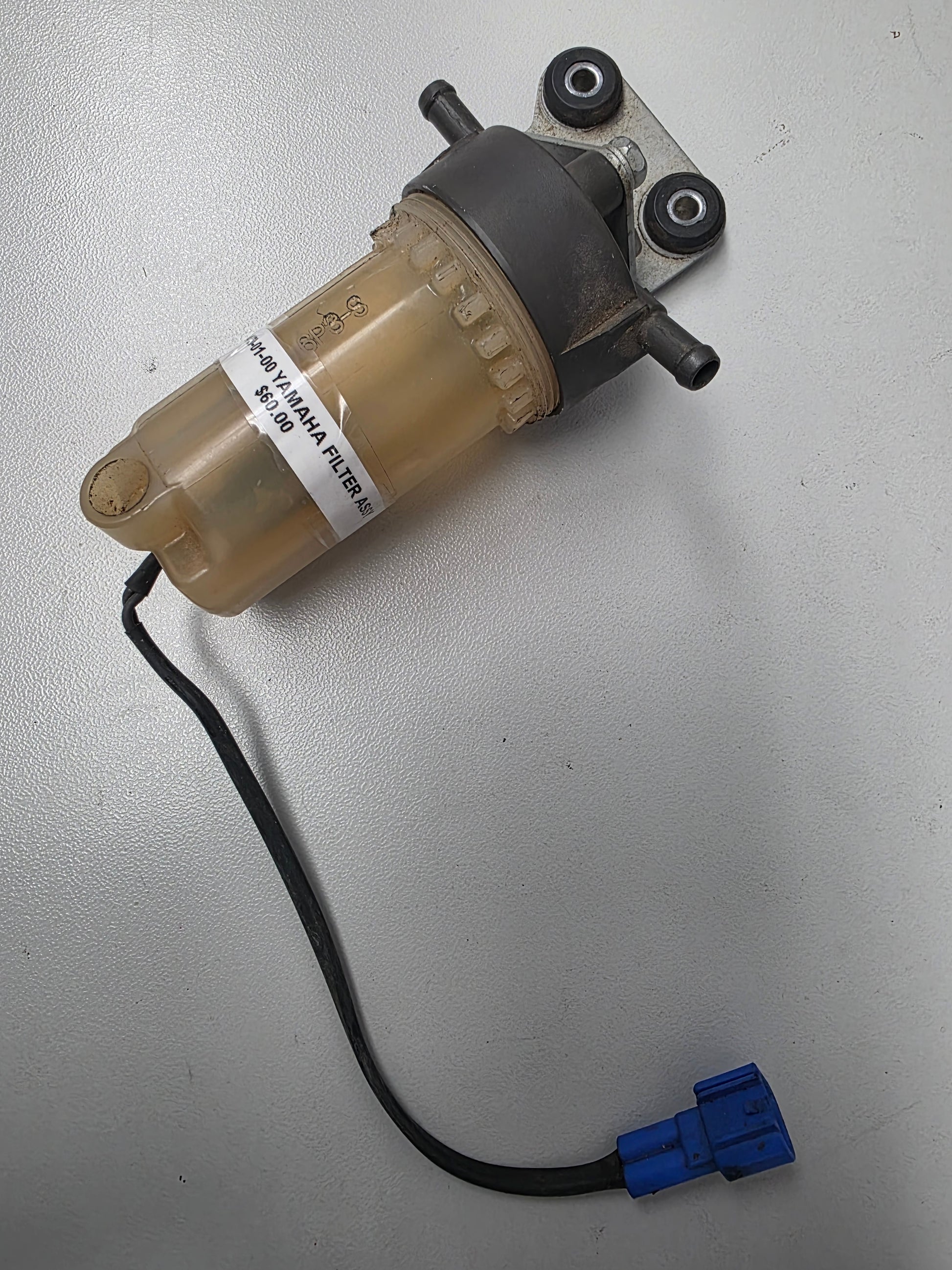

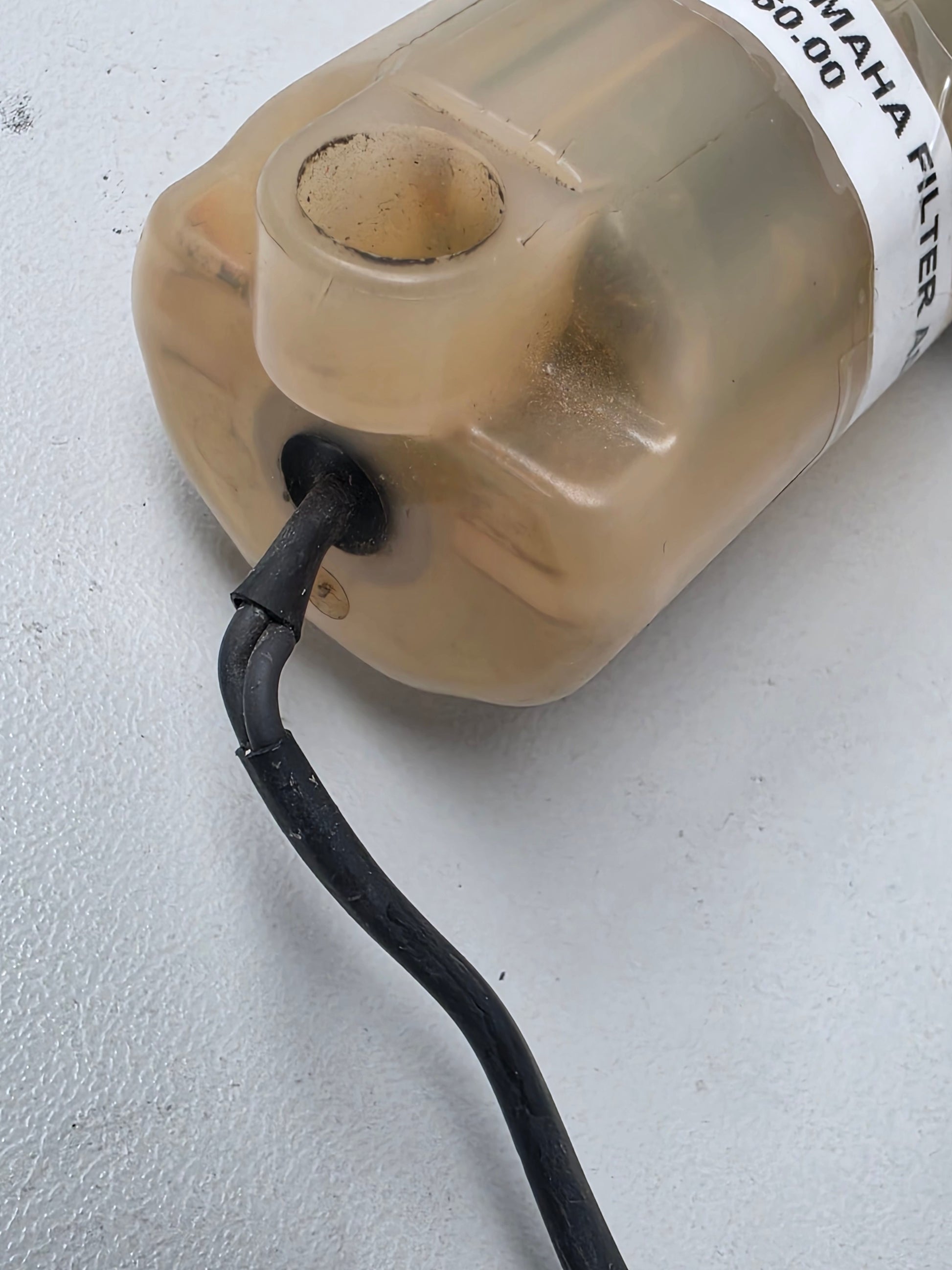

Genuine Yamaha HPDI Fuel Filter Assembly - Part Number: 68F-24560-01-00
A genuine Yamaha under-cowl fuel filter and water-separating assembly for selected Z150, Z175 and Z200 HPDI outboards. The assembly filters fuel before it enters the vapour separator and includes the filter housing, cup, replaceable element and water-level float arrangement used by the engine fuel system.
This assembly follows earlier 68F-24560-00-00 production and is associated with Yamaha's later 6P3-series replacement filter assemblies where the applicable parts catalogue specifies the update.
⚙️ Key Features
- Genuine Yamaha OEM fuel filter assembly
- Correct Yamaha part number 68F-24560-01-00
- Used on selected 150HP to 200HP HPDI outboards
- Incorporates a serviceable filter element and water-separating cup
- Protects the VST and high-pressure fuel pump from contamination
🚤 Compatibility
Commonly used on
- Yamaha Z150, Z175, Z200, LZ150 and LZ200 HPDI fuel systems
- Yamaha 68F-series under-cowl fuel filtration and water-separation assemblies
Typically suits
- Engine models:
- Yamaha Z150 HPDI model family
- Yamaha Z150QETOL - 2004
- Yamaha LZ150 HPDI model family
- Yamaha VZ150 HPDI model family where 68F-24560-01-00 is specified
- Yamaha Z175 HPDI model family
- Yamaha VZ175 HPDI model family where 68F-24560-01-00 is specified
- Yamaha Z200 HPDI model family
- Yamaha LZ200 HPDI model family
- Yamaha VZ200 HPDI model family where 68F-24560-01-00 is specified
- HP Range: 150HP - 200HP
- Engine Type: Yamaha 2.6L V6 HPDI two-stroke outboard
- Year Range: Approximately 2000 - 2006
🔌 Function
The filter assembly removes dirt, rust and water from the incoming fuel before it reaches the vapour separator, high-pressure pump and injectors.
⚠️ Common Signs of Failure
- Engine loses power or surges under load
- Water or debris is visible in the filter cup
- Restricted element causes low fuel pressure
- Cracked cup, hardened O-ring or damaged housing leaks fuel or draws air

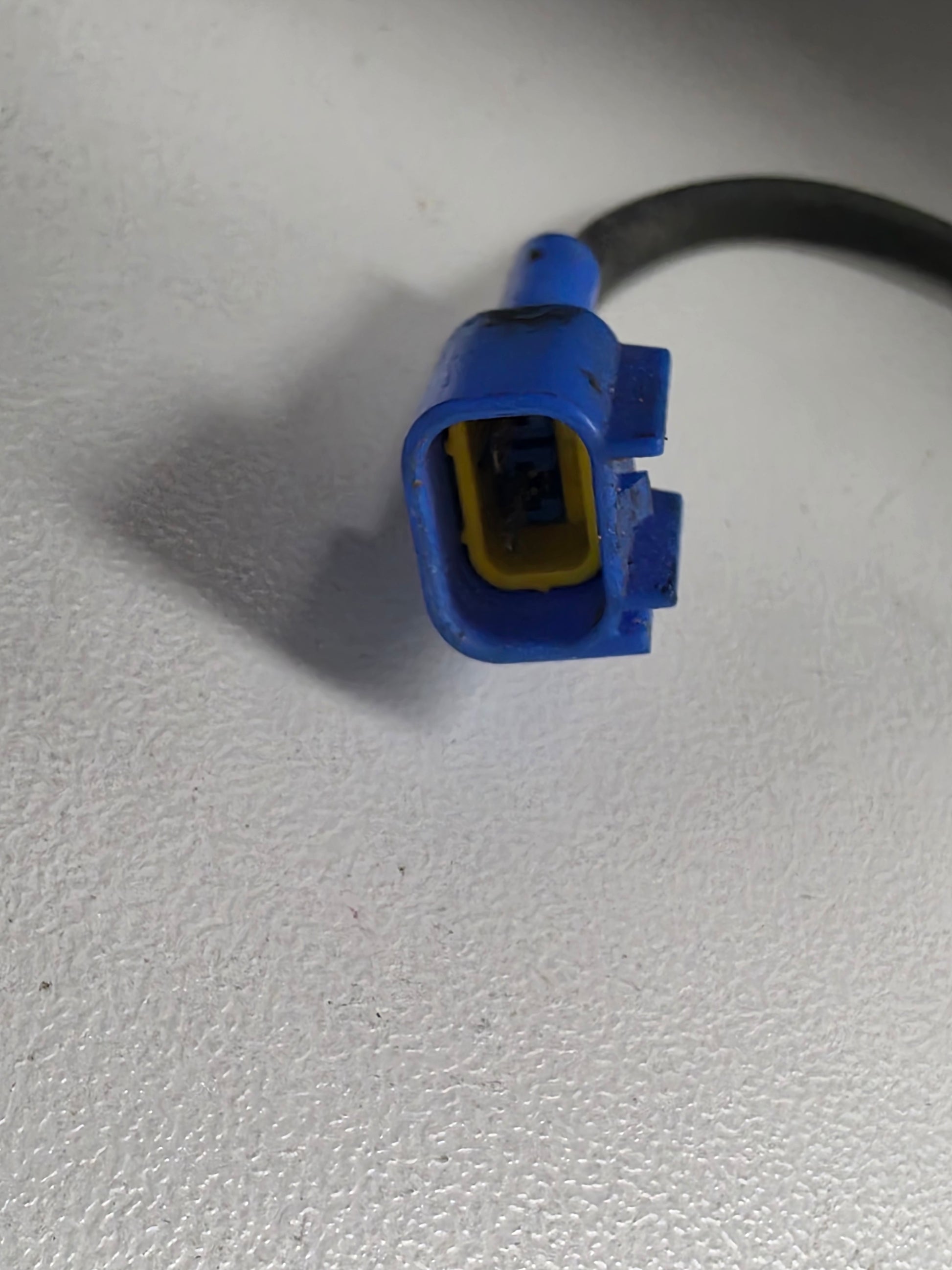

- Water-detection warning or repeated injector and pump contamination occurs
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 68F-24560-01-00 → Supersedes 68F-24560-00-00
- 68F-24560-00-00 earlier OEM filter assembly
- 6P3-24560-23 later Yamaha replacement filter assembly family where specified
OEM / Related Numbers
- 68F-24560-01-00
- 68F245600100
- 68F-24560-00-00
- 6P3-24560-23
- 68F-24562-00-00 related filter cup
- 68F-24563-01 related filter element
- 68F-24563-00-00 earlier filter element
- 65L-24564-01 related O-ring
- 65L-24564-00-00 earlier O-ring

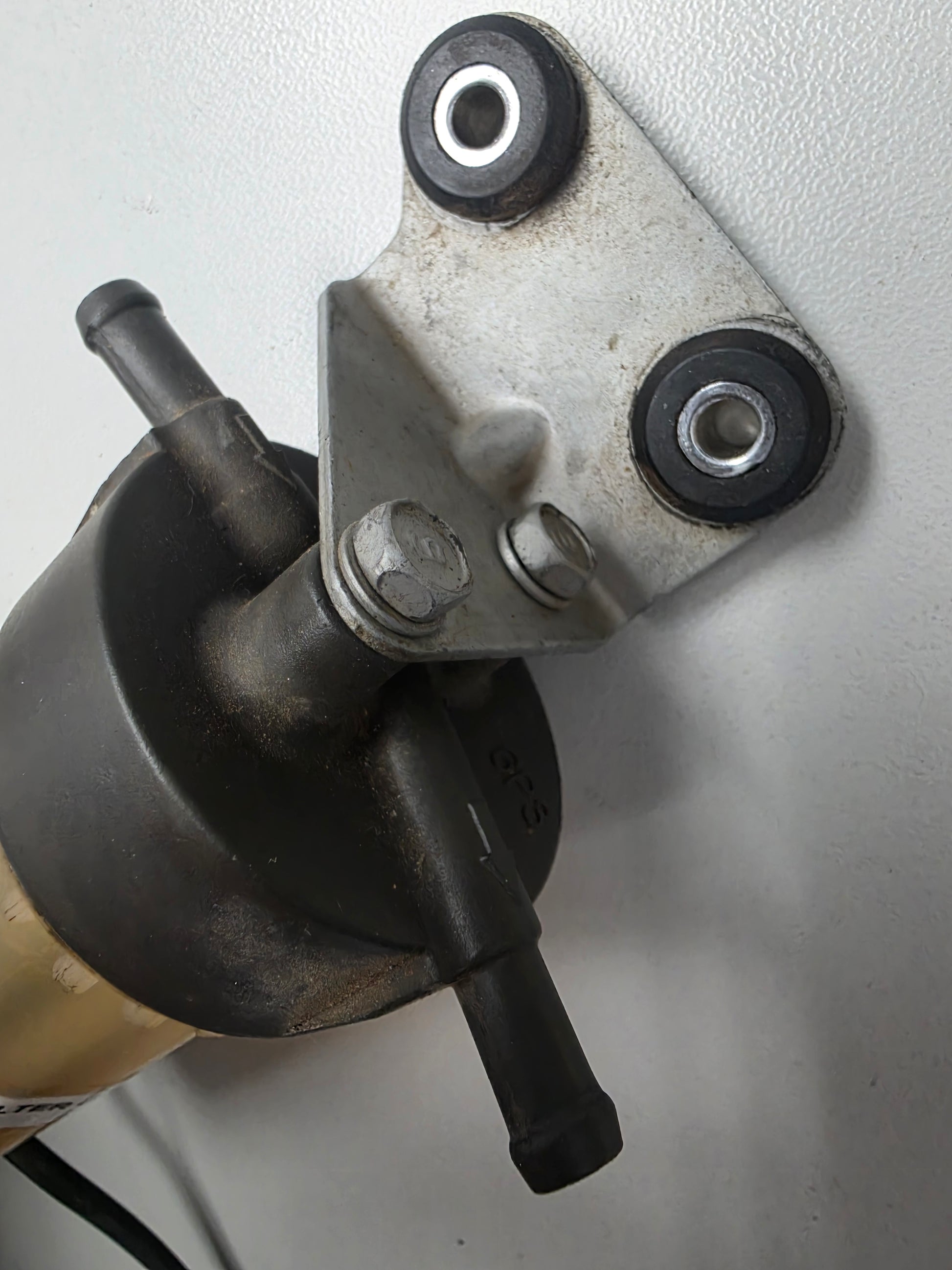

- 68F-24566-00-00 related bracket
- 68F-24469-00-00 related water-level float
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
