68F-41113-19-1S Yamaha Exhaust Cover HPDI | Genuine Used Part

🔧 Product Description

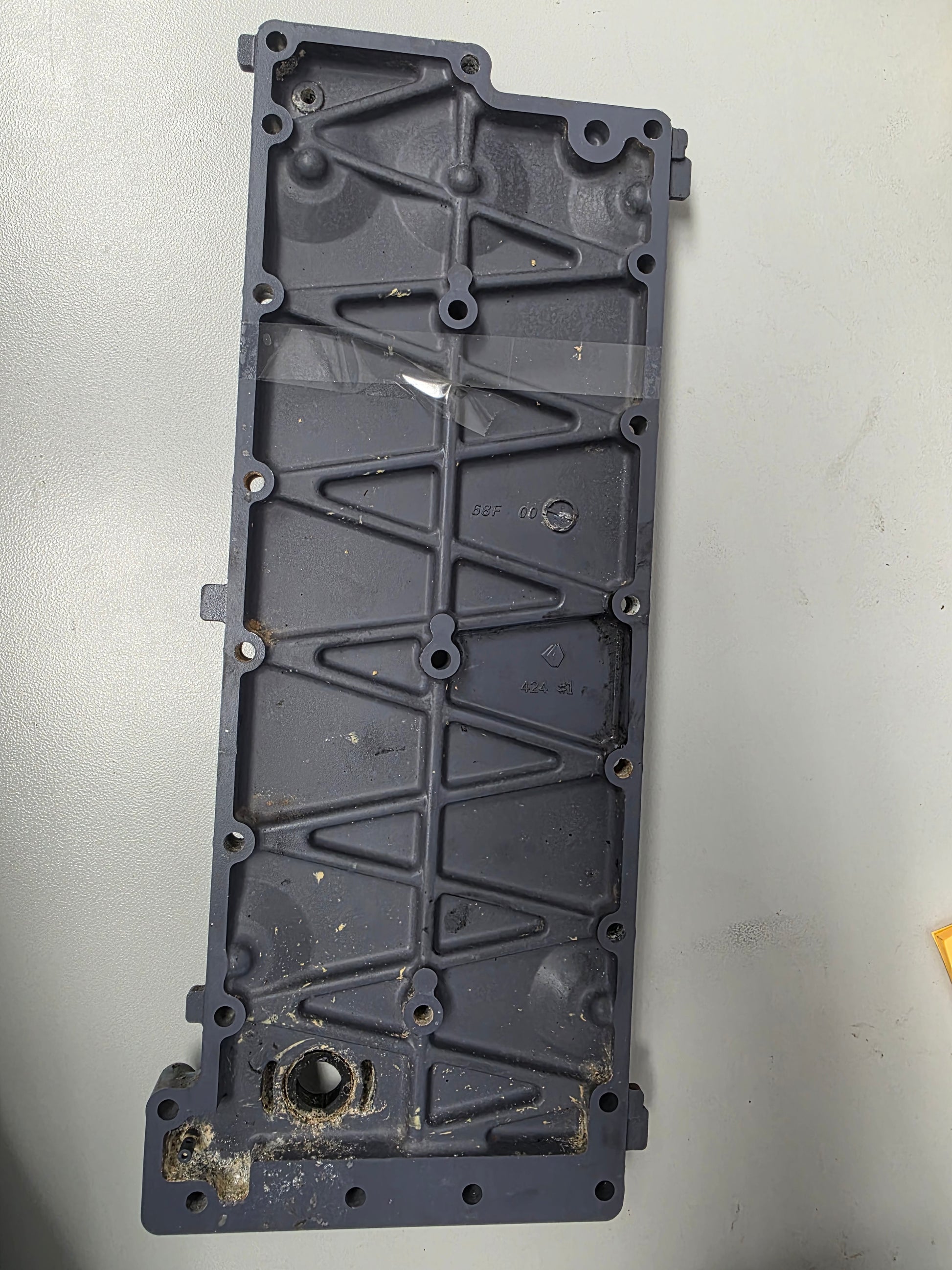

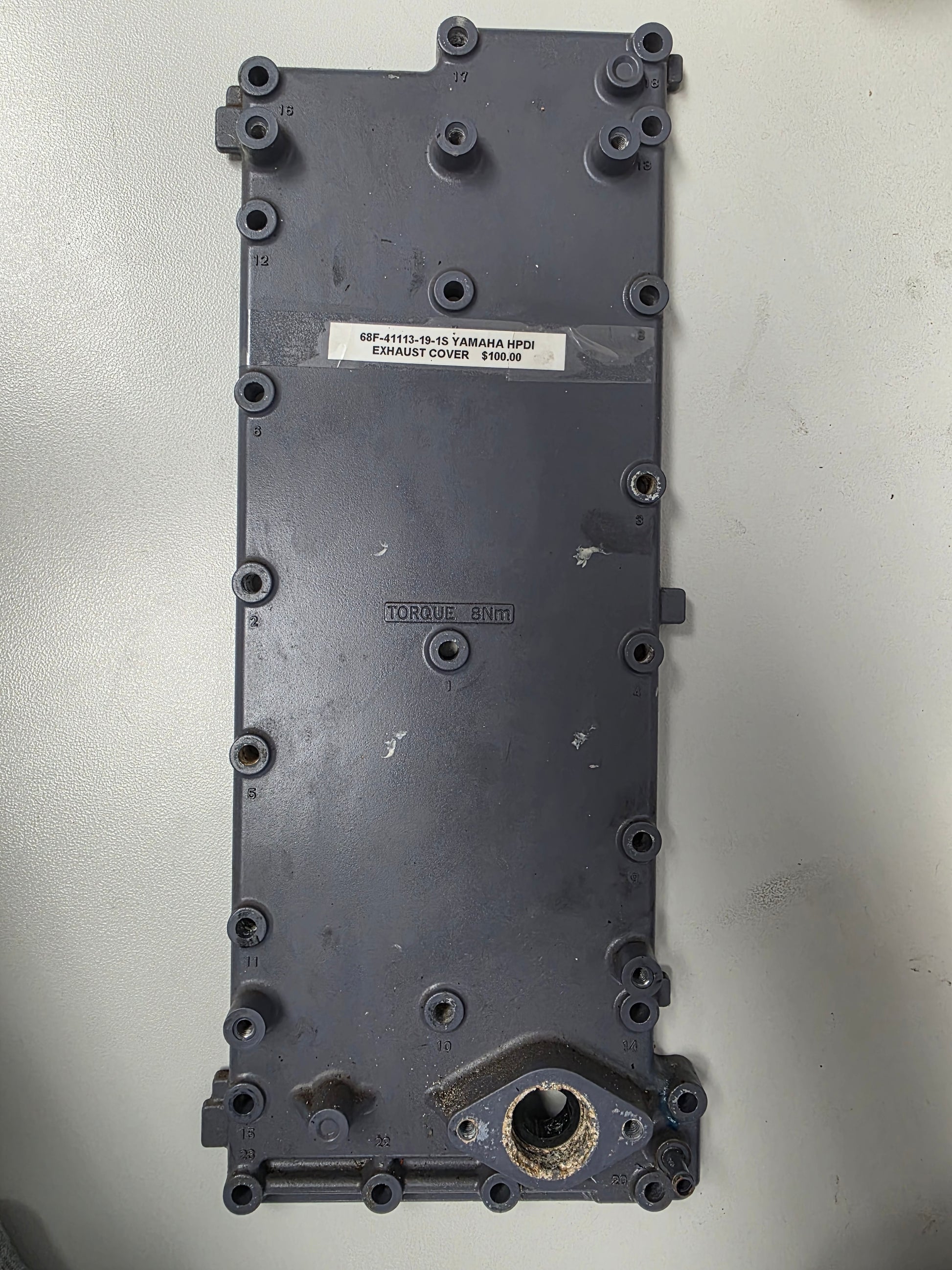

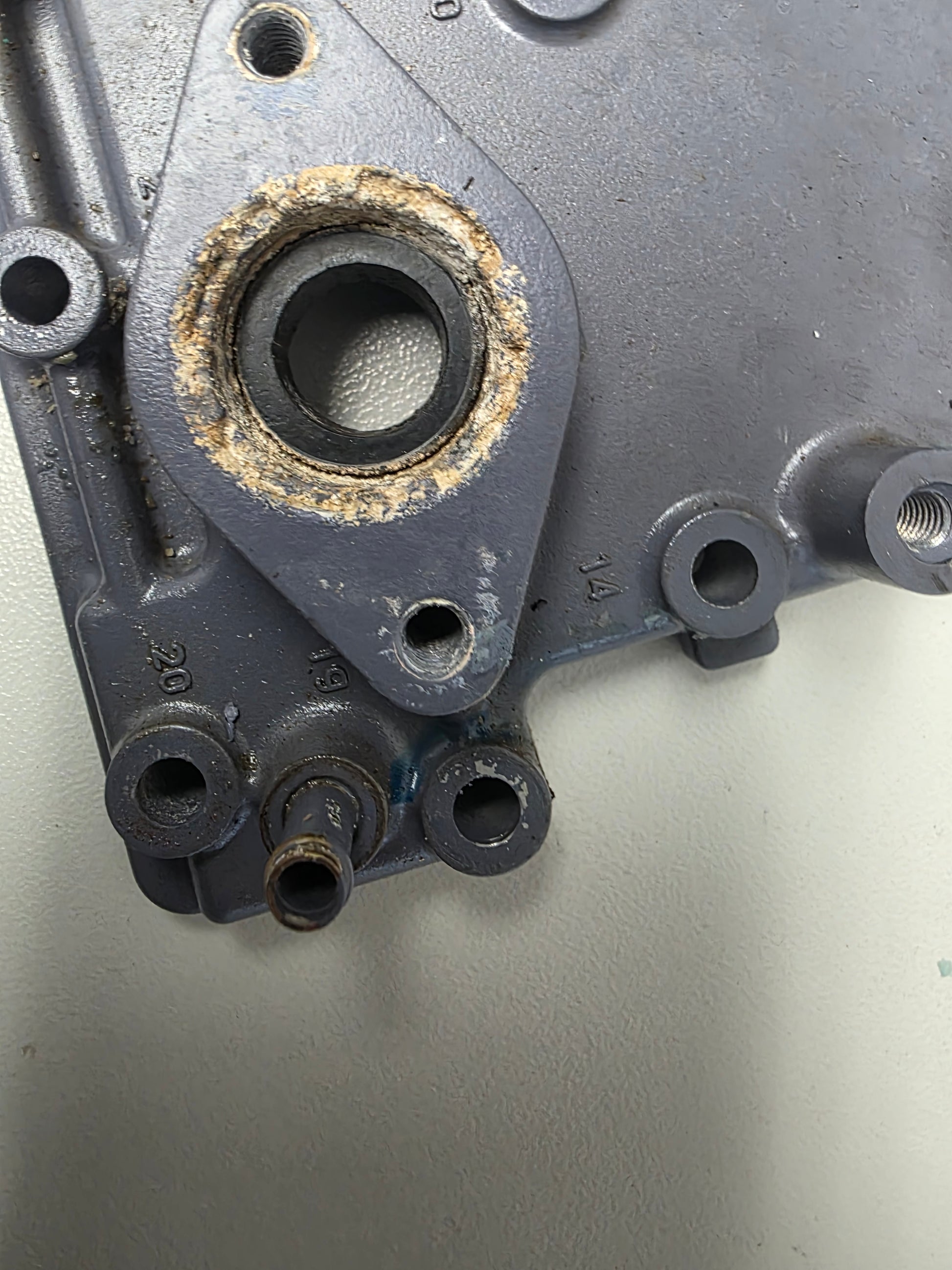

Genuine Yamaha HPDI Exhaust Outer Cover - Part Number: 68F-41113-19-1S

A genuine Yamaha outer exhaust and water-jacket cover for selected 2.6-litre Z150, Z175 and Z200 HPDI V6 outboards.

The cover bolts to the cylinder block over the exhaust-water-jacket section and uses a dedicated gasket to separate cooling water from the exhaust passages.

⚙️ Key Features

• Genuine Yamaha exhaust outer cover
• Correct updated part number 68F-41113-19-1S
• Fits selected 2.6L HPDI V6 engines
• Seals the exhaust cooling-water jacket
• Uses gasket 68F-41114-00-00

🚤 Compatibility

Commonly used on

• Yamaha Z-series 2.6L HPDI V6 cylinder-block assemblies

Typically suits

• Engine models:
• Yamaha Z150 / VZ150 HPDI
• Yamaha LZ150 HPDI
• Yamaha Z175 / VZ175 HPDI
• Yamaha Z200 / VZ200 HPDI
• Yamaha LZ200 HPDI
• Standard and counter-rotation models using the 68F exhaust-cover system
• HP Range: 150HP - 200HP
• Engine Type: Yamaha 2.6L V6 HPDI two-stroke outboard
• Year Range: Approximately 2000-2007 for the documented -19 cover configuration

🔌 Function

The cover encloses the outer exhaust-water jacket and directs cooling water around the cylinder and exhaust passages. Correct sealing prevents water from leaking externally or entering areas of the powerhead where it can cause corrosion or running problems.

⚠️ Common Signs of Failure

• External cooling-water leakage
• Corrosion or pitting around the water passages
• Exhaust gases or water damage the gasket
• Cover is warped and will not seal
• Broken or seized mounting bolts

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 68F-41113-19-1S → Supersedes 68F-41113-10-1S where specified
• 68F-41113-19-1S → Replaces 68F-41113-00-1S
• 68F-41113-00-1S earlier exhaust-cover reference

OEM / Related Numbers

• 68F-41113-19-1S
• 68F-41113-10-1S
• 68F-41113-00-1S
• 68F-41114-00-00 exhaust outer-cover gasket
• Related inner exhaust cover and gasket
• Related cylinder-block mounting bolts

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
