68F-41213-00-00 Yamaha Z200 Accelerator Cam & Rod | Genuine Used Part

🔧 Product Description

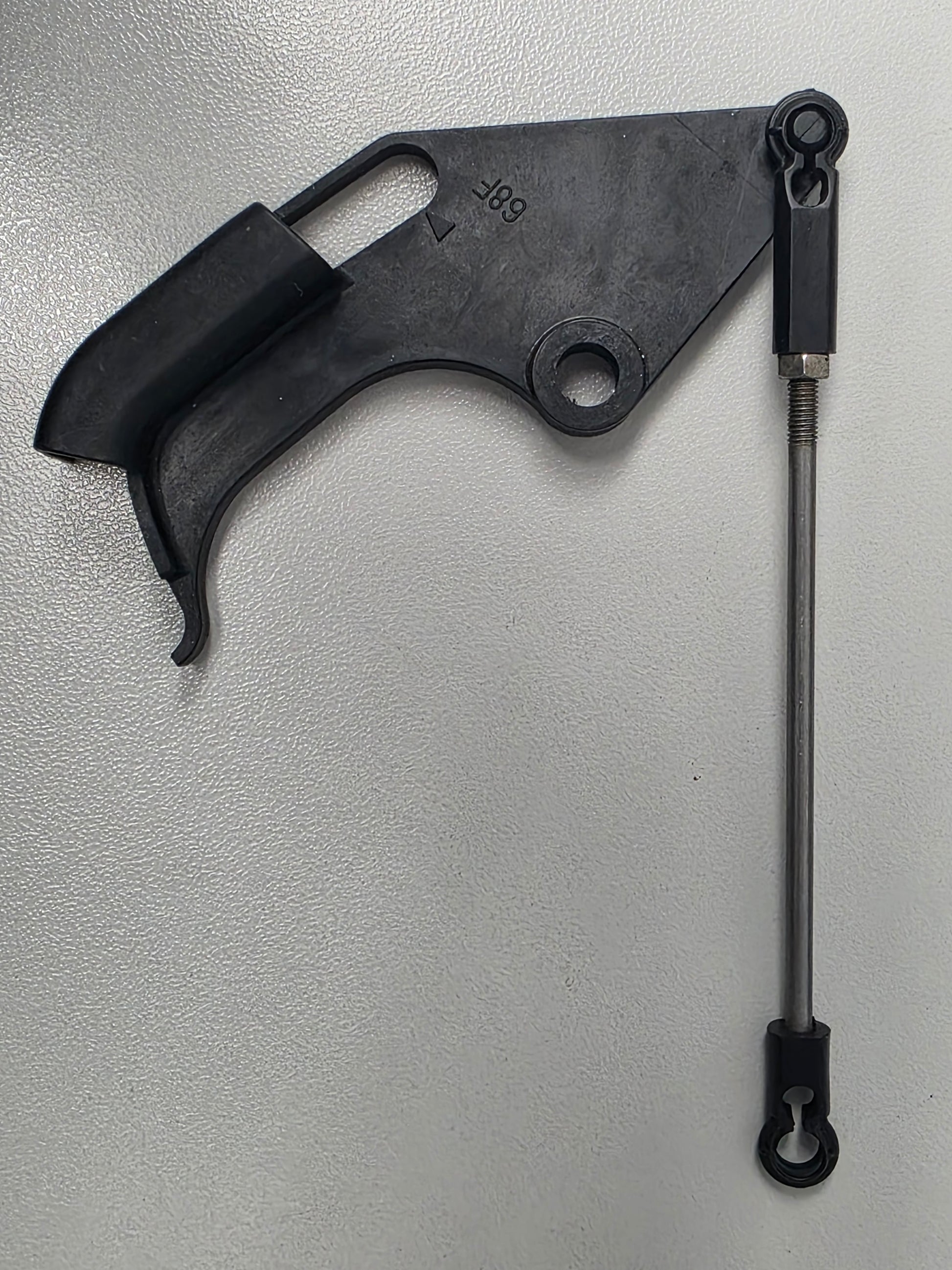

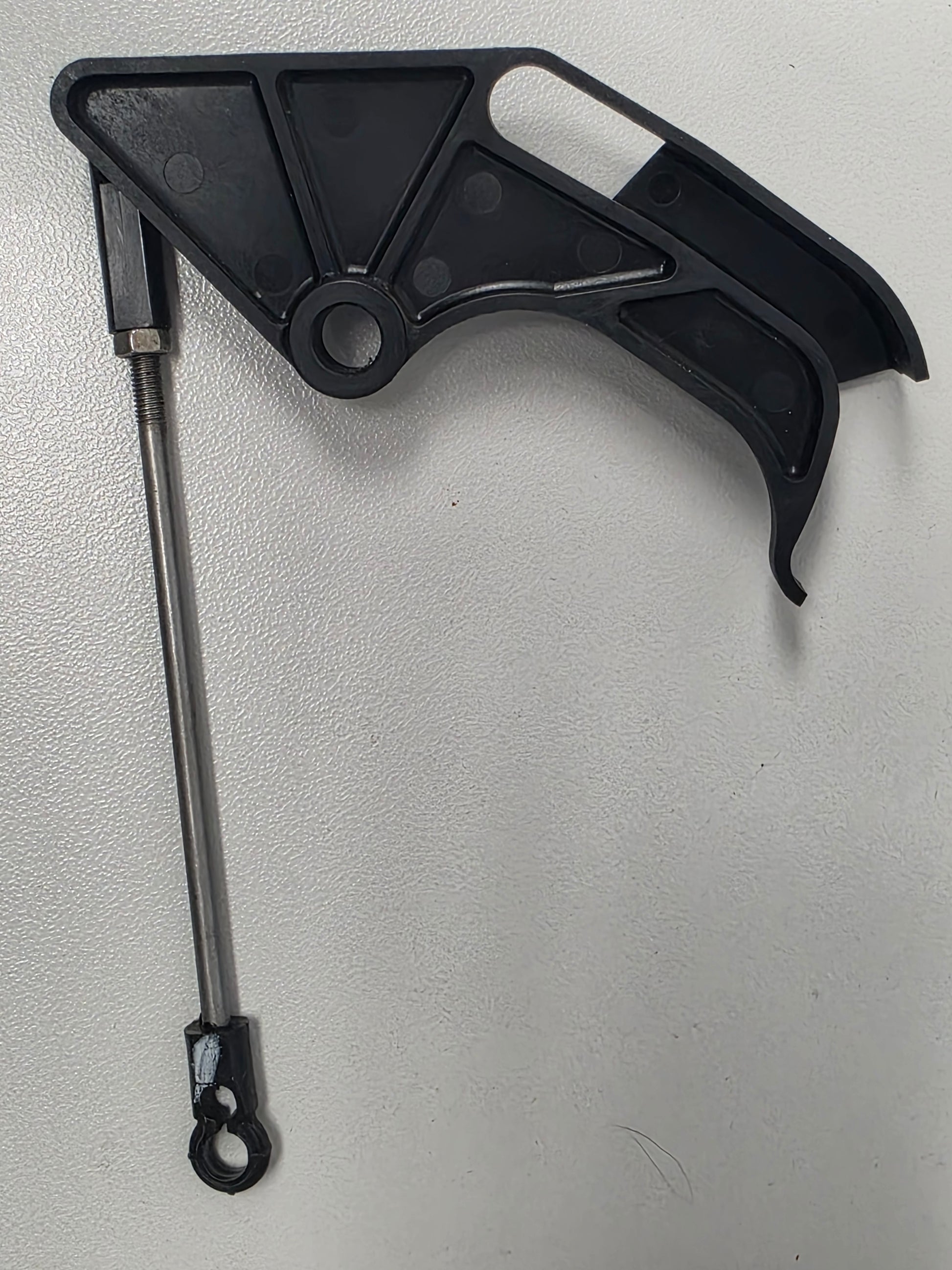

Genuine Yamaha Z150 Z175 Z200 Accelerator Cam Assembly - Part Number: 68F-41213-00-00

A genuine used Yamaha accelerator cam for selected Z-series and VZ-series HPDI V6 two-stroke outboard motors.

The cam forms part of the engine-control linkage and controls the progression of throttle opening. Any attached rod or linkage supplied with the item is included as shown, but 68F-41213-00-00 specifically identifies the accelerator cam.

⚙️ Key Features

• Genuine used Yamaha accelerator cam
• Correct OEM part number 68F-41213-00-00
• Factory description: Cam, Accel.
• Used on selected 150HP, 175HP and 200HP HPDI engines
• Attached rod included only where shown

🚤 Compatibility

Commonly used on

• Yamaha Z-series and VZ-series HPDI control assemblies

Known catalogue fitment includes

• 2000 Z200TXRY
• 2002 LZ150TRA, Z150TRA, Z175TRA, LZ200TRA and Z200TRA
• 2002 VZ150TLRA, VZ175TLRA and VZ200TLRA
• 2003 Z150, LZ150, Z175, Z200 and LZ200 model groups
• Selected adjacent 150HP, 175HP and 200HP HPDI production groups
• HP Range: 150HP-200HP
• Engine Type: Yamaha V6 HPDI two-stroke outboard
• Production Range: Approximately 2000-2005
• Serial Note: Confirm the complete Z, VZ or LZ model code and production year

🔌 Function

The accelerator cam controls the rate and sequence of throttle-linkage movement as the remote-control lever is advanced.

⚠️ Common Signs of Failure

• Cam surface is worn or grooved
• Engine hesitates off idle
• Throttle progression is uneven
• Attached rod is bent or loose
• Engine cannot reach full throttle
• Cam pivot binds
• Link-and-sync adjustment cannot be maintained

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 68F-41213-00-00 current original accelerator-cam reference

OEM / Related Numbers

• 68F-41213-00-00
• 68F412130000
• 68F-41213-00
• Related accelerator rod, throttle link and cam-follower components
• 68F-42744-00-00 related control stay
• Related mounting screws, bushes and washers

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Attached rod and hardware are supplied only where shown
• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
