68F-44552-01-CA 68F-44552-00-8D Yamaha Z200 Lower Housing Mount | Genuine Used Part

🔧 Product Description

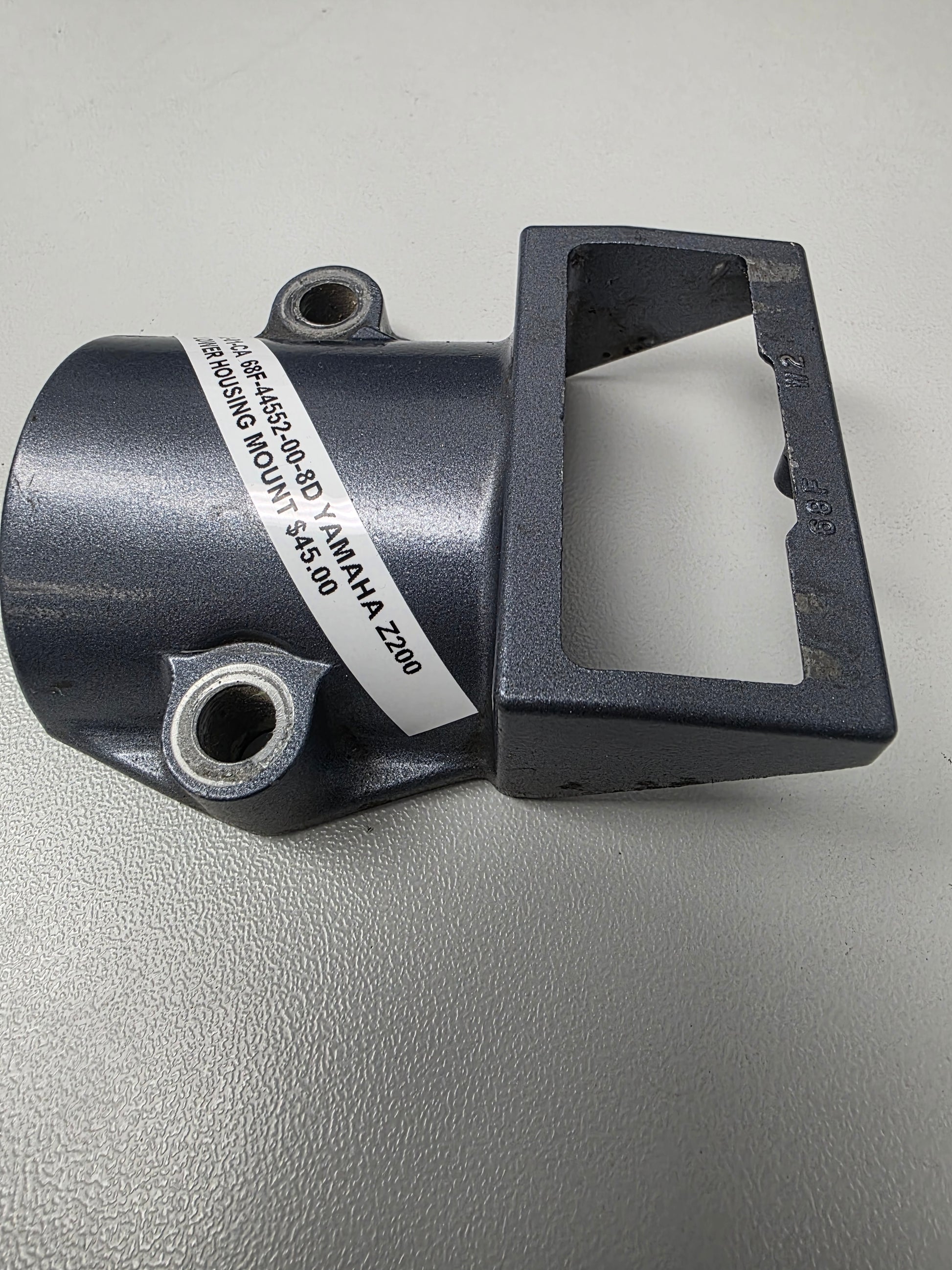

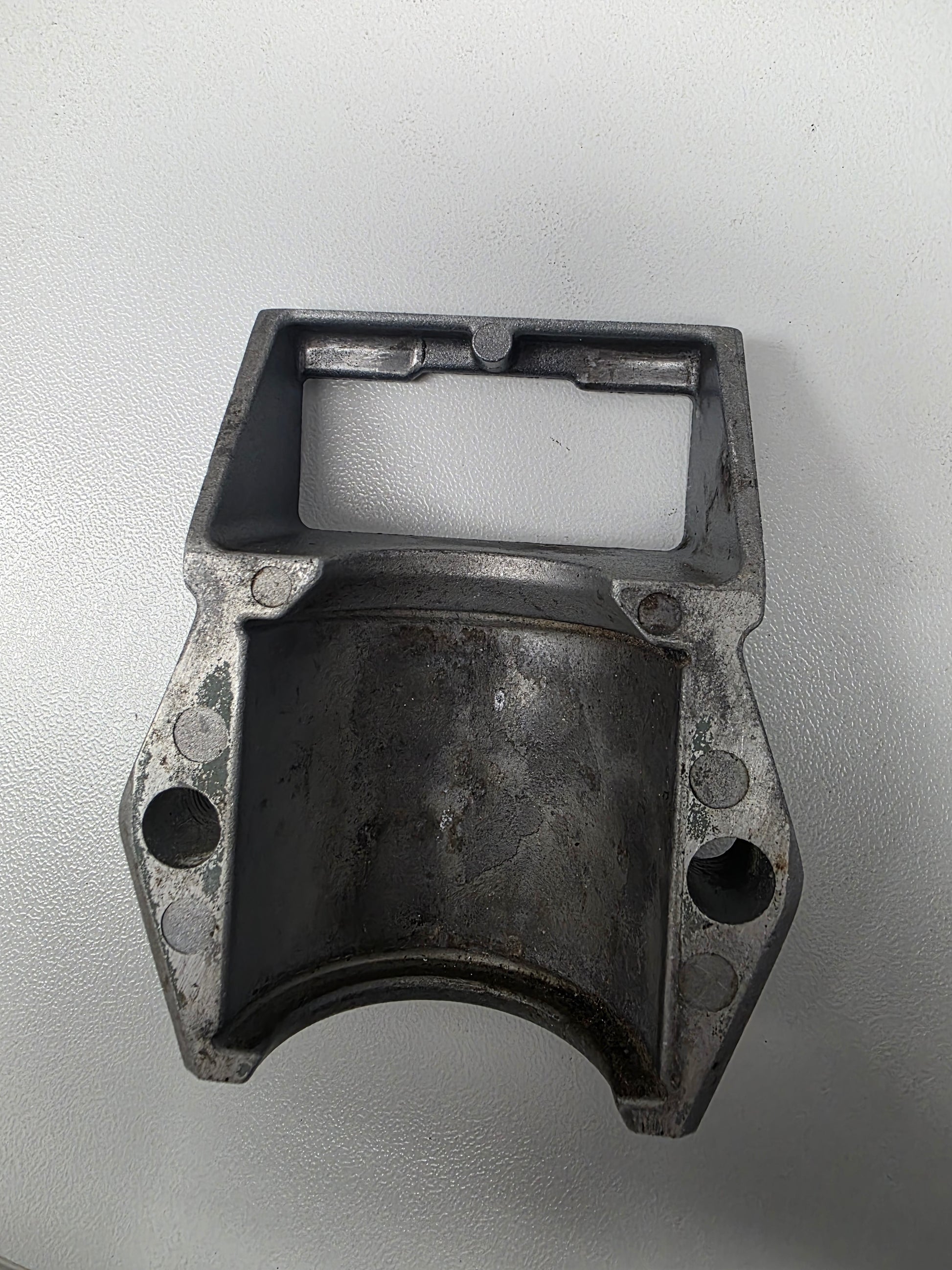

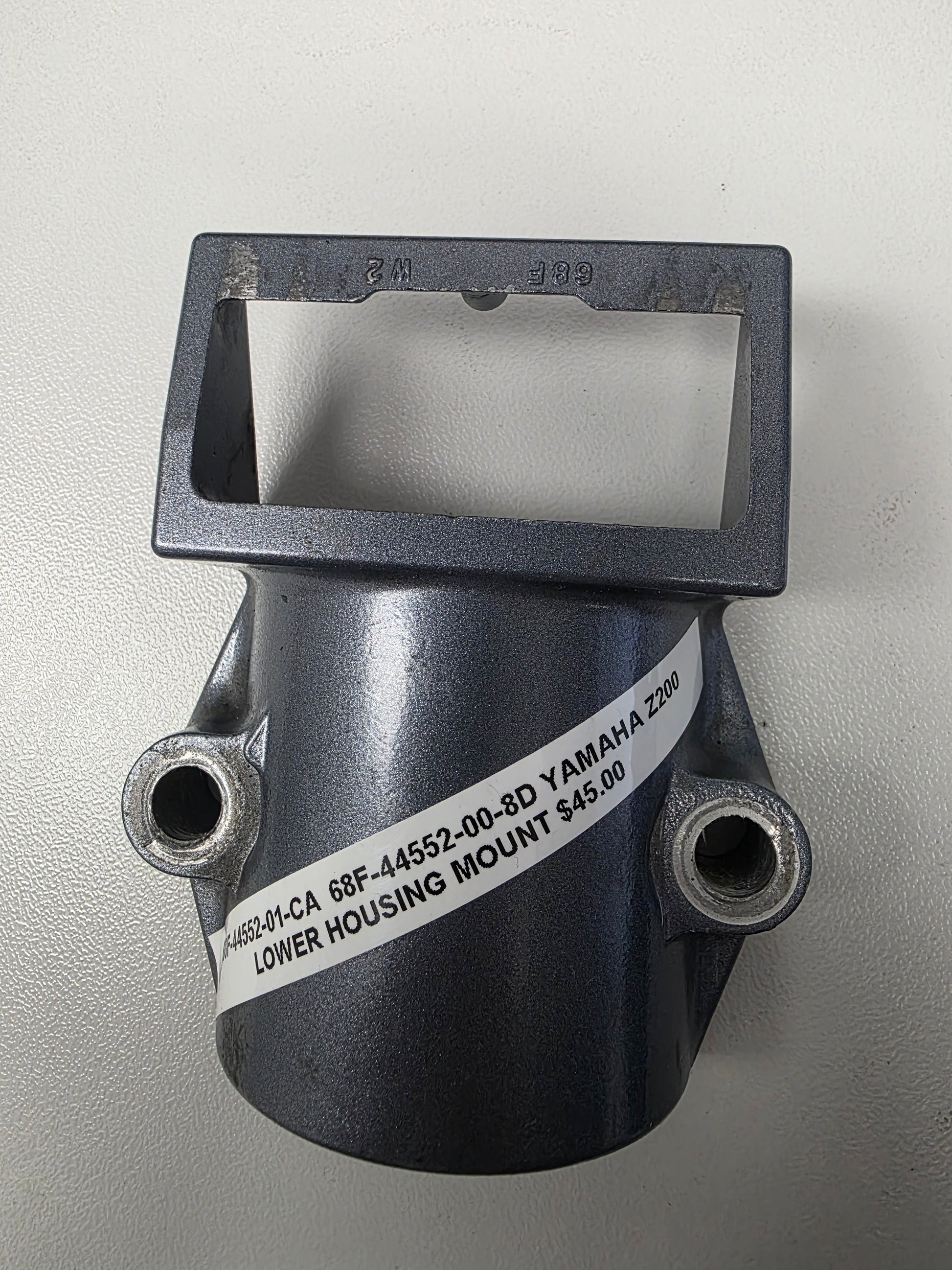

Genuine Yamaha HPDI Lower Mount-Rubber Housing - Part Numbers: 68F-44552-01-CA / 68F-44552-00-8D

A genuine used Yamaha lower mount-rubber housing for selected Z, LZ and VZ HPDI outboards. The housing locates the lower rubber mount within the bracket assembly and transfers engine thrust while isolating vibration. The 01-CA version is the later service replacement.

⚙️ Key Features

• Genuine Yamaha HPDI lower mount housing
• Current reference 68F-44552-01-CA
• Supersedes 68F-44552-01-8D and 68F-44552-00-8D
• Used on Z, LZ and VZ HPDI engines
• Factory mount geometry for V6 midsections

🚤 Compatibility

Commonly used on

• Yamaha Z150 / Z175 / Z200 HPDI engines
• Yamaha LZ200 counter-rotating HPDI
• Yamaha VZ150 / VZ175 and selected VZ200 engines
• HPDI bracket assemblies using the 68F lower housing

Typically suits

• Confirmed on 2001 VZ150 / VZ175 / VZ200 diagrams
• Confirmed on 2004-2011 Z200 and LZ200 applications
• Confirmed on later VZ150 and VZ175 catalogues through approximately 2013
• Verify whether one or two housings are required
• HP Range: Approximately 150HP - 200HP
• Engine Type: Yamaha V6 HPDI two-stroke outboard
• Year Range: Approximately 2001 - 2013
• Fitment Requirement: Confirm lower-mount position, rubber element and cover

🔌 Function

The housing supports the lower rubber mount and controls engine movement while transferring thrust into the swivel and clamp brackets.

⚠️ Common Signs of Failure

• Cracks around the mount bore
• Corrosion beneath the rubber mount
• Mount loose in the housing
• Damaged cover threads
• Excessive midsection movement

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 68F-44552-01-CA → Supersedes 68F-44552-01-8D
• 68F-44552-01-CA → Supersedes 68F-44552-00-8D
• Colour suffix changes do not necessarily change the core mounting geometry

OEM / Related Numbers

• 68F-44552-01-CA
• 68F4455201CA
• 68F-44552-01-8D
• 68F-44552-00-8D
• 6E5-44511-00-00 related upper mount cover
• 60V and 68F lower side mounts vary by HPDI model

Aftermarket / Verified Equivalents

• No verified direct aftermarket cast housing
• Used genuine Yamaha housings are the practical replacement
• Aftermarket bonded mounts may be available for some models but the housing must remain the correct Yamaha casting

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
