68F-81410-00-00 Yamaha Stator HPDI | Genuine Used Part

🔧 Product Description

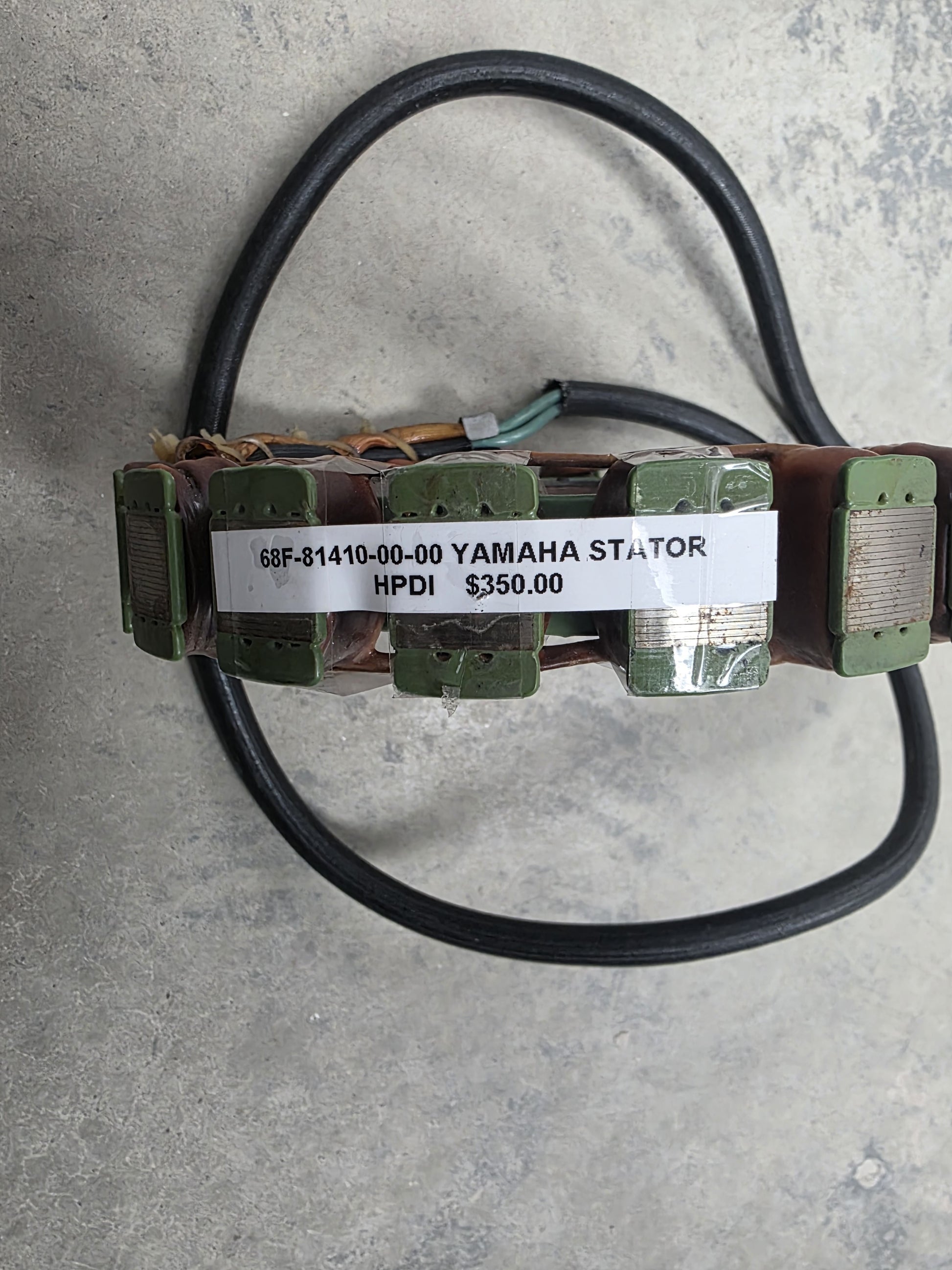

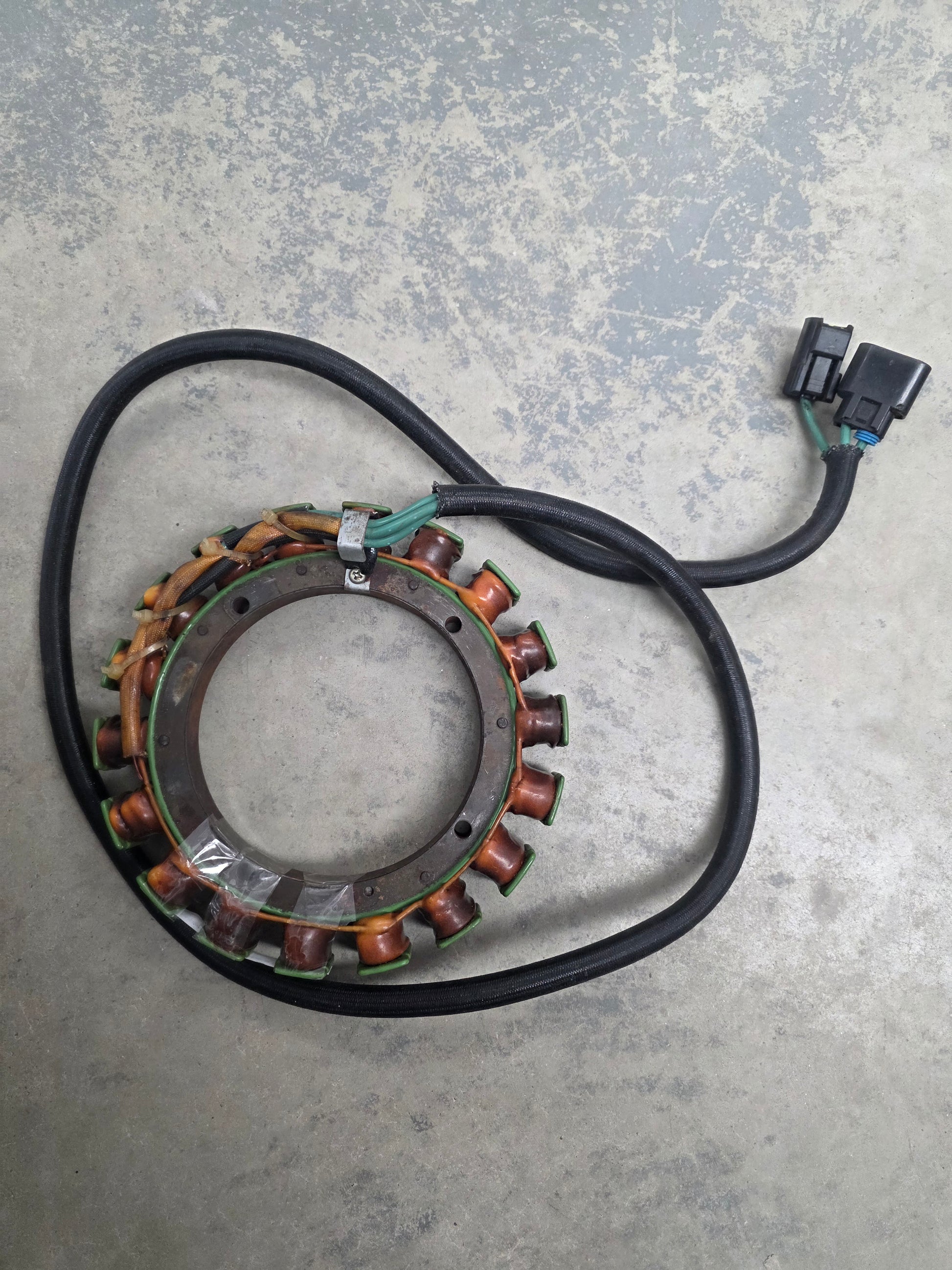

Genuine Yamaha HPDI Stator Assembly - Part Number: 68F-81410-00-00

A genuine Yamaha stator assembly used in the generator system on Yamaha HPDI two-stroke outboards. This stator mounts beneath the flywheel and supplies charging-system output and ignition / engine-management electrical supply on compatible 150HP, 175HP and 200HP HPDI models.

⚙️ Key Features

• Genuine Yamaha HPDI stator assembly

• Correct Yamaha part number 68F-81410-00-00

• Used in Yamaha HPDI generator assemblies

• Supports charging output, ignition supply and engine-management electrical demand

• Critical electrical component for HPDI two-stroke operation

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 68F-81410-00-00 Yamaha HPDI stator assembly reference

OEM / Related Numbers:

• 68F-81410-00-00

• 68F-81410-00

• 68F814100000

• 68F8141000

• 68F-85580-10-00 related HPDI pulser coil family

• 60V-85580-10-00 related HPDI pulser coil family

Aftermarket / Verified Equivalents:

• Aftermarket reference: 68F-81410-00-00

• Aftermarket HPDI stator replacement for 150HP-200HP Yamaha two-stroke applications

🚤 Compatibility

Commonly used on:

• Yamaha HPDI two-stroke generator assemblies

• Yamaha Z-series and LZ-series direct-injection electrical systems using 68F stator components

Typically suits:

• Engine models:

• Yamaha Z150 HPDI two-stroke generator applications where 68F-81410-00-00 is specified

• Yamaha LZ150 HPDI two-stroke generator applications where 68F-81410-00-00 is specified

• Yamaha Z175 HPDI two-stroke generator applications where 68F-81410-00-00 is specified

• Yamaha LZ175 HPDI two-stroke generator applications where 68F-81410-00-00 is specified

• Yamaha Z200 HPDI two-stroke generator applications where 68F-81410-00-00 is specified

• Yamaha LZ200 HPDI two-stroke generator applications where 68F-81410-00-00 is specified

• Yamaha Z200TXRA HPDI generator assembly applications

• Yamaha 150HP / 175HP / 200HP HPDI V6 generator systems using the 68F stator family

• HP Range: commonly 150HP - 200HP

• Engine Type: Yamaha V6 HPDI direct-injection two-stroke outboard

• Year Range: approximately 2000-2006 depending on model and market

• System Type: Generator stator / charging coil assembly

🔌 Function

The stator generates AC electrical output beneath the flywheel. Its output is used by the rectifier / regulator, ignition and engine-management systems to maintain battery charging and stable electrical operation.

Common signs of failure:

• Battery not charging

• Weak or intermittent spark

• HPDI engine hard starting or cutting out

• Charging voltage low or unstable

• Engine-management voltage faults

• Tachometer or charging-system instability

• Burnt windings, cracked potting or heat-damaged leads

• AC output below specification during stator testing

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
