68f-81948-02-00 68f-81948-00-00 Yamaha Z200 Bracket | Genuine Used Part

🔧 Product Description

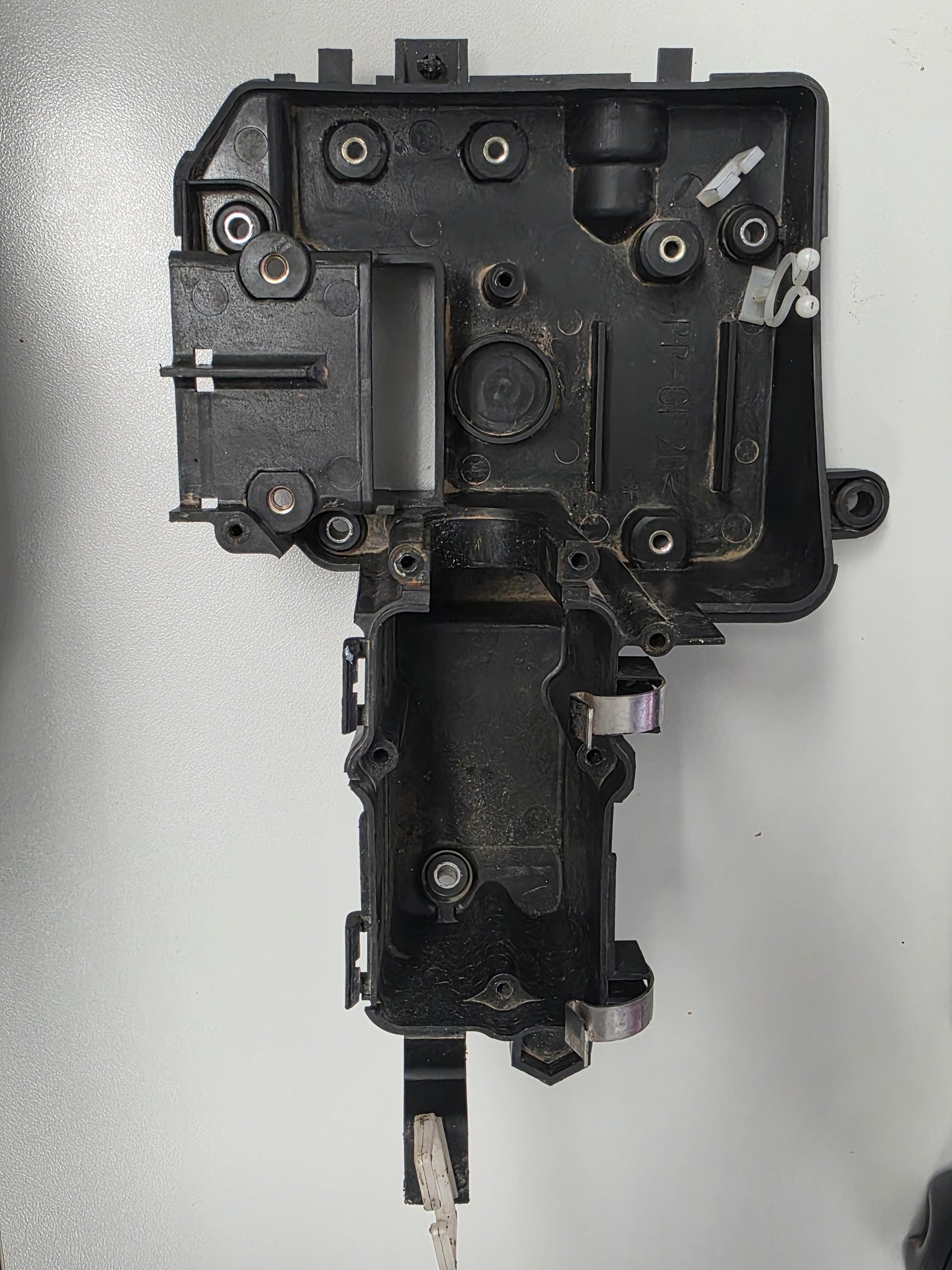

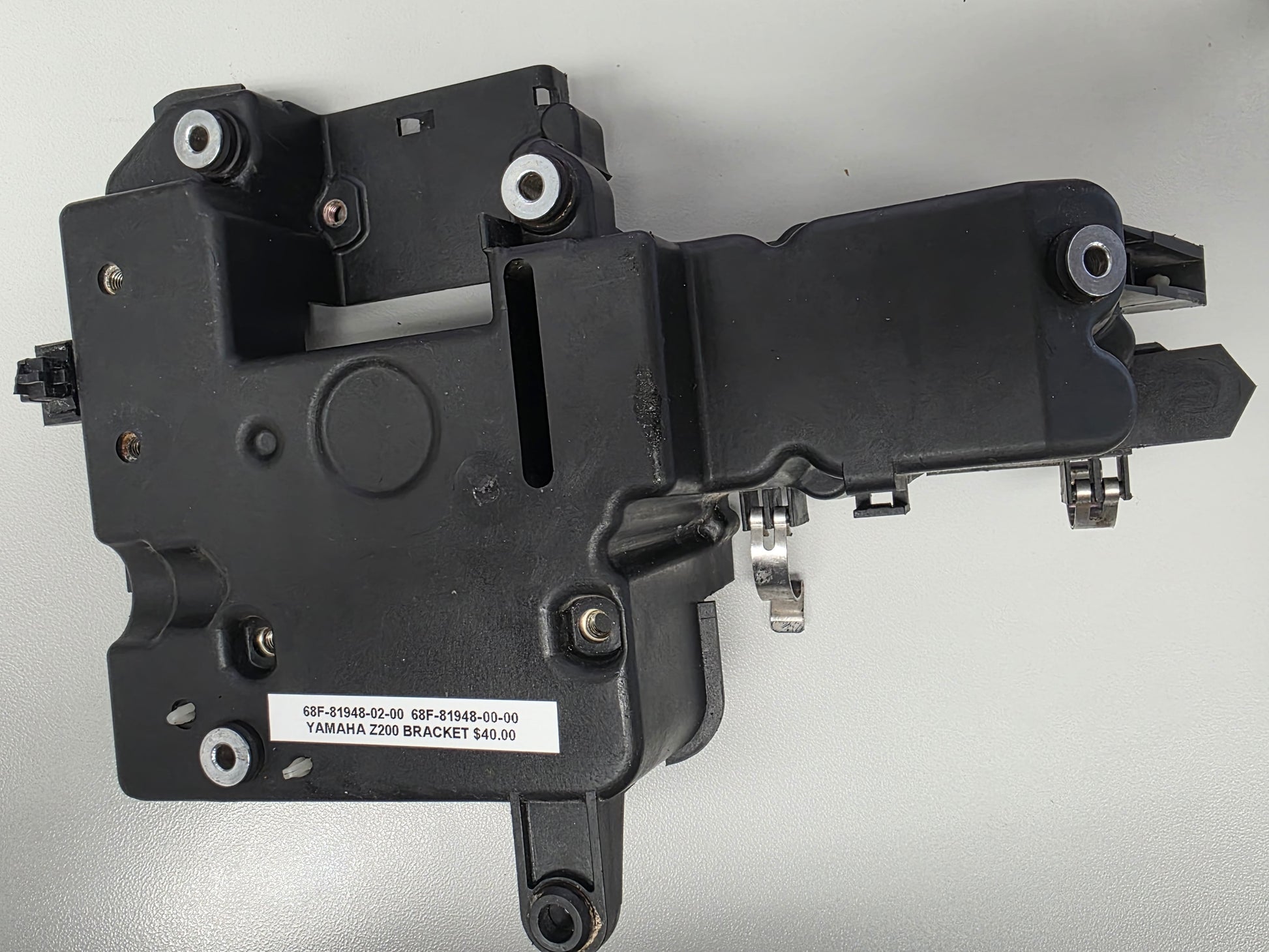

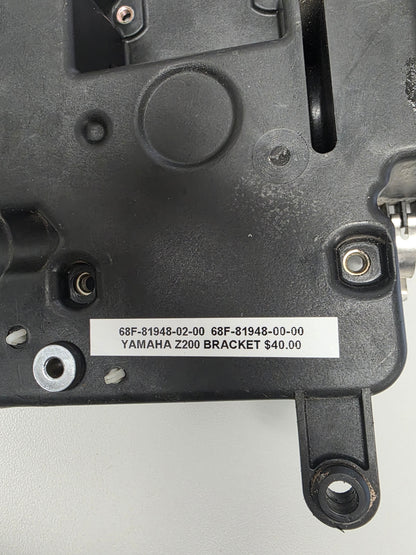

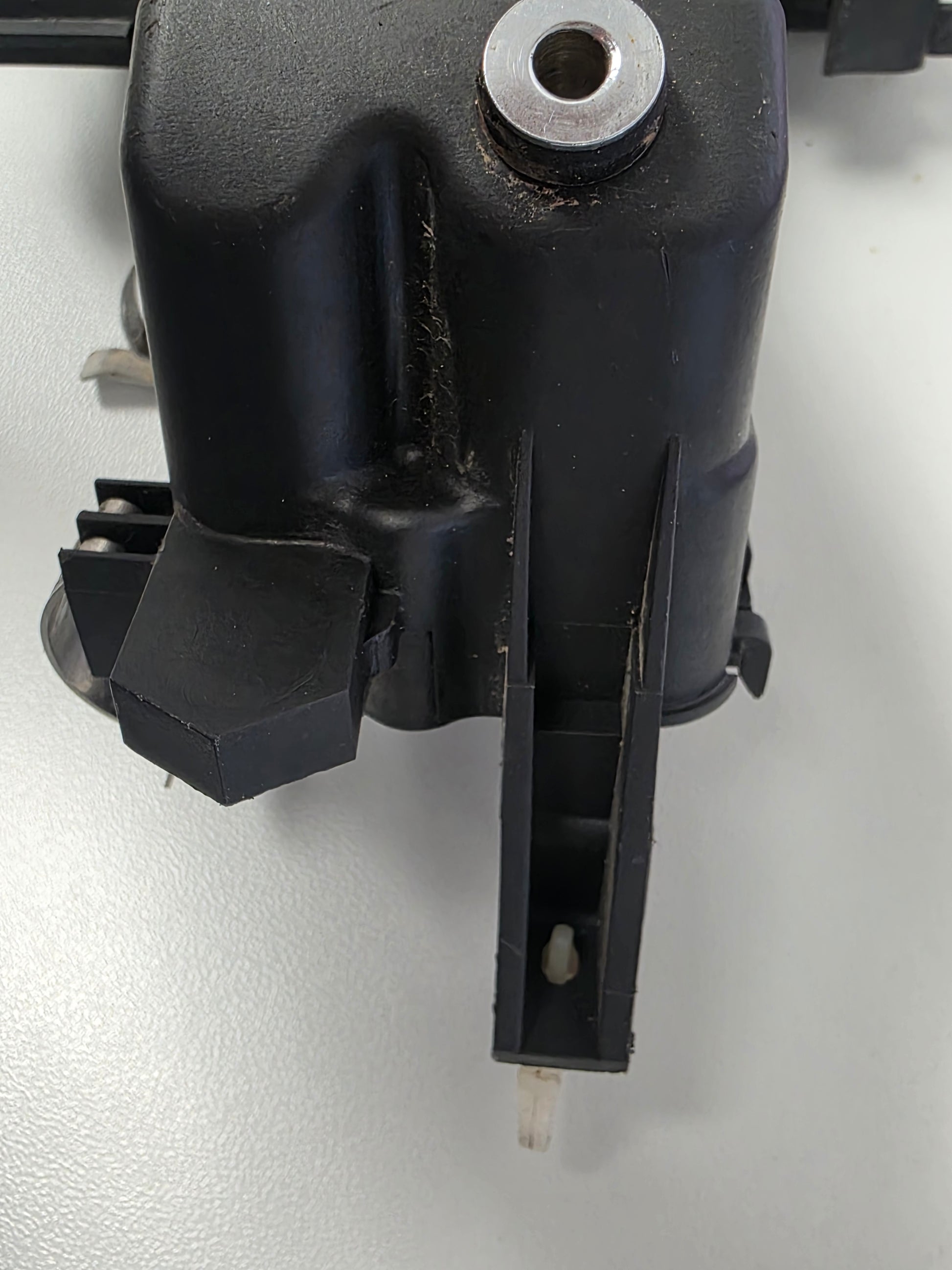

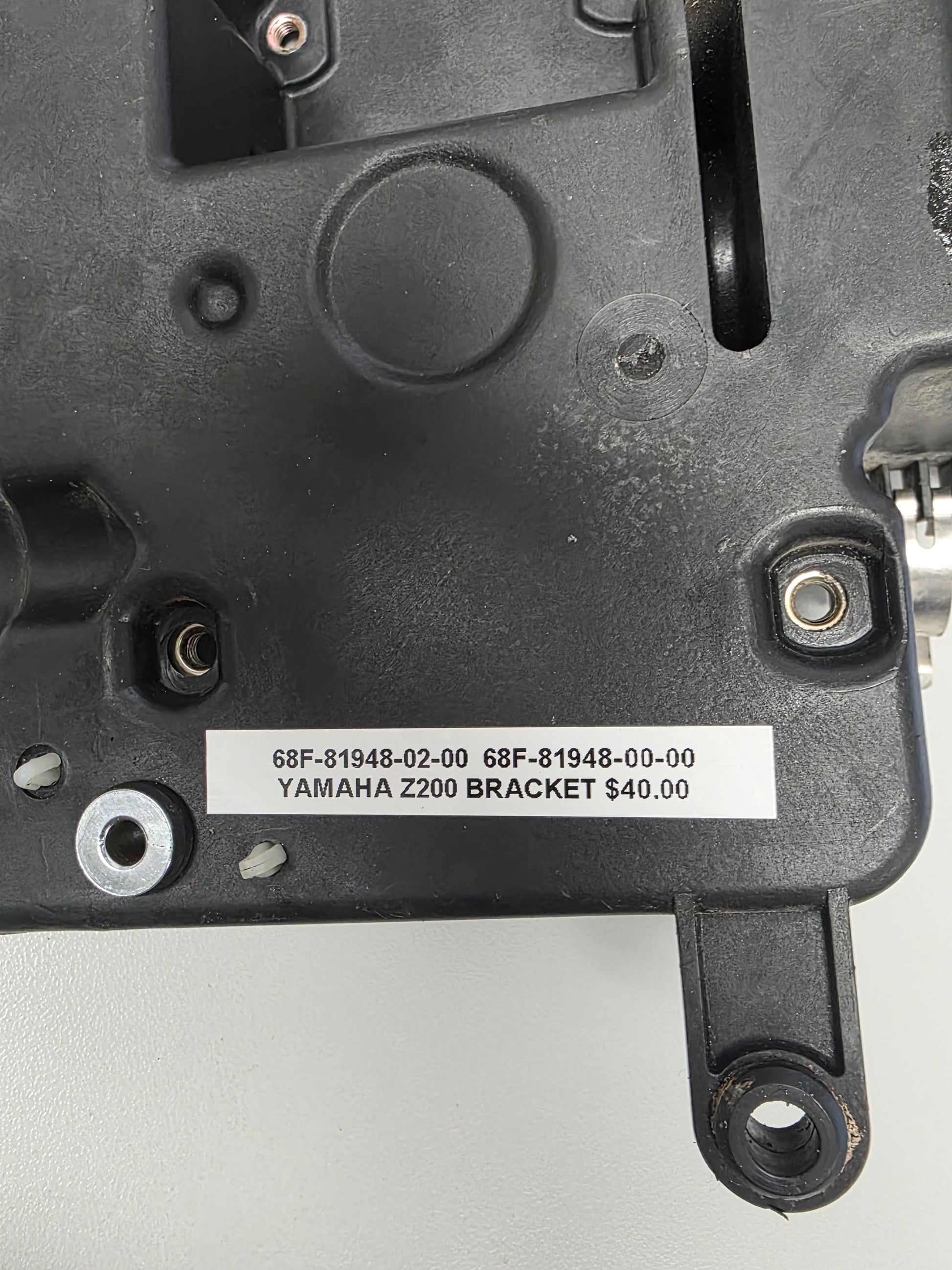

Genuine Yamaha Electrical Component Mounting Bracket - Part Number: 68F-81948-02-00

A genuine used Yamaha electrical-system mounting bracket for selected Z-series and VZ-series HPDI outboard motors.

The formed bracket mounts within the engine electrical assembly and supports the applicable relay, control module, wiring or related electrical component in its correct operating position.

⚙️ Key Features

• Genuine used Yamaha OEM bracket
• Current part number 68F-81948-02-00
• Cross-references with earlier bracket 68F-81948-00-00
• Used in Yamaha HPDI electrical-system assemblies

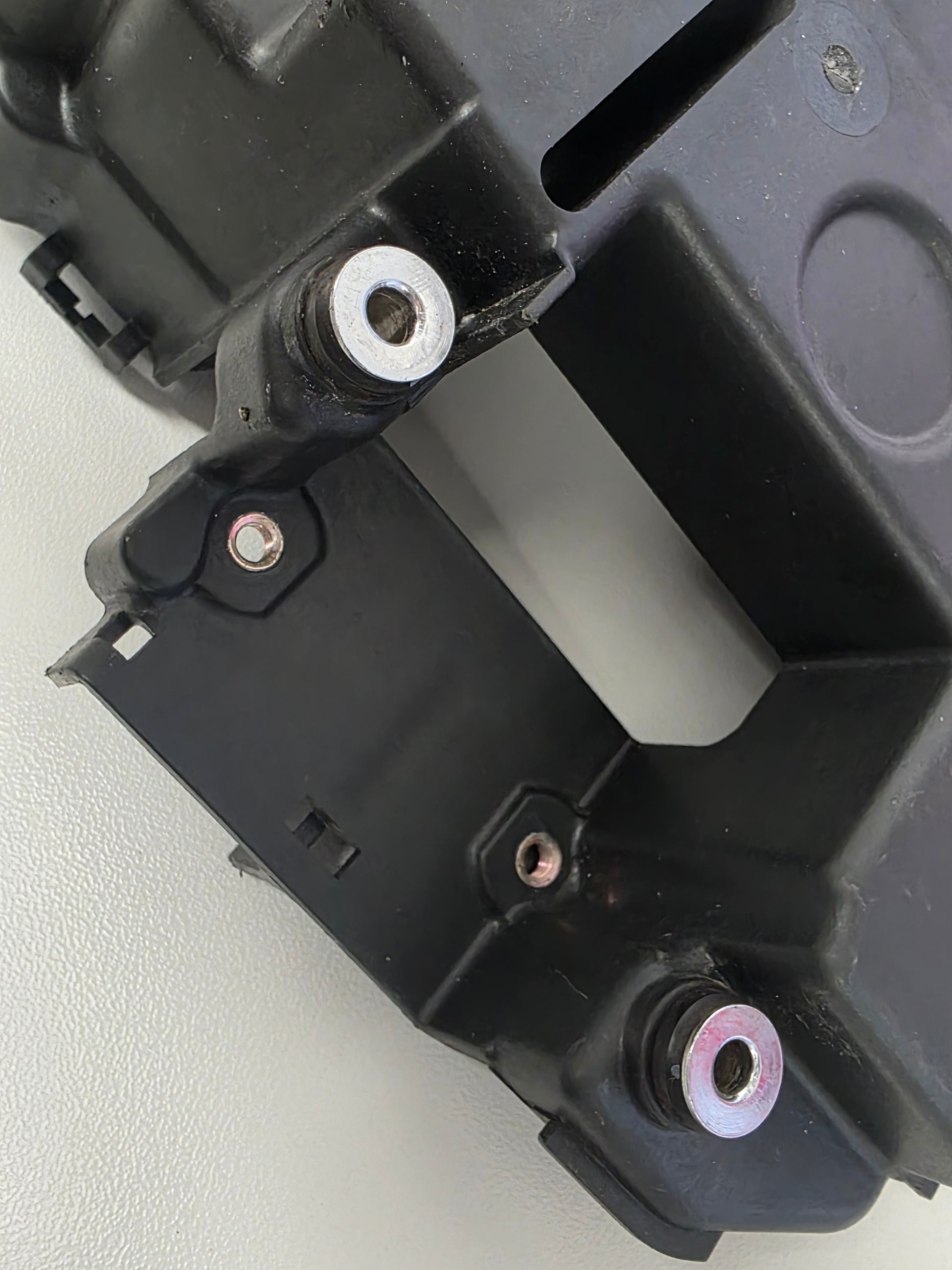

• Factory-formed mounting points for correct component alignment

🚤 Compatibility

Commonly used on

• Yamaha Z-series and VZ-series HPDI electrical assemblies
• Yamaha electrical component, relay and wiring mounting systems

Typically suits

• Engine models:
• Yamaha Z150TXR HPDI
• Yamaha VZ150TLR HPDI
• Yamaha Z175TXR HPDI
• Yamaha VZ175TLR HPDI
• Yamaha Z200TXR HPDI
• Yamaha VZ200TLR HPDI
• 2005 Yamaha Z175TXR
• 2007 Yamaha VZ175TLR
• 2009 Yamaha Z200TXR
• 2013 Yamaha VZ150TLR
• HP Range: 150HP - 200HP
• Engine Type: Yamaha HPDI V6 direct-injection two-stroke outboard
• Year Range: Approximately 2000-2013

🔌 Function

The bracket retains the applicable electrical component and wiring in its designed position, protecting the assembly from vibration, movement and contact with nearby engine components.

⚠️ Common Signs of Failure

• Bracket is bent or cracked
• Electrical component is loose or misaligned
• Wiring loom rubs against the engine
• Mounting holes are elongated
• Corrosion weakens the mounting points

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 68F-81948-02-00 later OEM service reference
• 68F-81948-00-00 earlier OEM bracket reference

OEM / Related Numbers

• 68F-81948-02-00
• 68F-81948-00-00
• 68F819480200
• 68F819480000
• 68F-81948-02
• 68F-81948-00

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
