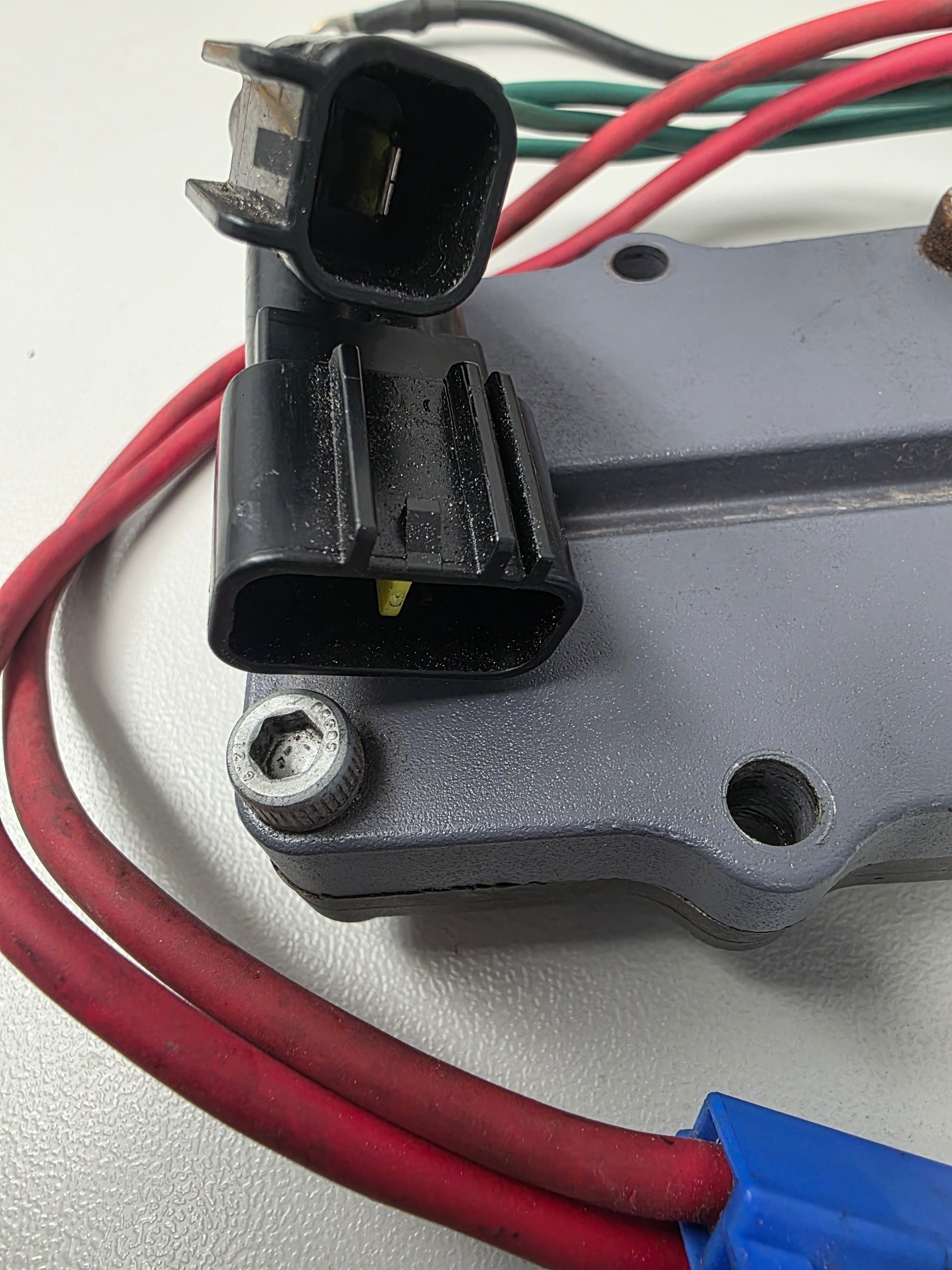

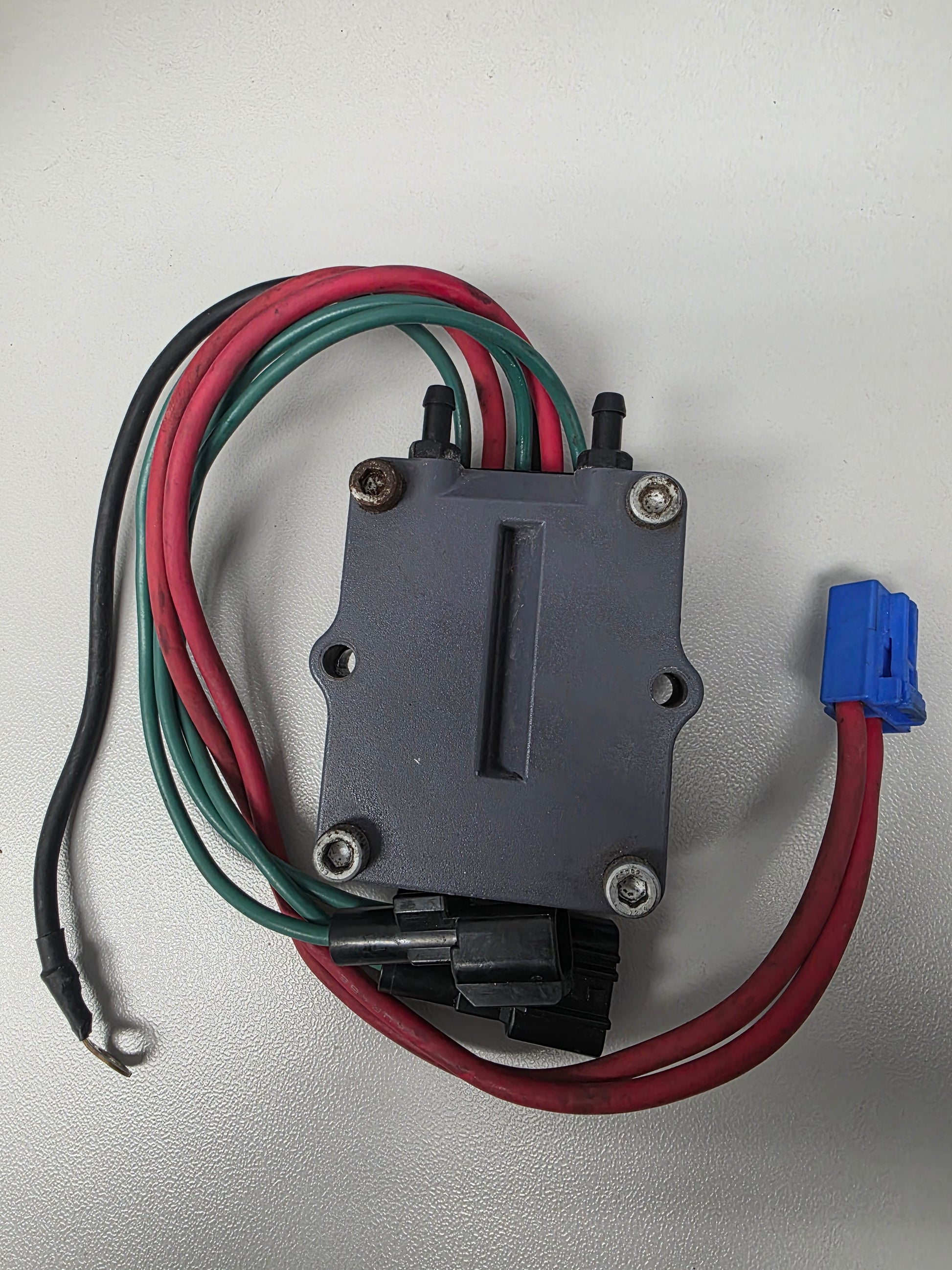

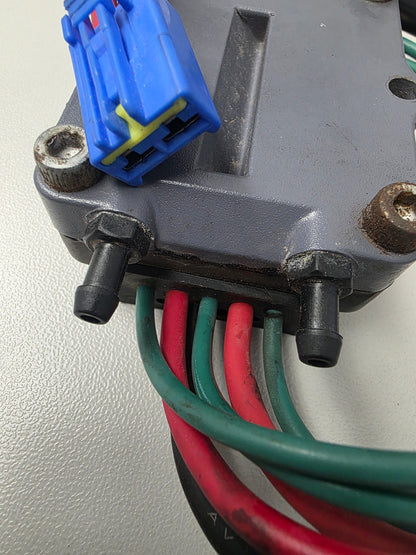

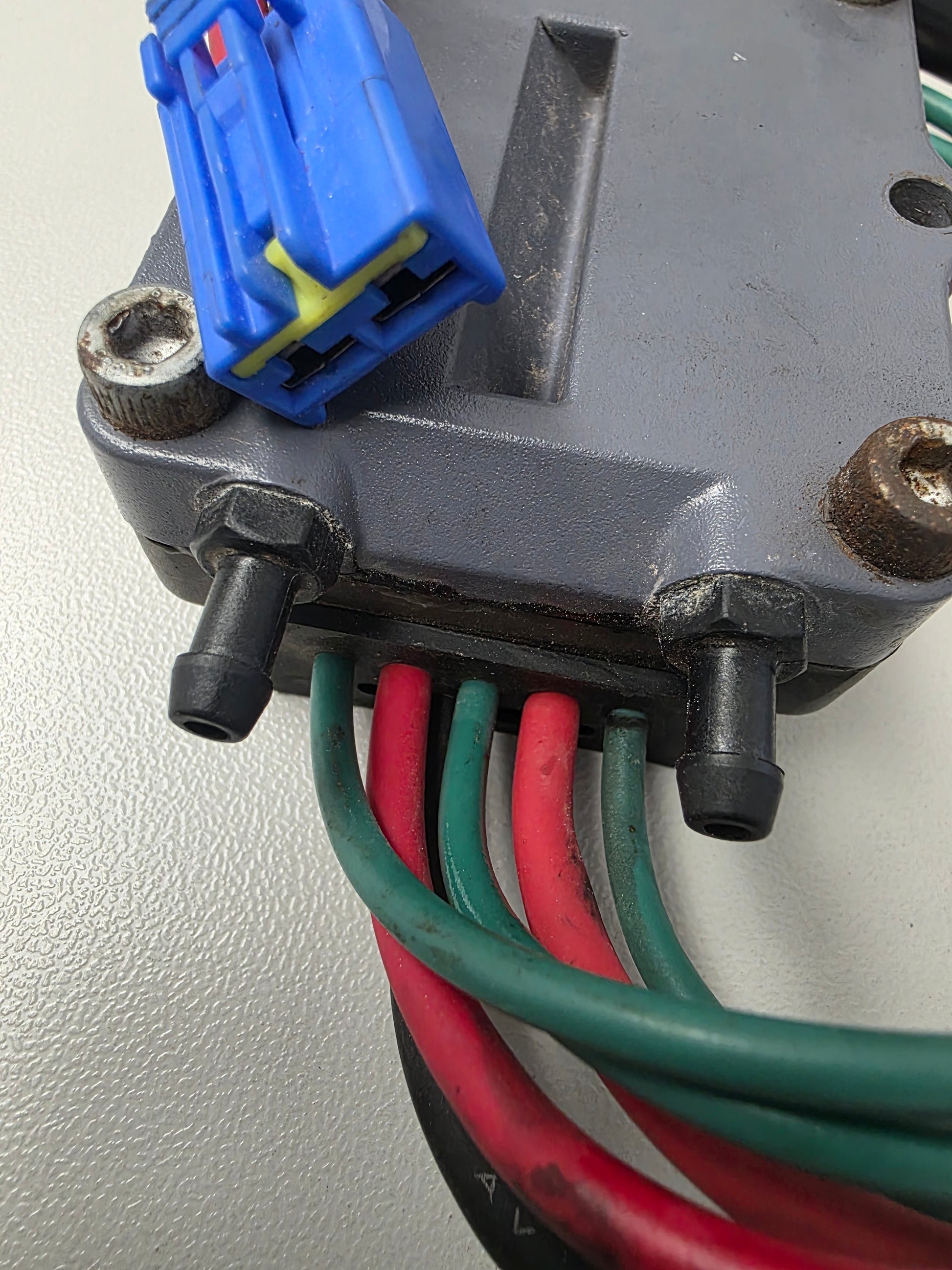

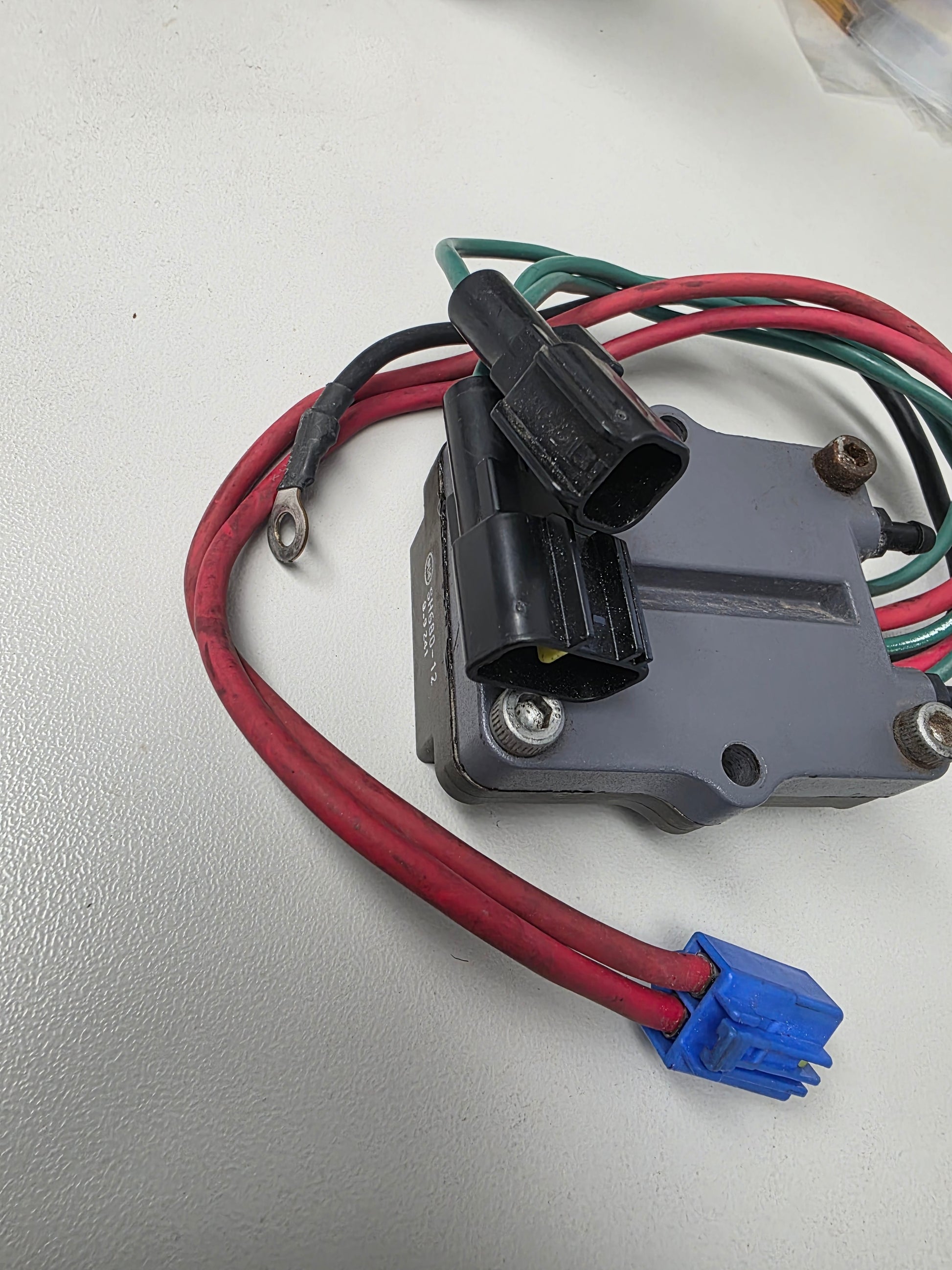

Genuine Yamaha HPDI Rectifier & Regulator Assembly - Part Numbers: 68F-81960-03-00 and 68F-81960-00-00
A genuine Yamaha rectifier / regulator assembly used on selected Yamaha Z200 HPDI 2.6L V6 two-stroke outboards. This charging-system component regulates alternator output and supplies stable DC charging voltage to the battery and engine electronics.
⚙️ Key Features
- Genuine Yamaha rectifier / regulator assembly
- Listed with part numbers 68F-81960-03-00 and 68F-81960-00-00
- Used on Yamaha 200HP HPDI 2.6L V6 applications
- Later 68F-81960-03-00 service reference in the 68F regulator family
- Critical charging-system component for HPDI electrical systems
🚤 Compatibility
Commonly used on
- Yamaha 200HP HPDI 2.6L V6 charging systems
Typically suits
- Engine models:
- Yamaha Z200 HPDI 2.6L V6
- Yamaha Z200TLRY 2000 HPDI applications
- Yamaha Z200TXRZ 2001 HPDI applications
- Yamaha LZ200 HPDI applications where 68F regulator is specified
- Yamaha VZ200 HPDI / VMAX HPDI applications using 68F charging-system components
- HP Range: 200HP
- Engine Type: Yamaha HPDI 2.6L V6 two-stroke outboard
- Year Range: approximately 2000 - 2003 for core 68F Z200 HPDI applications
- Serial / Model Note: Match by exact Yamaha HPDI model code, serial number and regulator connector layout.
🔌 Function
The rectifier / regulator converts AC charging output into regulated DC voltage for the battery, ECU, injector driver and engine electrical system.
⚠️ Common Signs of Failure
- Battery not charging
- Overcharging or high battery voltage
- Charging warning or tachometer fault
- Burnt or melted regulator plug
- Blown charging-system fuse
- Battery goes flat after running
- Voltage remains incorrect after stator and battery checks
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 68F-81960-03-00 later Yamaha rectifier / regulator reference
- 68F-81960-00-00 earlier Yamaha rectifier / regulator reference
OEM / Related Numbers
- 68F-81960-03-00
- 68F819600300
- 68F-81960-00-00
- 68F819600000
- 8EP-27 regulator marking family
- Yamaha HPDI charging regulator reference
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
