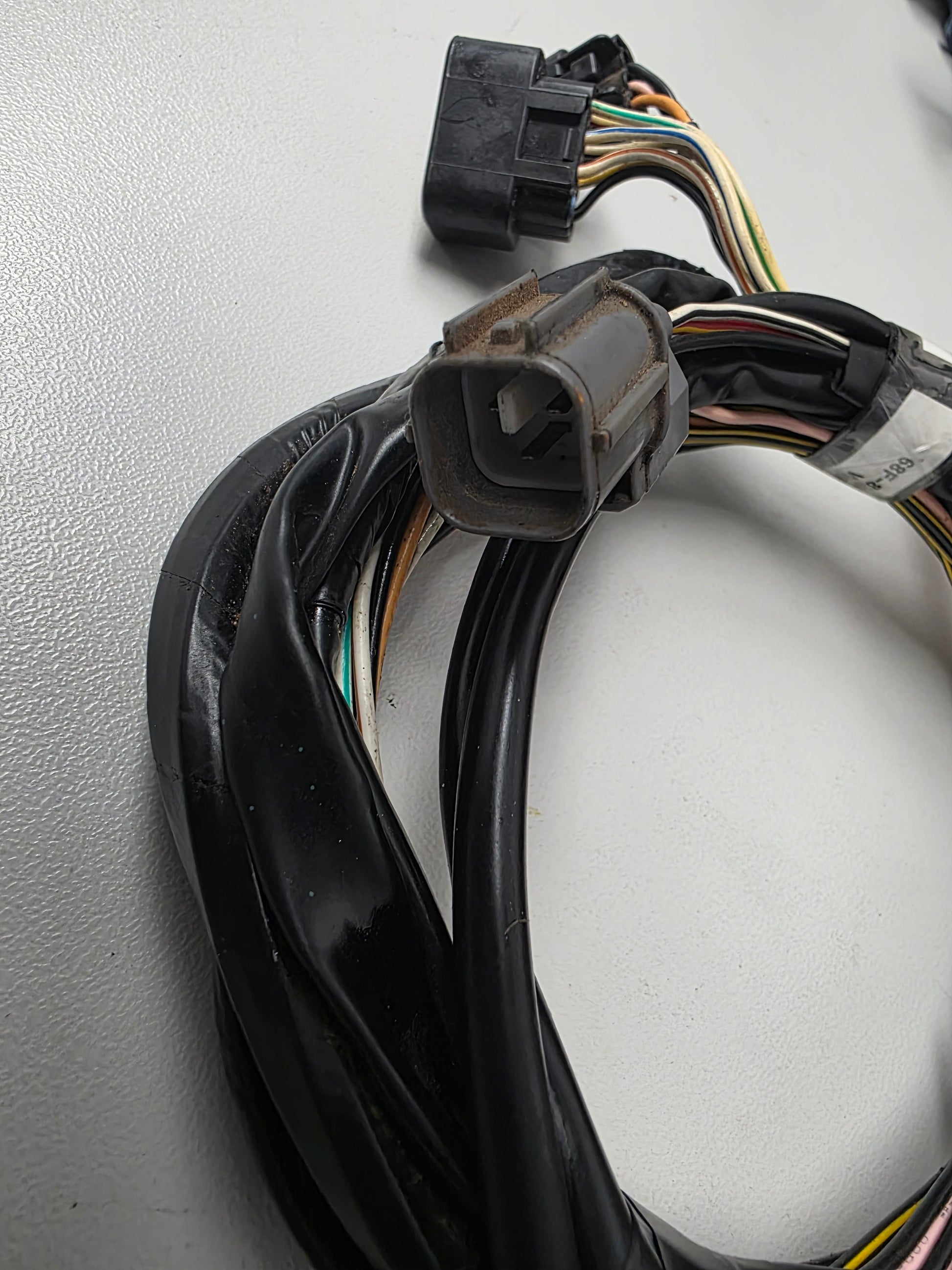

• 68F-8259M-00-00 Yamaha Wiring Loom HPDI | Genuine Used Part

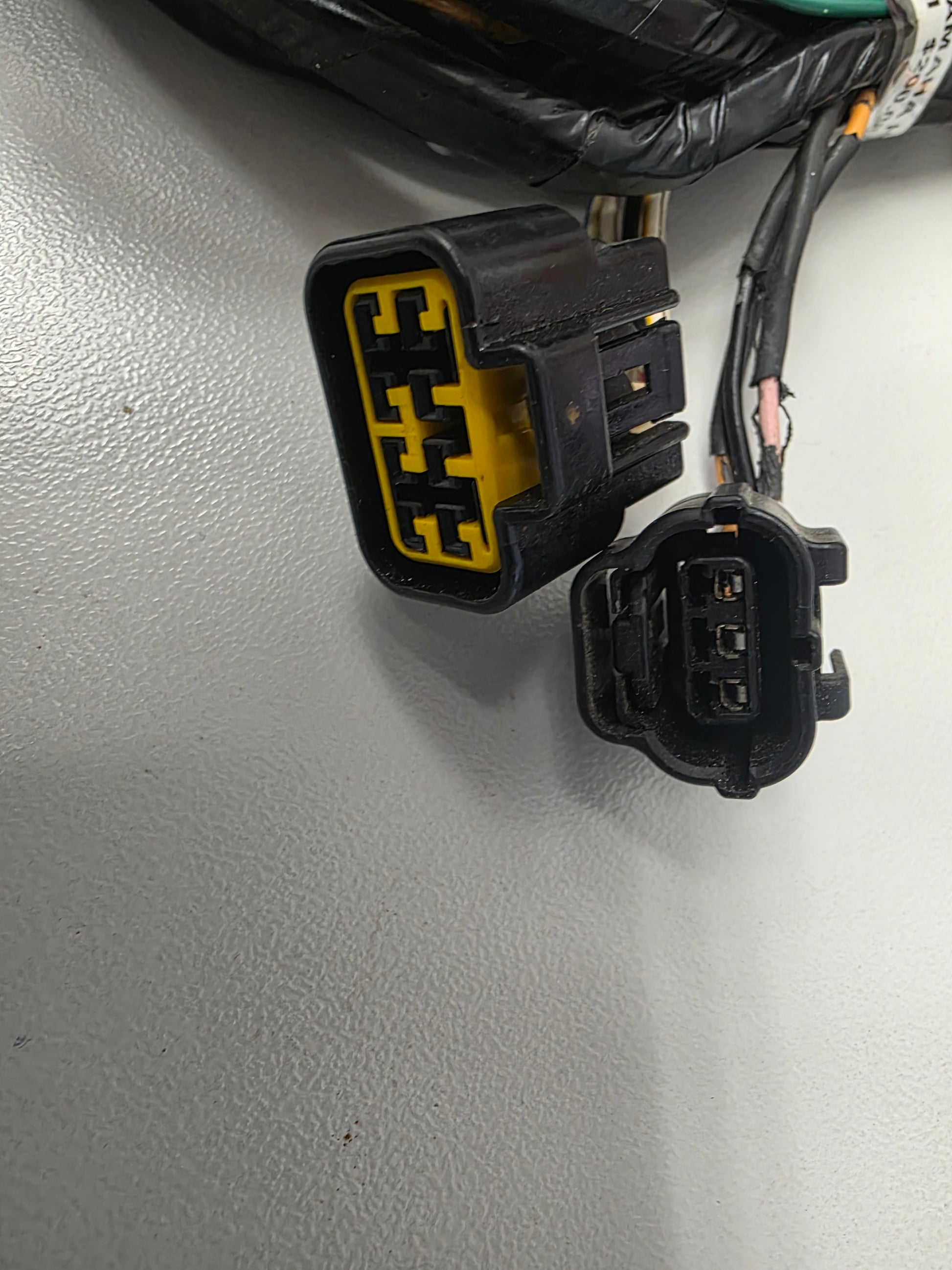

  • 68F-8259M-00-00 Yamaha Wiring Loom HPDI | Genuine Used Part - photo 2 of 4

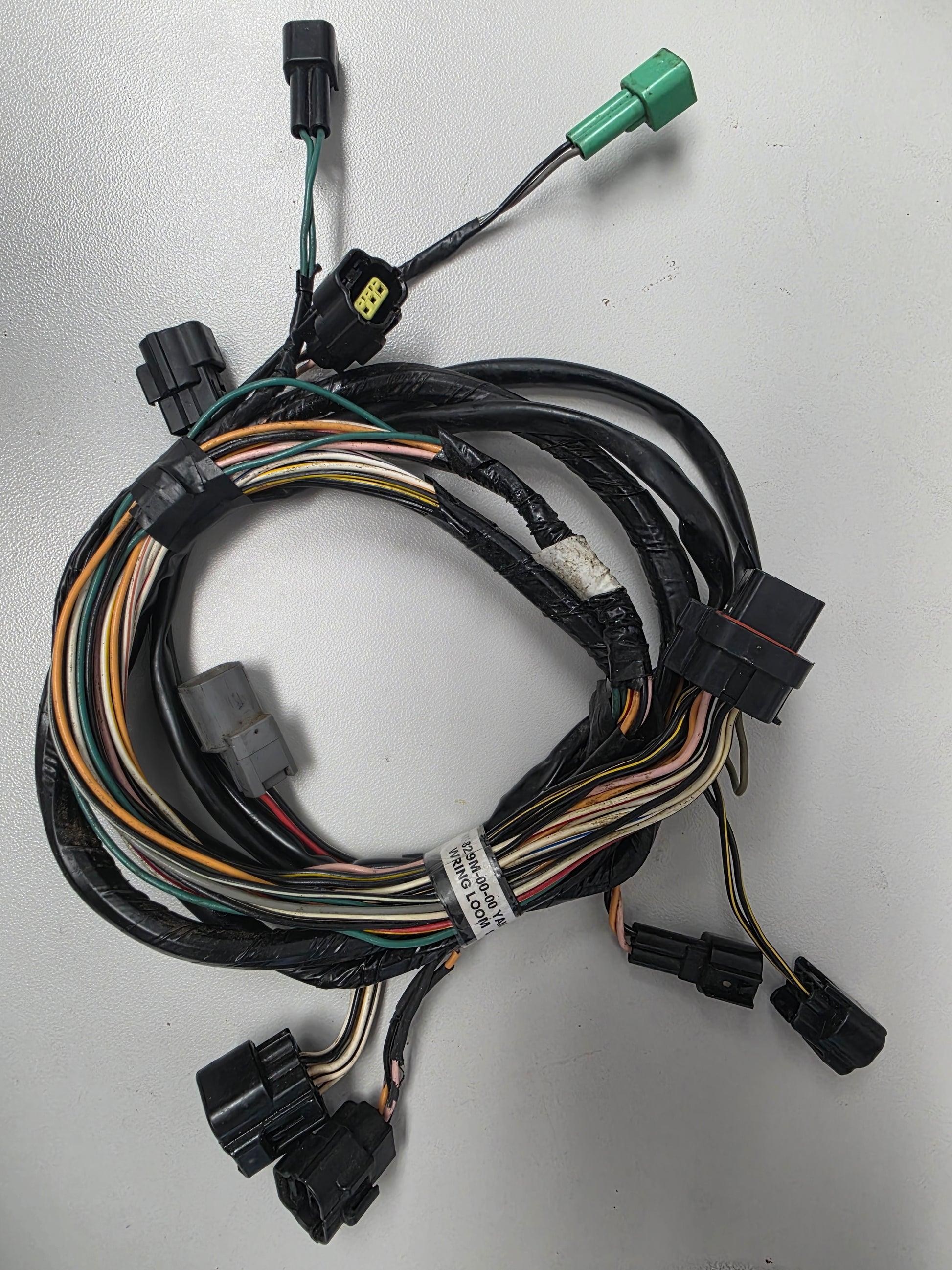

  • 68F-8259M-00-00 Yamaha Wiring Loom HPDI | Genuine Used Part - photo 3 of 4

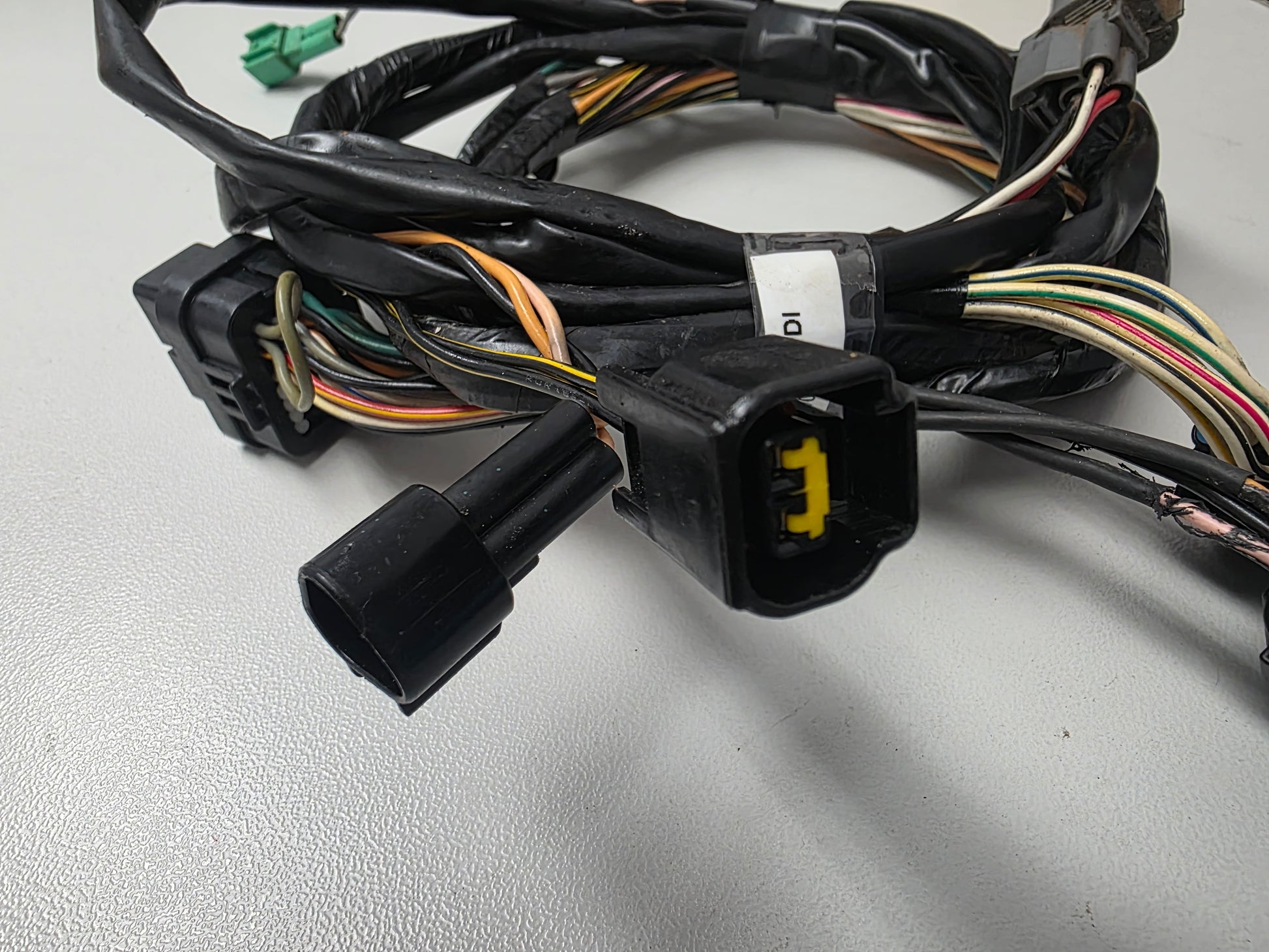

  • 68F-8259M-00-00 Yamaha Wiring Loom HPDI | Genuine Used Part - photo 4 of 4
1 4

68F-8259M-00-00 Yamaha Wiring Loom HPDI | Genuine Used Part

68F-8259M-00-00 Yamaha Wiring Loom HPDI | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$100.00 AUD
$200.00 AUD $100.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

Genuine Yamaha 150HP-200HP HPDI Harness Assembly 2 - Part Number: 68F-8259M-00-00

A genuine Yamaha secondary engine wiring harness for selected 150HP, 175HP and 200HP HPDI two-stroke outboards.

Yamaha identifies this loom as Harness Assembly 2. It works with the main HPDI engine harness to connect designated fuel-injection, ignition, sensor and engine-management components within the powerhead.

⚙️ Key Features

  • Genuine Yamaha OEM HPDI secondary harness
  • Correct part number 68F-8259M-00-00
  • Identified as Harness Assembly 2
  • Used with the corresponding 68F-series main engine loom
  • Suits selected 150HP, 175HP and 200HP HPDI engines

🚤 Compatibility

Commonly used on

  • Yamaha 68F-series HPDI powerhead electrical systems
  • Standard-rotation and counter-rotation V6 engines

Typically suits

  • Engine models:
  • Yamaha LZ150PETOX
  • Yamaha LZ200NETOX
  • Yamaha Z150PETOL
  • Yamaha Z150PETOX
  • Yamaha Z175GETOX
  • Yamaha Z200NETOL
  • Yamaha Z200NETOX
  • Yamaha Z200TRY
  • Yamaha 150HP HPDI applications using harness assembly 2
  • Yamaha 175HP HPDI applications using harness assembly 2
  • Yamaha 200HP HPDI applications using harness assembly 2
  • HP Range: 150HP - 200HP
  • Engine Type: Yamaha 2.6-litre V6 HPDI direct-injected two-stroke outboard
  • Year Range: Approximately 2000 - 2003

🔌 Function

The secondary harness connects designated HPDI fuel, ignition and sensor components to the main engine wiring harness and engine control system.

⚠️ Common Signs of Failure

  • Intermittent injector or ignition operation
  • Engine-management fault codes appear without component failure
  • One branch loses continuity under vibration
  • Connector seals or locking tabs are damaged
  • Wiring insulation becomes brittle, rubbed through or heat damaged

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 68F-8259M-00-00 documented HPDI harness assembly 2 reference

OEM / Related Numbers

  • 68F-8259M-00-00
  • 68F8259M0000
  • 68F-82590-00-00 related main HPDI harness
  • 68F-82590-20-00 related main HPDI harness configuration
  • 68F-82170-03-00 related fuse-box assembly
  • Related ECU, injector and sensor connectors

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
