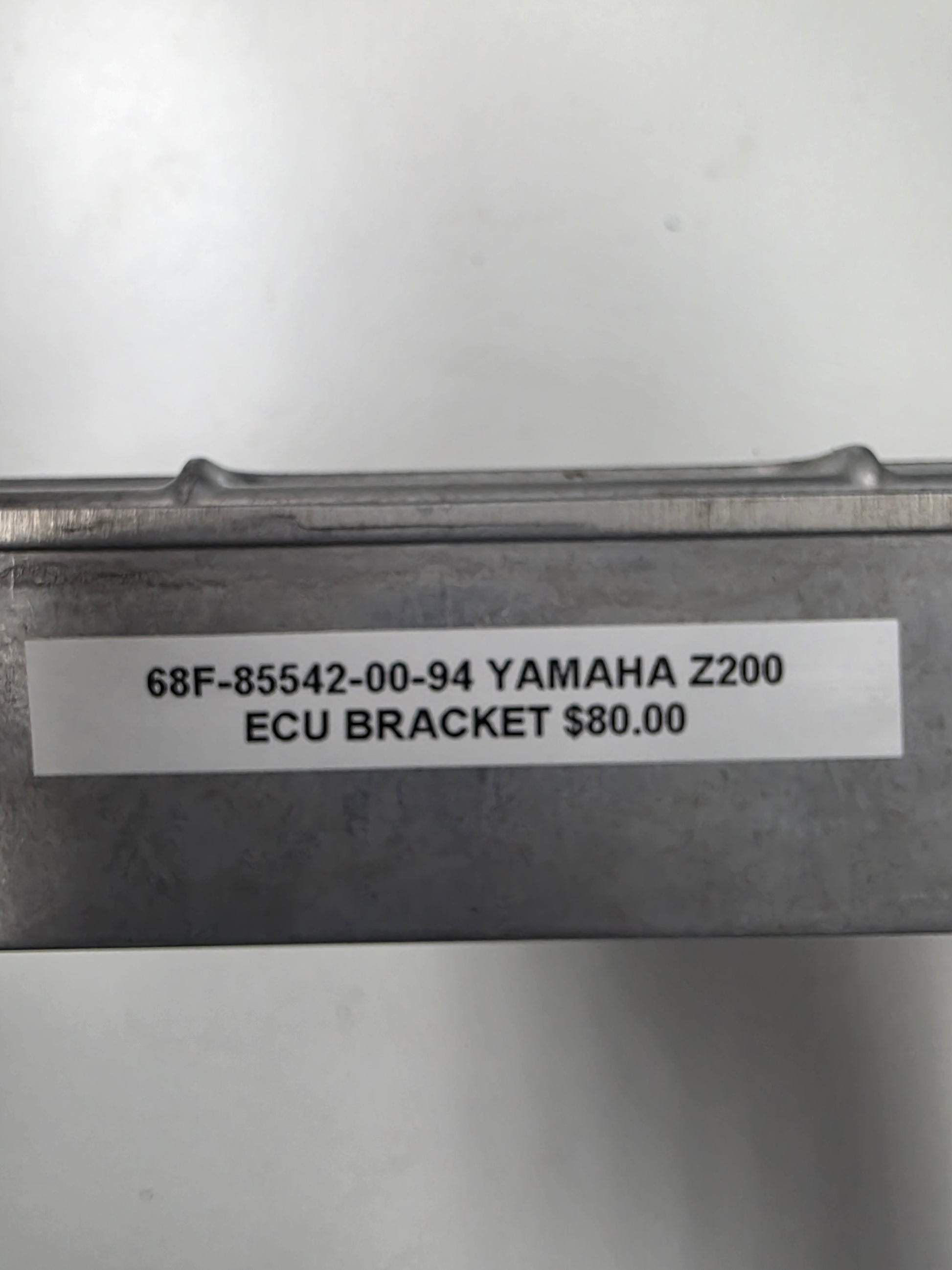

68F-85542-00-94 Yamaha Z200 ECU Bracket | Genuine Used Part
68F-85542-00-94 Yamaha Z200 ECU Bracket | Genuine Used Part
🔥 50% off all Used Parts - Limited Time 🔥
Low stock: 1 left
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide
🔧 Product Description

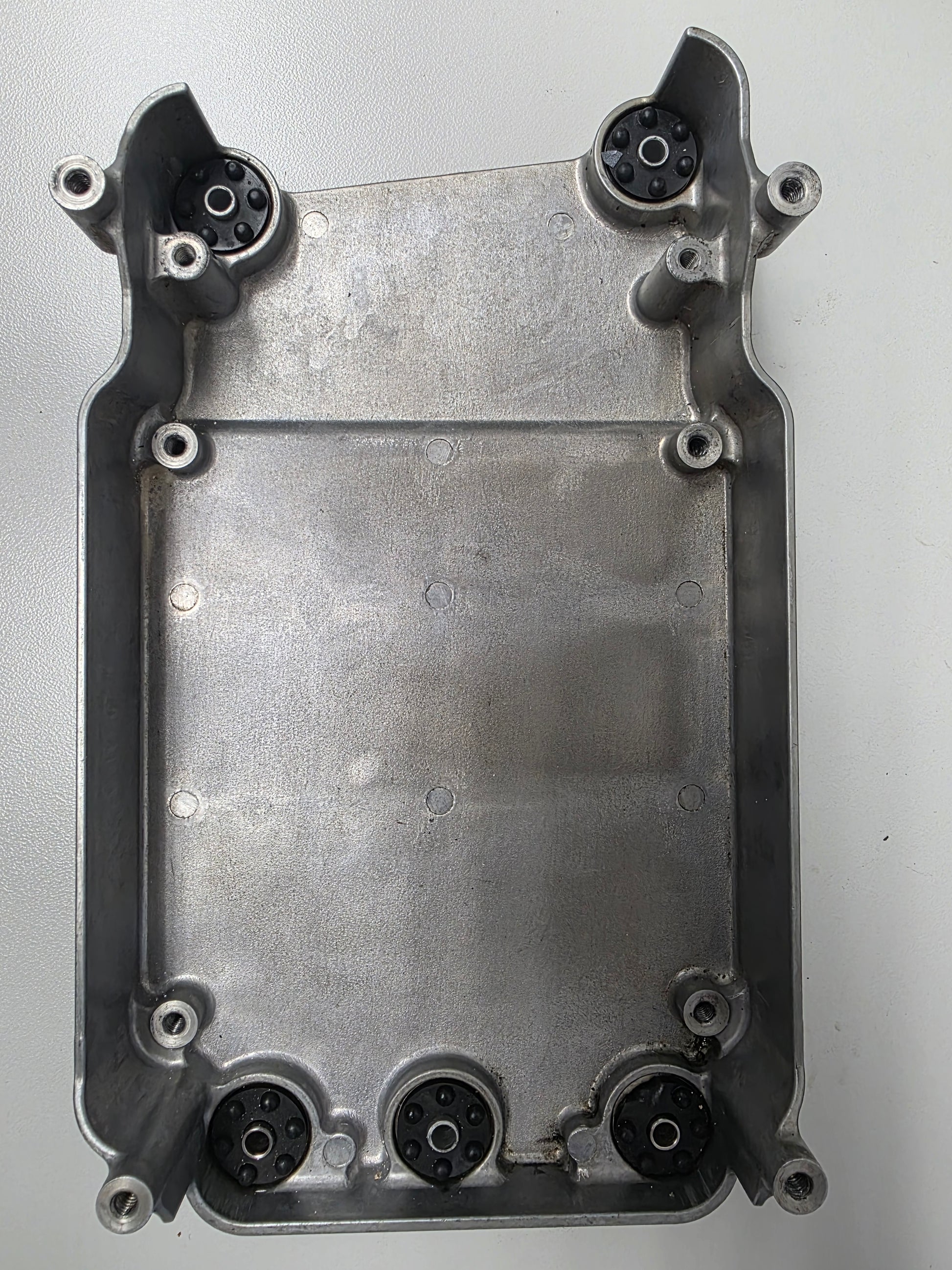

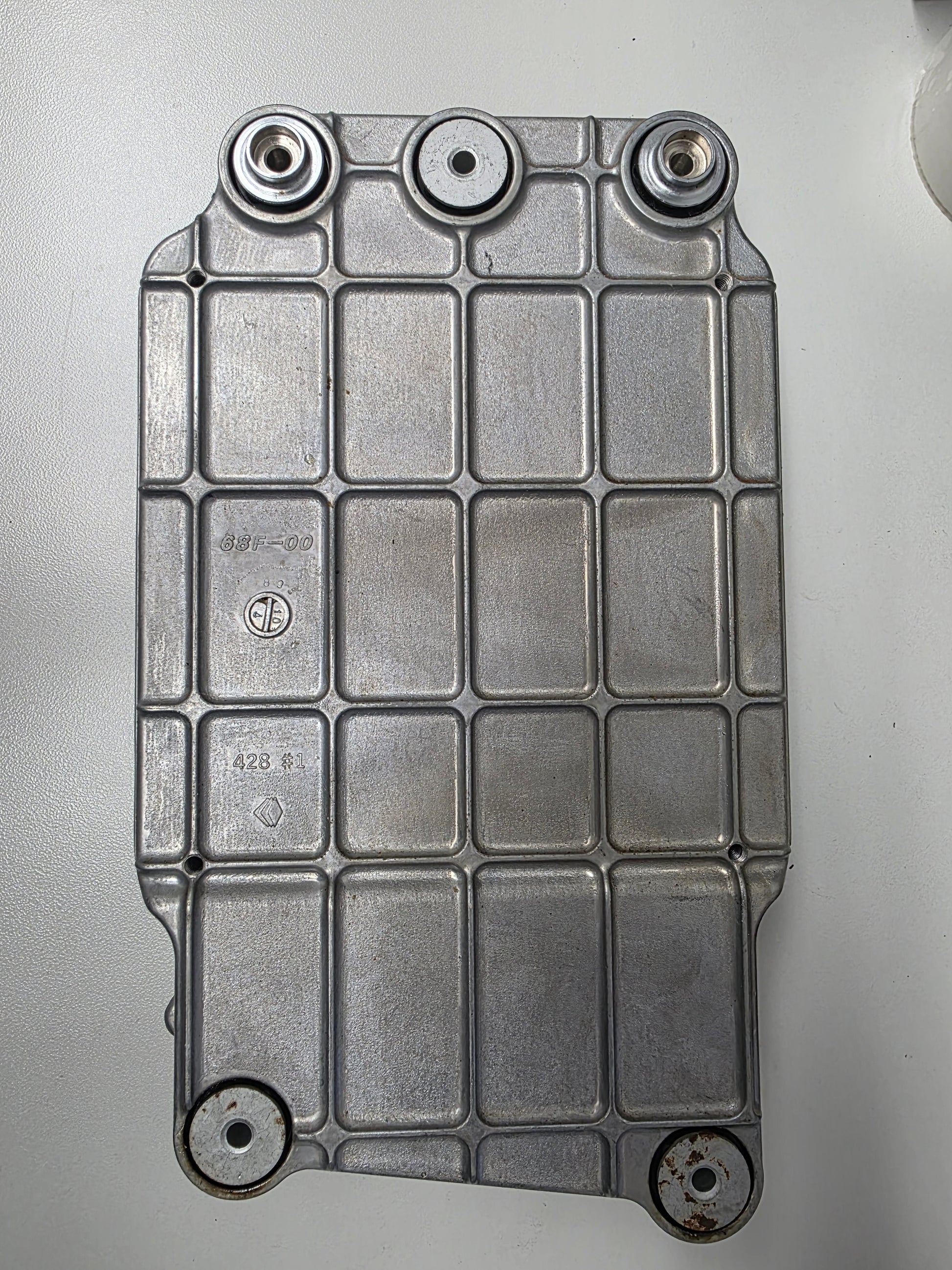

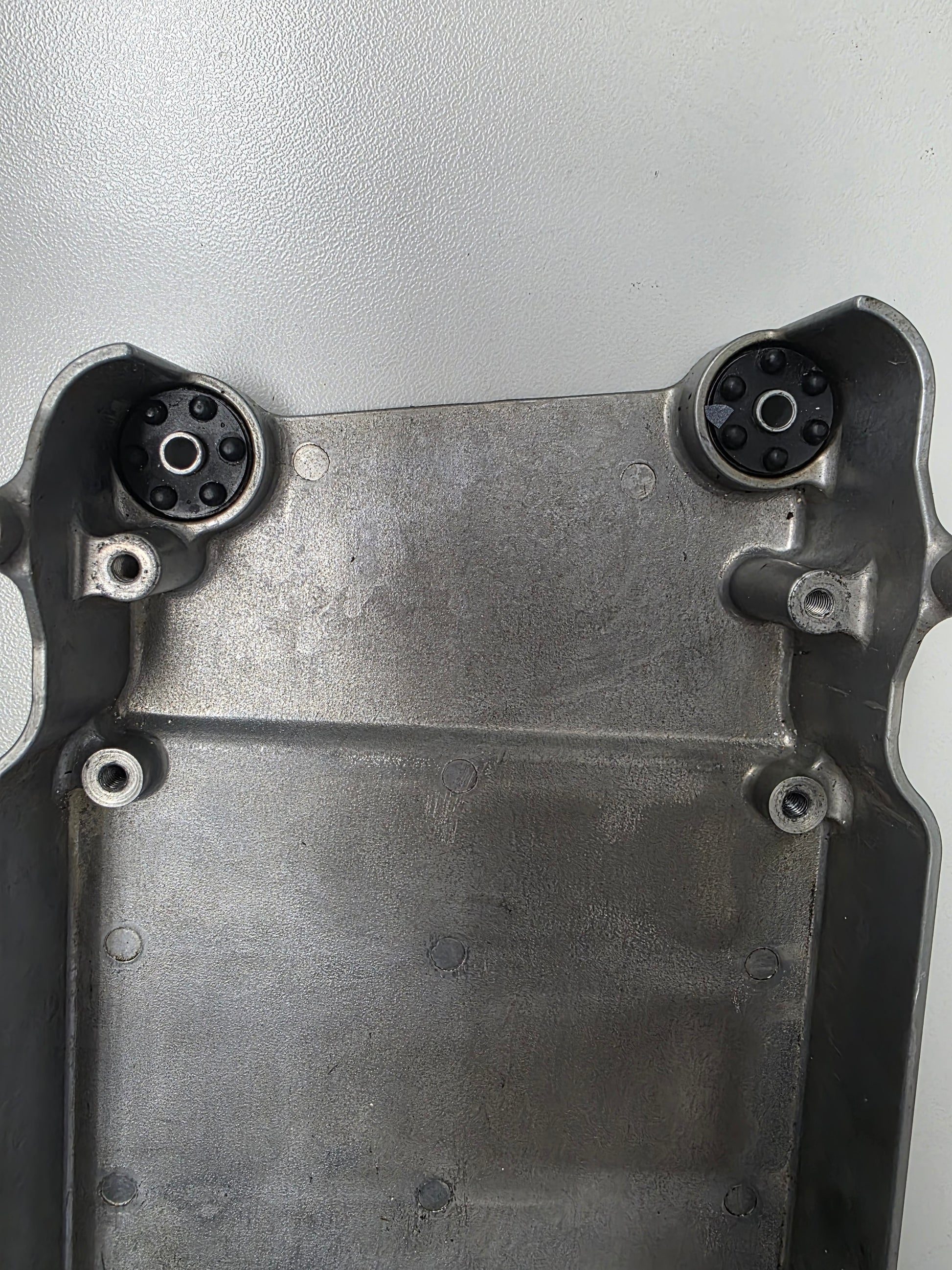

Genuine Yamaha Z150 / Z175 / Z200 HPDI Engine-Control-Unit Mounting Bracket - Part Number: 68F-85542-00-94
A genuine used Yamaha ECU mounting bracket for selected 2.6L HPDI V6 outboards.
The substantial bracket supports the engine-control unit, insulating spacers, collars and wiring hardware within the Electrical 1 assembly. Yamaha diagrams show it carrying the ECU and related vibration-isolation components on Z150, Z175 and Z200 engines.
⚙️ Key Features
- Genuine Yamaha HPDI ECU bracket
- Correct Yamaha reference 68F-85542-00-94
- Supports the engine-control module and electrical hardware

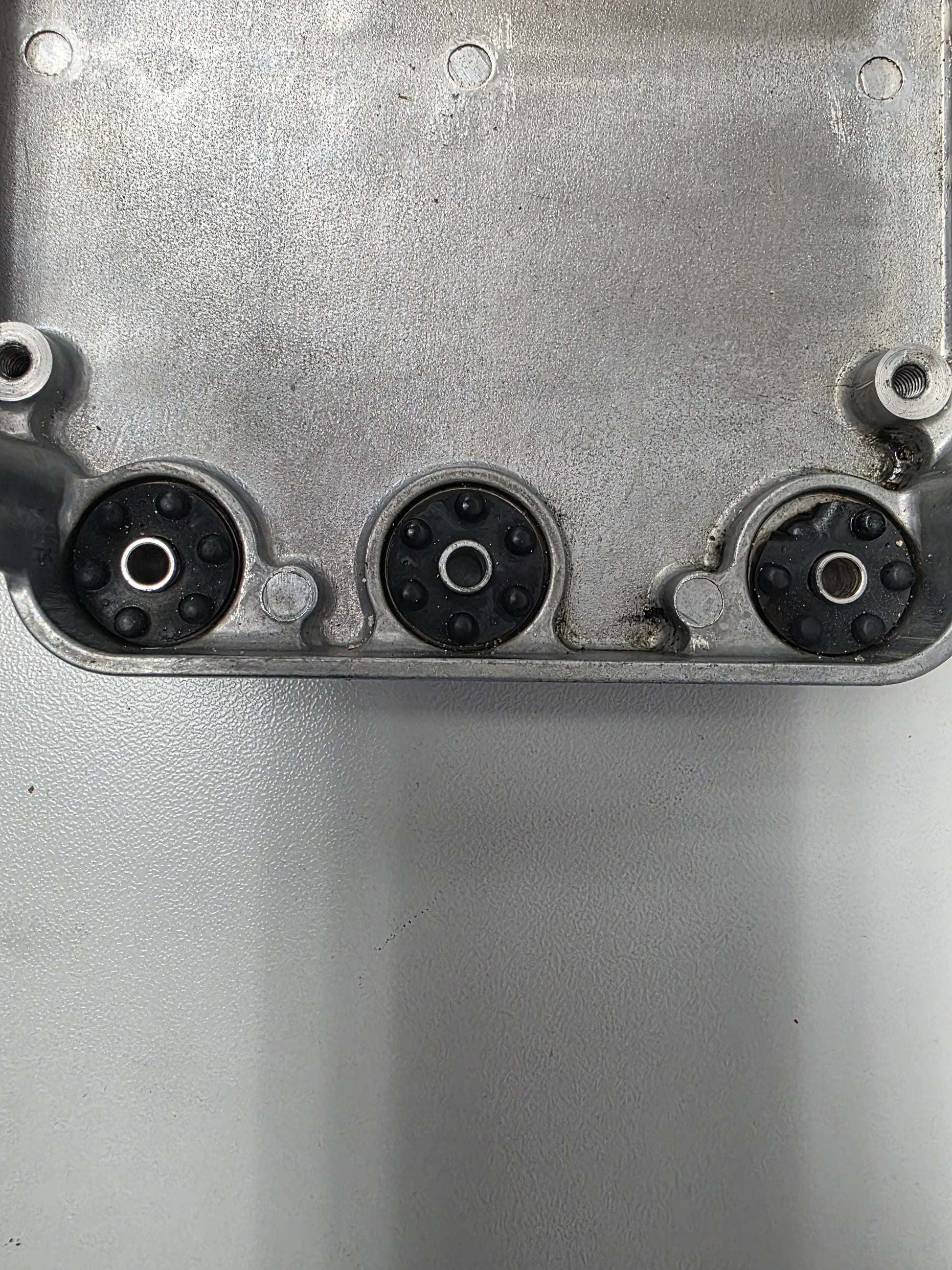

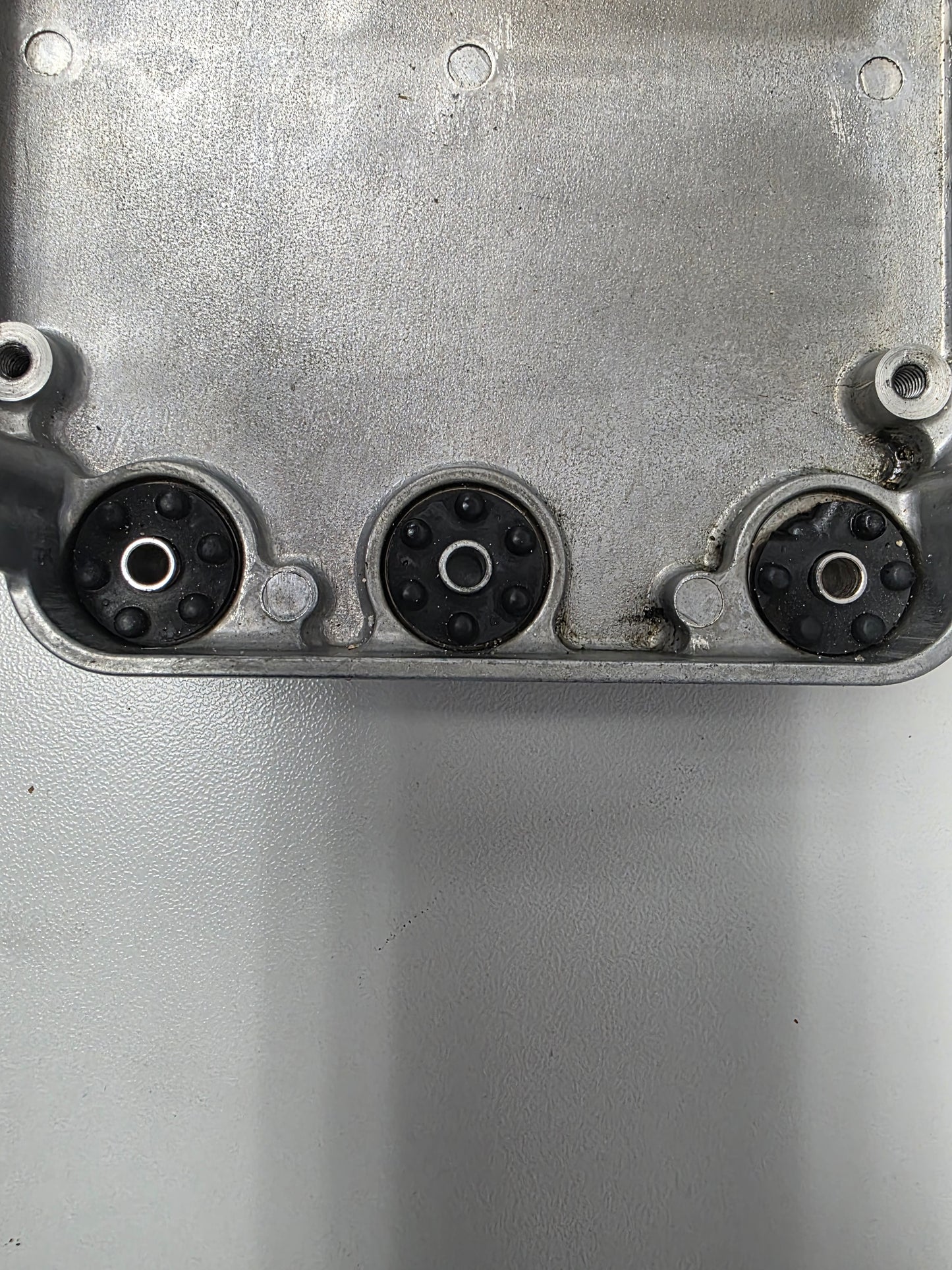

- Uses vibration-isolating spacers and collars
- Fits selected 150HP-200HP HPDI engines
🚤 Compatibility
Commonly used on
- Yamaha Z-series HPDI ECU assemblies
- Yamaha LZ counter-rotation HPDI engines
- 2.6L V6 electronic fuel-injection systems
Typically suits
- Yamaha LZ150PETOX
- Yamaha Z150PETOL
- Yamaha Z150PETOX
- Yamaha Z175GETOX
- Yamaha LZ200NETOX
- Yamaha Z200NETOL
- Yamaha Z200NETOX
- Yamaha Z200TRY
- Related VZ150, VZ175 and VZ200 engines whose Electrical 1 diagram specifies this bracket
- HP Range: 150HP - 200HP
- Engine Type: 2.6L V6 HPDI two-stroke outboard
- Year Range: Approximately 2000-2003 for primary documented applications
🔌 Function
The bracket holds the ECU rigidly while its spacers and collars isolate the module from harmful engine vibration and keep electrical connectors correctly positioned.
⚠️ Common Signs of Failure
- ECU moves or vibrates
- Bracket is cracked or bent
- Mounting collars are missing
- ECU connectors are placed under strain
- Wiring contacts hot or moving components
- Corrosion damages the bracket
- Holder 68F-85548-01-00 no longer aligns
- ECU cannot be secured after service
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 68F-85542-00-94 documented Yamaha ECU-bracket reference
- No verified supersession
OEM / Related Numbers
- 68F-85542-00-94
- 68F855420094
- Spacer: 68F-85516-01-00
- Collars: 68F-86129-00-00 and 68F-86129-10-00
- Mounting bolt: 68F-85119-00-00
- Holder: 68F-85548-01-00
- ECU assemblies:
- 68J-8591A-02-00
- 68M-8591A-02-00
- 68F-8591A-12-00
- Later ECU numbers vary by engine model
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
