68F-85544-00-00 Yamaha Z200 Fuse Box Case | Genuine Used Part

68F-85544-00-00 Yamaha Z200 Fuse Box Case | Genuine Used Part

$15.00 AUD
$15.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

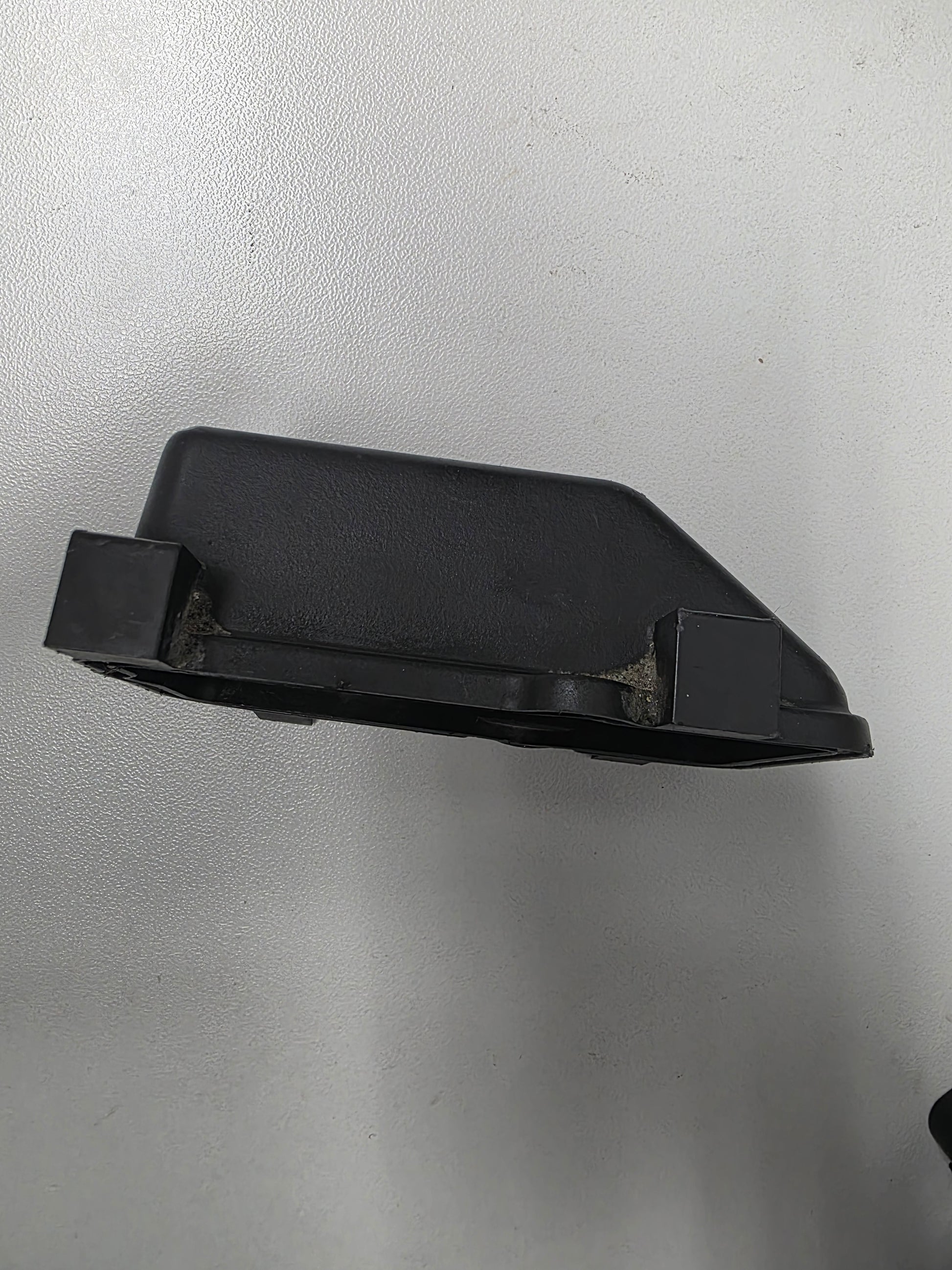

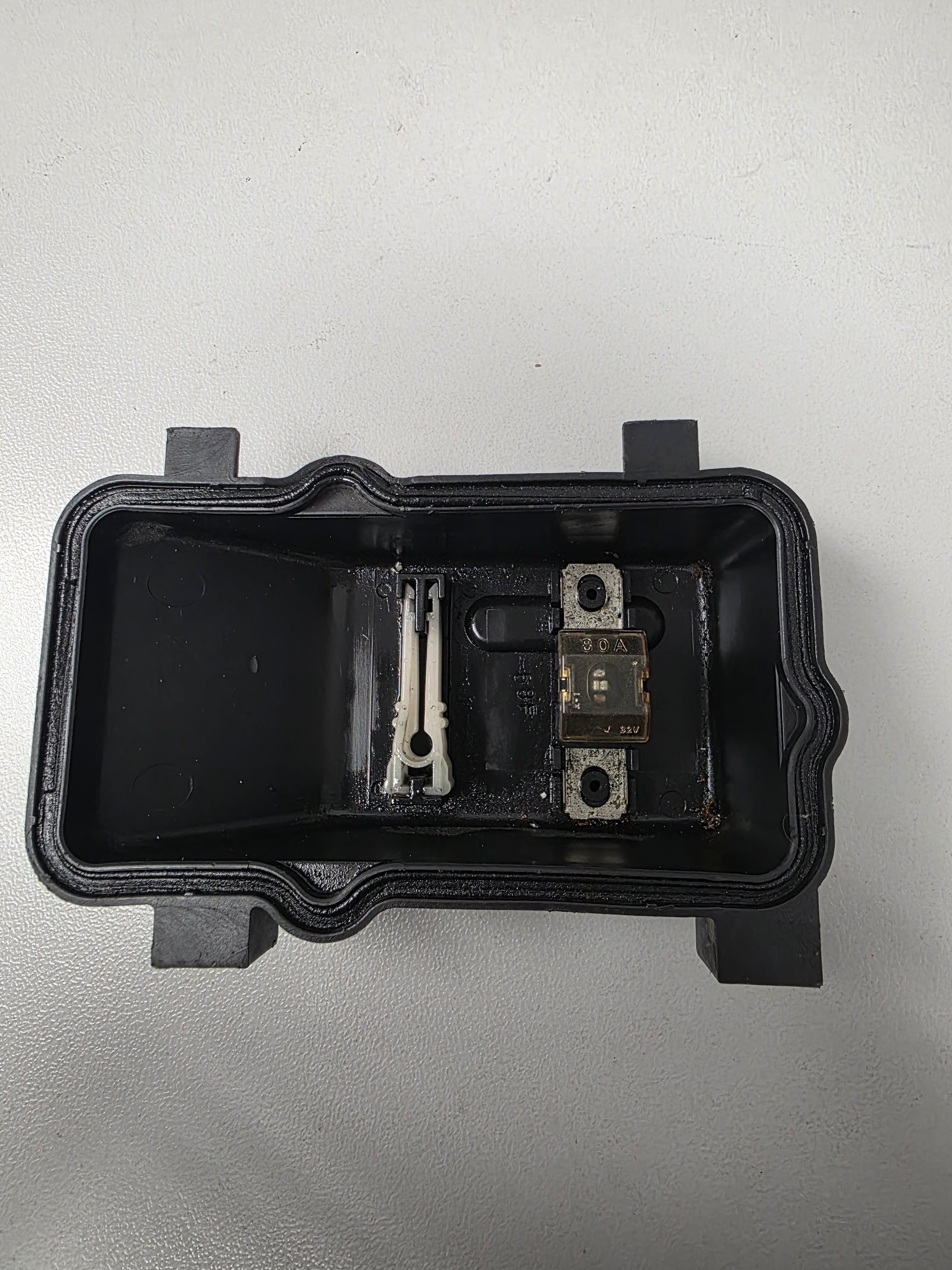

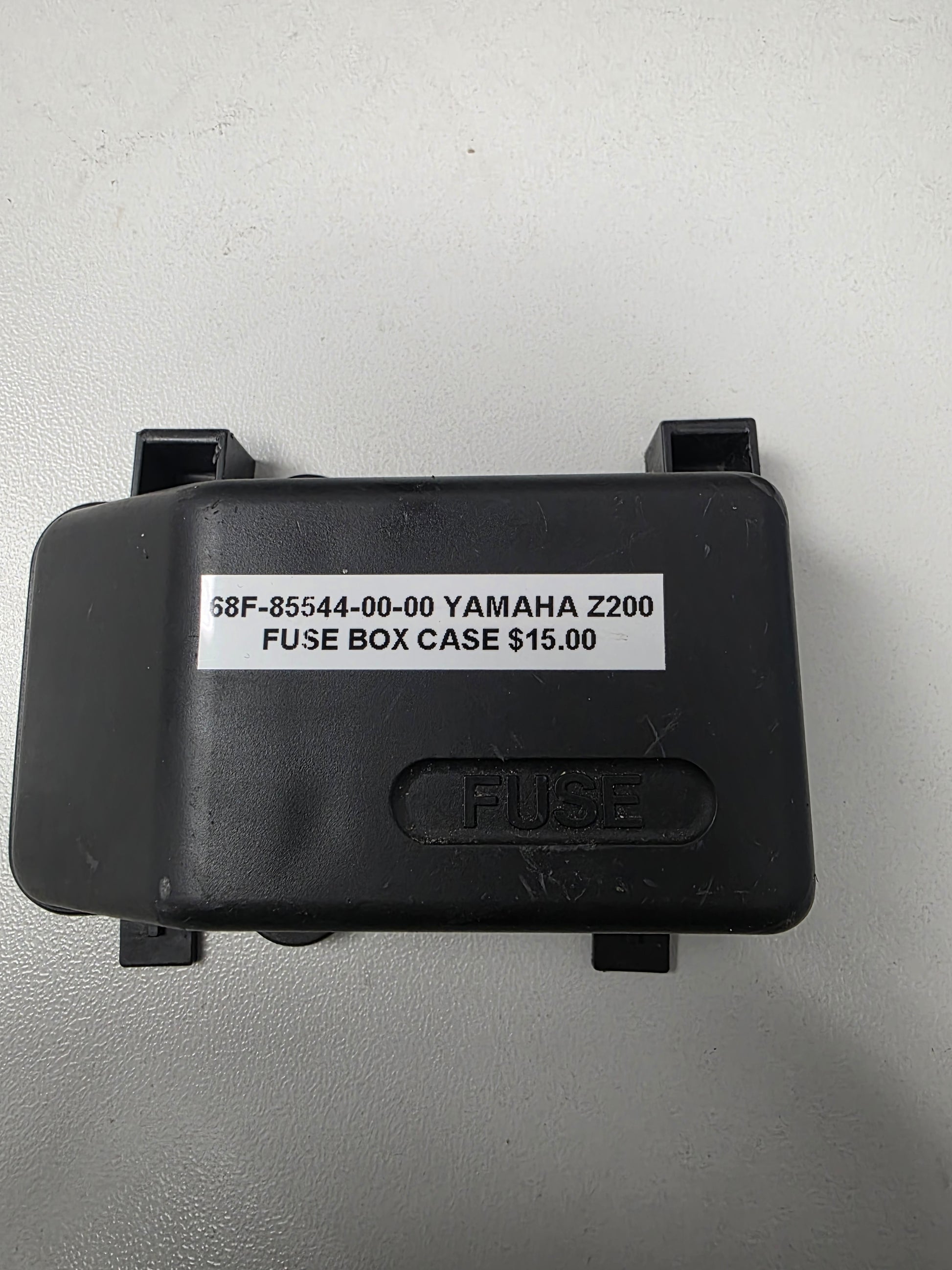

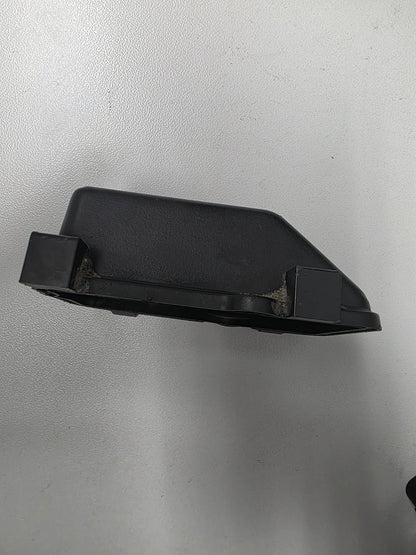

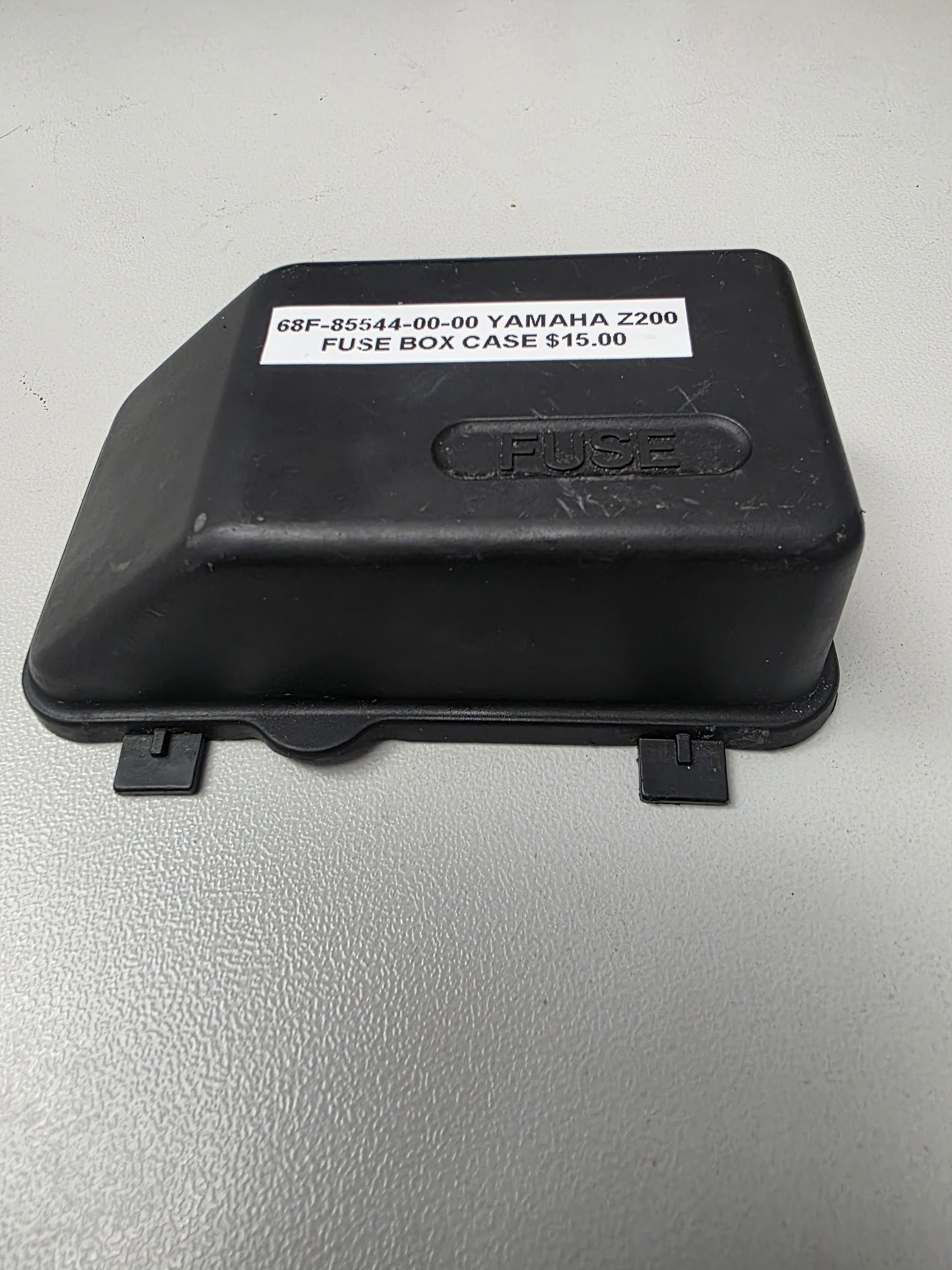

Genuine Yamaha Fuse Box / Electrical Case - Part Number: 68F-85544-00-00

A genuine Yamaha electrical case used on HPDI and Z-series Yamaha outboards. This case is used in the electrical assembly around the fuse and component holder area on selected 150HP and 200HP Yamaha HPDI models.

⚙️ Key Features

  • Genuine Yamaha electrical case
  • Correct OEM part number 68F-85544-00-00
  • Fuse box / electrical case
  • Used on Yamaha HPDI electrical assemblies
  • Must be matched by electrical diagram and case shape

🚤 Compatibility

Commonly used on

  • Yamaha HPDI electrical assembly layouts
  • Yamaha Z150 / Z200 fuse box case positions

Typically suits

  • Yamaha Z150TXRZ 2001 electrical 3 diagram
  • Yamaha LZ150TXRY 2000 electrical diagram
  • Yamaha Z200 / 200HP HPDI fuse box cover applications
  • Yamaha HPDI 150HP outboards
  • Yamaha HPDI 200HP outboards
  • HP Range: 150HP / 200HP
  • Engine Type: Yamaha HPDI two-stroke outboard
  • Year Range: 2000-2001 confirmed examples; model-diagram controlled outside those examples
  • Serial Note: Confirm by Yamaha model code and electrical 3 diagram before installation.

🔌 Function

The case protects fuse and electrical components from spray, vibration and accidental contact inside the cowling.

⚠️ Common Signs of Failure

  • Cracked or missing electrical case
  • Exposed fuse holder
  • Corrosion around fuse contacts
  • Broken case tabs
  • Harness movement or chafing
  • Water intrusion around electrical components
  • Electrical fault after spray exposure

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 68F-85544-00-00 current Yamaha case reference

OEM / Related Numbers

  • 68F-85544-00-00
  • 68F855440000
  • Yamaha case
  • Fuse box case
  • Electrical case

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
