68V-24410-00 Aftermarket Yamaha Fuel Pump F75, F90, F100 Outboards | Sawley's Select Marine Parts

🔧 Product Description

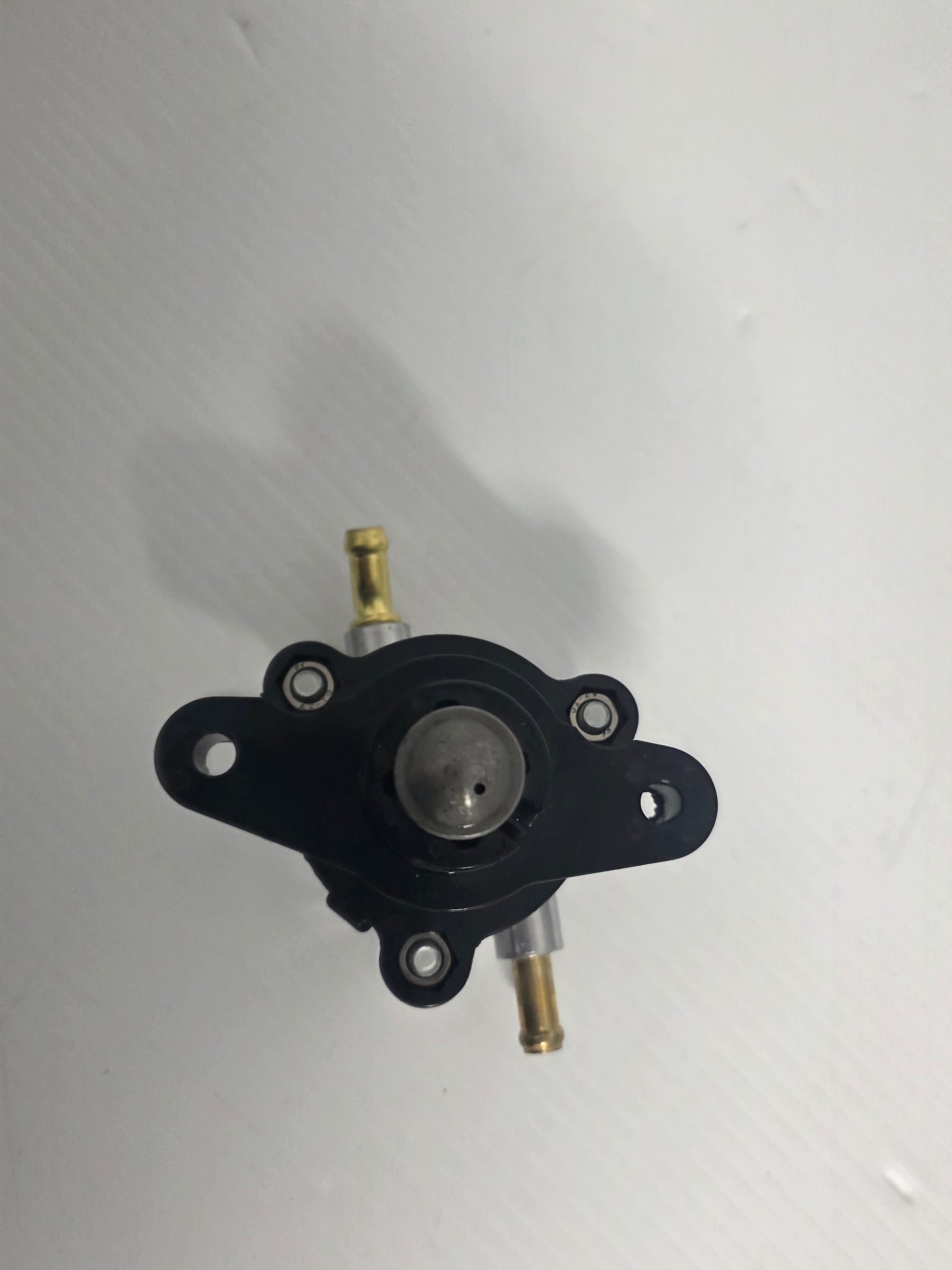

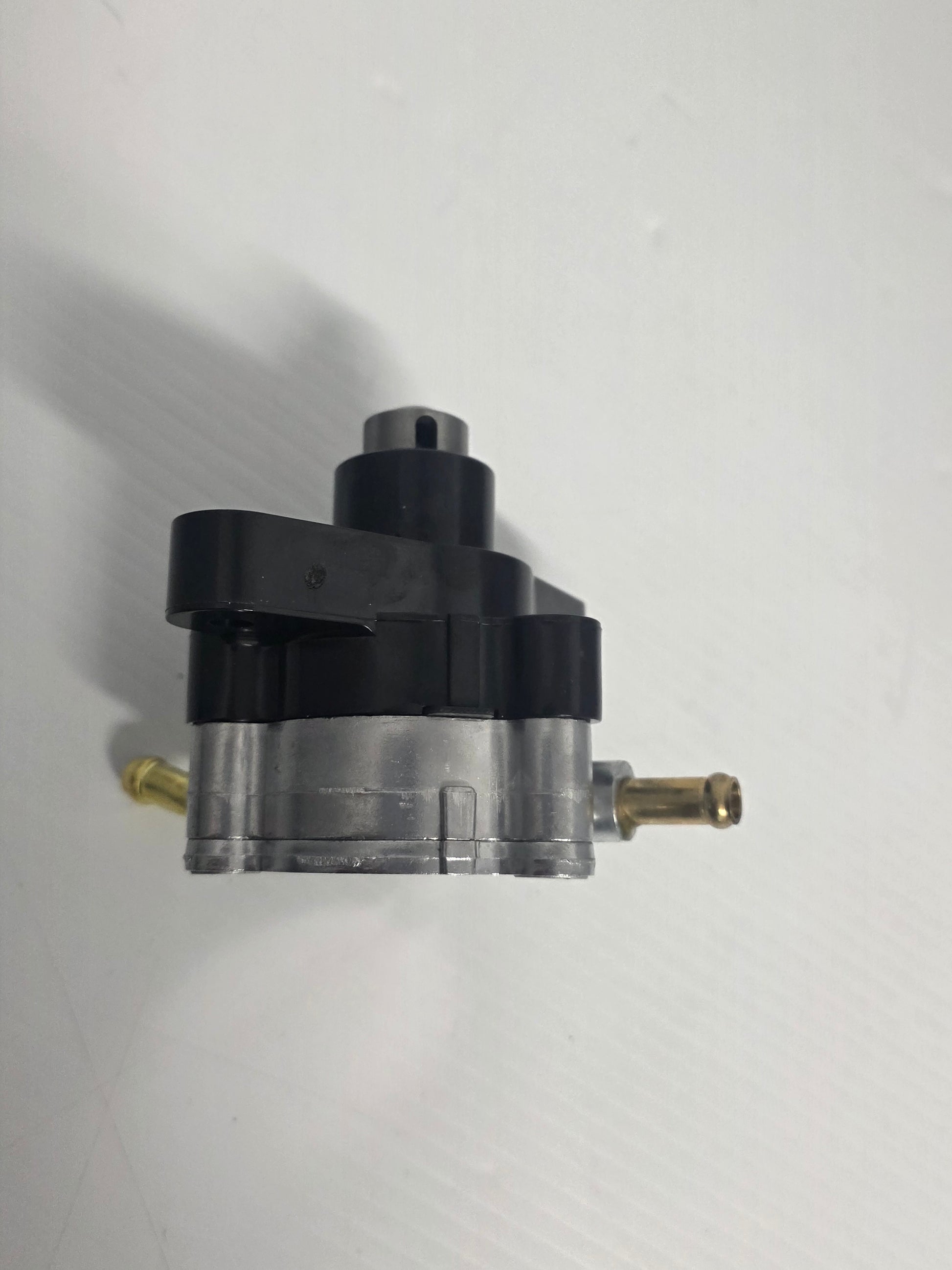

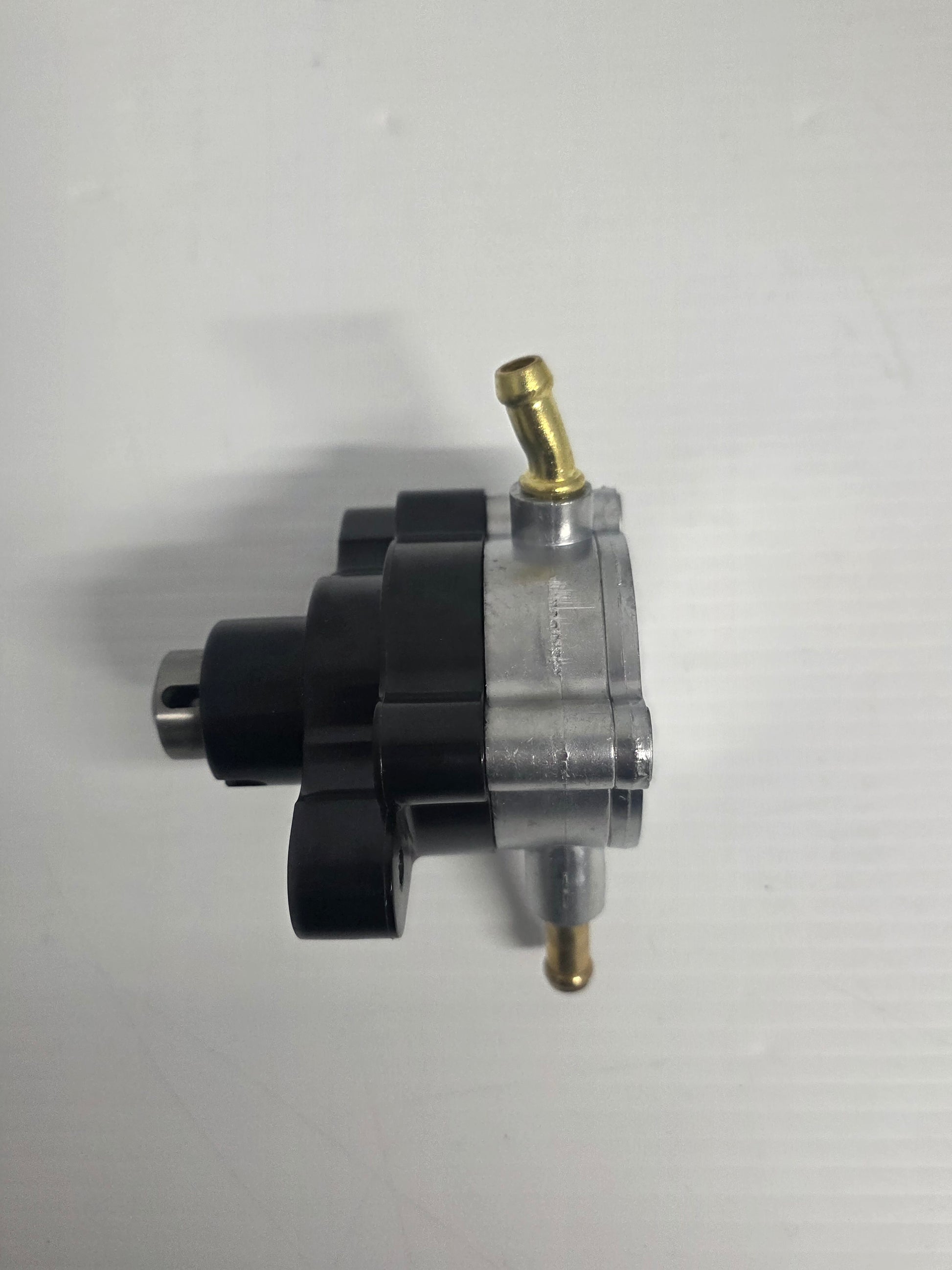

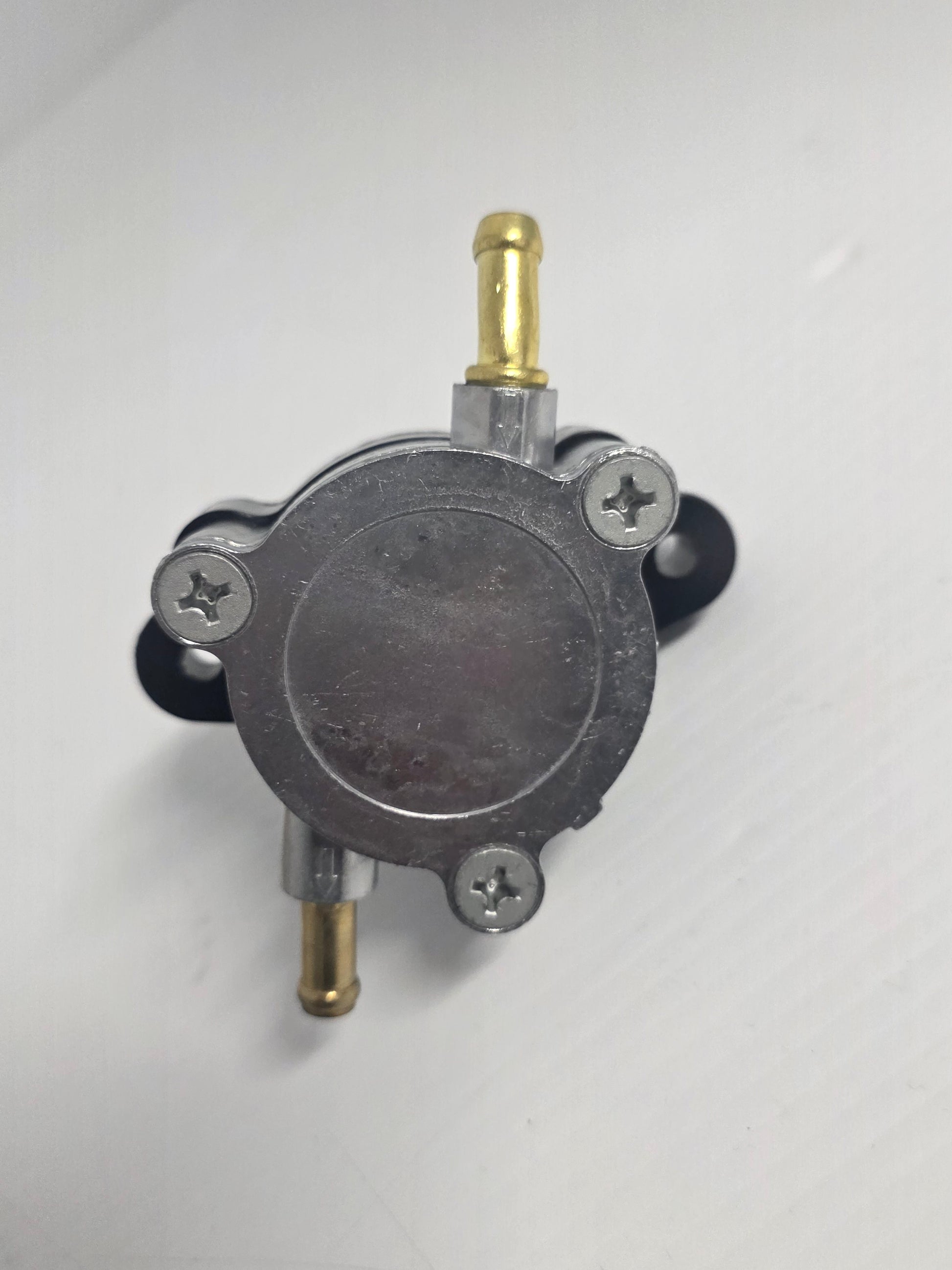

Aftermarket replacement Mechanical Low-Pressure Fuel Pump - Replaces Part Number: 68V-24410-00

New aftermarket mechanical/pulse-operated fuel pump replacing 68V-24410-00. It is configured for Yamaha F75, F90 and F100 four-stroke outboards, Selected F115 applications using the 68V/6D8 pump, Mercury cross-reference applications using 880890T1 or 880980A02. The exact engine model, serial range, fuel pressure and connection layout must match the original installation.

⚙️ Key Features

• Direct replacement for the 68V-24410-00 service family

• Designed for Yamaha-built four-stroke outboards

• Pulse- or engine-driven low-pressure fuel delivery

• Marine fuel-resistant diaphragm and valve materials

• Confirm the engine serial, pump pressure and port orientation before installation

🧰 Kit / Assembly Contents

• 1 × Complete mechanical/pulse fuel-pump assembly - Part Number: 68V-24410-00

• 1 × Integrated diaphragm and check-valve assembly

• 1 × Pump-to-engine mounting gasket - supplied where included by the selected manufacturer

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6D8-24410-10 → Later service reference associated with 68V-24410-00

• 68V-24410-00 ↔ Cross-references 6D8-24410-00

OEM / Related Numbers:

• 6D8-24410-00

• 6D8-24410-10

• 880890T1

• 880980A02

Aftermarket / Verified Equivalents:

• SeaSierra Yamaha 68V/6D8 pump

• Mercury: 880890T1 / 880980A02

• Recmar: REC68V-24410-00

🚤 Compatibility

Commonly used on:

• Yamaha-built four-stroke outboards

Typically suits:

• Engine models:

• Yamaha F75, F90 and F100 four-stroke outboards

• Selected F115 applications using the 68V/6D8 pump

• Mercury cross-reference applications using 880890T1 or 880980A02

• HP / Output Range: 75HP - 115HP

• Engine / System Type: Yamaha-built four-stroke outboards

• Year Range: Model- and serial-dependent

• Serial / Pump Identification: Match P/N 68V-24410-00 to the model-specific parts diagram and verify pressure, electrical connector, inlet/outlet orientation and mounting before ordering.

🔌 Function

The engine-driven diaphragm pump uses crankcase pulses or a cam-operated lever to draw fuel from the tank and deliver a regulated low-pressure supply to the carburettor, vapour separator or downstream high-pressure pump.

Common signs of failure:

• Hard starting after the engine has been standing

• Fuel starvation, hesitation or loss of power under load

• Failure to fill the carburettor bowls or vapour separator

• Fuel leaking from the pump body or ruptured diaphragm

• Engine-oil dilution or fuel entering the pulse passage on a failed pump

📦 Condition

• New aftermarket replacement part

• Brand new

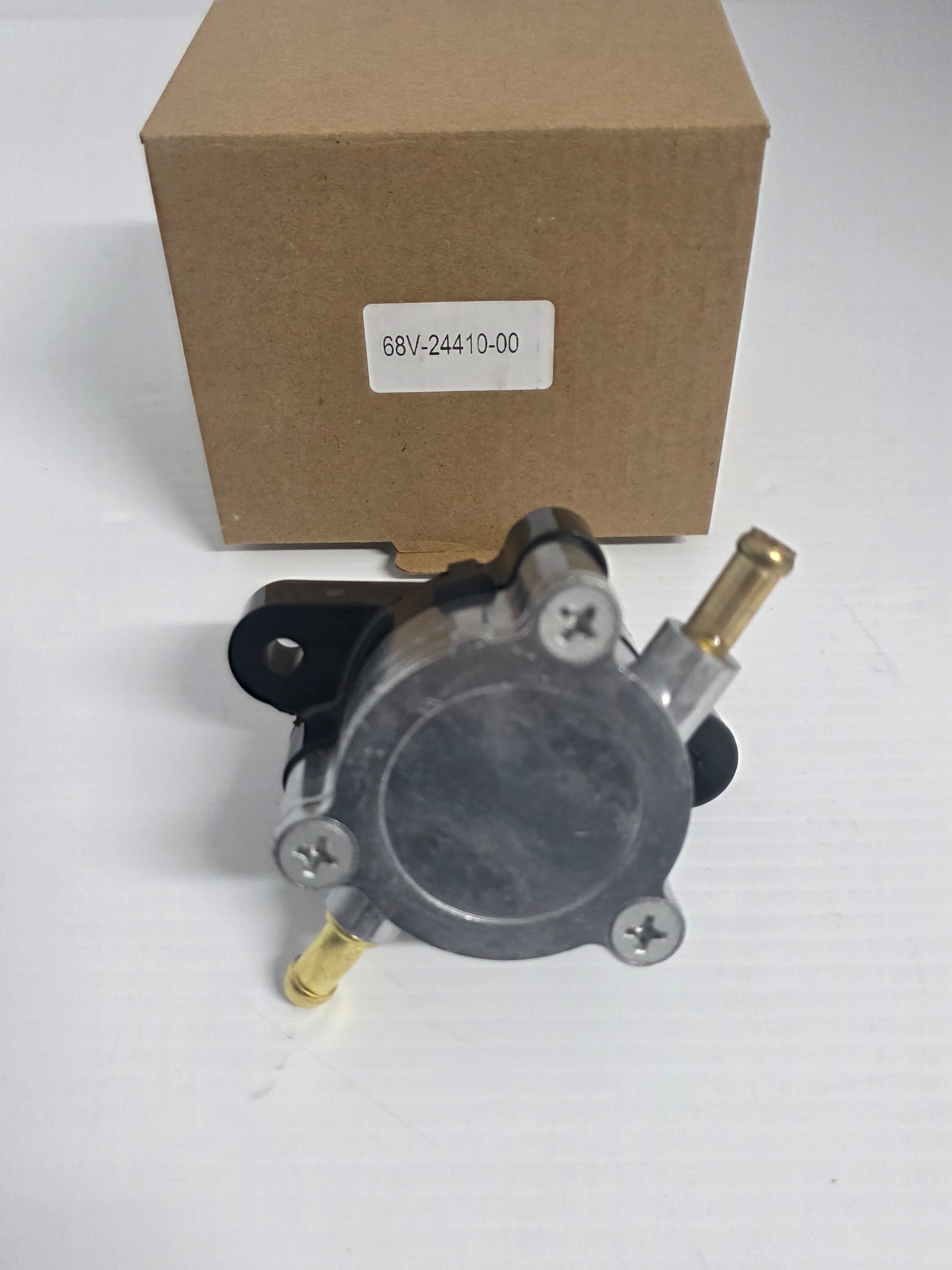

• Supplied in original or equivalent packaging
