68V-45300-34-8D Yamaha 25" Extra Long Shaft Gearbox | Genuine Used Part

68V-45300-34-8D Yamaha 25" Extra Long Shaft Gearbox | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$600.00 AUD
$1,200.00 AUD $600.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

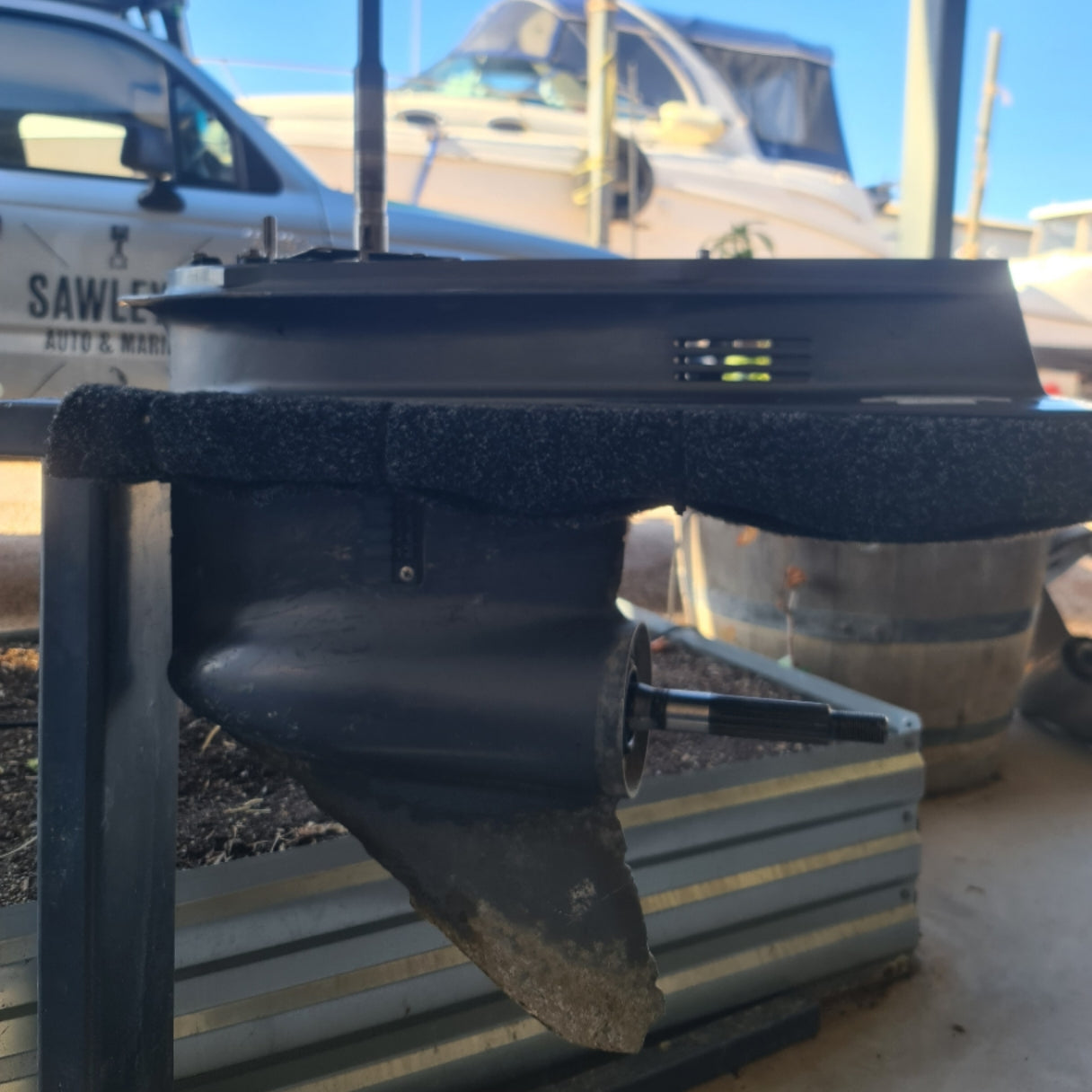

Genuine Yamaha F115 / LF115 25-Inch Standard-Rotation Gearcase - Part Number: 68V-45300-34-8D

A genuine Yamaha 25-inch extra-long lower unit for selected F115 and LF115 inline-four four-stroke outboards. The 68V family was also used as the engineering basis for Yamaha-derived Mercury FourStroke powerheads, but complete Mercury interchange must be verified by serial number, driveshaft, shift rod and paint / mounting configuration.

⚙️ Key Features

  • Genuine Yamaha F115 complete gearcase
  • Correct part number 68V-45300-34-8D
  • 25-inch extra-long shaft
  • Standard propeller rotation
  • Used on early-generation F115 four-strokes

🚤 Compatibility

  • Yamaha F115TXR / F115TLR 25-inch standard-rotation model families
  • Yamaha LF115 families where standard-rotation gearcase specification applies
  • Documented 2002 F115TXRA
  • Documented 2005 F115TLR
  • Documented 2006 F115AET
  • Approximate application era: 2000-2014
  • 25-inch X-shaft and standard rotation

🔌 Function

The gearcase reduces the four-stroke engine speed, provides forward and reverse, carries propeller thrust and pumps cooling water through the extra-long midsection.

⚠️ Common Signs of Failure

  • Mercury cross-platform unit is assumed interchangeable without checking
  • Gear oil contains water
  • Propeller shaft or driveshaft is bent
  • Shift clutch is worn
  • Bearing carrier corrodes
  • Wrong shaft length or rotation is installed

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 68V-45300-34-8D is a later X-shaft service revision
  • 68V-45300-32-8D is an earlier related assembly
  • Related suffixes include 31 and 33 revisions
  • 68V-45300-14-8D is the related 20-inch standard-rotation unit

OEM / Related Numbers

  • 68V-45300-34-8D
  • 68V-45300-32-8D
  • 68V-45300-31-8D
  • 68V-45300-33-8D
  • 68V-45300-14-8D long-shaft counterpart
  • Related F115 driveshaft, gear set and bearing carrier

Aftermarket / Verified Equivalents

  • Specialist remanufactured Yamaha F115 25-inch lower units
  • SEI or other replacement F115 gearcases where the exact model and ratio are supported
  • Used genuine Yamaha 68V assemblies
  • Yamaha-derived Mercury 75HP-115HP FourStroke units are cross-platform relatives but not verified direct complete-unit equivalents without serial validation
  • Aftermarket seal, bearing and water-pump kits

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
