🔧 Product Description
Aftermarket Yamaha 48HP/55HP carburettor repair kit - Replacement Part Number: 696-W0093-00
A repair kit for selected Yamaha E48, C55, CV55 and 55B-family two-stroke carburettors. The 696-W0093-02 service revision provides the documented component composition below and is the later related package in the 696-W0093 family.
⚙️ Key Features
• Exact related OEM service-component numbers listed below
• Services a twin-carburettor component group
• Includes paired needle valves, floats, pins, O-rings and pilot screws
• Cross-references to Mercury, Tohatsu and Recmar service kits
• Suitable for selected 48HP and 55HP two-stroke engines
🔄 Supersession & Cross Reference
OEM Supersession Chain:
• 696-W0093-02 → Later related service revision for 696-W0093-00
OEM / Related Numbers:
• 696-W0093-00
• 696-W0093-01
• 696-W0093-02
Aftermarket / Verified Equivalents:
• Mercury/Mariner: 84419M
• Tohatsu: 345-87122-0
• Recmar: REC696-W0093-00
• Recmar later revision: REC696-W0093-02

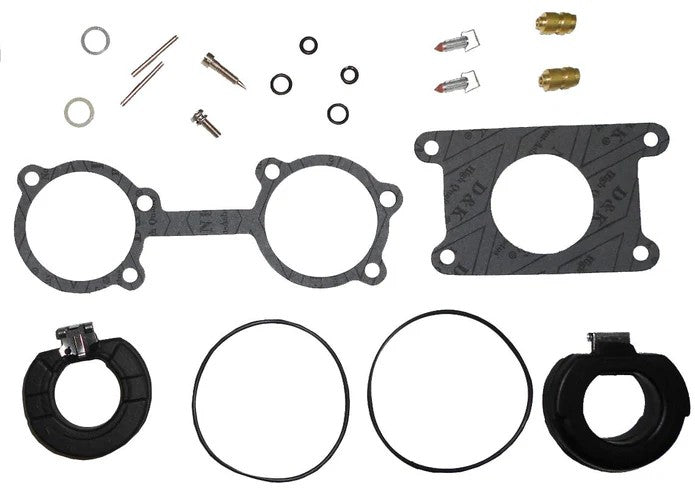

Included Components:
• 1 × Gasket - Part Number: 663-14483-A0-00
• 2 × Gaskets - Part Number: 663-14198-A0-00
• 2 × Washers - Part Number: 679-14557-00-00
• 2 × Pilot screws - Part Number: 663-14923-00-00
• 2 × Needle-valve assemblies - Part Number: 696-14590-01-00
• 2 × O-rings - Part Number: 93210-07229-00
• 2 × Float pins - Part Number: 676-14186-00-00
• 2 × Floats - Part Number: 6F0-14985-00-00
• 2 × Float-arm pins - Part Number: 663-14548-00-00
• 2 × O-rings - Part Number: 93210-64272-00
• 2 × Screws - Part Number: 90159-04007-00
• 2 × O-rings - Part Number: 93210-04230-00
🚤 Compatibility
Commonly used on:
• Yamaha carburetted outboards using the listed OEM carburettor service kit
Typically suits:
• Engine models:
• Yamaha E48CMH approximately 2003
• Yamaha 55B, 55BE and 55BM approximately 1992-2002
• Yamaha E55CMH approximately 2003-2005
• Related C55 and CV55 applications
• HP Range: 48HP - 55HP
• Engine Type: Carburetted two-stroke outboard
• Year Range: Approximately 1992 - 2005 for the listed model families
• Quantity Required: Confirm by carburettor-bank configuration
🔌 Function
The kit renews the carburettor's float-control, inlet-valve and sealing components. Correct rebuilding restores fuel-bowl level, prevents air and fuel leaks and stabilises the mixture from starting through full-load operation.
Common signs of failure:
• Hard starting or excessive choke/enrichment required
• Rough idle, hunting or repeated low-speed stalling
• Hesitation, flat spots or intake backfire during acceleration
• Fuel leakage, flooding or an incorrect float-bowl level
• Lean surging, reduced power or fuel starvation under load
• Rich running, smoke, spark-plug fouling or excessive fuel consumption
📦 Condition
• Brand new aftermarket replacement part
• New and unused
• Supplied in manufacturer or equivalent protective packaging
