69J-43822-00 Yamaha Trim Dust Seal | Genuine OEM Yamaha Outboard Part

🔧 Product Description

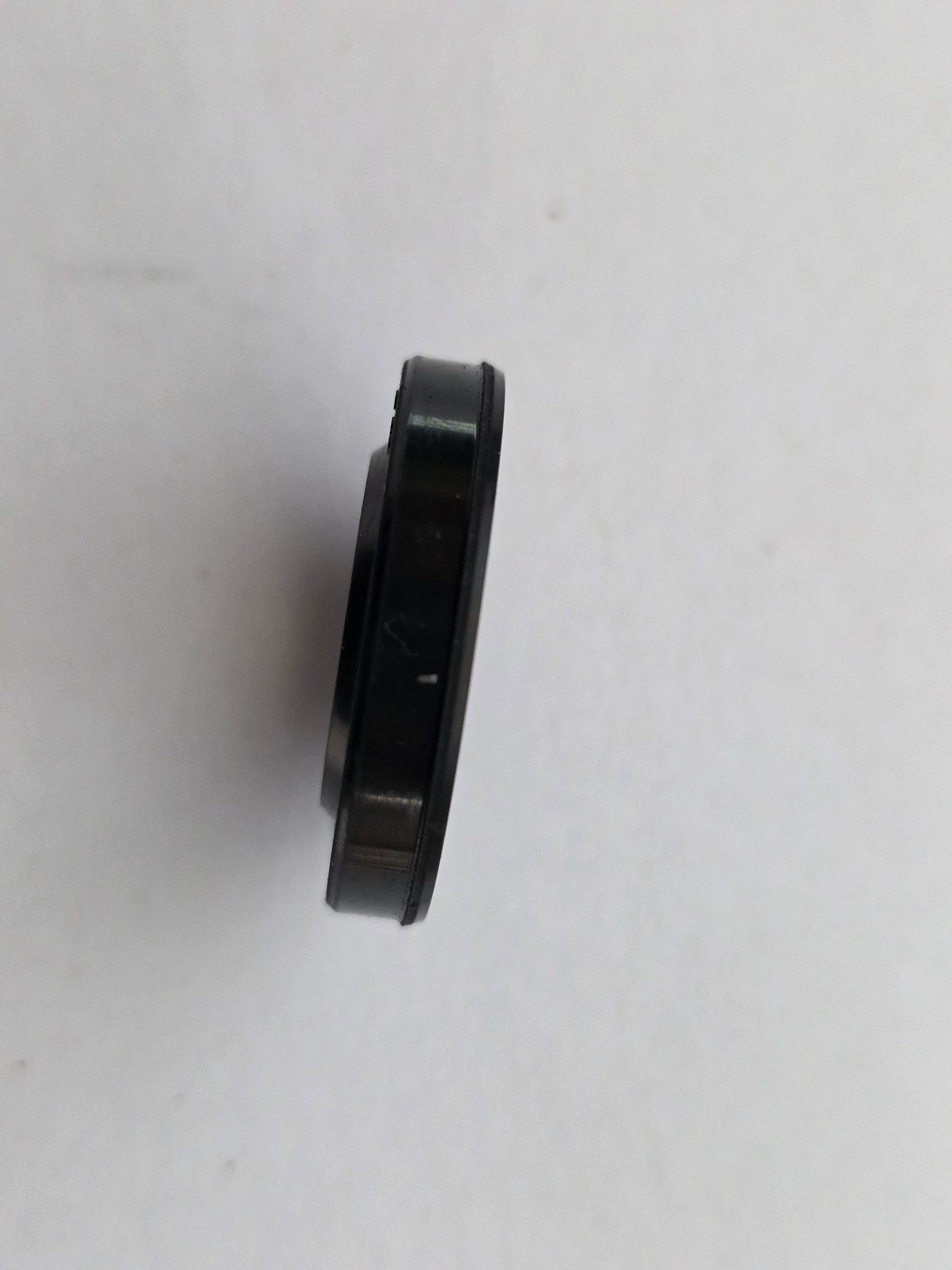

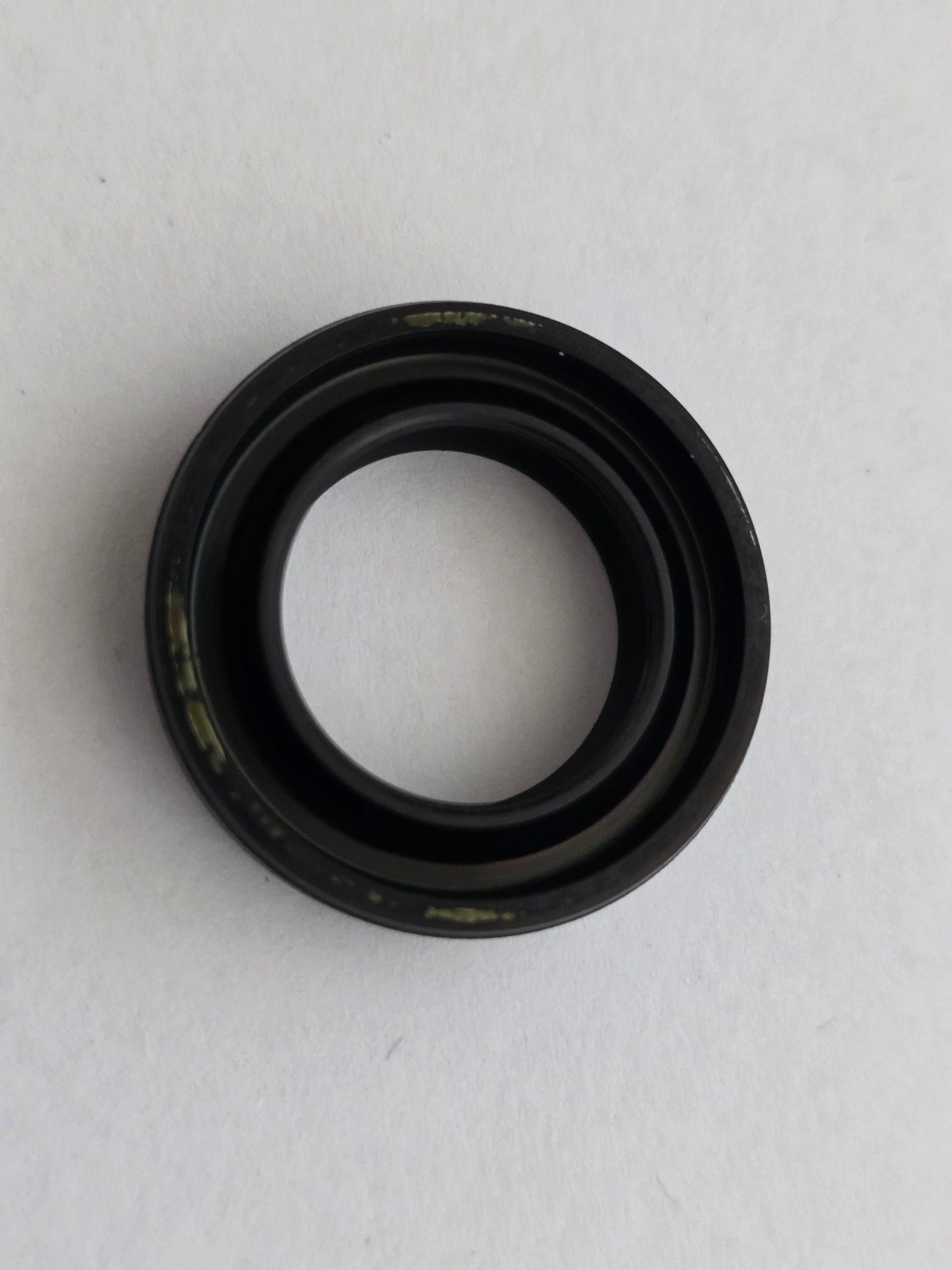

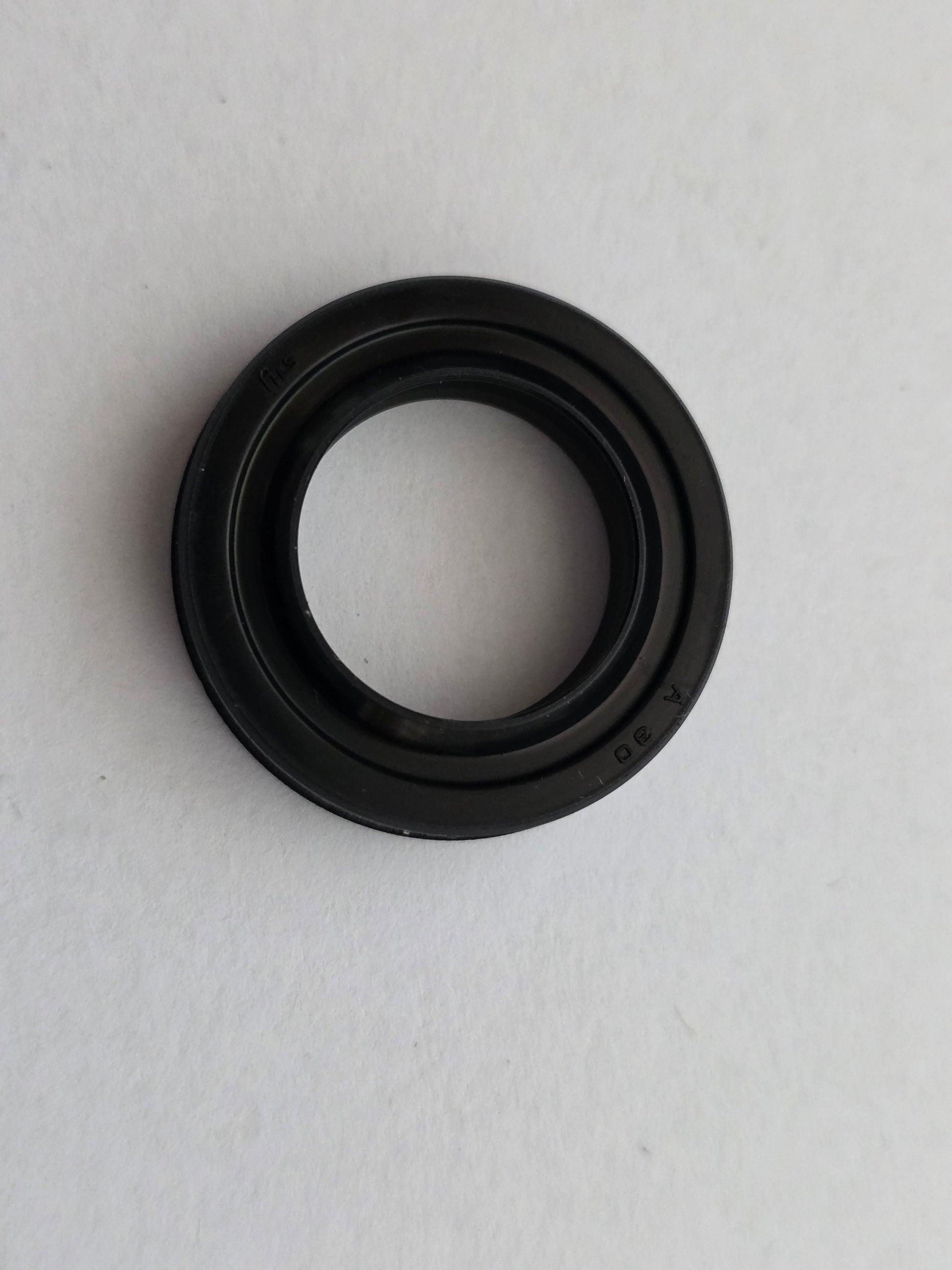

Genuine Yamaha Power Trim Ram Dust Seal - Part Number: 69J-43822-00

A genuine Yamaha dust seal for selected high-horsepower power-trim and tilt cylinder assemblies.

The seal fits around the trim ram at the cylinder cap, wiping water, salt and debris from the polished rod before it can reach the internal hydraulic oil seals.

⚙️ Key Features

• Genuine Yamaha OEM trim-ram dust seal

• Correct Yamaha part number 69J-43822-00

• Protects the internal hydraulic ram seals

• Used on selected 200HP to 425HP trim assemblies

• Available in aftermarket trim-cap and seal kits

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 69J-43822-00 current OEM trim dust-seal reference

OEM / Related Numbers:

• 69J-43822-00

• 69J-43822-00-00

• Trim ram dust seal

• Trim cylinder cap seal

Aftermarket / Verified Equivalents:

• ComTrekium: trim-cap and seal kit replacing 69J-43822-00

• Queensland Outboard Spares: aftermarket 69J-43822-00 dust seal

• Aftermarket Yamaha trim-ram cap seal: 69J-43822-00

🚤 Compatibility

Commonly used on:

• Yamaha high-horsepower power-trim and tilt cylinders

• Main trim-ram cylinder cap assemblies

Typically suits:

• Engine models:

• Yamaha F200 four-stroke

• Yamaha LF200 four-stroke

• Yamaha F225 four-stroke

• Yamaha LF225 four-stroke

• Yamaha F250 four-stroke

• Yamaha LF250 four-stroke

• Yamaha F300 four-stroke

• Yamaha LF300 four-stroke

• Yamaha F425 XTO

• Yamaha LF425 XTO

• Selected Yamaha 200HP, 225HP, 250HP, 300HP and 425HP trim assemblies - including 2018-2019 production

• HP Range: 200HP - 425HP

• Engine Type: Yamaha high-horsepower four-stroke outboard

• Year Range: Approximately 2002 onward, dependent on trim-cylinder design

🔌 Function

The dust seal cleans the trim ram as it retracts, protecting the internal hydraulic seals from abrasive salt, sand and contamination.

Common signs of failure:

• Hydraulic oil leaking around the trim ram

• Salt or dirt visible beneath the cylinder cap

• Trim ram develops rust or scoring

• Dust seal is split, loose or hardened

• Trim system slowly loses pressure after contamination damages the inner seal

📦 Condition

• Genuine Yamaha part

• Brand new

• Supplied in original or equivalent packaging
