69J-43880-01 Aftermarket Yamaha Power Trim Motor | Sawley’s Select Marine Parts

🔧 Product Description

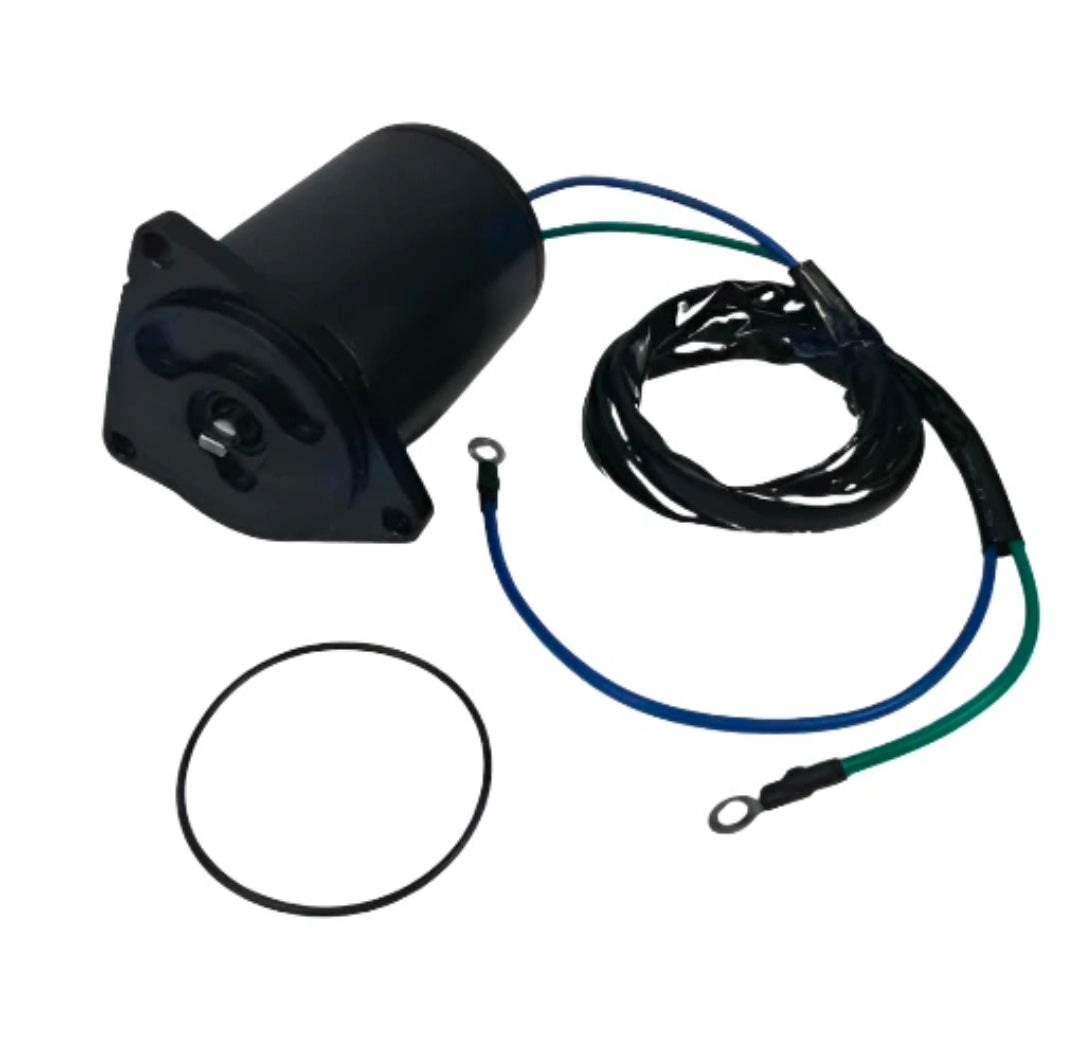

Sawley's Select Marine Parts Aftermarket Yamaha Power Trim Motor - Part Number: 69J-43880-01

A new aftermarket replacement power trim motor for selected Yamaha 200HP to 300HP outboards. This 12-volt, 2-wire, 3-bolt mount trim motor replaces Yamaha 69J and 60V power trim motor references and is supplied for compatible Yamaha four-stroke and HPDI two-stroke trim and tilt systems.

⚙️ Key Features

• Sawley's Select Marine Parts aftermarket replacement trim motor

• Replaces Yamaha 69J-43880-01-00 and related OEM trim motor references

• 12-volt power trim motor

• 2-wire connection with 3-bolt mounting pattern

• Suits selected Yamaha 200HP to 300HP trim and tilt assemblies

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 69J-43880-01-00 → Supersedes 69J-43880-00-00

• 69J-43880-11-00 related Yamaha trim motor reference

• 60V-43880-00-00 related Yamaha trim motor reference

• 688-43880-10-00 related Yamaha trim motor reference

• 99999-04552 Yamaha service reference

OEM / Related Numbers:

• 69J-43880-01

• 69J-43880-01-00

• 69J438800100

• 69J-43880-00

• 69J-43880-00-00

• 69J438800000

• 69J-43880-11

• 69J-43880-11-00

• 60V-43880-00

• 60V-43880-00-00

• 60V438800000

• 688-43880-10-00

• 99999-04552

Aftermarket / Verified Equivalents:

• Sierra: 18-6798

• ARCO: 6263

• API Marine: PT616NM

• Arrowhead: TRM0082

• J&N: 430-22098

• Recmar: REC69J-43880-01

🚤 Compatibility

Commonly used on:

• Yamaha 200HP to 300HP power trim and tilt assemblies

• Yamaha 2-wire, 3-bolt power trim motor systems

Typically suits:

• Engine models:

• Yamaha F200A

• Yamaha F200C

• Yamaha F200XA

• Yamaha FL200A

• Yamaha FL200C

• Yamaha LF200XA

• Yamaha VF200XA

• Yamaha F225A

• Yamaha F225F

• Yamaha F225NCA

• Yamaha F225XA

• Yamaha F225XCA

• Yamaha F225XB

• Yamaha FL225A

• Yamaha FL225F

• Yamaha LF225XB

• Yamaha LF225XCA

• Yamaha F250A

• Yamaha F250B

• Yamaha F250D

• Yamaha F250H

• Yamaha F250NCA

• Yamaha F250UCA

• Yamaha F250XCA

• Yamaha FL250A

• Yamaha FL250B

• Yamaha FL250D

• Yamaha VF250XA

• Yamaha F300B

• Yamaha F300NCA

• Yamaha F300UCA

• Yamaha F300XA

• Yamaha F300XCA

• Yamaha FL300B

• Yamaha LF300UCA

• Yamaha LF300XA

• Yamaha LF300XCA

• Yamaha Z250

• Yamaha LZ250

• Yamaha Z300

• Yamaha LZ300

• HP Range: 200HP - 300HP

• Engine Type: Yamaha four-stroke and HPDI two-stroke outboard power trim / tilt system

• Year Range: Approximately 2002 - 2018 for listed four-stroke applications; approximately 2003 - 2007 for listed HPDI two-stroke applications

• Fitment Note: Match by original trim motor part number, 2-wire connection, 3-bolt mount, pump body style and Yamaha model code before installation.

🔌 Function

The power trim motor drives the hydraulic trim and tilt pump, allowing the outboard to raise and lower from the helm or engine trim switch.

Common signs of failure:

• Trim motor does not run

• Relay clicks but the trim motor does not operate

• Trim works intermittently

• Motor runs slowly or weakly

• Water ingress or corrosion inside motor housing

• Burnt electrical smell from trim motor

• Trim pump works when tested with a known-good motor

📦 Condition

• Genuine Sawley's Select Marine Parts aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
