69J-45332-00 Aftermarket Yamaha Bearing Carrier | Sawley's Select Marine Parts

🔧 Product Description

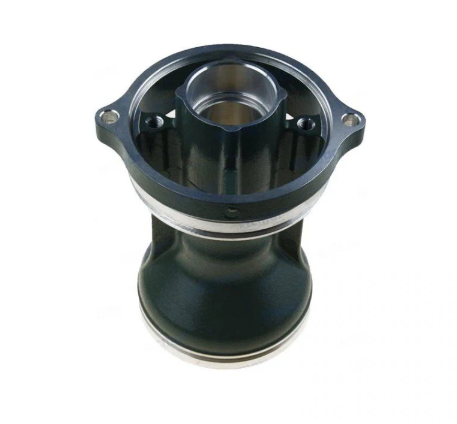

Aftermarket Yamaha V6 Outboard Bearing Carrier - Part Number: 69J-45332-00

Replacement propeller-shaft bearing carrier for Yamaha large V6 outboard gearcases. The 69J carrier is principally associated with 200-250 HP two-stroke/HPDI applications and selected F225 four-stroke lower units and should be matched by exact engine model, rotation and OEM carrier number.

⚙️ Key Features

• Direct replacement for the Yamaha 69J-45332-00 carrier family

• Used in compatible large V6 outboard lower units

• Supports the propeller-shaft bearing and seal assembly

• Suitable for standard gearcase rebuilds where the original housing is damaged or corroded

• Verified replacements available from Recmar, Red Rhino and ICE Marine

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 69J-45332-00-00 → Primary Yamaha complete part-number format

• 69J-45332-00-94 → Alternate Yamaha service/finish suffix

• 6K1-45332-01-94 and 6CB-45332-00-CA appear as related catalogue cross-references on selected large-gearcase applications; confirm before substitution

OEM / Related Numbers:

• 69J-45332-00

• 69J-45332-00-00

• 69J-45332-00-94

• 6K1-45332-01-94

• 6CB-45332-00-CA

• REC69J-45332-00

• YA-710

Aftermarket / Verified Equivalents:

• Recmar: REC69J-45332-00

• Red Rhino: YA-710

• ICE Marine: 69J-45332-00

🚤 Compatibility

Commonly used on:

• Yamaha large V6 two-stroke, HPDI and selected four-stroke outboard gearcases

Typically suits:

• Engine models:

• 200, 225 and 250 HP Yamaha V6 two-stroke gearcases where 69J-45332-00 is specified

• Z200, Z225 and Z250 HPDI model families and their rotation variants where the parts diagram specifies 69J-45332-00

• F225A and related 225 HP V6 four-stroke gearcases using the 69J carrier

• Selected F200/F225 model codes including F200XA/F200XTR and F225TXR/F225XA where catalogued

• HP Range: Principally 200-250 HP; selected 225 HP four-stroke applications

• Engine Type: Yamaha V6 two-stroke/HPDI or 3.3 L V6 four-stroke outboard

• Year Range: Approximately 1990-2010, depending on engine and gearcase revision

• Serial / Identification Range: Serial ranges differ by model and rotation; confirm the complete Yamaha model code and that the lower-unit diagram calls for 69J-45332-00

🔌 Function

Retains the propeller-shaft bearing and oil seals in the gearcase, supporting shaft alignment under load and maintaining the lubricant/water barrier.

Common signs replacement is required:

• Excessive propeller-shaft movement

• Gear-oil leakage or water-contaminated oil

• Bearing rumble, heat or rough rotation

• Carrier corrosion or cracking

• Damaged seal lands or bearing bore

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
