🔧 Product Description

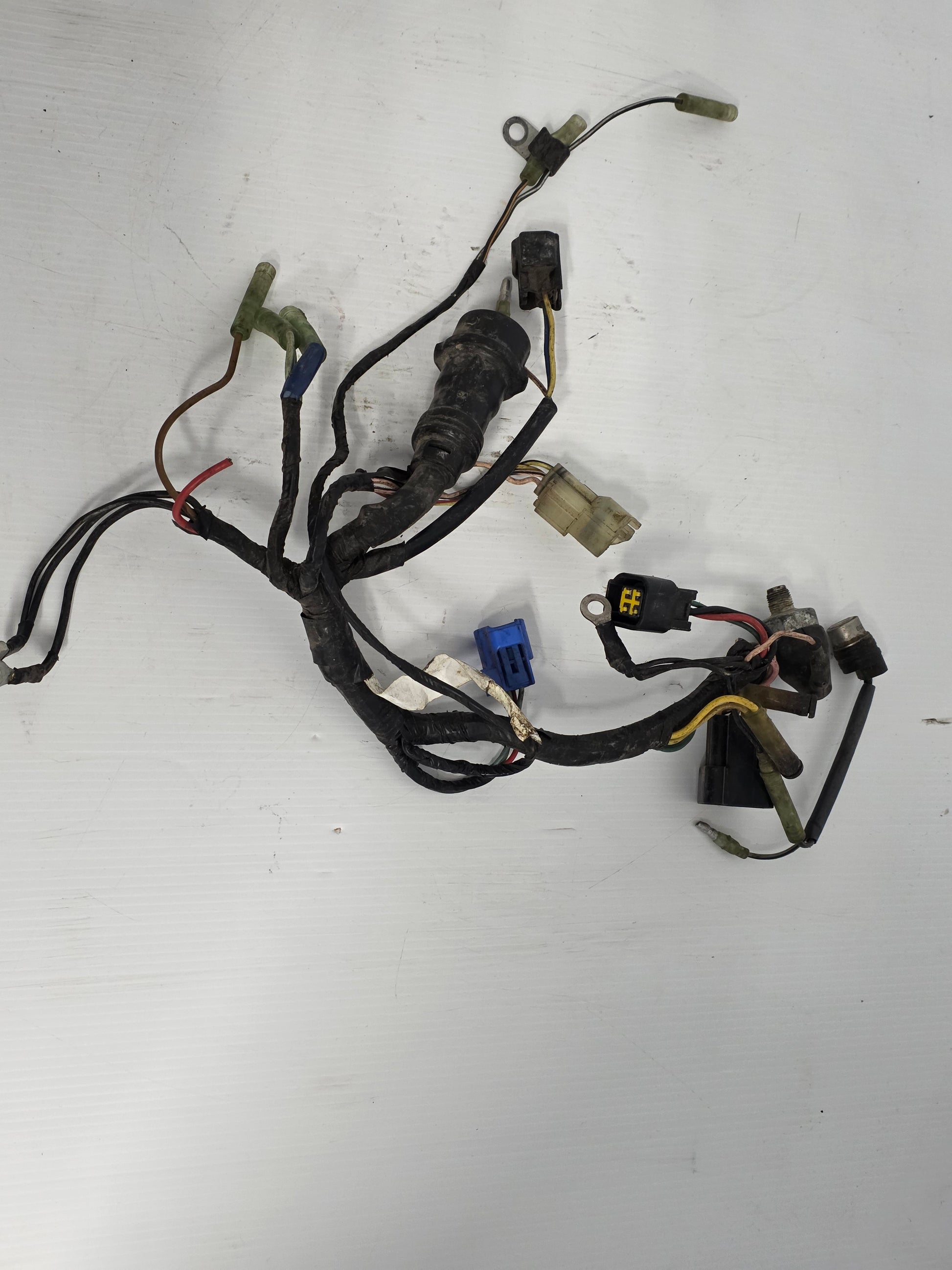

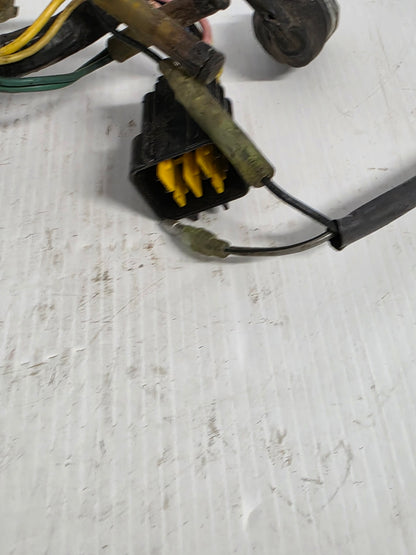

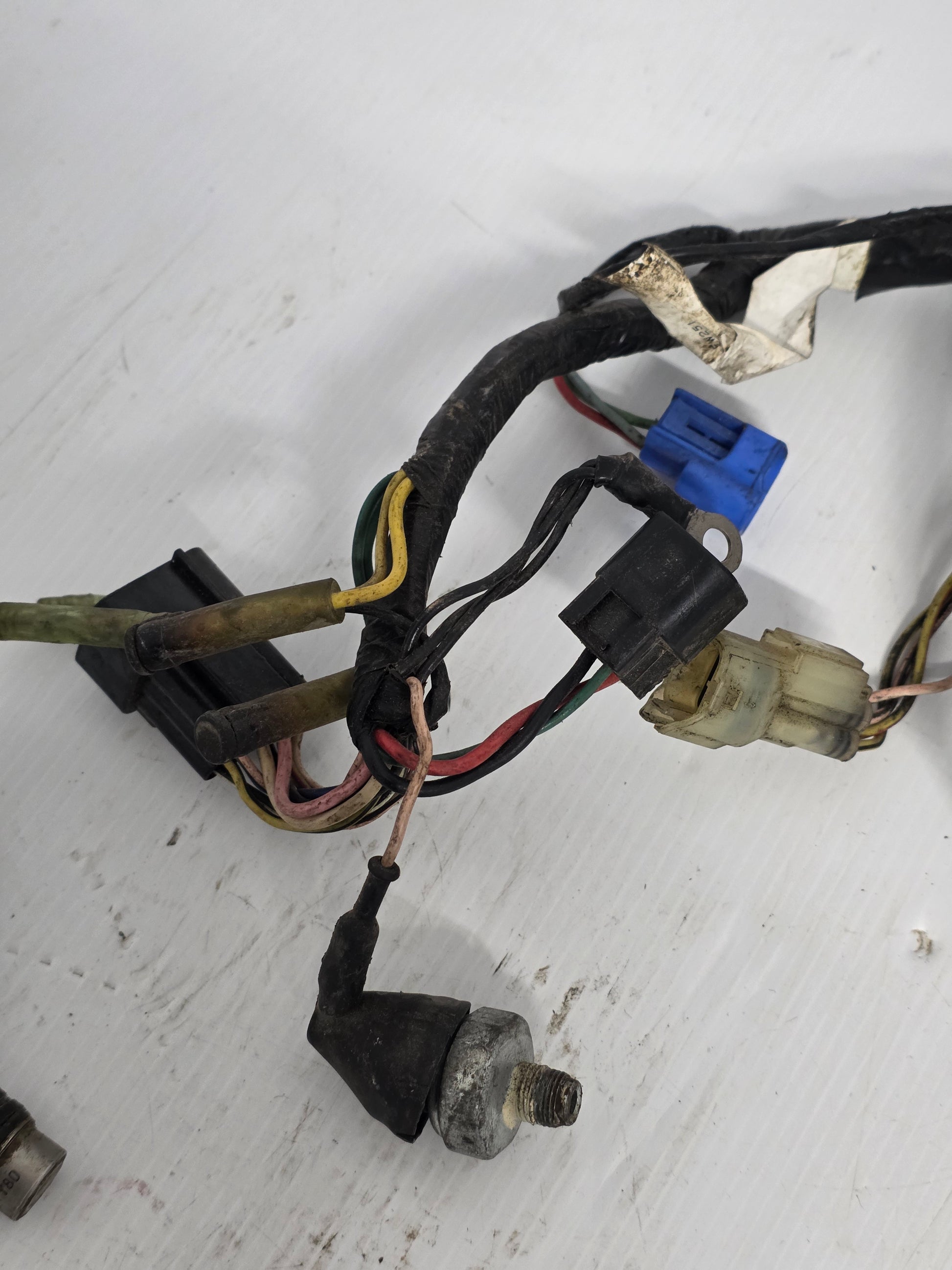

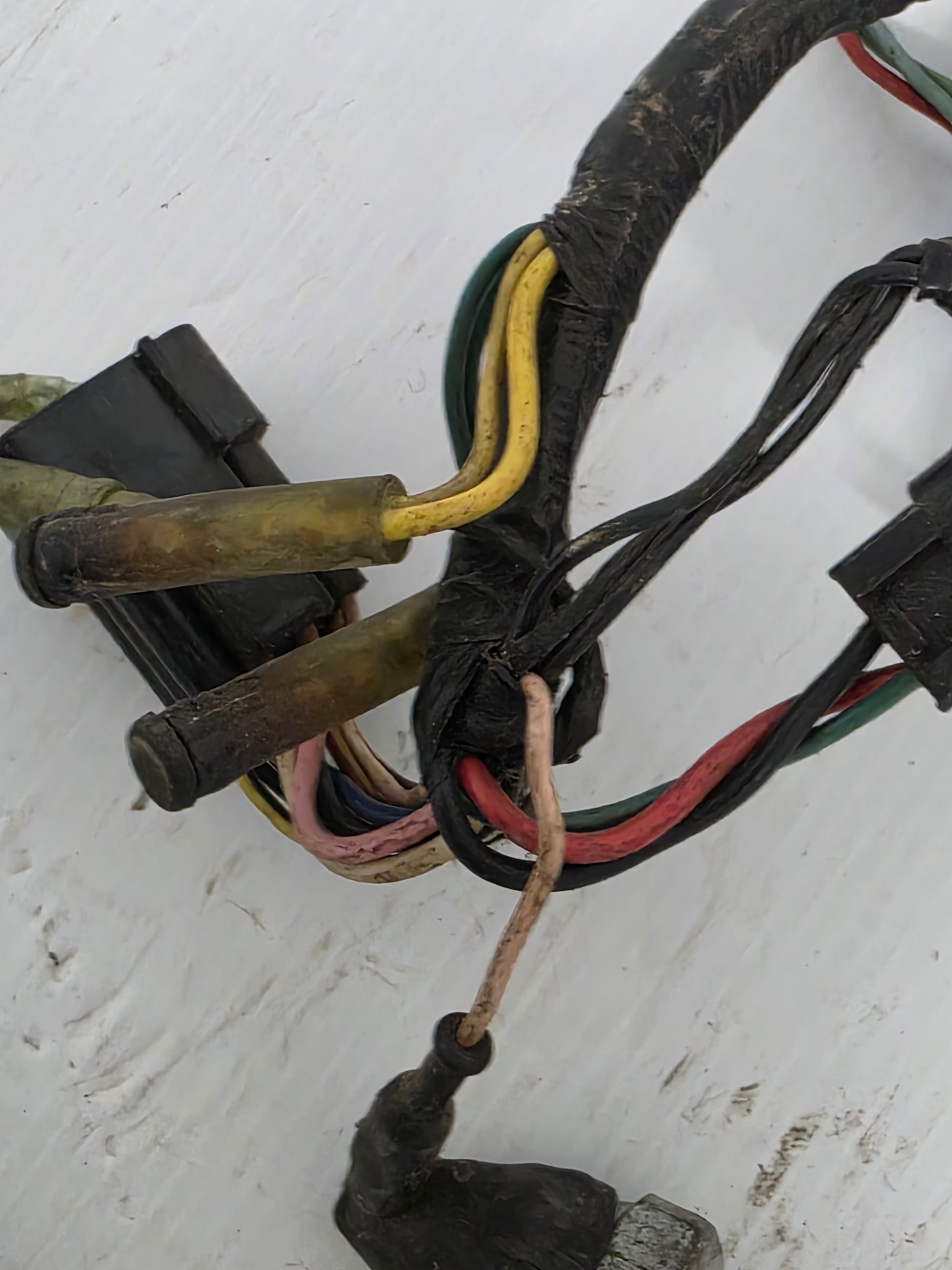

Genuine Yamaha F60 Engine Wire Harness Assembly - Part Number: 69W-82590-00-00
A genuine used Yamaha main engine wiring loom for selected carburetted F60 and T60 four-stroke outboards.
This ten-pin harness connects the ignition, charging, starting and engine-monitoring components to the main electrical system. Its branch lengths and connectors are arranged specifically for the 69W-series 60HP engine platform.
⚙️ Key Features
• Genuine Yamaha main engine wiring loom
• Correct Yamaha part number 69W-82590-00-00

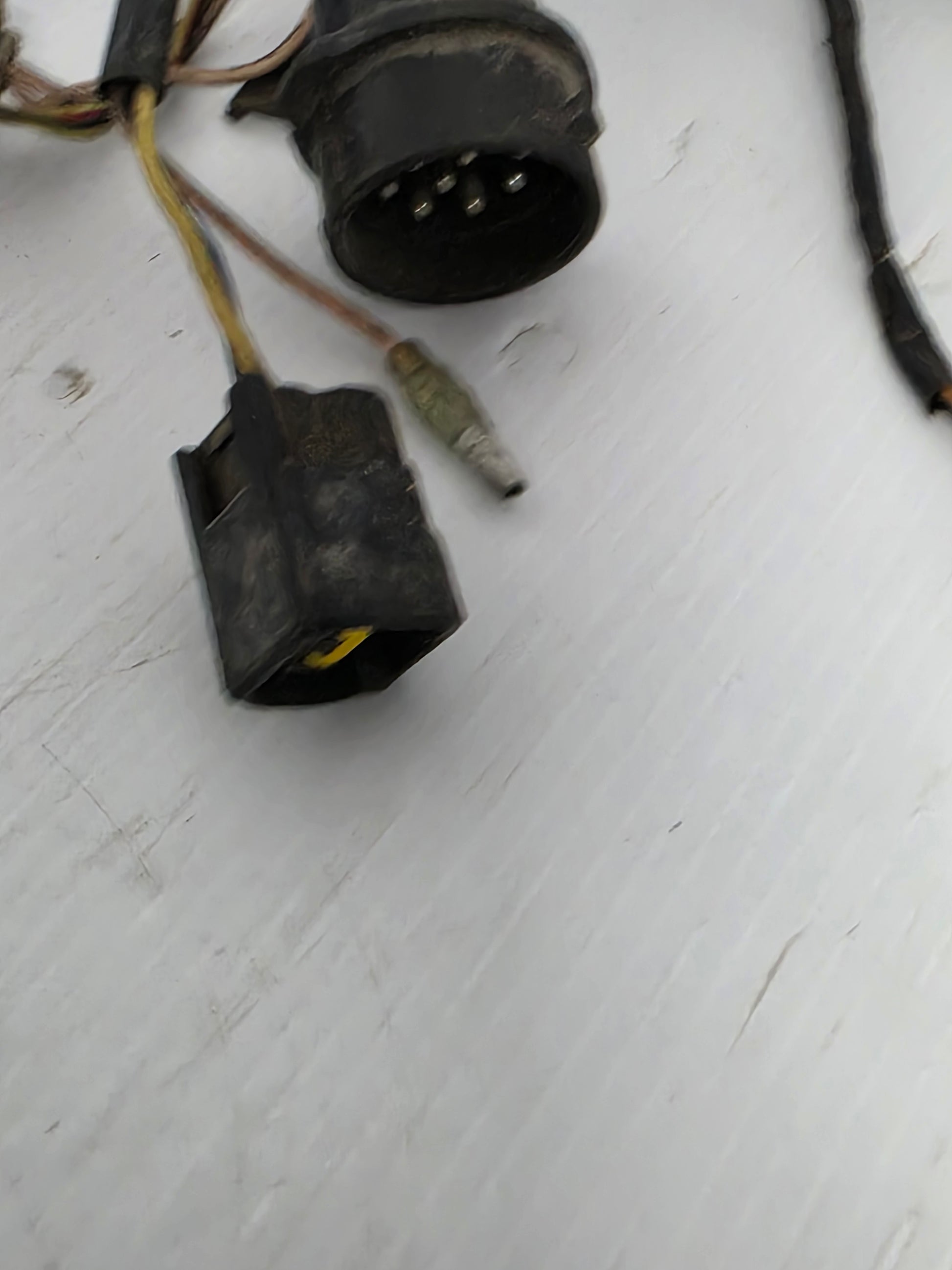

• Ten-pin engine-harness configuration
• Used on carburetted 60HP four-stroke outboards
• Factory terminals, fuse connections and component branches
🔄 Supersession & Cross Reference
OEM Supersession Chain:
• 69W-82590-00-00 established Yamaha engine-harness reference
OEM / Related Numbers:
• 69W-82590-00-00
• 69W825900000
• 69W-85540-00-00 related CDI unit
• 64J-85510-00-00 related stator assembly
• 64J-81960-10-00 related rectifier-regulator
• 64J-81960-00-00 earlier rectifier-regulator reference
• 69W-81800-00-00 related starter motor
• 62Y-85570-00-00 related ignition coil
Aftermarket / Verified Equivalents:
• No aftermarket equivalent
🚤 Compatibility
Commonly used on:
• Yamaha F60 carburetted four-stroke electrical systems
• Yamaha T60 high-thrust four-stroke electrical systems
• Yamaha 69W-series 60HP engines
Typically suits:
• Engine models:
• Yamaha F60TLRA
• Yamaha F60TLRB
• Yamaha F60AETL
• Yamaha F60 carburetted remote-control models
• Yamaha T60TLRC
• Yamaha FT60 high-thrust configurations using harness 69W-82590-00-00
• HP Range: 60HP
• Engine Type: Yamaha 996cc inline four-cylinder carburetted four-stroke outboard
• Year Range: Approximately 2002 - 2007
🔌 Function
The harness distributes electrical power and switching signals between the starter, CDI unit, charging system, ignition coils, sensors, trim system and remote-control wiring.
Common signs of failure:
• Starter or ignition system operates intermittently
• Engine cranks but has no spark
• Charging system or trim circuit stops working
• Connectors show heat damage or corrosion
• Electrical faults change when the harness is moved
📦 Condition
• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
