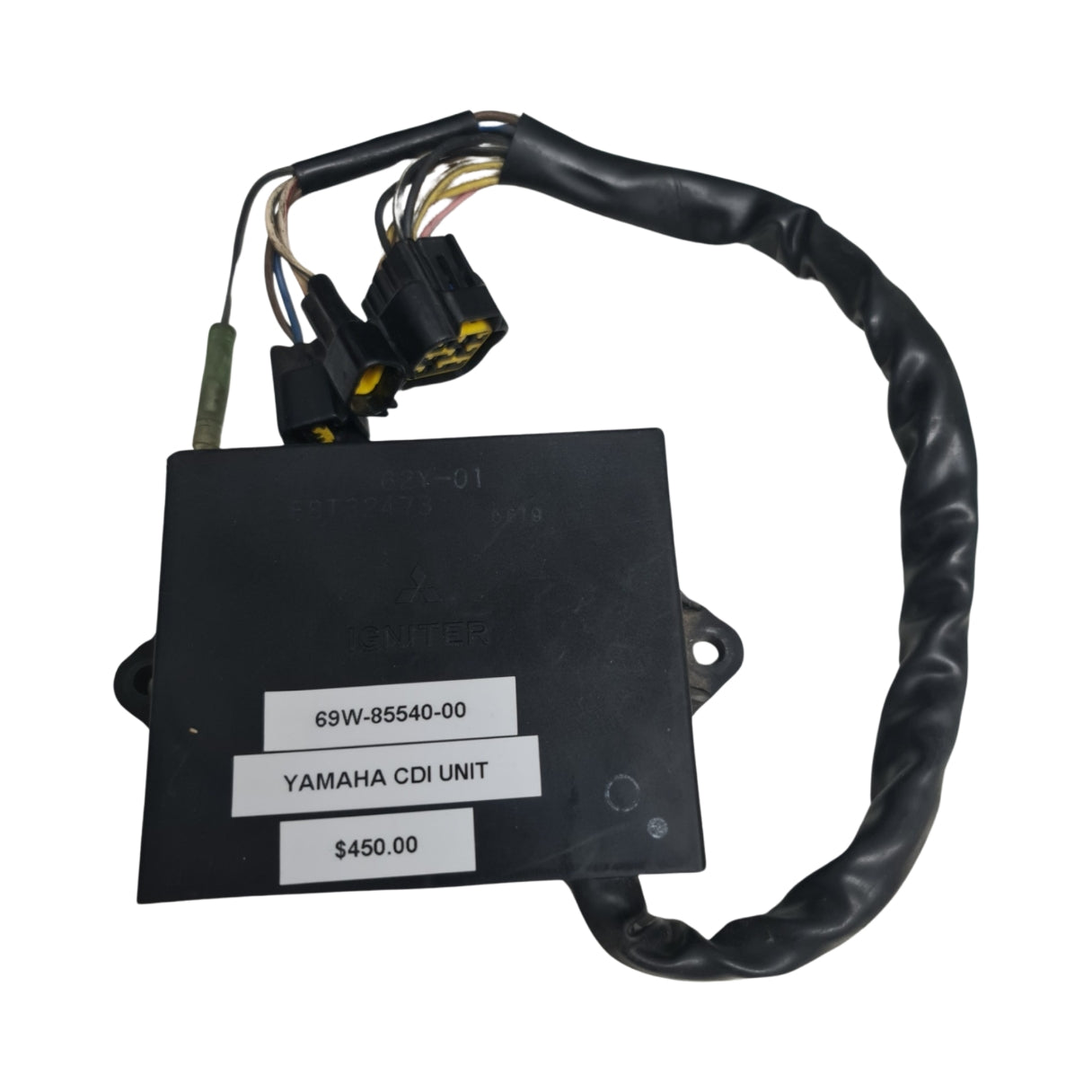

Genuine Yamaha CDI Unit Assembly - Part Number: 69W-85540-00-00
A genuine Yamaha CDI unit used on selected Yamaha F40, F60, FT60 and 60HP outboard ignition systems. This module controls ignition timing and spark triggering for compatible 69W-family electrical systems.
⚙️ Key Features
- Genuine Yamaha CDI unit assembly
- Correct Yamaha part number 69W-85540-00-00
- Used on selected Yamaha 40HP and 60HP applications where specified
- Controls ignition timing and coil trigger output
- Must be matched by exact model, serial number, CDI label and connector layout
🚤 Compatibility
Commonly used on
- Yamaha 69W-family outboard ignition systems
Typically suits
- Engine models:
- Yamaha F40 applications using 69W CDI unit assembly
- Yamaha F60 applications using 69W CDI unit assembly
- Yamaha FT60 applications using 69W CDI unit assembly
- Yamaha 60HP applications using 69W CDI unit assembly
- Yamaha F60TLRB 2003 applications using 69W CDI unit assembly
- Yamaha 60TLR early-2000s applications using 69W CDI unit assembly
- HP Range: commonly 40HP - 60HP depending on exact model and ignition system
- Engine Type: Yamaha outboard, model-code specific 69W electrical system
- Year Range: Approximately early-2000s 69W CDI applications
- Serial Note: Confirm exact Yamaha model code, serial number and plug configuration before fitting.
🔌 Function
The CDI receives ignition charging and timing signals, then discharges to the ignition coil circuit to generate spark at the correct time.
⚠️ Common Signs of Failure
- No spark
- Intermittent spark loss
- Engine starts then stalls when hot
- Misfire or weak spark under load
- No-start condition after stator and pulser coil checks
- Timing signal fault isolated to CDI output
- Connector corrosion or internal module failure
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 69W-85540-00-00 current / listed CDI unit assembly reference
- 69W-85540-00 formatted short reference
OEM / Related Numbers
- 69W-85540-00-00
- 69W-85540-00
- 69W855400000
- 69W8554000
- Related CDI family reference: 69W-85540-01-00
- Related Yamaha 69W electrical-system reference
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
