6A1-W0093-01 Aftermarket Yamaha Carburettor Kit M2.5, M3.5 | Sawley's Select Marine Parts

6A1-W0093-01 Aftermarket Yamaha Carburettor Kit M2.5, M3.5 | Sawley's Select Marine Parts

$49.15 AUD
$49.15 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description


Aftermarket Yamaha/Mariner 2HP-3.5HP carburettor repair kit - Replacement Part Number: 6A1-W0093-01


A carburettor service kit for selected Yamaha and Yamaha-built Mariner 2HP, 2.5HP and 3.5HP two-stroke portable outboards. The component list below represents the documented 6A1 service family used with the -01 repair package.


⚙️ Key Features


• Services one small portable-outboard carburettor

• Includes float, needle valve, float pin, bowl gasket and adjustment components

• Cross-references to Mercury, Sierra and Recmar kits

• Suitable for Yamaha and Yamaha-built Mariner applications

• Exact 6A1-family service numbers listed below


🔄 Supersession & Cross Reference


OEM Supersession Chain:


• 6A1-W0093-01 (Yamaha service kit reference)


OEM / Related Numbers:


• 6A1-W0093-01


Aftermarket / Verified Equivalents:


• Sierra: 18-7293

• Mercury/Mariner: 92520M

• Recmar: REC6A1-W0093-01

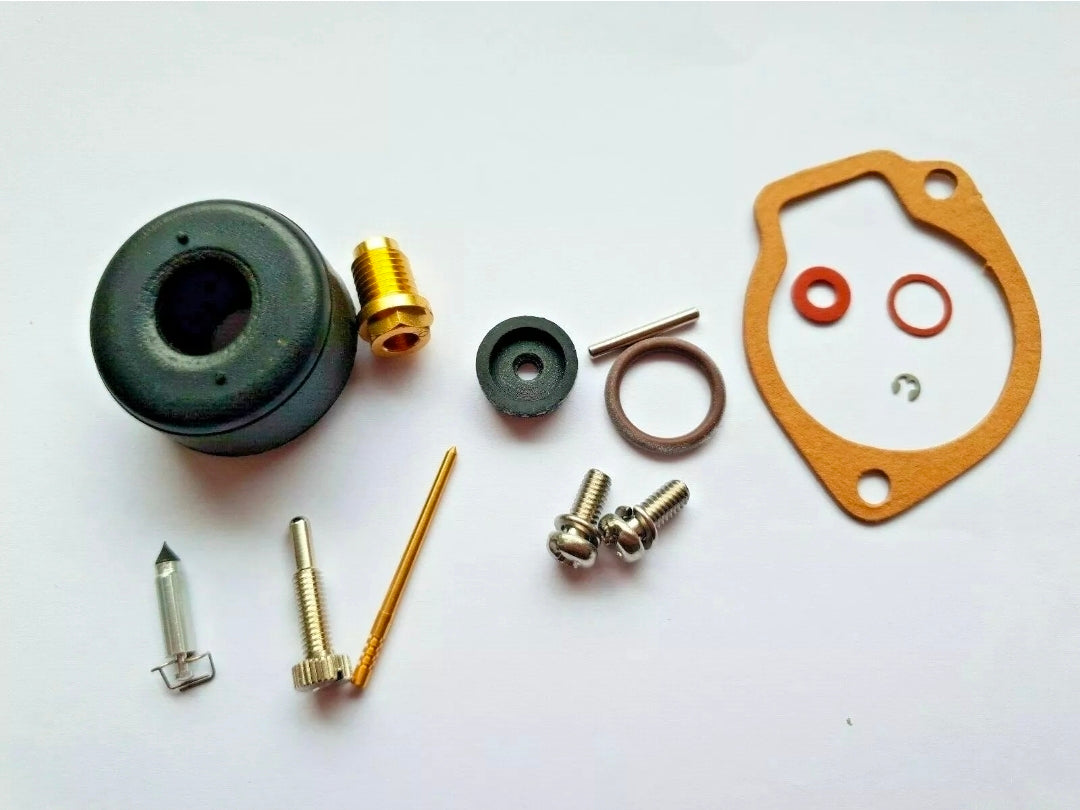

Included Components:


• 1 × Float-chamber gasket - Part Number: 6A1-14384-00-00

• 1 × Float - Part Number: 6A1-14385-00-00

• 1 × Float pin - Part Number: 6A1-14386-00-00

• 2 × Pan-head screws - Part Number: 98580-04010-00

• 1 × Needle valve - Part Number: 6A1-14392-00-00

• 1 × Pilot-adjusting screw - Part Number: 646-14211-02-00

• 1 × Needle - Part Number: 6A1-14116-10-00

• 1 × Clip - Part Number: 646-14137-00-00

• 1 × Cap - Part Number: 646-14169-00-00

• 1 × O-ring - Part Number: 646-14229-01-00

• 1 × Gasket - Part Number: 6A1-14398-00-00


🚤 Compatibility


Commonly used on:


• Yamaha carburetted outboards using the listed OEM carburettor service kit


Typically suits:


• Engine models:

• Yamaha M2 / 2HP portable two-stroke

• Yamaha M2.5 / 2.5HP portable two-stroke

• Yamaha M3.5 / 3.5HP portable two-stroke

• Matching Yamaha-built Mariner engines using Mercury 92520M


• HP Range: Approximately 2HP - 3.5HP

• Engine Type: Carburetted two-stroke portable outboard

• Year Range: Primarily 1980s-1990s; confirm by original kit number

• Quantity Required: One kit per carburettor


🔌 Function


The kit renews the carburettor's float-control, inlet-valve and sealing components. Correct rebuilding restores fuel-bowl level, prevents air and fuel leaks and stabilises the mixture from starting through full-load operation.


Common signs of failure:


• Hard starting or excessive choke/enrichment required

• Rough idle, hunting or repeated low-speed stalling

• Hesitation, flat spots or intake backfire during acceleration

• Fuel leakage, flooding or an incorrect float-bowl level

• Lean surging, reduced power or fuel starvation under load

• Rich running, smoke, spark-plug fouling or excessive fuel consumption


📦 Condition


• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
