6AH-85510-00 Yamaha Stator | Genuine Used Part

🔧 Product Description

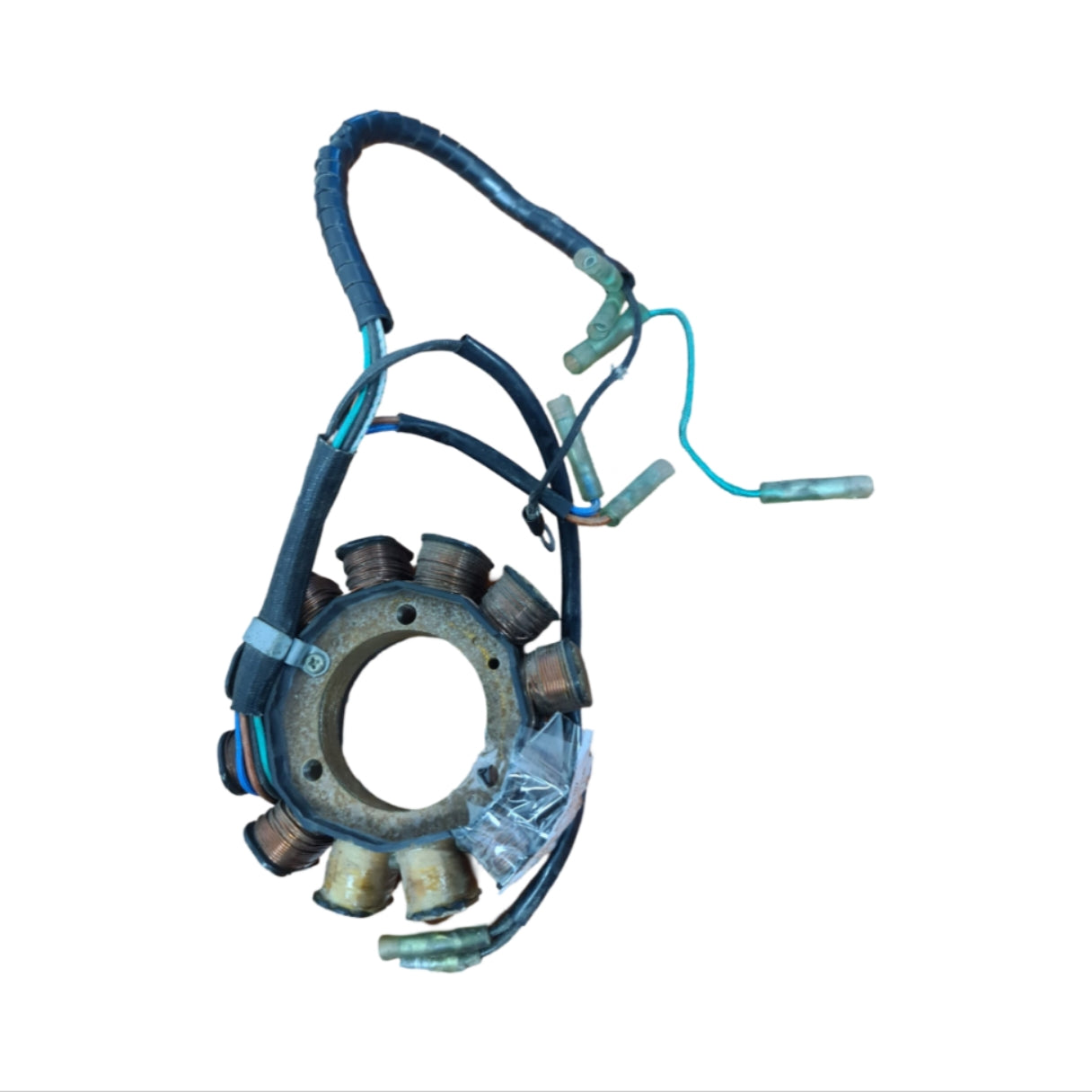

Genuine Yamaha Stator Assembly - Part Number: 6AH-85510-00

A genuine Yamaha stator assembly used on Yamaha 15HP and 20HP outboards. This stator mounts under the flywheel and supplies ignition and charging output for compatible portable Yamaha outboard electrical systems.

⚙️ Key Features

• Genuine Yamaha stator assembly

• Correct Yamaha part number 6AH-85510-00

• Also formatted as 6AH-85510-00-00

• Used on 15HP and 20HP Yamaha outboard generator systems

• Provides ignition and charging-system electrical output

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6AH-85510-00-00 full Yamaha stator assembly format

• 6AH-85510-00 short Yamaha stator assembly format

OEM / Related Numbers:

• 6AH-85510-00

• 6AH-85510-00-00

• 6AH8551000

• 6AH855100000

Aftermarket / Verified Equivalents:

• Aftermarket reference: 6AH-85510-00

• Aftermarket Yamaha 15HP / 20HP stator replacement

🚤 Compatibility

Commonly used on:

• Yamaha 15HP and 20HP generator assemblies

• Yamaha portable outboard ignition and charging systems using the 6AH stator family

Typically suits:

• Engine models:

• Yamaha 15HP outboard generator applications where 6AH-85510-00 is specified

• Yamaha F15 four-stroke generator applications where 6AH-85510-00 is specified

• Yamaha 20HP outboard generator applications where 6AH-85510-00 is specified

• Yamaha F20 four-stroke generator applications where 6AH-85510-00 is specified

• Yamaha 15HP / 20HP portable outboards using 6AH-series electrical components

• HP Range: commonly 15HP - 20HP

• Engine Type: Yamaha portable outboard

• Year Range: approximately late-2000s onward depending on model and market

• System Type: Stator / generator charging coil assembly

🔌 Function

The stator generates electrical current beneath the flywheel. It supports ignition-system operation and sends charging output to the regulator / rectifier so the battery and electrical system can remain charged.

Common signs of failure:

• Battery not charging

• Weak or intermittent spark

• Hard starting

• Low charging voltage while running

• Electrical accessories draining battery

• Burnt windings or heat-damaged insulation

• Broken stator lead or corroded connector

• AC output below specification during testing

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
