🔧 Product Description

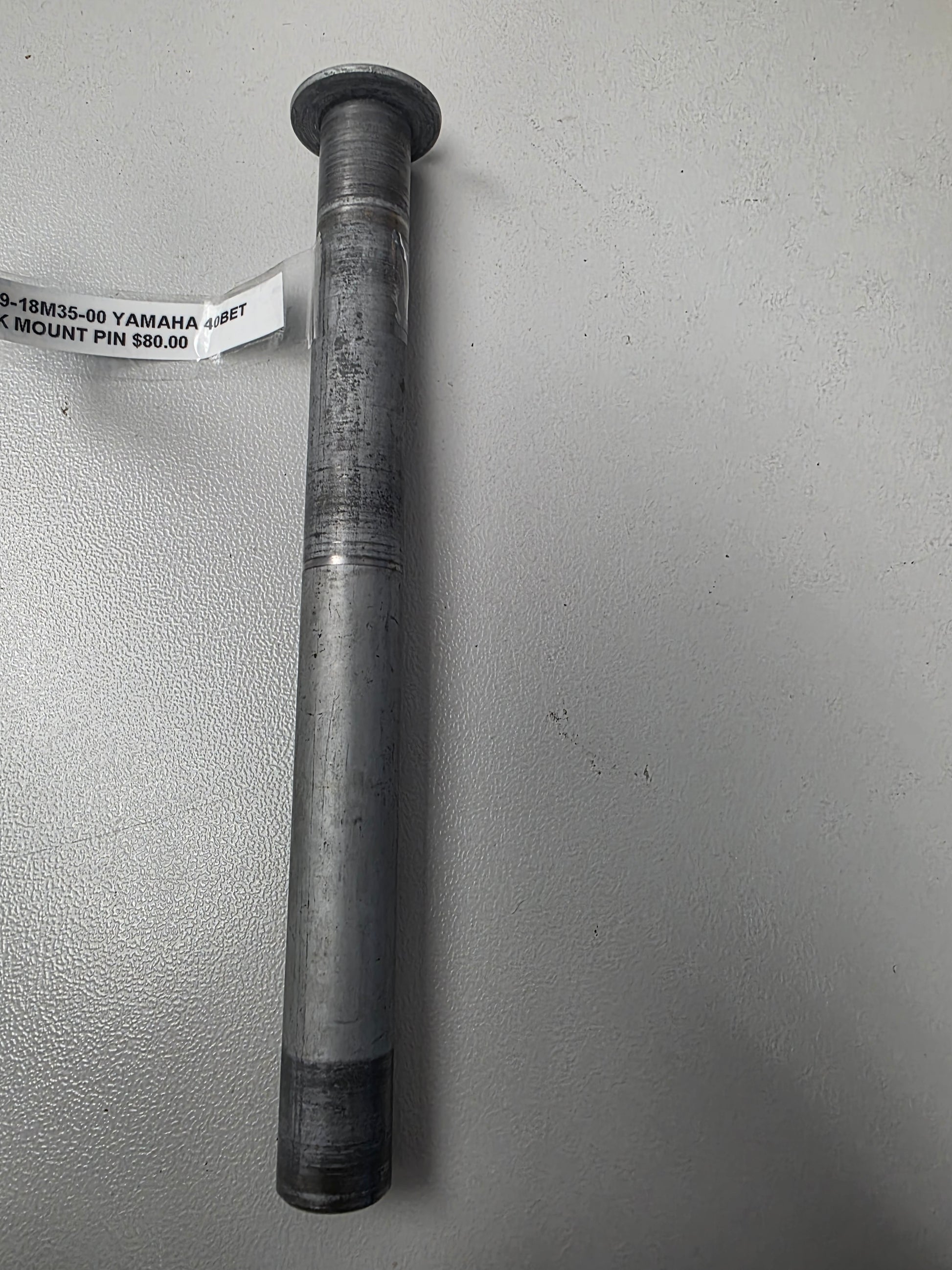

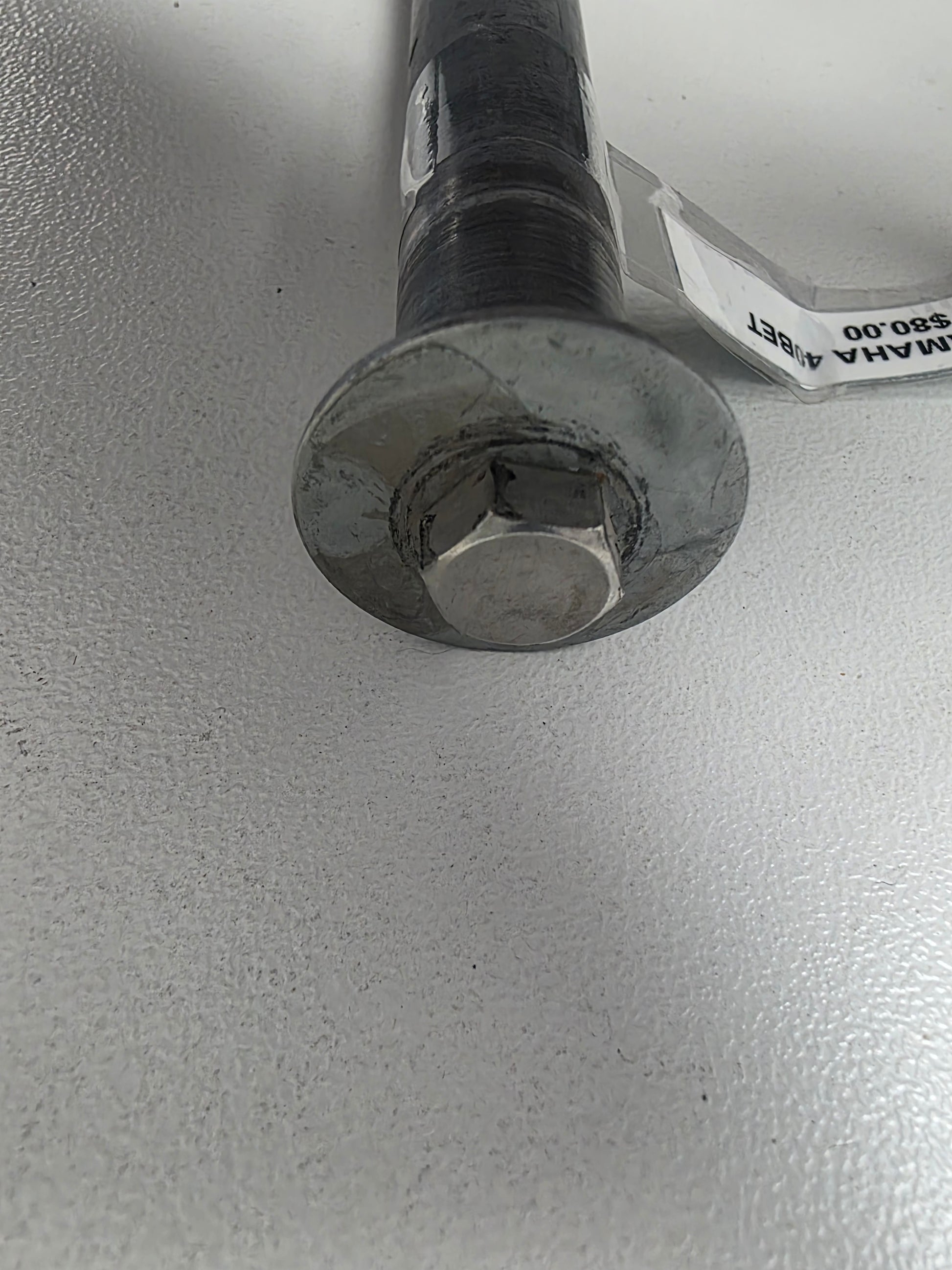

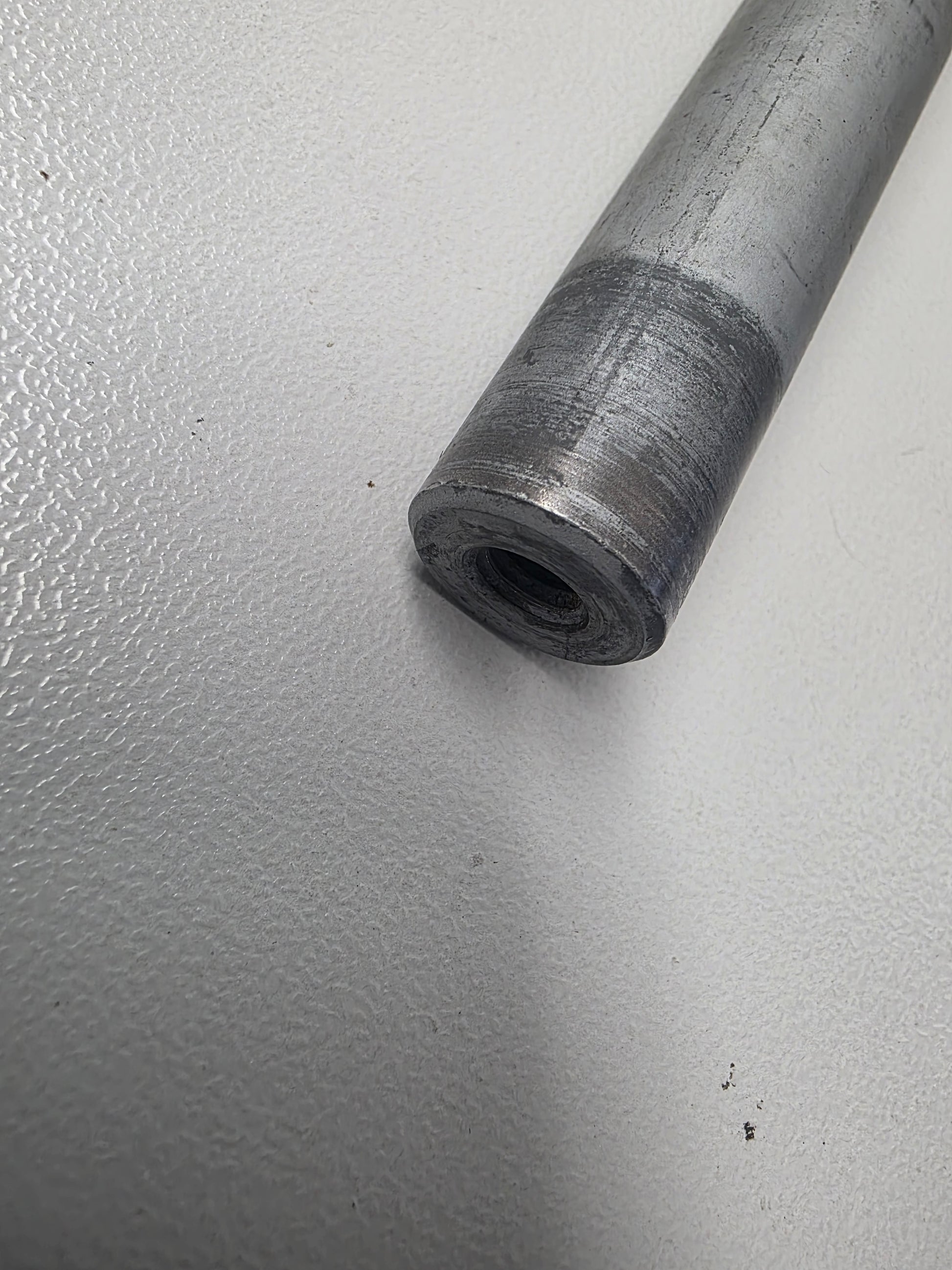

Genuine Yamaha Lower Shock-Mount Pin - Part Numbers: 6BG-43818-00-00 / 90249-18M35-00
A genuine used Yamaha lower shock-mount pin used in selected power-trim, tilt and bracket assemblies. Yamaha 6BG-43818-00-00 replaces earlier pin 90249-18M35-00 and is used primarily on F25 / T25 engines, with selected F30 and F40 bracket diagrams also listing the part.
⚙️ Key Features
- Genuine Yamaha lower shock-mount pin
- Current part number 6BG-43818-00-00
- Supersedes 90249-18M35-00
- Supports the lower trim or shock-mount pivot
- Used on selected 25HP to 40HP bracket assemblies
🚤 Compatibility
Commonly used on
- Yamaha F25 and T25 trim / bracket assemblies
- Selected F30 and F40 engines
- Some 40BET-family bracket configurations using the earlier pin
Typically suits
- Confirmed on F25 models from approximately 2013 through 2026
- Confirmed on T25 long-shaft and high-thrust models
- Listed on selected F40 bracket assemblies, sometimes with zero quantity depending on trim configuration
- Verify the exact power-trim or manual-tilt diagram
- HP Range: Approximately 25HP - 40HP
- Engine Type: Yamaha four-stroke outboard
- Year Range: Approximately 2000 onward
- Fitment Requirement: Match pin diameter, length, circlip grooves and trim-system type
🔌 Function
The pin forms the lower pivot for the shock or trim assembly, allowing controlled engine tilt while carrying trim-system load.
⚠️ Common Signs of Failure
- Pin is bent
- Corrosion or pitting on the bearing surface
- Excessive pivot play
- Damaged circlip grooves
- Pin seized in the bracket or trim unit
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 6BG-43818-00-00 → Supersedes 90249-18M35-00
- 90249-18M35-00 earlier pin reference
- Current 6BG pin remains listed on modern F25 and selected bracket diagrams
OEM / Related Numbers
- 6BG-43818-00-00
- 6BG438180000
- 90249-18M35-00
- Related circlips, bushings and trim-cylinder hardware vary by model
- 67C-series mounts and covers appear on related F30 / F40 bracket assemblies
Aftermarket / Verified Equivalents
- No verified aftermarket pin equivalent
- Used or new genuine Yamaha pins are the correct replacement
- A fabricated pin must not be used unless material, diameter, surface finish and retention grooves exactly match
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
