6BX-W0093-00 Aftermarket Yamaha Carburetor Repair Kit 4-Stroke 4HP to 6HP | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Yamaha 4HP-6HP four-stroke carburettor repair kit - Replacement Part Number: 6BX-W0093-00

A complete service kit for Yamaha F4, F5 and F6 four-stroke carburettors in the 6BX engine family. It includes the individually numbered float, needle valve, float-arm pin, bowl gasket, screws, O-rings and clip.

⚙️ Key Features

• Exact OEM service-component numbers listed below

• Includes float and needle-valve components

• Designed for Yamaha 4HP-6HP four-stroke outboards

• Services one carburettor

• Direct replacement for 6BX-W0093-00

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6BX-W0093-00 (primary Yamaha service reference)

OEM / Related Numbers:

• 6BX-W0093-00

Aftermarket / Verified Equivalents:

• Recmar: REC6BX-W0093-00

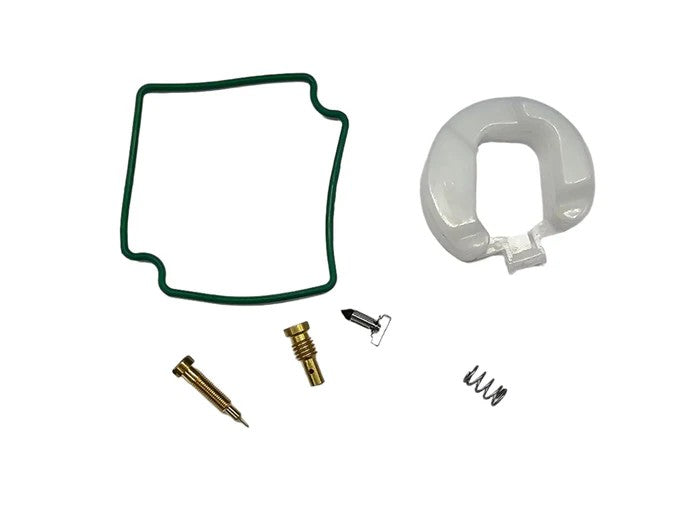

Included Components:

• 1 × Float - Part Number: 6BX-14985-00-00

• 1 × Float-chamber gasket - Part Number: 6BX-14984-00-00

• 2 × Screws - Part Number: 6BX-14592-00-00

• 2 × O-rings - Part Number: 4JH-14562-00-00

• 1 × Needle valve - Part Number: 6BX-14546-00-00

• 1 × Float-arm pin - Part Number: 6BX-14548-00-00

• 1 × Clip - Part Number: 6BX-14937-00-00

🚤 Compatibility

Commonly used on:

• Yamaha carburetted outboards using the listed OEM carburettor service kit

Typically suits:

• Engine models:

• Yamaha F4 four-stroke

• Yamaha F5A four-stroke

• Yamaha F6 four-stroke

• HP Range: 4HP - 6HP

• Engine Type: Carburetted four-stroke outboard

• Year Range: Approximately September 2009 onward for the 6BX carburettor family

• Quantity Required: One kit per carburettor

🔌 Function

The kit renews the carburettor's float-control, inlet-valve and sealing components. Correct rebuilding restores fuel-bowl level, prevents air and fuel leaks and stabilises the mixture from starting through full-load operation.

Common signs of failure:

• Hard starting or excessive choke/enrichment required

• Rough idle, hunting or repeated low-speed stalling

• Hesitation, flat spots or intake backfire during acceleration

• Fuel leakage, flooding or an incorrect float-bowl level

• Lean surging, reduced power or fuel starvation under load

• Rich running, smoke, spark-plug fouling or excessive fuel consumption

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
