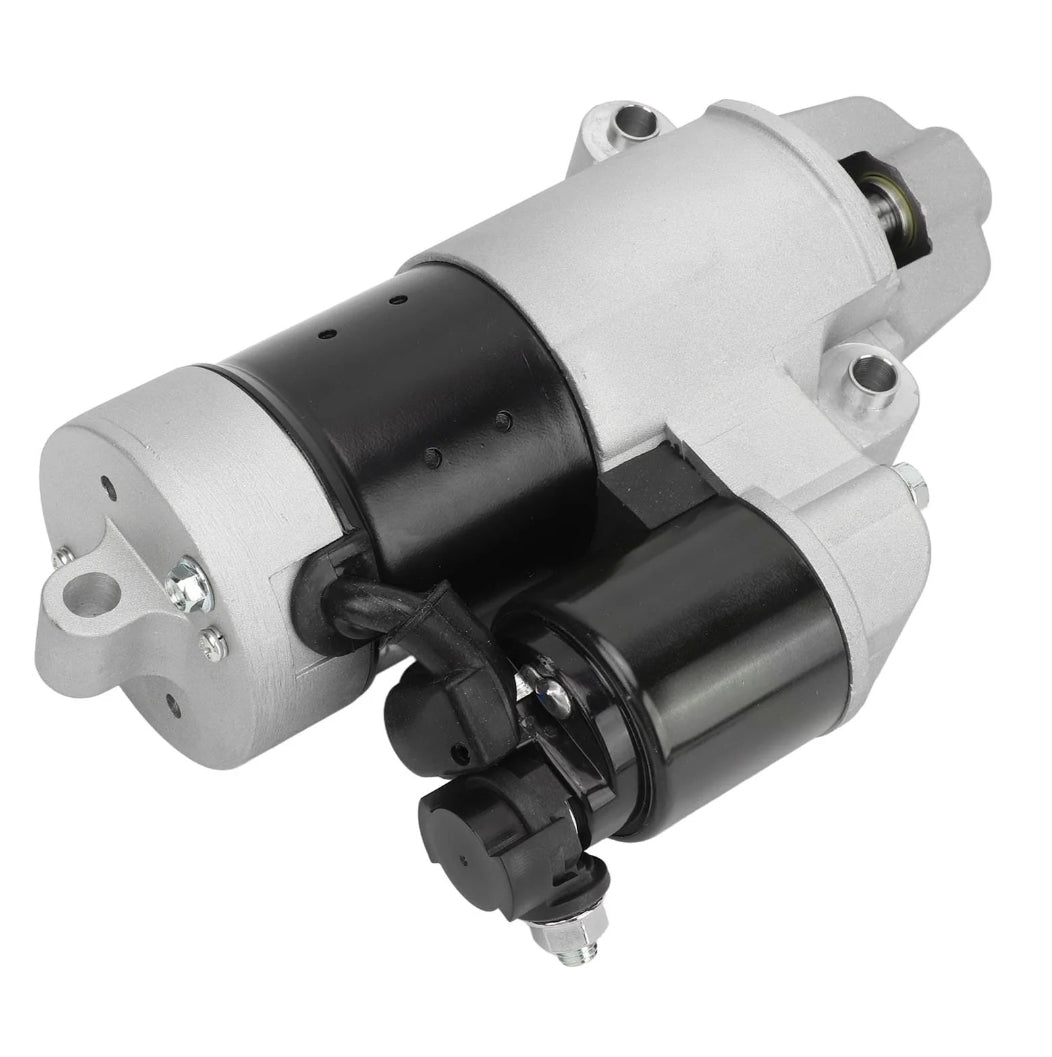

6CE-81800-01 Aftermarket Yamaha Starter Motor | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Yamaha 4.2L V6 Starter Motor - Replaces Part Number: 6CE-81800-01

New aftermarket gear-reduction starter replacing Yamaha 6CE-81800-01 for later 4.2-litre V6 four-stroke outboards.

⚙️ Key Features

• 12-volt electrical system

• Counter-clockwise rotation viewed from the drive end

• 13-tooth pinion

• High-torque permanent-magnet gear-reduction construction

• Designed for later Yamaha 4.2L V6 engines

• Complete new starter motor with integrated solenoid

• Marine or engine-grade corrosion-resistant construction

• Direct replacement only after voltage, rotation, tooth count and mounting pattern are confirmed

🧰 Kit / Assembly Contents

• 1 × Complete starter motor assembly - P/N 6CE-81800-01

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed pinion gear and overrunning clutch/Bendix assembly

• 1 × Installed armature, brush holder, field-magnet/winding and drive housing

• Mounting bolts, battery cables, relays and external wiring are transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6CE-81800-01 → Supersedes/cross-references 6CE-81800-00 and related 6CB/6EM starter references

OEM / Related Numbers:

• 6CE-81800-00

• 6CE-81800-01

• 6CB-81800-00

• 6CB-81800-01

• 6CB-81800-02

• 6EM-81800-00

• Hitachi S114-952A

• S114-952C

Aftermarket / Verified Equivalents:

• ARCO: 3436

• Sierra: 18-6961 application family

• Aftermarket Yamaha 6CE/6CB starter

🚤 Compatibility

Commonly used on:

• Yamaha later-generation 4.2L V6 four-stroke outboard starting systems

Typically suits:

• Engine / Component models:

• F225 and LF225 applications using the 6CE starter

• F250 and LF250 applications using the 6CE starter

• F300 and LF300, including later mechanical and digital-control models where specified

• HP Range: 225HP - 300HP

• Year Range: Principally late-2010s onward; model dependent

• Component Identification: Confirm 6CE/6CB OEM number, 13 teeth and CCW rotation.

🔌 Function

The starter motor converts battery electrical energy into high-torque mechanical rotation to crank the engine. When the start circuit energises the solenoid, the pinion moves into the flywheel ring gear and the motor turns the crankshaft until combustion begins. The overrunning clutch then protects the starter as engine speed rises.

Common signs of failure / service requirement:

• No-crank condition even though the battery and start-control circuit test correctly

• Solenoid clicks but the starter motor does not rotate

• Starter turns slowly, draws excessive current or overheats the battery cables

• Pinion spins without engaging the flywheel ring gear

• Grinding, clashing or repeated pinion kick-out during cranking

• Intermittent cranking caused by worn brushes, solenoid contacts or heat soak

• Corrosion, water intrusion, burnt windings or excessive shaft/bearing play

📦 Condition

• New aftermarket replacement starter motor

• Brand new

• Supplied in original or equivalent packaging
