6D8-43880-09 Aftermarket Yamaha Trim Motor | Sawley's Select Marine Parts

🔧 Product Description

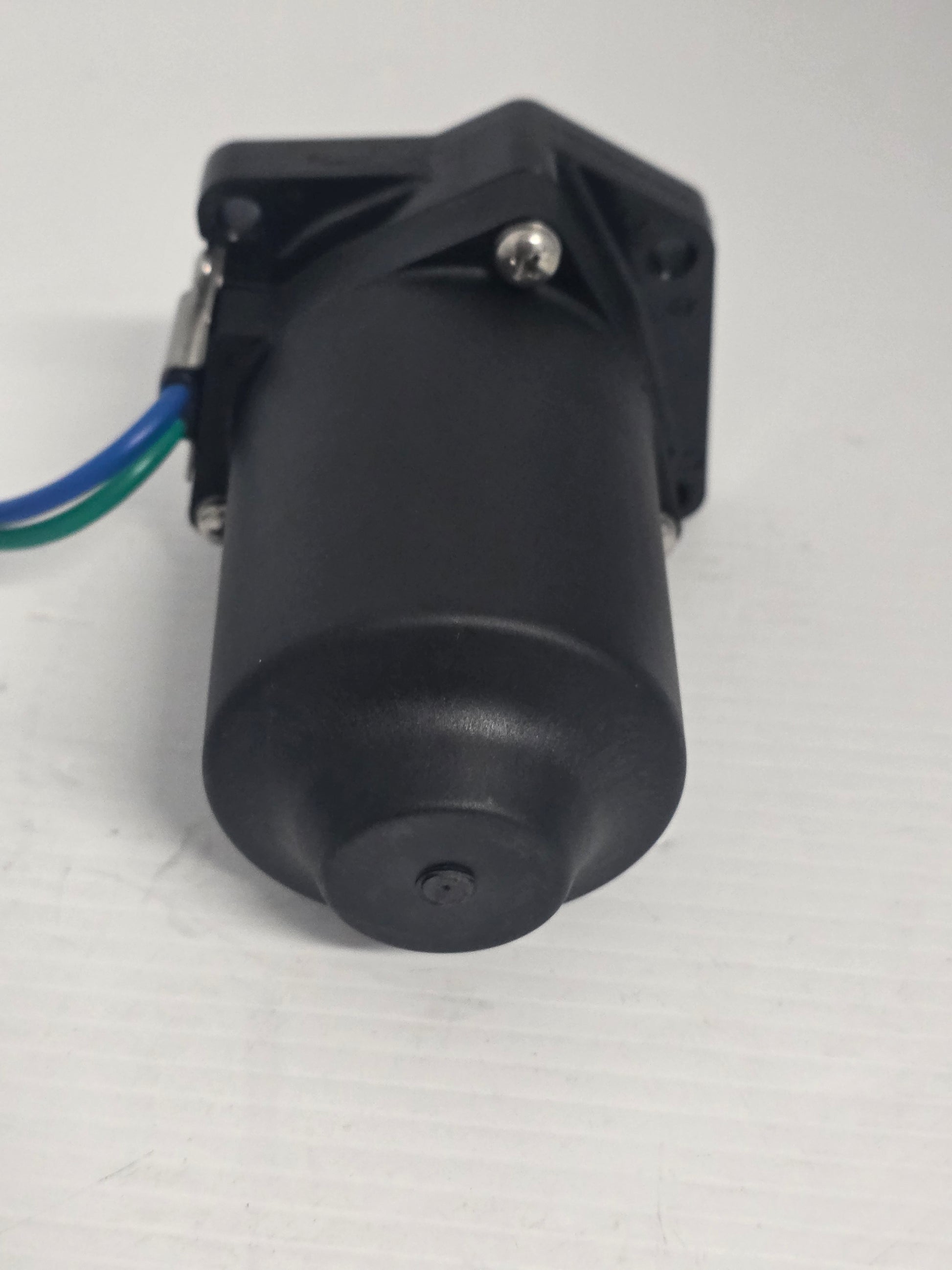

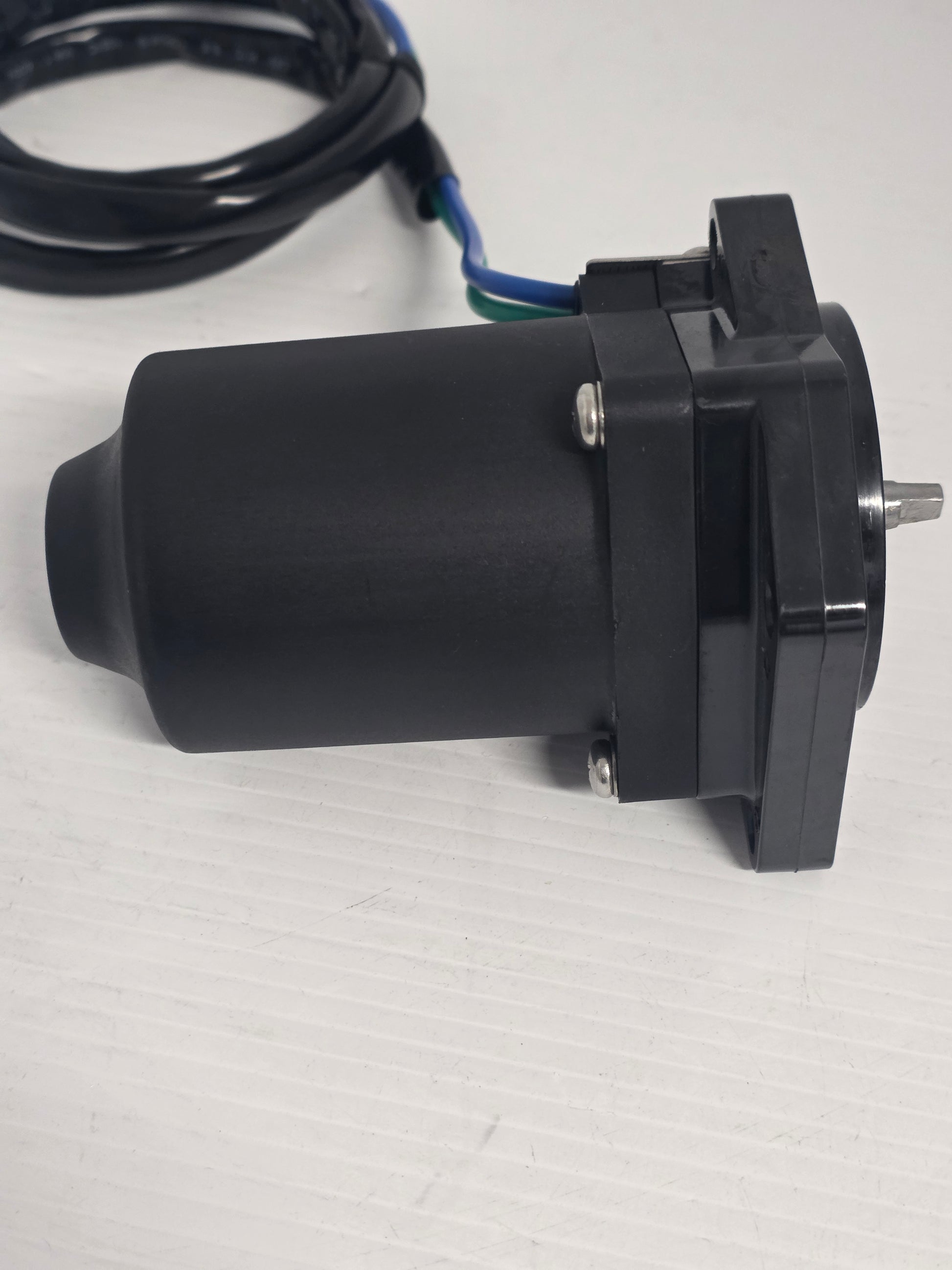

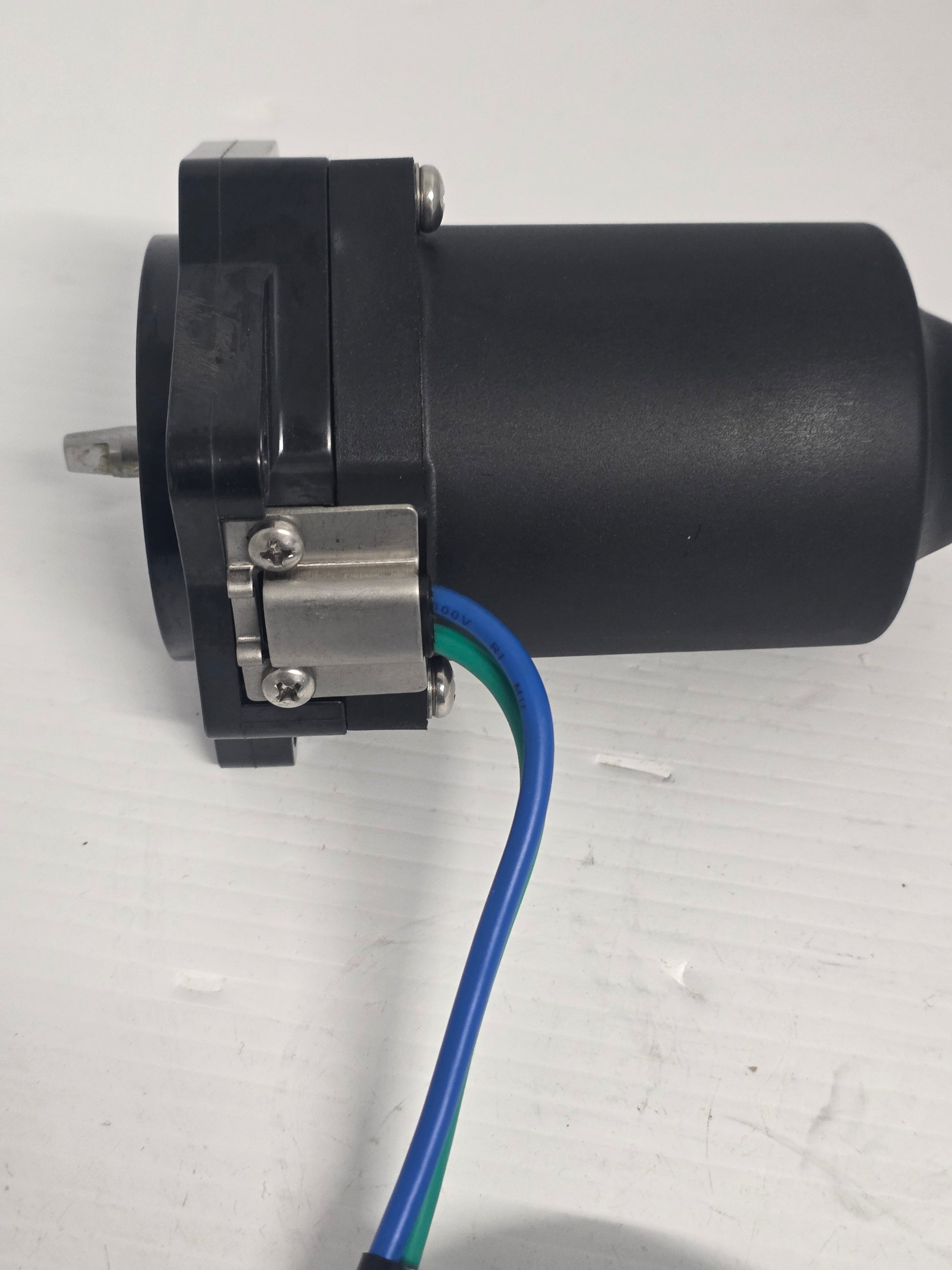

Aftermarket replacement Yamaha 115HP-225HP Two-Wire Trim Motor - Replaces Part Number: 6G5-43880-02

New aftermarket reversible trim motor replacing Yamaha 6G5-43880-02. It is supplied as the motor-only replacement for the matching Yamaha hydraulic power trim unit.

⚙️ Key Features

• Direct replacement for the listed Yamaha motor number

• Two-wire reversible motor

• Three-bolt mounting flange

• Marine corrosion-resistant motor housing

• Motor-to-pump seal renewed during installation

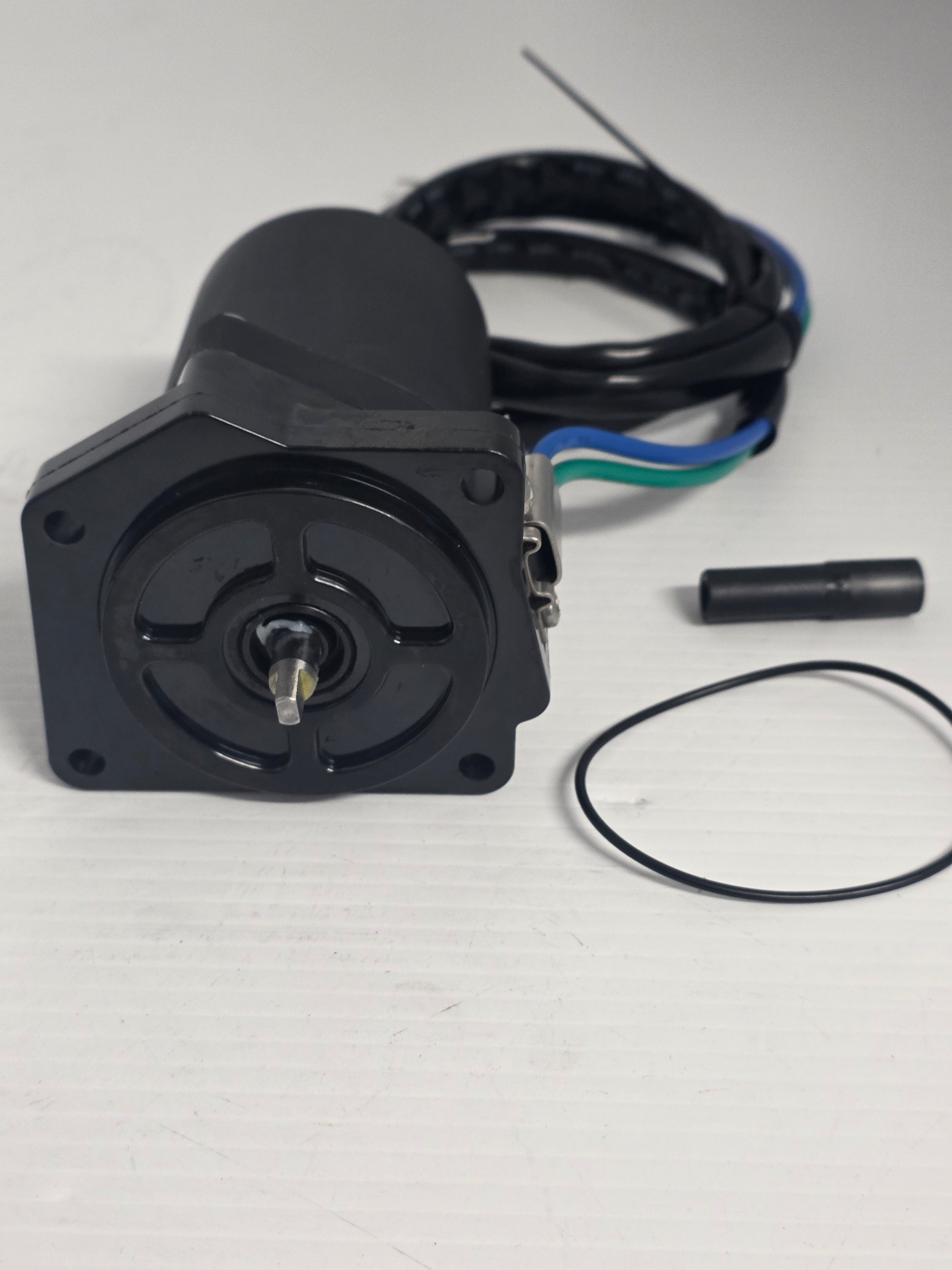

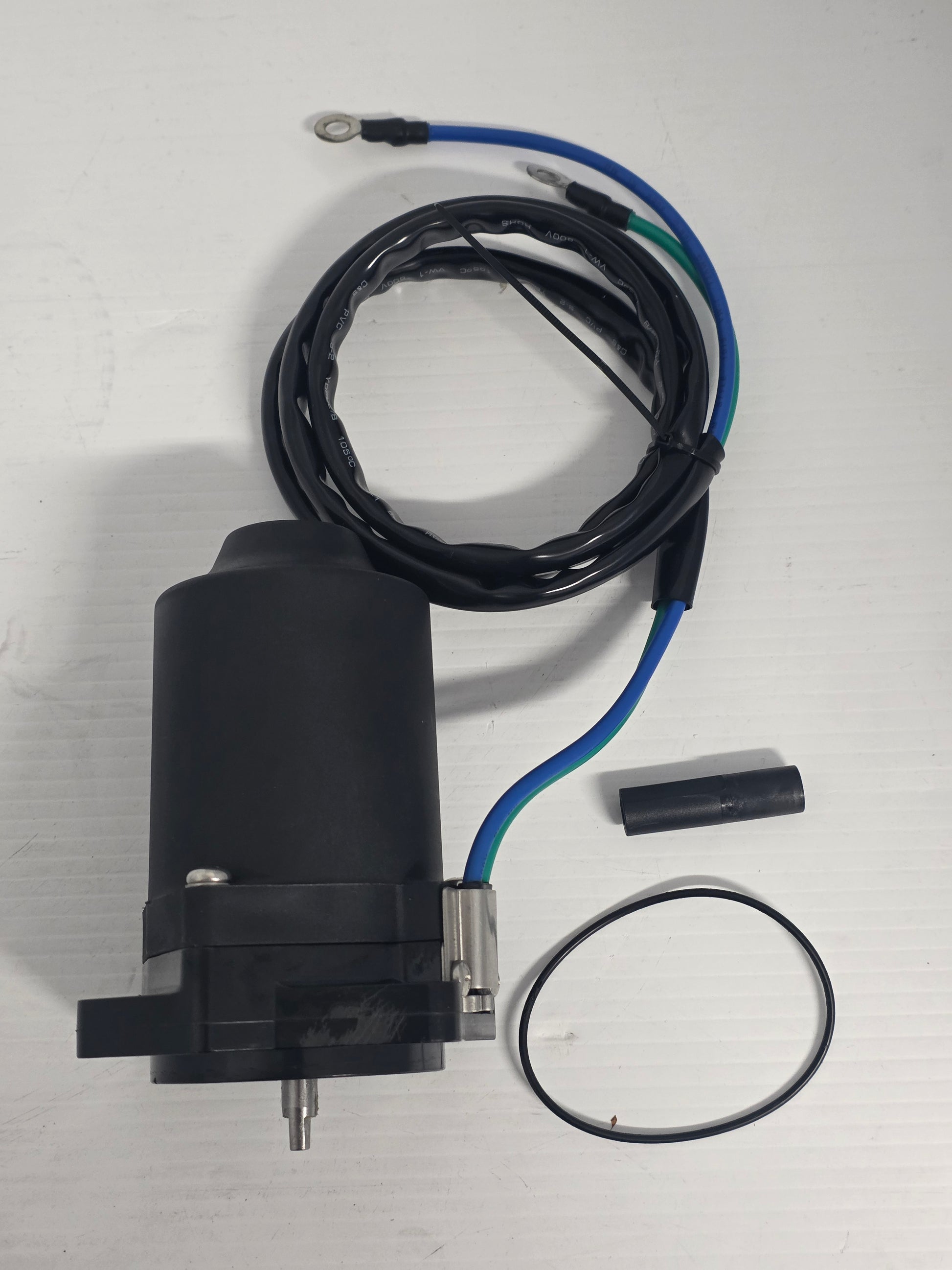

🧰 Kit / Assembly Contents

• 1 × Complete trim/tilt motor - P/N 6G5-43880-02

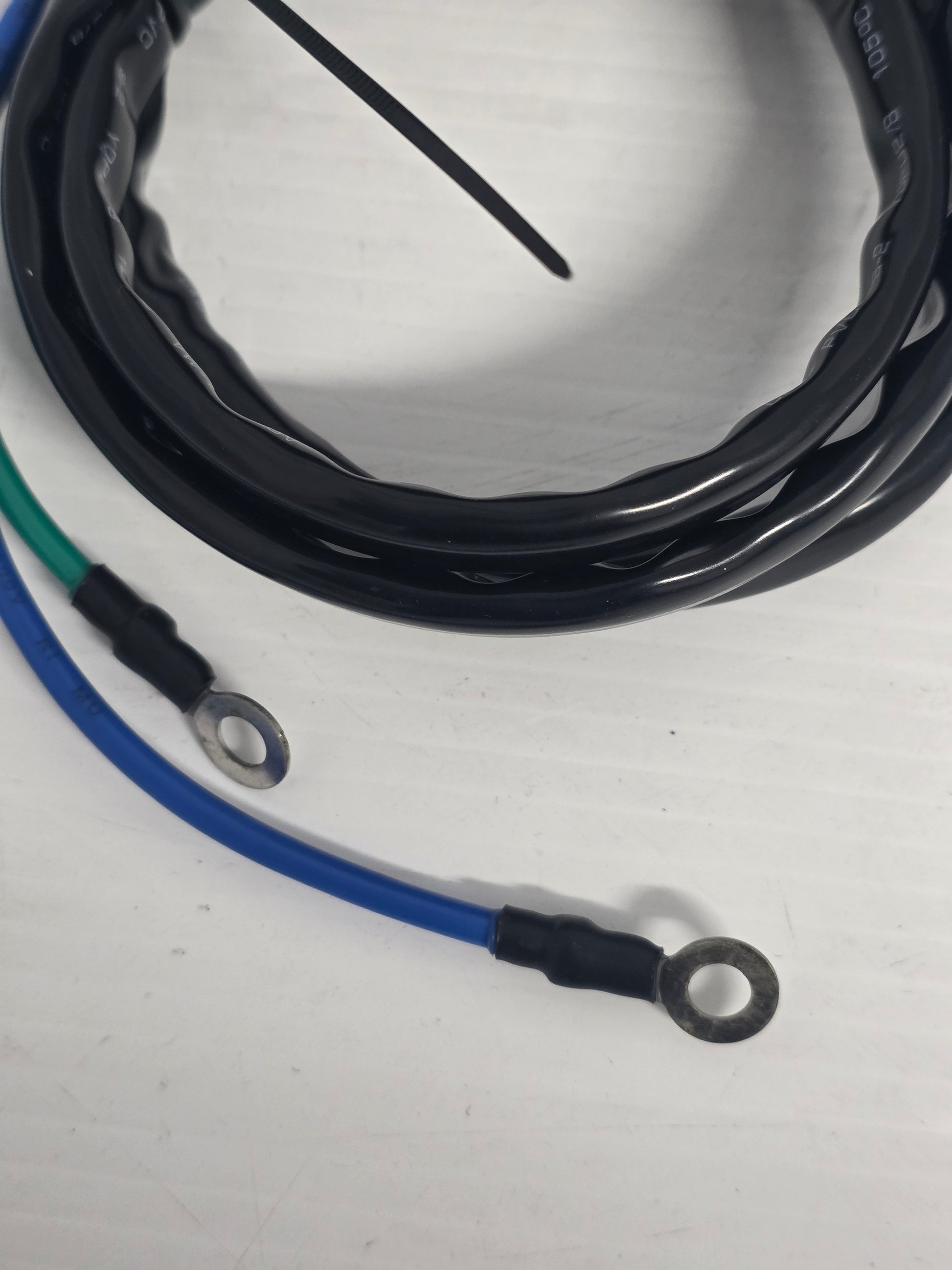

• 1 × Integrated electrical leads or connector

• 1 × Motor-to-pump seal - supplied according to manufacturer package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 6G5-43880-02 (Yamaha OEM motor reference)

OEM / Related Numbers:

• 6G5-43880-00

• 6G5-43880-01

Aftermarket / Verified Equivalents:

• ARCO: 6265

• Sierra: 18-6760

• Protorque: PH200-T030

🚤 Compatibility

Commonly used on:

• Yamaha outboard electric-hydraulic power trim systems

Typically suits:

• Engine / Drive models:

• 115HP-225HP two-stroke V4/V6 outboards using the 6G5 motor family

• HP / Drive Range: 115HP - 225HP

• System Type: Outboard electric-hydraulic power trim motor

• Year Range: Approximately 1989-1996

• Serial / Component Identification: Confirm wire count, mounting-bolt pattern, drive-shaft length and connector before ordering.

🔌 Function

The reversible 12-volt trim motor drives the hydraulic pump in both directions so the outboard or sterndrive can be raised, lowered and trimmed under load.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Pump works only after the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
