🔧 Product Description

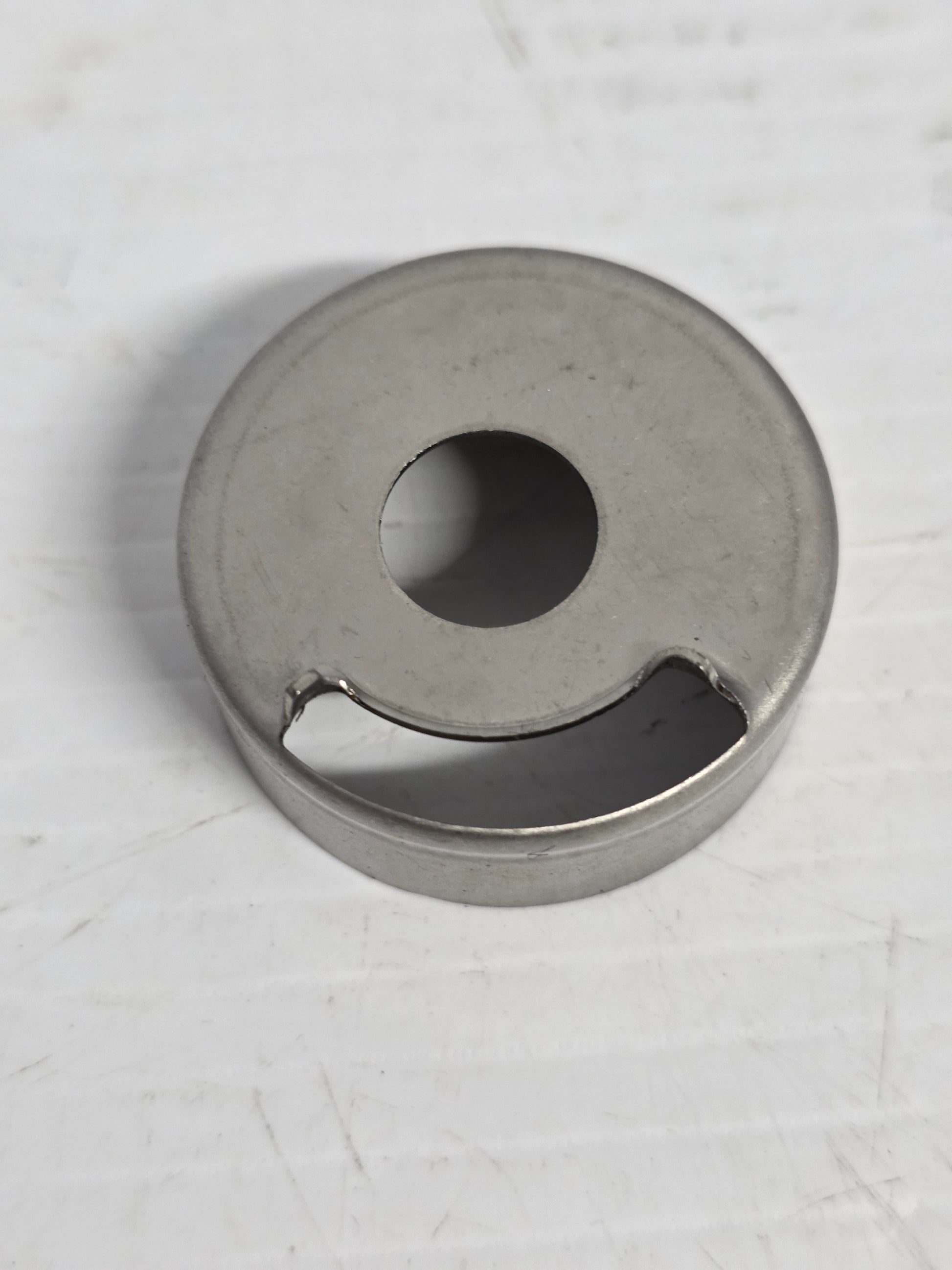

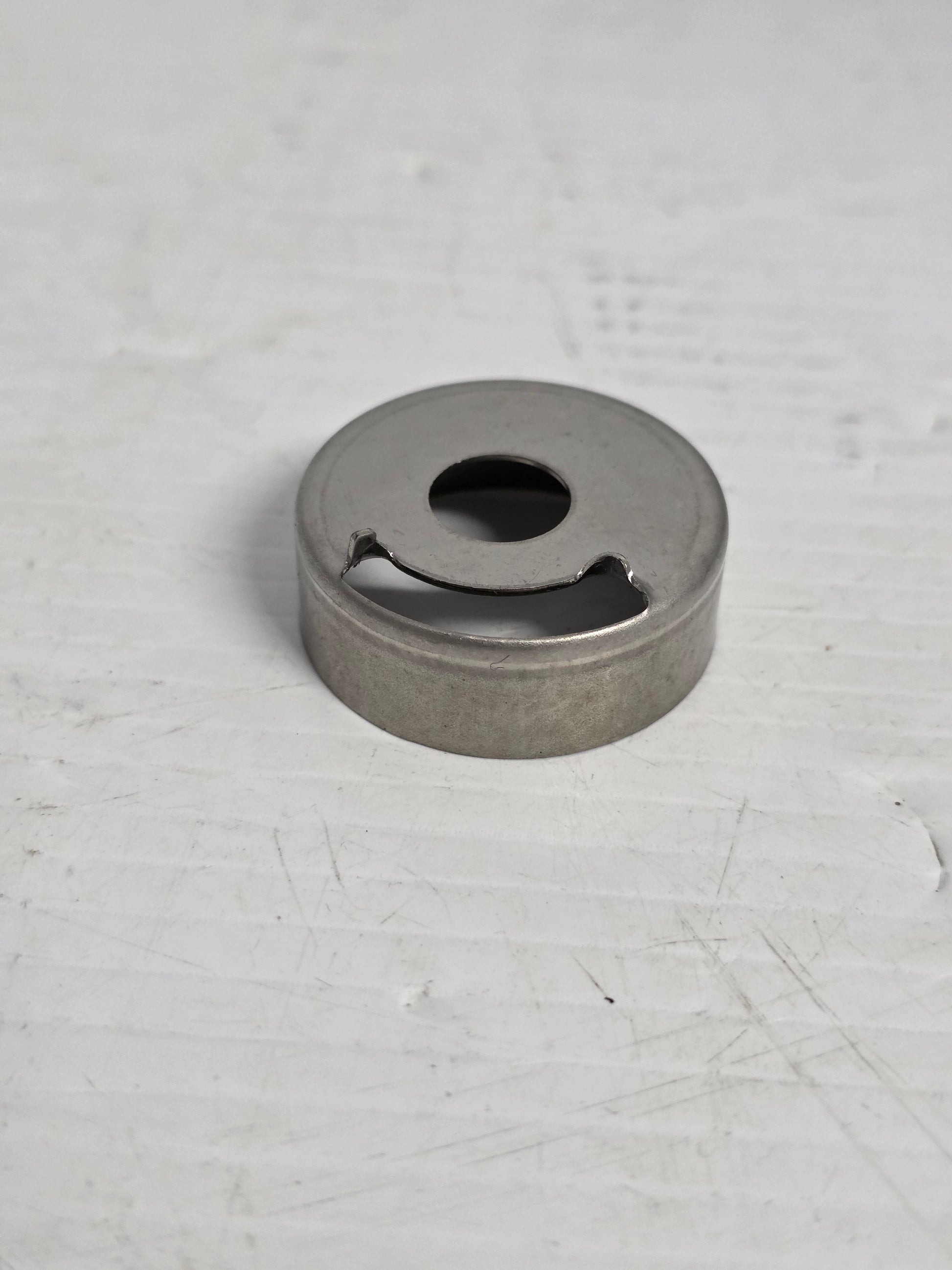

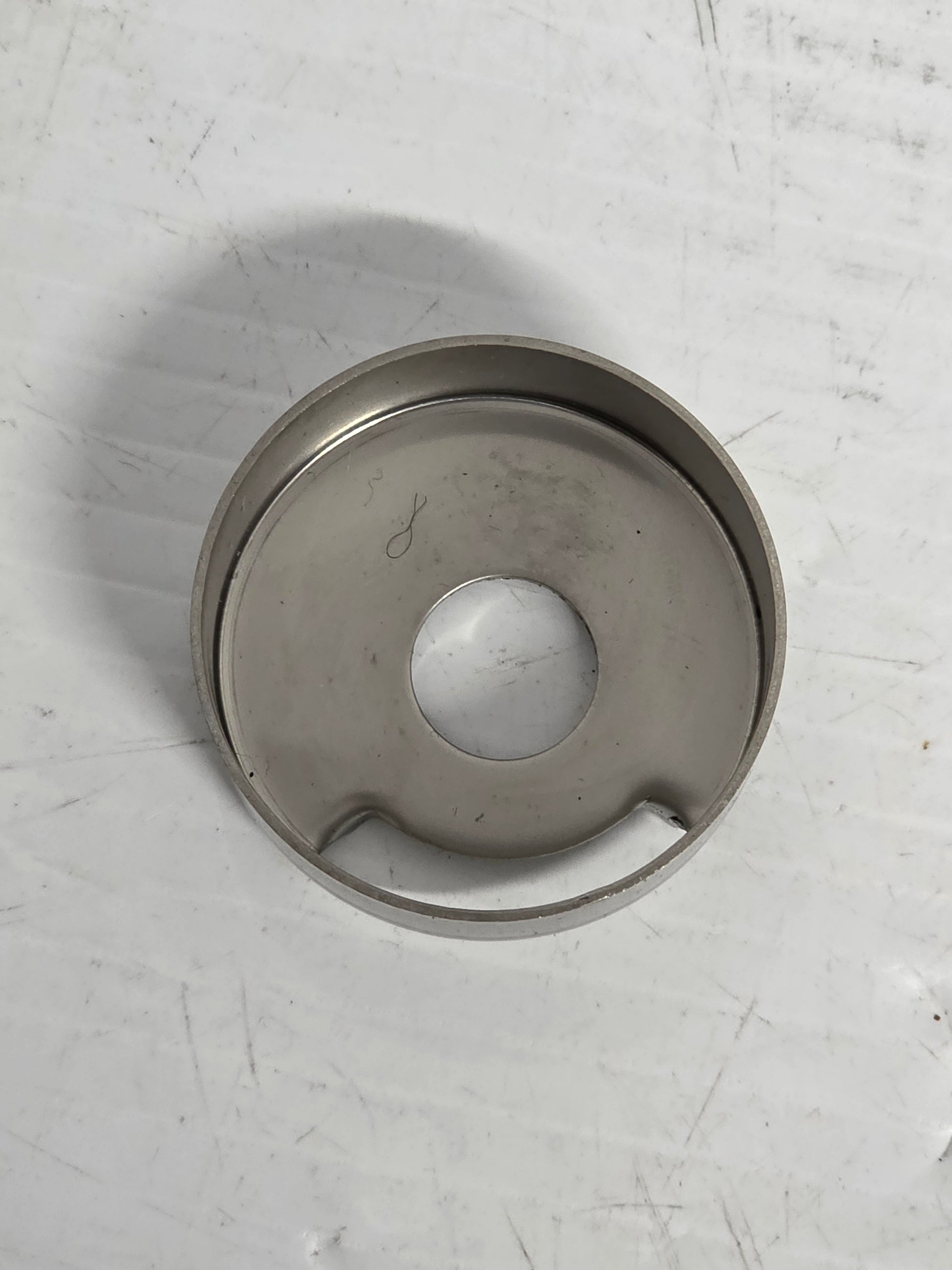

Genuine Yamaha Water Pump Cartridge Insert Cup - Part Number: 6E0-44322-02
A genuine Yamaha stainless water-pump insert cup for selected 4HP and 5HP two-stroke outboards and early F4 four-stroke engines.
The cup fits inside the pump housing and provides the smooth working surface against which the flexible impeller blades rotate.
⚙️ Key Features
- Genuine Yamaha OEM cartridge insert cup
- Correct Yamaha part number 6E0-44322-02
- Stainless impeller working surface
- Used in 6E0-series portable-outboard water pumps
- Parsun and complete aftermarket pump-kit replacements available
🚤 Compatibility
Commonly used on
- Yamaha 6E0-series portable-outboard water pumps
- Parsun F4 and F5 lower-unit water pumps
Typically suits
- Engine models:
- Yamaha 4A
- Yamaha 4B
- Yamaha 4AC
- Yamaha 4AM
- Yamaha 5C
- Yamaha 5CMH
- Yamaha F4A four-stroke - approximately 1998-2009
- Parsun F4 and F5 lower units using PAF4-03000017
- HP Range: 4HP - 5HP
- Engine Type: Yamaha / Parsun two-stroke and early four-stroke outboard
- Year Range: Approximately 1984 - 2009
🔌 Function
The insert cup provides a smooth, accurately shaped chamber for the flexible impeller. It allows the blades to create suction and discharge pressure without excessive friction.
⚠️ Common Signs of Failure
- Cup is scored, grooved or pitted
- Engine overheats despite a new impeller
- Pump output is weak at low engine speed
- Insert cup is corroded or distorted
- Impeller blades show rapid or uneven wear
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 6E0-44322-02 current Yamaha OEM service reference
- 68D-G4322-00 related alternate Yamaha service reference
- 6E0-44322-40 related chrome-plated service reference
OEM / Related Numbers
- 6E0-44322-02
- 6E0-44322-02-00
- 6E0443220200
- 68D-G4322-00
- 6E0-44322-40
- 6E0-44323-00 related cartridge outer plate
- 6E0-44352-00 related impeller
- 6E0-W0078-A2 related water-pump repair kit
Aftermarket / Verified Equivalents
- Parsun: PAF4-03000017
- Parsun: F4-03000017
- Included in Recmar: REC6E0-W0078-A2 pump kit
- Included in Sea Sierra: 6E0-W0078-series complete kit
📦 Condition
- Genuine Yamaha part
- Brand new
- Supplied in original or equivalent packaging
