🔧 Product Description

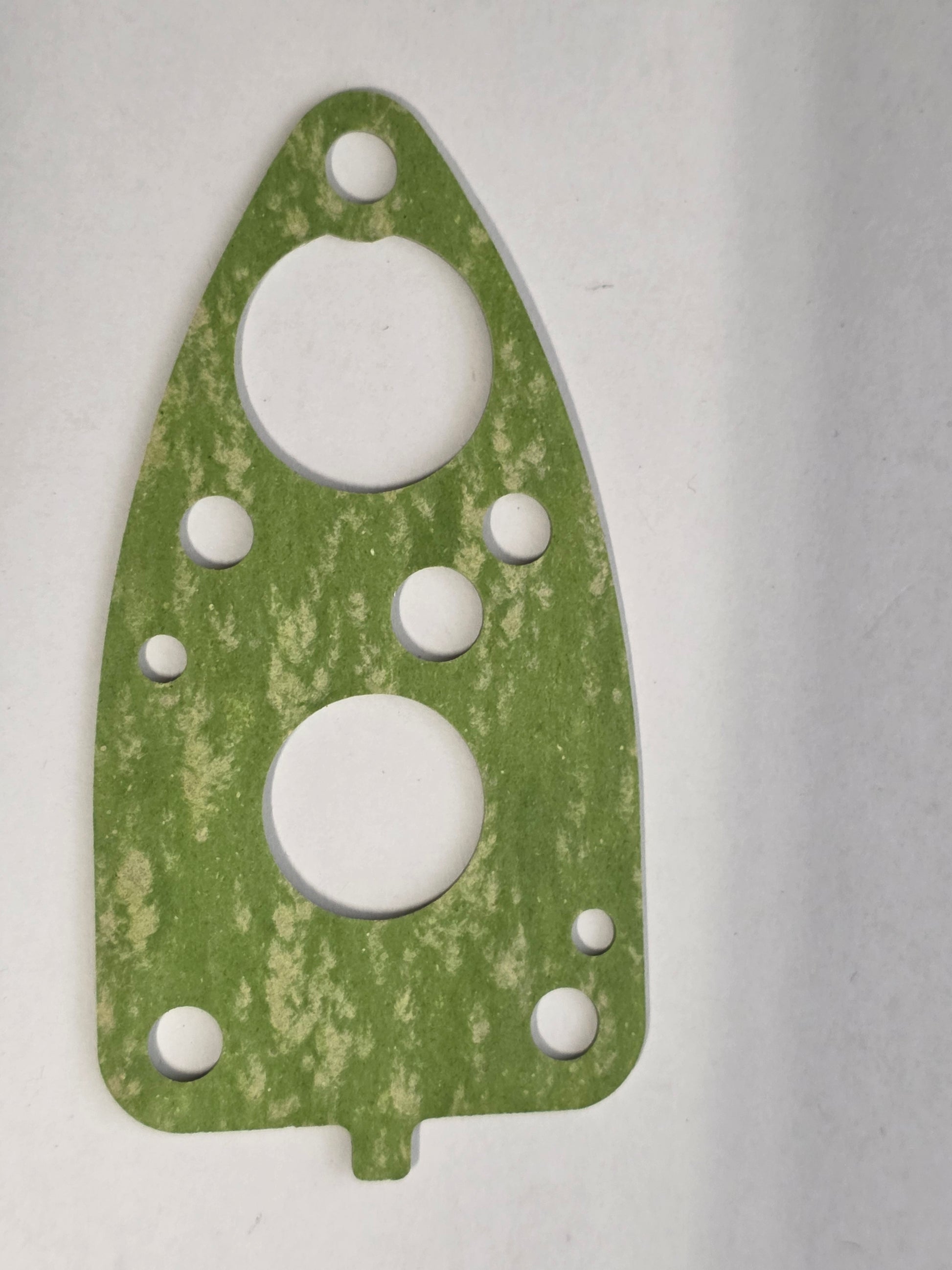

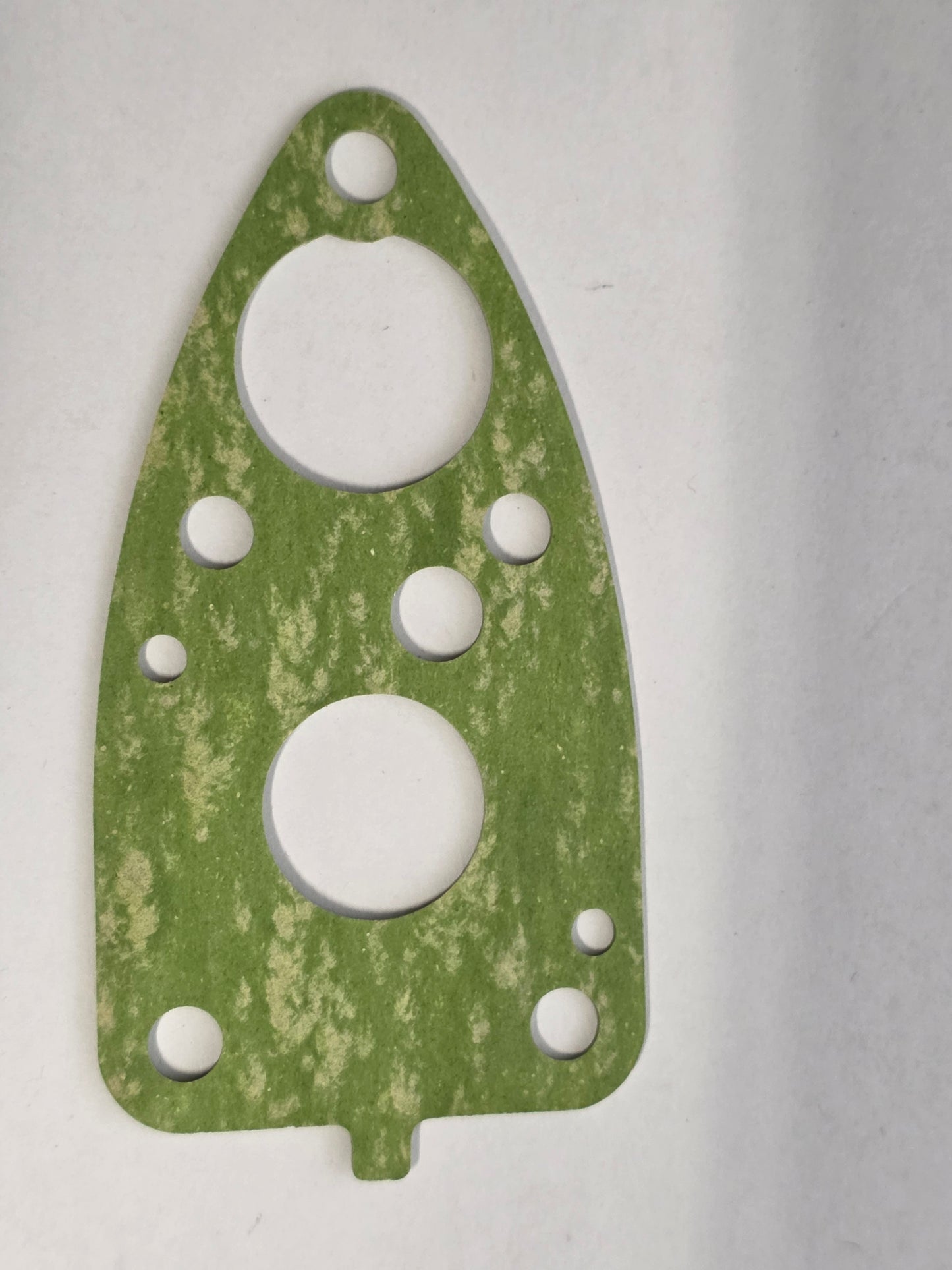

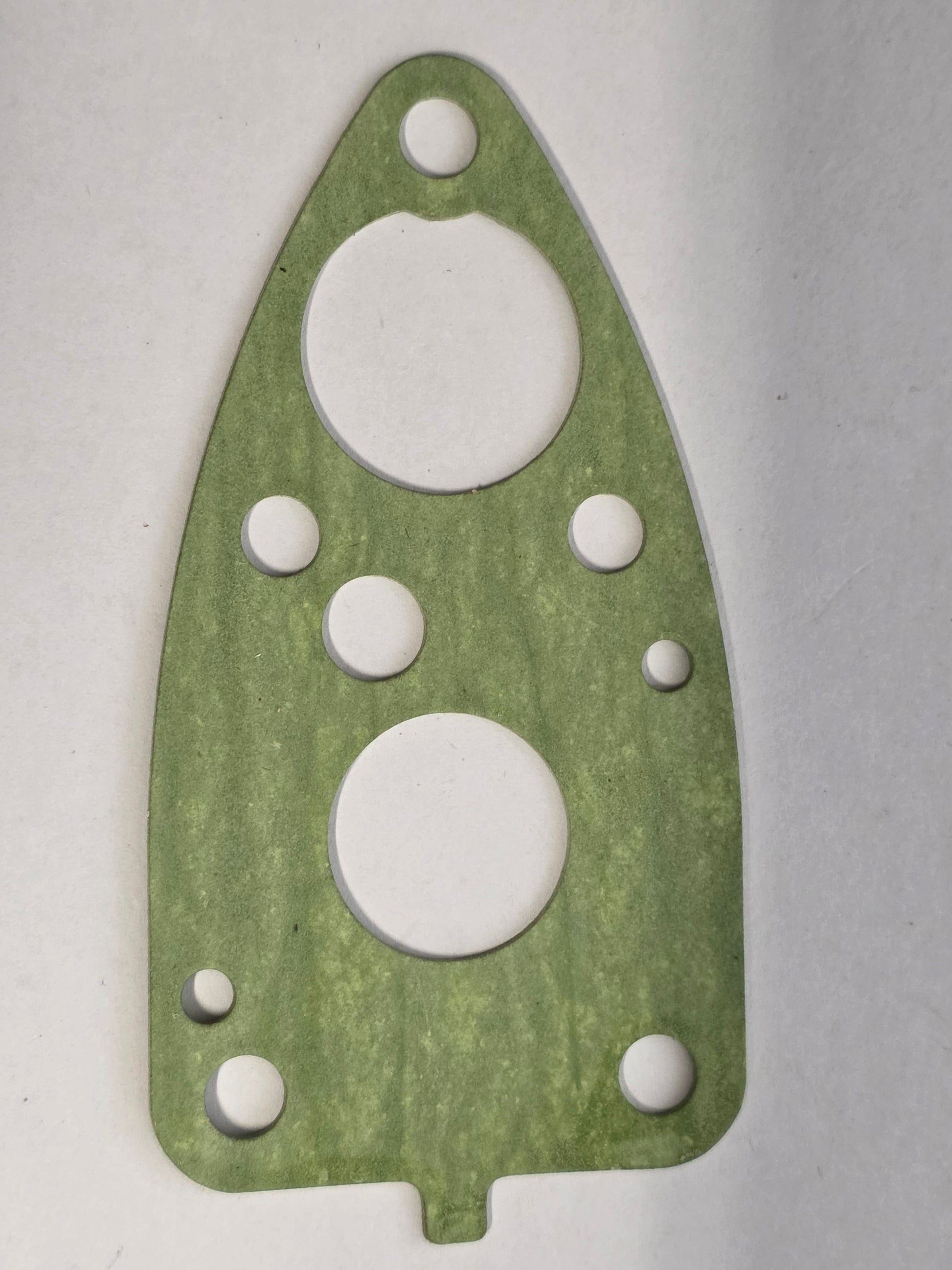

Genuine Yamaha Lower Casing Seal Retainer Gasket - Part Number: 6E0-45315-A0
A genuine Yamaha lower-casing gasket fitted beneath the driveshaft seal-retainer plate on selected 4HP and 5HP outboards.
The gasket seals the retainer plate to the gearcase, preventing gear lubricant from leaking and water from entering around the upper driveshaft-seal assembly.
⚙️ Key Features
- Genuine Yamaha OEM lower-casing gasket
- Correct Yamaha part number 6E0-45315-A0
- Seals the driveshaft oil-seal retainer plate
- Used on Yamaha 4HP and 5HP lower units
- Parsun and Selva-compatible replacements available
🚤 Compatibility
Commonly used on
- Yamaha and Parsun portable-outboard upper gearcase seal retainers
Typically suits
- Engine models:
- Yamaha 4A from approximately 1996 onward
- Yamaha 4B
- Yamaha 4AC and 4AM
- Yamaha 5C from approximately 1996 onward
- Yamaha F4A four-stroke - approximately 1998-2009
- Parsun F4 and F5 lower units using PAF4-03000011
- HP Range: 4HP - 5HP
- Engine Type: Yamaha / Parsun two-stroke and early four-stroke outboard
- Year Range: Approximately 1996 - 2009 for documented applications
🔌 Function
The gasket seals the driveshaft seal-retainer plate to the lower casing, retaining gear oil and preventing water intrusion.
⚠️ Common Signs of Failure
- Gear lubricant leaks beneath the water-pump base
- Lower-unit oil becomes milky
- Gearcase fails pressure or vacuum testing
- Gasket tears when the retainer plate is removed
- Corrosion prevents the retainer from seating flat
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 6E0-45315-A0 current Yamaha OEM service reference
- 6E0-45315-00 earlier related gasket reference
- 68D-G5315-A0 related later service reference
OEM / Related Numbers
- 6E0-45315-A0
- 6E0-45315-A0-00
- 6E045315A000
- 6E0-45315-00
- 68D-G5315-A0
- 93101-13M12 related driveshaft oil seals
- 93210-48214 related retainer O-ring
Aftermarket / Verified Equivalents
- Parsun: PAF4-03000011
- Parsun: F4-03000011
- Selva: 6E0-45315-A0 replacement gasket
- Marine Spare Parts: PAF4-03000011
- Specialist Small Craft: 6E0-45315-A0 replacement gasket
📦 Condition
- Genuine Yamaha part
- Brand new
- Supplied in original or equivalent packaging
