• 6E5-11325-00 Yamaha Anode Trapezium | Genuine OEM Yamaha Outboard Part
1 1

6E5-11325-00 Yamaha Anode Trapezium | Genuine OEM Yamaha Outboard Part

6E5-11325-00 Yamaha Anode Trapezium | Genuine OEM Yamaha Outboard Part

$6.50 AUD
$6.50 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

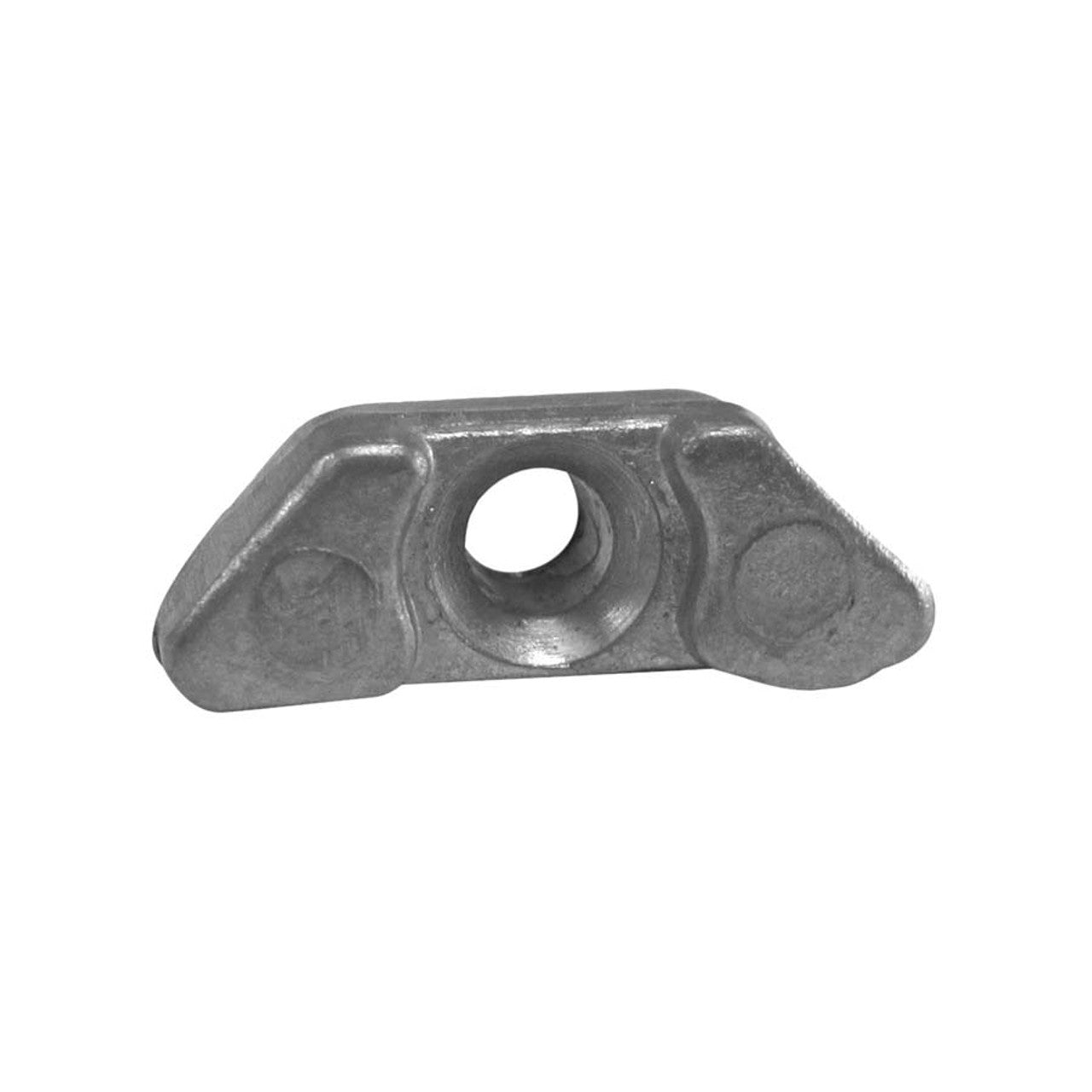

Genuine Yamaha Internal Trapezium Engine Anode - Part Number: 6E5-11325-00

A genuine Yamaha internal sacrificial anode fitted inside the cylinder block, exhaust cover or cooling-water jacket of selected Yamaha outboards.

The anode corrodes preferentially to the surrounding aluminium casting, protecting internal cooling passages from galvanic and electrolytic corrosion.

⚙️ Key Features

  • Genuine Yamaha OEM internal engine anode
  • Correct Yamaha part number 6E5-11325-00
  • Trapezium-shaped internal block anode
  • Protects cylinder-block and exhaust-cover water passages
  • Cross-references with Recmar, Tecnoseal, Martyr and Parsun anodes

🚤 Compatibility

Commonly used on

  • Yamaha internal cylinder-block and exhaust-cover cooling passages
  • Corresponding Parsun internal-anode applications

Typically suits

  • Engine models:
  • Yamaha F9.9 high-thrust applications
  • Yamaha F13.5
  • Yamaha F15
  • Yamaha F20
  • Yamaha F75 and F80
  • Yamaha F100
  • Yamaha F115
  • Yamaha F150
  • Yamaha F175
  • Yamaha F200
  • Yamaha F225
  • Yamaha F250
  • Yamaha F300
  • Yamaha F350
  • Yamaha 90HP, 100HP, 115HP, 130HP and 140HP V4 two-stroke engine-block applications
  • Parsun 9.9HP and 15HP applications using PAF15-07010026
  • HP Range: 9.9HP - 350HP, dependent on cylinder-block design
  • Engine Type: Yamaha two-stroke and four-stroke outboard
  • Year Range: Engine-family and cylinder-block dependent

🔌 Function

The anode sacrifices its own metal to protect internal aluminium cooling passages from corrosion.

⚠️ Common Signs of Failure

  • Anode has lost approximately half of its original mass
  • Anode is deeply pitted, crumbling or consumed
  • White corrosion appears inside the water jacket
  • Cooling passage contains loose anode material
  • Internal anode has not been inspected during scheduled service

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 6E5-11325-00 current Yamaha OEM service reference

OEM / Related Numbers

  • 6E5-11325-00
  • 6E5-11325-00-00
  • 6E5113250000
  • Related anode retaining screw and exhaust-cover gasket references
  • 6E5-11381-series related exhaust-cover gasket
  • 6G5-11382-series related cylinder-block gasket

Aftermarket / Verified Equivalents

  • Recmar Zinc: REC6E5-11325-00
  • Recmar Aluminium: REC6E5-11325-00AL
  • Tecnoseal: 01152
  • Tecnoseal: TEN01152
  • Martyr: CM15026
  • Martyr: CM6E5-11325
  • Parsun: F15-07010026
  • Parsun: PAF15-07010026

📦 Condition

  • Genuine Yamaha part
  • Brand new
  • Supplied in original or equivalent packaging
