• 6E5-12411-02 Yamaha Thermostat | Genuine OEM Yamaha Outboard Part
1 1

6E5-12411-02 Yamaha Thermostat | Genuine OEM Yamaha Outboard Part

6E5-12411-02 Yamaha Thermostat | Genuine OEM Yamaha Outboard Part

$54.74 AUD
$54.74 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

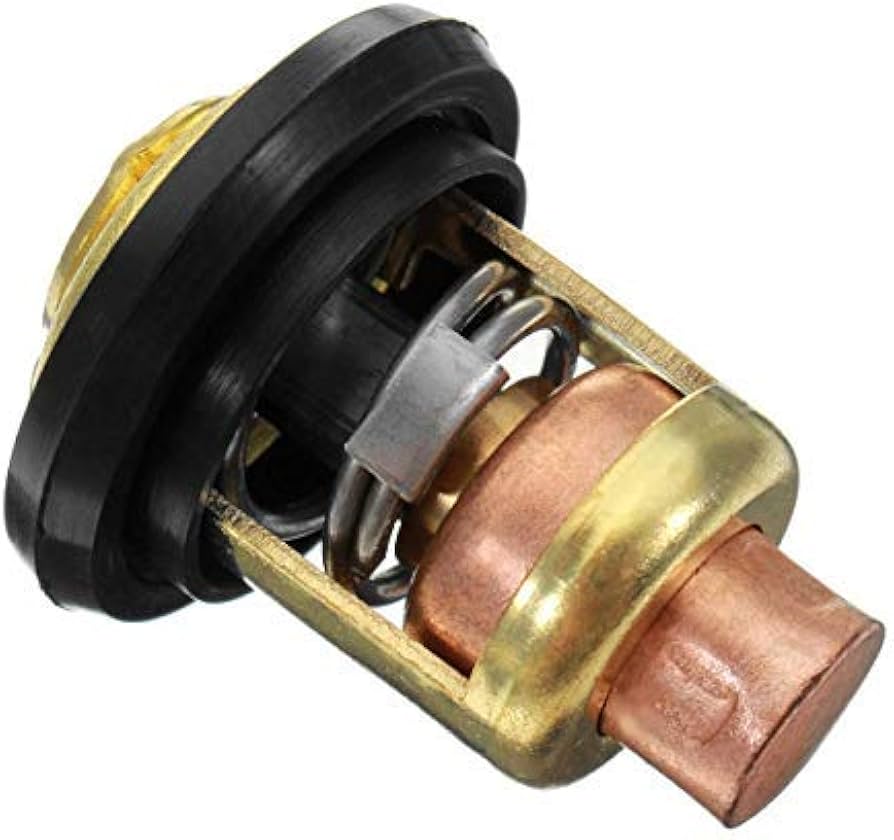

Genuine Yamaha Outboard Thermostat - Part Number: 6E5-12411-02

A genuine Yamaha cooling-system thermostat for selected portable, commercial and mid-range two-stroke outboards.

The thermostat regulates cooling-water flow according to engine temperature, helping the engine warm correctly while preventing excessive operating temperature.

⚙️ Key Features

  • Genuine Yamaha OEM cooling-system thermostat
  • Correct Yamaha part number 6E5-12411-02
  • Supersedes earlier 6E5-12411-00 and 6E5-12411-01 references
  • Commonly catalogued with a 50°C to 60°C opening specification
  • Cross-references with Sierra, Recmar, GLM, Honda, Mercury and Parsun thermostats

🚤 Compatibility

Commonly used on

  • Yamaha portable and mid-range two-stroke cooling systems
  • Yamaha-based Japanese Mariner and corresponding Parsun applications

Typically suits

  • Engine models:
  • Yamaha 3A and Malta 3HP
  • Yamaha 4A and 4B
  • Yamaha 5C
  • Yamaha 6C and 6D
  • Yamaha 8C and 8F
  • Yamaha 20D
  • Yamaha E25A
  • Yamaha 25A, 25B, E25B, 25J, 25N and 25V
  • Yamaha 30D, 30G, 30H and E30H
  • Yamaha C30 from approximately 1993 onward
  • Yamaha C40 two-cylinder - approximately 1991-1997
  • Yamaha 40Q two-cylinder - approximately 1990-1998
  • Yamaha 40X and E40X
  • Yamaha C55 two-cylinder - approximately 1989-1995
  • Yamaha 55B two-cylinder - approximately 1992-2003
  • Yamaha 115A, 140A, 150A, 175A, 200A and 220A applications using the 6E5 thermostat family
  • HP Range: 3HP - 220HP, dependent on cooling-system design
  • Engine Type: Yamaha carburetted two-stroke outboard
  • Year Range: Approximately 1980s - 2010s, dependent on engine family

🔌 Function

The thermostat restricts cooling-water flow while the engine warms and opens as operating temperature rises.

⚠️ Common Signs of Failure

  • Engine overheats because the thermostat remains closed
  • Engine runs excessively cold because the thermostat remains open
  • Temperature fluctuates during operation
  • Salt or corrosion restricts thermostat movement
  • Poor idle quality or excessive fuel use during warm-up

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 6E5-12411-02 → Supersedes 6E5-12411-01
  • 6E5-12411-01 → Supersedes 6E5-12411-00
  • 6E5-12411-00 earlier Yamaha thermostat reference
  • 677-12411-00 earlier related Yamaha thermostat reference

OEM / Related Numbers

  • 6E5-12411-02
  • 6E5-12411-02-00
  • 6E5124110200
  • 6E5-12411-01
  • 6E5-12411-00
  • 677-12411-00
  • Honda Marine: 19300-881-761
  • Mercury / Mariner: 11919001
  • Mercury / Mariner: 11919M
  • Mercury / Mariner: 83282M

Aftermarket / Verified Equivalents

  • Sierra: 18-3623
  • Recmar: REC19300881761
  • GLM: 13320
  • Honda Marine: 19300-881-761
  • Mercury / Mariner: 11919001
  • Mercury / Mariner: 11919M
  • Mercury / Mariner: 83282M
  • Parsun: T15-04000010

📦 Condition

  • Genuine Yamaha part
  • Brand new
  • Supplied in original or equivalent packaging
