6E5-12411-30 Yamaha Thermostat | Genuine OEM Yamaha Outboard Part
6E5-12411-30 Yamaha Thermostat | Genuine OEM Yamaha Outboard Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

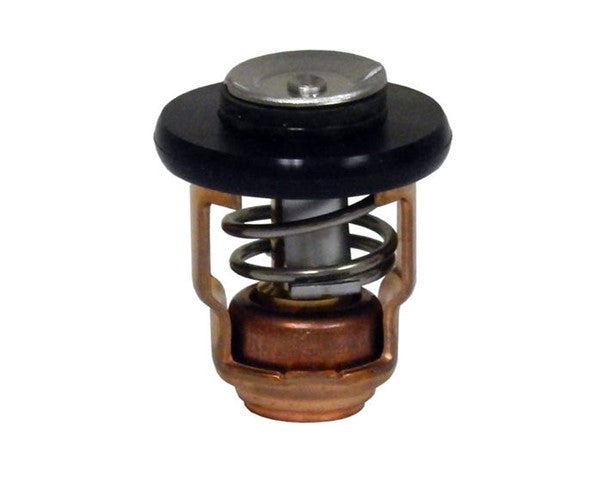

Genuine Yamaha 50°C Two-Stroke Outboard Thermostat - Part Number: 6E5-12411-30
A genuine Yamaha thermostat calibrated to approximately 50°C / 122°F for selected Yamaha two-stroke outboards.
The thermostat regulates cooling-water circulation through the cylinder block and cylinder head. It restricts flow during warm-up before opening at its calibrated temperature to help maintain stable combustion, idle quality and operating temperature.
⚙️ Key Features
- Genuine Yamaha OEM marine thermostat
- Correct current Yamaha part number 6E5-12411-30
- Approximately 50°C / 122°F opening temperature
- Supplied with the thermostat sealing grommet where packaged by Yamaha
- Cross-references with Sierra and Mallory marine thermostats
🚤 Compatibility
Commonly used on
- Yamaha two-stroke cylinder-head cooling systems
- Conventional, Saltwater Series, VMAX and HPDI outboard engines
Typically suits
- Engine models:
- Yamaha 9.9F two-stroke
- Yamaha 15F two-stroke
- Yamaha 25N two-stroke
- Yamaha 30D two-stroke
- Yamaha 40V and C40 two-stroke
- Yamaha 50HP two-stroke applications using the 6E5 thermostat family
- Yamaha 60HP and 70HP two-stroke applications where specified
- Yamaha 75C two-stroke
- Yamaha 90A / 90TLR two-stroke
- Yamaha 100A two-stroke
- Yamaha 115C two-stroke
- Yamaha 130B two-stroke
- Yamaha 140C two-stroke
- Yamaha 150F, V150, VX150, DX150 and LZ150
- Yamaha 175D, VZ175 and Z175
- Yamaha 200F, 200G, LZ200, SX200, VX200, VZ200 and Z200
- Yamaha 225D, 225G, LX225, SX225 and VX225
- Yamaha 250A, 250B, LX250, SX250 and VX250
- Yamaha HPDI Z150P / Z150Q, Z175G and Z200N / Z200P
- HP Range: Approximately 9.9HP - 250HP
- Engine Type: Yamaha carburetted, EFI and HPDI two-stroke outboard
- Year Range: Approximately 1984-2006, dependent on engine model and production code
🔌 Function
The thermostat controls cooling-water flow so the powerhead reaches operating temperature promptly and remains within its intended temperature range.
⚠️ Common Signs of Failure
- Engine overheats because the thermostat remains closed
- Engine runs excessively cold because the thermostat remains open
- Unstable cylinder-head temperature
- Poor idle or excessive smoke during warm-up
- Salt, corrosion or debris prevents the valve moving freely
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 6E5-12411-30 → Supersedes 6E5-12411-20
- 6E5-12411-20 → Supersedes 6E5-12411-10
- 6E5-12411-10 → Replaces 688-12411-11
- 688-12411-11 → Supersedes 688-12411-10
- 688-12411-10 → Supersedes 688-12411-01
- 688-12411-01 → Supersedes 688-12411-00
OEM / Related Numbers
- 6E5-12411-30
- 6E5-12411-30-00
- 6E5-12411-20
- 6E5-12411-10
- 688-12411-11
- 688-12411-10
- 688-12411-01
- 688-12411-00
- 6H3-12411-11 related thermostat reference
Aftermarket / Verified Equivalents
- Sierra: 18-3540
- Sierra: 18-3623
- Mallory: 9-43035
- Offshore Marine Parts: 75107500
- Aftermarket 50°C thermostat: 6E5-12411-30 replacement
📦 Condition
- Genuine Yamaha part
- Brand new
- Supplied in original or equivalent packaging
